1gru

SOLUTION STRUCTURE OF GROES-ADP7-GROEL-ATP7 COMPLEX BY CRYO-EM

Method: ELECTRON MICROSCOPY D_max: 194.1 Å Quality: GOOD

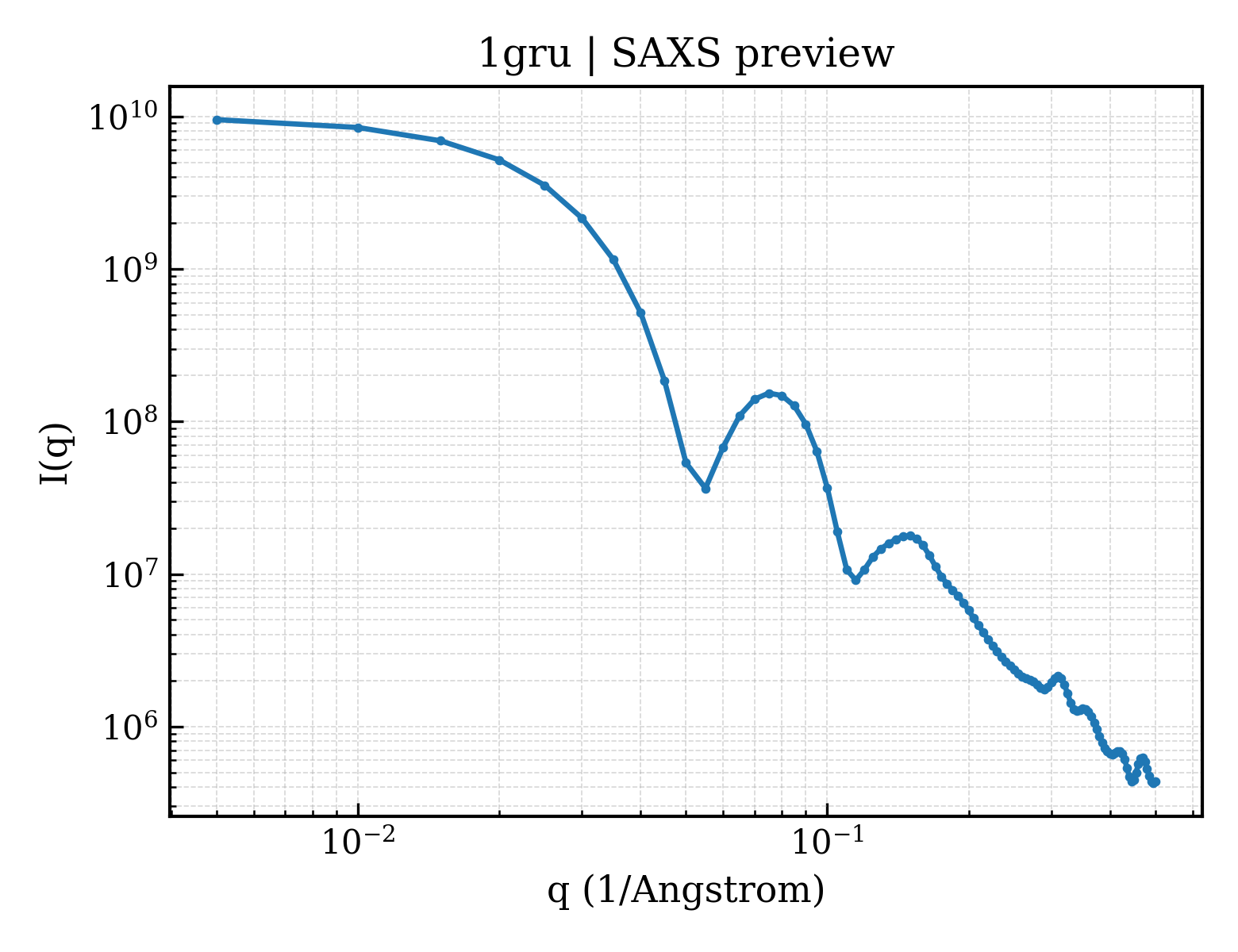

SAXS 散射曲线 SAXS Profile

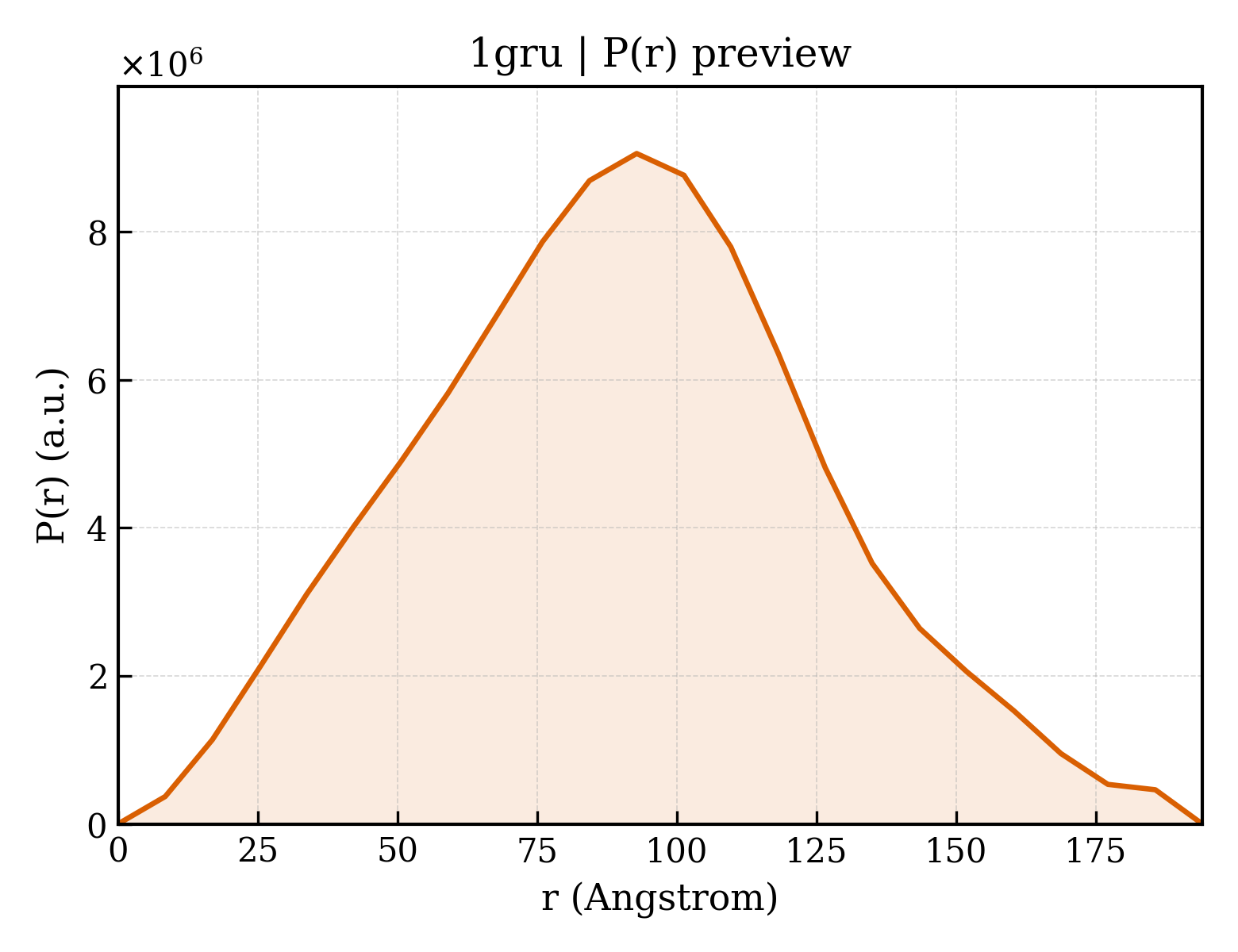

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1gru
沉积日期 deposition_date	2001-12-16
结构标题 title	SOLUTION STRUCTURE OF GROES-ADP7-GROEL-ATP7 COMPLEX BY CRYO-EM
关键词 keywords	CHAPERONE, CHAPERONIN, HSP60, GROEL-GROES, MOLECULAR CHAPERONE, ADP; CHAPERONE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	68.80 Å
回转半径 Rg (电子) rg_electron	68.51 Å
零角强度 I(0) i0	9899920000.00
分子量 molecular_weight	838840.0 kDa
排除体积 excluded_volume	1051000 Å³
包络体积 envelope_volume	1811300 Å³
水化壳体积 shell_volume	213930 Å³
包络直径 envelope_diameter	209.5 Å
壳层 Rg shell_rg	77.46 Å
包络 Rg envelope_rg	64.54 Å
形状 Rg shape_rg	68.54 Å
总 Rg total_rg	68.55 Å
总原子数 total_atoms	58688
残基数 n_residues	8029
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	194.1 Å
Rg (实空间) rg_real	68.53 Å
Rg 误差 (实空间) rg_real_error	0.84 Å
I(0) (实空间) i0_real	9.8990e+09
I(0) 误差 (实空间) i0_real_error	1.9450e+08
Rg (倒空间) rg_reciprocal	69.63 Å
I(0) (倒空间) i0_reciprocal	9920000000.0000
解质量估计 total_estimate	0.8295
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	92.8 Å
偏度 Skewness skewness	0.130
峰度 Kurtosis kurtosis	-0.309
角度范围 angular_range	— – 0.1150 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	2757000000.0000
实空间数据点数 n_real_points	24
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.932; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.941; Smooth: 0.043

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	GROEL
分子量 formula_weight	57260.5 kDa
来源方法 src_method	man
拷贝数 entity_count	14

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N
原子数 atom_count	58688

AAKDVKFGNDARVKMLRGVNVLADAVKVTLGPKGRNVVLDKSFGAPTITKDGVSVAREIELEDKFENMGAQMVKEVASKANDAAGDGTTTATVLAQAIITEGLKAVAAGMNPMDLKRGIDKAVTAAVEELKALSVPCSDSKAIAQVGTISANSDETVGKLIAEAMDKVGKEGVITVEDGTGLQDELDVVEGMQFDRGYLSPYFINKPETGAVELESPFILLADKKISNIREMLPVLEAVAKAGKPLLIIAEDVEGEALATLVVNTMRGIVKVAAVKAPGFGDRRKAMLQDIATLTGGTVISEEIGMELEKATLEDLGQAKRVVINKDTTTIIDGVGEEAAIQGRVAQIRQQIEEATSDYDREKLQERVAKLAGGVAVIKVGAATEVEMKEKKARVEDALHATRAAVEEGVVAGGGVALIRVASKLADLRGQNEDQNVGIKVALRAMEAPLRQIVLNCGEEPSVVANTVKGGDGNYGYNAATEEYGNMIDMGILDPTKVTRSALQYAASVAGLMITTECMVTDLPKNDAADLGAAGGMGGMGGMGGMM

来源 Source

来源生物 organism	ESCHERICHIA COLI
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 polymer

描述 description	GROES
分子量 formula_weight	10400.9 kDa
来源方法 src_method	man
拷贝数 entity_count	7

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O,P,Q,R,S,T,U

MNIRPLHDRVIVKRKEVETKSAGGIVLTGSAAAKSTRGEVLAVGNGRILENGEVKPLDVKVGDIVIFNDGYGVKSEKIDNEEVLIMSESDILAIVEA

来源 Source

来源生物 organism	ESCHERICHIA COLI
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	ESCHERICHIA COLI

▼

6. 折叠分类 (SCOP + CATH) 21 domains

SCOP 2.08 (21 domains)

结构域编号 domain_id	d1grua_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.16 — GroE chaperon
超家族 Superfamily superfamily	i.16.1 — GroE chaperon
家族 Family family	i.16.1.1 — GroE chaperon

结构域编号 domain_id	d1grub_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.16 — GroE chaperon
超家族 Superfamily superfamily	i.16.1 — GroE chaperon
家族 Family family	i.16.1.1 — GroE chaperon

结构域编号 domain_id	d1gruc_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.16 — GroE chaperon
超家族 Superfamily superfamily	i.16.1 — GroE chaperon
家族 Family family	i.16.1.1 — GroE chaperon

结构域编号 domain_id	d1grud_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.16 — GroE chaperon
超家族 Superfamily superfamily	i.16.1 — GroE chaperon
家族 Family family	i.16.1.1 — GroE chaperon

结构域编号 domain_id	d1grue_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.16 — GroE chaperon
超家族 Superfamily superfamily	i.16.1 — GroE chaperon
家族 Family family	i.16.1.1 — GroE chaperon

结构域编号 domain_id	d1gruf_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.16 — GroE chaperon
超家族 Superfamily superfamily	i.16.1 — GroE chaperon
家族 Family family	i.16.1.1 — GroE chaperon

结构域编号 domain_id	d1grug_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.16 — GroE chaperon
超家族 Superfamily superfamily	i.16.1 — GroE chaperon
家族 Family family	i.16.1.1 — GroE chaperon

结构域编号 domain_id	d1gruh_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.16 — GroE chaperon
超家族 Superfamily superfamily	i.16.1 — GroE chaperon
家族 Family family	i.16.1.1 — GroE chaperon

结构域编号 domain_id	d1grui_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.16 — GroE chaperon
超家族 Superfamily superfamily	i.16.1 — GroE chaperon
家族 Family family	i.16.1.1 — GroE chaperon

结构域编号 domain_id	d1gruj_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.16 — GroE chaperon
超家族 Superfamily superfamily	i.16.1 — GroE chaperon
家族 Family family	i.16.1.1 — GroE chaperon

结构域编号 domain_id	d1gruk_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.16 — GroE chaperon
超家族 Superfamily superfamily	i.16.1 — GroE chaperon
家族 Family family	i.16.1.1 — GroE chaperon

结构域编号 domain_id	d1grul_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.16 — GroE chaperon
超家族 Superfamily superfamily	i.16.1 — GroE chaperon
家族 Family family	i.16.1.1 — GroE chaperon

结构域编号 domain_id	d1grum_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.16 — GroE chaperon
超家族 Superfamily superfamily	i.16.1 — GroE chaperon
家族 Family family	i.16.1.1 — GroE chaperon

结构域编号 domain_id	d1grun_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.16 — GroE chaperon
超家族 Superfamily superfamily	i.16.1 — GroE chaperon
家族 Family family	i.16.1.1 — GroE chaperon

结构域编号 domain_id	d1gruo_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.16 — GroE chaperon
超家族 Superfamily superfamily	i.16.1 — GroE chaperon
家族 Family family	i.16.1.1 — GroE chaperon

结构域编号 domain_id	d1grup_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.16 — GroE chaperon
超家族 Superfamily superfamily	i.16.1 — GroE chaperon
家族 Family family	i.16.1.1 — GroE chaperon

结构域编号 domain_id	d1gruq_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.16 — GroE chaperon
超家族 Superfamily superfamily	i.16.1 — GroE chaperon
家族 Family family	i.16.1.1 — GroE chaperon

结构域编号 domain_id	d1grur_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.16 — GroE chaperon
超家族 Superfamily superfamily	i.16.1 — GroE chaperon
家族 Family family	i.16.1.1 — GroE chaperon

结构域编号 domain_id	d1grus_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.16 — GroE chaperon
超家族 Superfamily superfamily	i.16.1 — GroE chaperon
家族 Family family	i.16.1.1 — GroE chaperon

结构域编号 domain_id	d1grut_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.16 — GroE chaperon
超家族 Superfamily superfamily	i.16.1 — GroE chaperon
家族 Family family	i.16.1.1 — GroE chaperon

结构域编号 domain_id	d1gruu_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.16 — GroE chaperon
超家族 Superfamily superfamily	i.16.1 — GroE chaperon
家族 Family family	i.16.1.1 — GroE chaperon

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	1

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	12.500 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	12.50 Å
分辨率测定方法 resolution_method	MODEL BASED ANGULAR REFINEMENT
颗粒数 num_particles	1448

fit	/app/data/saxs_computation/gr/1gru/1gru.fit
pddf	/app/data/pr_computation/gr/1gru/1gru.pr.out
profile	/app/data/saxs_computation/gr/1gru/1gru.dat
