SAXSdb — 1gsk

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SPORE COAT PROTEIN A

BACILLUS SUBTILIS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	GLYCEROL × 4 COPPER (II) ION × 1 CU-O-CU LINKAGE × 1 CU-O LINKAGE × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	COTA_BACSU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–513； UniProt 1–513

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1gsk
Deposition date deposition_date	2002-01-08
Structure title title	Crystal structure of CotA, an endospore coat protein from Bacillus subtilis
Keywords keywords	SPORULATION, LACCASE, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1gsk__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

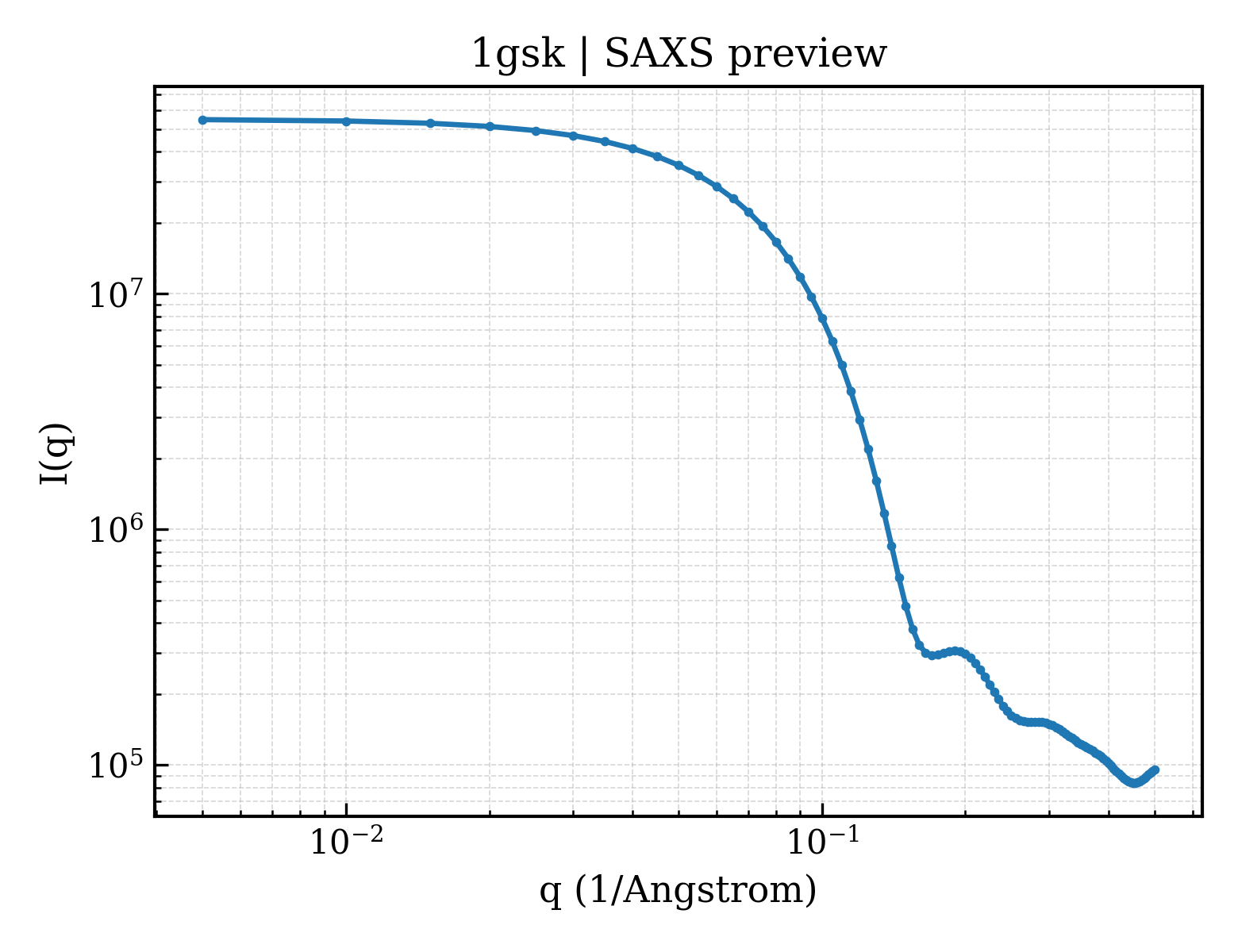

1gsk__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

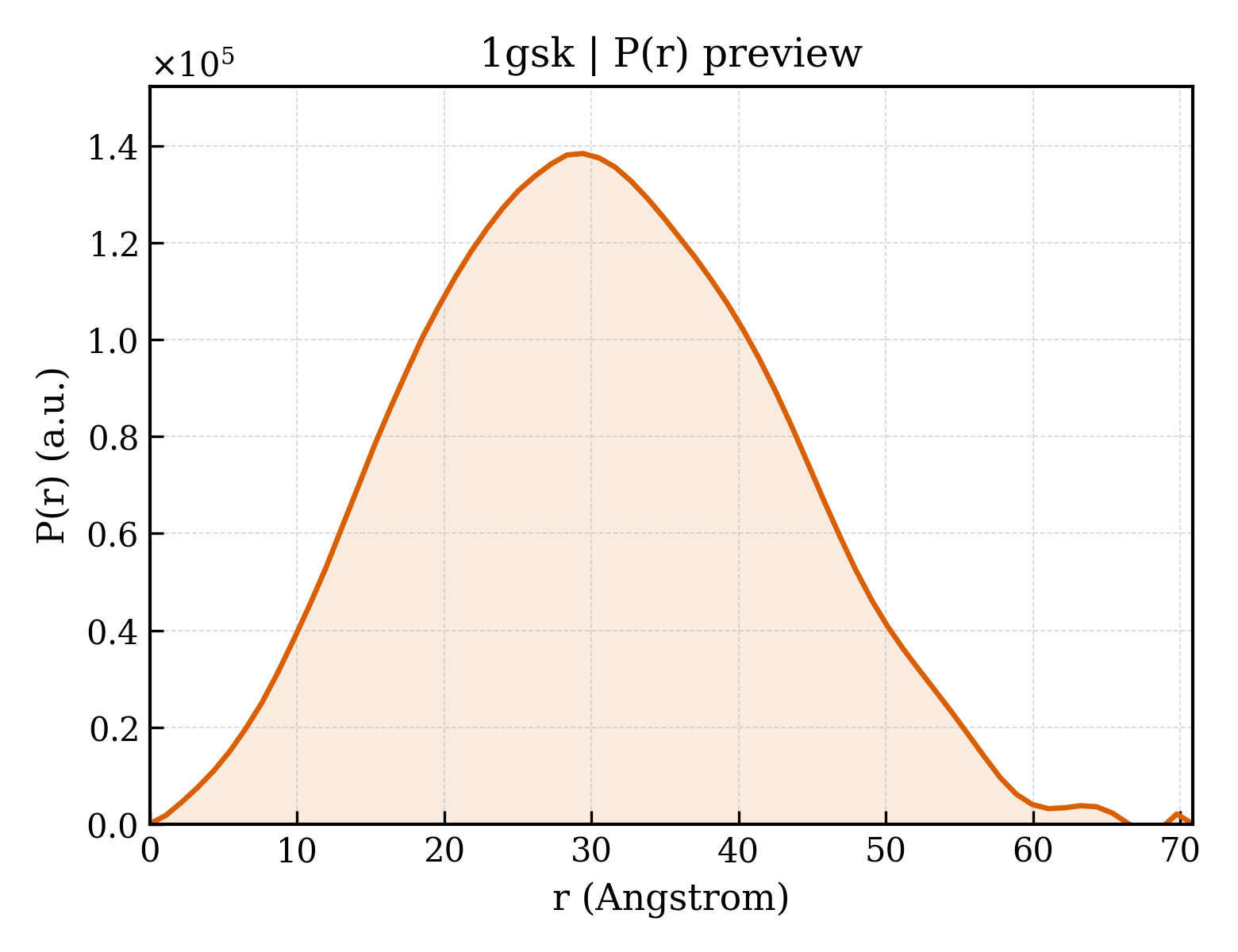

1gsk__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.16 Å
Rg (electron density)	22.02 Å
Total Rg	22.92 Å
Atom count	4074
Residues	502
Excluded volume	72193 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1gsk__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	SPORE COAT PROTEIN A
Molecular weight formula_weight	58574.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4554

MTLEKFVDALPIPDTLKPVQQSKEKTYYEVTMEECTHQLHRDLPPTRLWGYNGLFPGPTIEVKRNENVYVKWMNNLPSTHFLPIDHTIHHSDSQHEEPEVKTVVHLHGGVTPDDSDGYPEAWFSKDFEQTGPYFKREVYHYPNQQRGAILWYHDHAMALTRLNVYAGLVGAYIIHDPKEKRLKLPSDEYDVPLLITDRTINEDGSLFYPSAPENPSPSLPNPSIVPAFCGETILVNGKVWPYLEVEPRKYRFRVINASNTRTYNLSLDNGGDFIQIGSDGGLLPRSVKLNSFSLAPAERYDIIIDFTAYEGESIILANSAGCGGDVNPETDANIMQFRVTKPLAQKDESRKPKYLASYPSVQHERIQNIRTLKLAGTQDEYGRPVLLLNNKRWHDPVTETPKVGTTEIWSIINPTRGTHPIHLHLVSFRVLDRRPFDIARYQESGELSYTGPAVPPPPSEKGWKDTIQAHAGEVLRIAATFGPYSGRYVWHCHILEHEDYDMMRPMDITDPHK

Source Source

Source organism organism	BACILLUS SUBTILIS
NCBI taxonomy ID ncbi_taxonomy_id	1423
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	COPPER (II) ION
Molecular weight formula_weight	63.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	CU-O-CU LINKAGE
Molecular weight formula_weight	143.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	CU-O LINKAGE
Molecular weight formula_weight	79.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	480

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1gska1
Class class	b — All beta proteins
Fold Fold fold	b.6 — Cupredoxin-like
Superfamily Superfamily superfamily	b.6.1 — Cupredoxins
Family Family family	b.6.1.3 — Multidomain cupredoxins

Domain ID domain_id	d1gska2
Class class	b — All beta proteins
Fold Fold fold	b.6 — Cupredoxin-like
Superfamily Superfamily superfamily	b.6.1 — Cupredoxins
Family Family family	b.6.1.3 — Multidomain cupredoxins

Domain ID domain_id	d1gska3
Class class	b — All beta proteins
Fold Fold fold	b.6 — Cupredoxin-like
Superfamily Superfamily superfamily	b.6.1 — Cupredoxins
Family Family family	b.6.1.3 — Multidomain cupredoxins

CATH v4.4 (3 domains)

Domain ID domain_id	1gskA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

Domain ID domain_id	1gskA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

Domain ID domain_id	1gskA03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

▶

Unit-cell length a length_a	102.051 Å
Unit-cell length b length_b	102.051 Å
Unit-cell length c length_c	136.393 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	1.700 Å
Low-resolution limit resolution_low	87.710 Å
R factor r_factor	0.1790
R_work r_work	0.1780
R_free r_free	0.1990
