1gto

HIGH RESOLUTION STRUCTURE OF A HYPERSTABLE HELICAL BUNDLE PROTEIN MUTANT

Method: X-RAY DIFFRACTION Dmax: 53.2 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ROP

Escherichia coli

UniProt P03051

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain A； UniProt 2–62 Mutation：M1G, D30G No other associated polymer X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions Resolution 1.82 Å R-free 0.280
2 Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain B； UniProt 2–62 Chain C； UniProt 2–62 Mutation：M1G, D30G No other associated polymer X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions Resolution 1.82 Å R-free 0.280

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1GTO Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1B6Q ALANINE 31 PROLINE MUTANT OF ROP PROTEIN Deposited 1999-01-16 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–63（63 aa）
Mutation：A31P No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.3；pH 4.3
Resolution 1.80 Å R-free 0.240
1F4M P3(2) CRYSTAL STRUCTURE OF ALA2ILE2-6, A VERSION OF ROP WITH A REPACKED HYDROPHOBIC CORE AND A NEW FOLD. Deposited 2000-06-08 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–63（63 aa）
Chain B 1–63（63 aa）
Mutation：M1G,A8I,T19A,L22I,L26A,Q34I,C38A,L41I,L48I,C52A Mutation：M1G,A8I,T19A,L22I,L26A,Q34I,C38A,L41I,L48I,C52A CA CALCIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；MPD, calcium chloride, sodium HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 2.25 Å R-free 0.282
1F4M P3(2) CRYSTAL STRUCTURE OF ALA2ILE2-6, A VERSION OF ROP WITH A REPACKED HYDROPHOBIC CORE AND A NEW FOLD. Deposited 2000-06-08 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1–63（63 aa）
Chain D 1–63（63 aa）
Mutation：M1G,A8I,T19A,L22I,L26A,Q34I,C38A,L41I,L48I,C52A Mutation：M1G,A8I,T19A,L22I,L26A,Q34I,C38A,L41I,L48I,C52A CA CALCIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；MPD, calcium chloride, sodium HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 2.25 Å R-free 0.282
1F4M P3(2) CRYSTAL STRUCTURE OF ALA2ILE2-6, A VERSION OF ROP WITH A REPACKED HYDROPHOBIC CORE AND A NEW FOLD. Deposited 2000-06-08 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain E 1–63（63 aa）
Chain F 1–63（63 aa）
Mutation：M1G,A8I,T19A,L22I,L26A,Q34I,C38A,L41I,L48I,C52A Mutation：M1G,A8I,T19A,L22I,L26A,Q34I,C38A,L41I,L48I,C52A CA CALCIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；MPD, calcium chloride, sodium HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 2.25 Å R-free 0.282
1F4N C2 CRYSTAL STRUCTURE OF ALA2ILE2-6, A VERSION OF ROP WITH A REPACKED HYDROPHOBIC CORE AND A NEW FOLD. Deposited 2000-06-08 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–63（63 aa）
Chain B 1–63（63 aa）
Mutation：M1G,A8I,T19A,L22I,L26A,Q34I,C38A,L41I,L48I,C52A Mutation：M1G,A8I,T19A,L22I,L26A,Q34I,C38A,L41I,L48I,C52A CA CALCIUM ION × 4 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；MPD, calcium chloride, sodium HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 1.90 Å R-free 0.237
1F4N C2 CRYSTAL STRUCTURE OF ALA2ILE2-6, A VERSION OF ROP WITH A REPACKED HYDROPHOBIC CORE AND A NEW FOLD. Deposited 2000-06-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–63（63 aa）
Chain B 1–63（63 aa）
Mutation：M1G,A8I,T19A,L22I,L26A,Q34I,C38A,L41I,L48I,C52A Mutation：M1G,A8I,T19A,L22I,L26A,Q34I,C38A,L41I,L48I,C52A CA CALCIUM ION × 8 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；MPD, calcium chloride, sodium HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 1.90 Å R-free 0.237
1GMG ALANINE 31 PROLINE MUTANT OF ROP PROTEIN, MONOCLINIC FORM Deposited 2001-09-13 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–63（63 aa）
Mutation：YES No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.8；37% (V/V) ETHANOL, 450 MM NACL, 50 MM CITRATE BUFFER PH4.8, 1MM EDTA, USING THE DIALYSIS METHOD., pH 4.80
Resolution 1.90 Å R-free 0.232
1GMG ALANINE 31 PROLINE MUTANT OF ROP PROTEIN, MONOCLINIC FORM Deposited 2001-09-13 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain B 1–63（63 aa）
Mutation：YES No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.8；37% (V/V) ETHANOL, 450 MM NACL, 50 MM CITRATE BUFFER PH4.8, 1MM EDTA, USING THE DIALYSIS METHOD., pH 4.80
Resolution 1.90 Å R-free 0.232
1NKD ATOMIC RESOLUTION (1.07 ANGSTROMS) STRUCTURE OF THE ROP MUTANT <2AA> Deposited 1997-09-23 Different construct Different mutation/modification Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–63（63 aa）
Mutation：INS(A-D31-A) No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.09 Å R-free 0.134
1QX8 Crystal structure of a five-residue deletion mutant of the Rop protein Deposited 2003-09-04 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–63（63 aa）
Chain B 1–63（63 aa）
Mutation：Deletion [30D-34Q] Mutation：Deletion [30D-34Q] No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；293 K；NaCl, methanol, Bis-Tris, DTT, EDTA, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.02 Å R-free 0.212
1ROP STRUCTURE OF THE COL*E1 ROP PROTEIN AT 1.7 ANGSTROMS RESOLUTION Deposited 1991-04-02 Different construct Different mutation/modification Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–63（63 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.70 Å
1RPO RESTORED HEPTAD PATTERN CONTINUITY DOES NOT ALTER THE FOLDING OF A 4-ALPHA-HELICAL BUNDLE Deposited 1994-08-25 Different construct Different mutation/modification Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–63（63 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.40 Å
1RPR THE STRUCTURE OF COLE1 ROP IN SOLUTION Deposited 1991-10-09 Different construct Different mutation/modification Different experimental method Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–63（63 aa）
Chain B 1–63（63 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
1YO7 Re-engineering topology of the homodimeric ROP protein into a single-chain 4-helix bundle Deposited 2005-01-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–56（56 aa）
Chain A 32–56（25 aa）
Chain A 3–29（27 aa）
Mutation：R55S Mutation：R55S Mutation：R55S ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；10% PEG 2000, 50mM Tris-HCl pH6.6, 40mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.80 Å R-free 0.310
1YO7 Re-engineering topology of the homodimeric ROP protein into a single-chain 4-helix bundle Deposited 2005-01-26 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–56（56 aa）
Chain B 32–56（25 aa）
Chain B 3–29（27 aa）
Mutation：R55S Mutation：R55S Mutation：R55S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；10% PEG 2000, 50mM Tris-HCl pH6.6, 40mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.80 Å R-free 0.310
2GHY Novel Crystal Form of the ColE1 Rom Protein Deposited 2006-03-28 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–63（63 aa）
Chain B 1–63（63 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；295 K；30% PEG MME 2000, 0.1M sodium acetate, pH4.6, and 0.2M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.50 Å R-free 0.263
2IJH Crystal structure analysis of ColE1 ROM mutant F14W Deposited 2006-09-29 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–63（63 aa）
Chain B 1–63（63 aa）
Mutation：M1G, F14W Mutation：M1G, F14W No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；273 K；Well solution: 20% glycerol, 0.1 M sodium acetate pH 5.5, 0.1 M sodium chloride. Protein solution: protein 5 mg/ml, 0.01 M Tris pH 6.8, 0.05 M sodium chloride. Drops: equal volumes of well and protein solutions., VAPOR DIFFUSION, HANGING DROP, temperature 273K
Resolution 1.80 Å R-free 0.230
2IJH Crystal structure analysis of ColE1 ROM mutant F14W Deposited 2006-09-29 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1–63（63 aa）
Mutation：M1G, F14W No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；273 K；Well solution: 20% glycerol, 0.1 M sodium acetate pH 5.5, 0.1 M sodium chloride. Protein solution: protein 5 mg/ml, 0.01 M Tris pH 6.8, 0.05 M sodium chloride. Drops: equal volumes of well and protein solutions., VAPOR DIFFUSION, HANGING DROP, temperature 273K
Resolution 1.80 Å R-free 0.230
2IJI Structure of F14H mutant of ColE1 Rom protein Deposited 2006-09-29 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–63（63 aa）
Mutation：M1G, F14H No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；1uL protein solution (0.5-1 mM) was mixed with 1 uL well buffer (0.1M sodium acetate pH 5.5, 0.1M sodium chloride, 37 40% ethanol, and 20% glycerol), VAPOR DIFFUSION, HANGING DROP
Resolution 2.30 Å R-free 0.292
2IJJ Crystal structure analysis of ColE1 ROM mutant F14Y Deposited 2006-09-29 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–63（63 aa）
Chain B 1–63（63 aa）
Mutation：M1G, F14Y Mutation：M1G, F14Y No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；273 K；Well solution: 22% MPD, 0.1 M sodium acetate pH 5.5, 0.1 M sodium chloride. Protein solution: protein 2.5 mg/ml, 0.01 M Tris pH 6.5, 0.05 M sodium chloride. Drops: equal volumes of well and protein solutions., VAPOR DIFFUSION, HANGING DROP, temperature 273K
Resolution 1.90 Å R-free 0.263
2IJJ Crystal structure analysis of ColE1 ROM mutant F14Y Deposited 2006-09-29 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1–63（63 aa）
Mutation：M1G, F14Y No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；273 K；Well solution: 22% MPD, 0.1 M sodium acetate pH 5.5, 0.1 M sodium chloride. Protein solution: protein 2.5 mg/ml, 0.01 M Tris pH 6.5, 0.05 M sodium chloride. Drops: equal volumes of well and protein solutions., VAPOR DIFFUSION, HANGING DROP, temperature 273K
Resolution 1.90 Å R-free 0.263
2IJK Structure of a Rom protein dimer at 1.55 angstrom resolution Deposited 2006-09-29 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–63（63 aa）
Chain B 1–63（63 aa）
Mutation：M1G Mutation：M1G No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；Hanging drop contained 1 uL protein/RNA mixture (0.3 0.4 mM complex) and 1 uL well buffer (50 mM sodium cacodylate pH 6.0, 0.1 M potassium chloride, 25 mM magnesium chloride, and 15% isopropanol)., VAPOR DIFFUSION, HANGING DROP
Resolution 1.55 Å R-free 0.216
3K79 C38A, C52V Cysteine-Free Variant of Rop (Rom) Deposited 2009-10-12 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 2–63（62 aa）
Mutation：C38A, C52V No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；25-30% methanol, 100 mM MES, 300 mM NaCl, 10% glycerol, pH 5.7-5.9, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.96 Å R-free 0.250
4DO2 Crystal Structure of the Rop protein mutant D30P/A31G at resolution 1.4 resolution. Deposited 2012-02-09 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–63（63 aa）
Chain B 1–63（63 aa）
Mutation：D30P, A31G Mutation：D30P, A31G No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；45%(v/v) methanol, 50 mM HEPES pH 6.4 and 100 mM Li2SO4, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 1.40 Å R-free 0.188
7KAE Rop protein variant with a buried tryptophan Deposited 2020-09-30 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 2–57（56 aa） Fragment：engineered variant
Chain B 2–57（56 aa） Fragment：engineered variant
Mutation：R16Q, S17N, L20Q, C38A, C52A, F56W Mutation：R16Q, S17N, L20Q, C38A, C52A, F56W No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；295 K；28% (w/v) PEG 400, 300 mM NaCl, 100 mM NaHEPES
Resolution 1.60 Å R-free 0.224

18 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ROP_ECOLI
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 2–62； UniProt 2–62 Author chain B； PDBConstruct 2–62； UniProt 2–62 Author chain C； PDBConstruct 2–62； UniProt 2–62

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 1gto

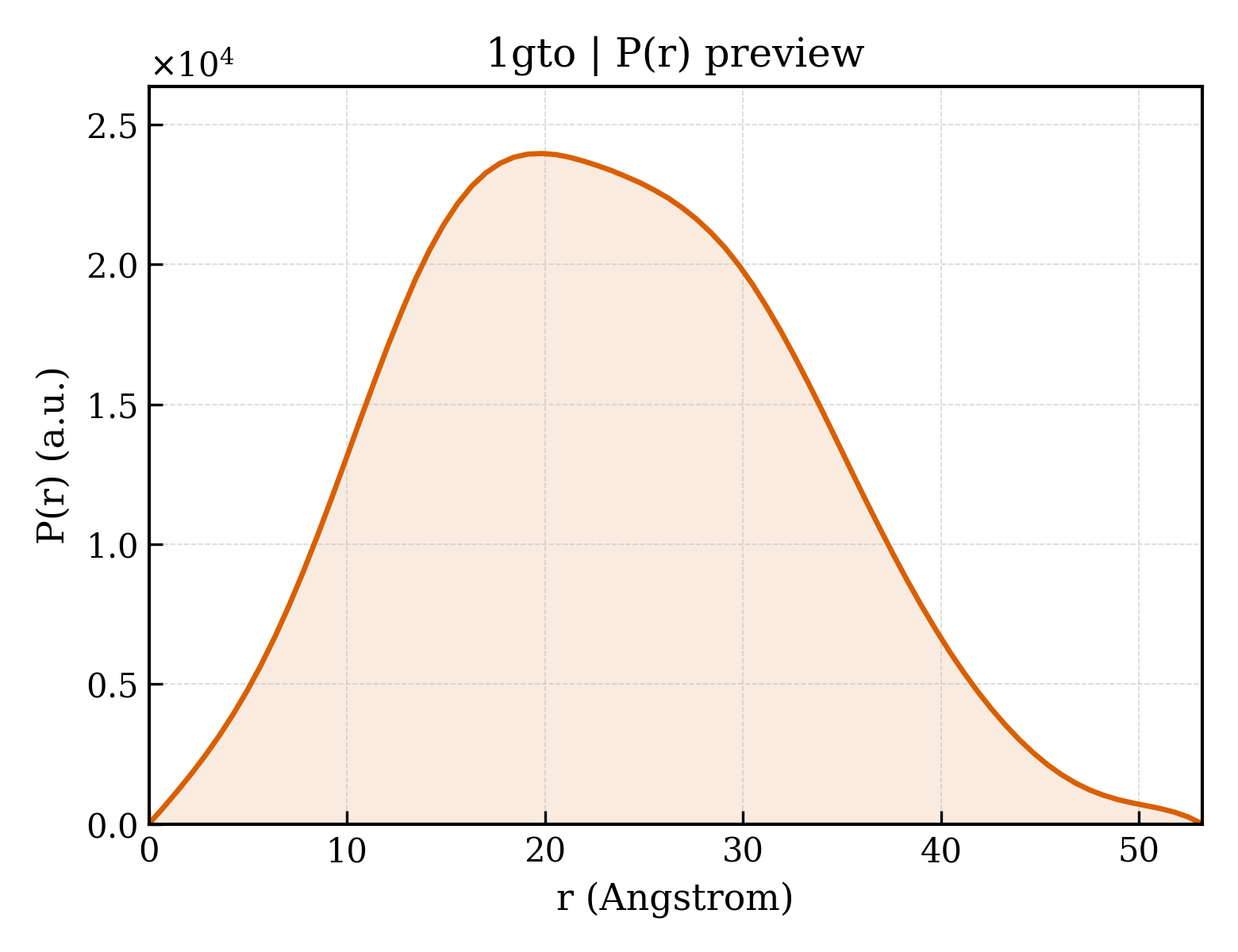

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 1gto
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1gto
Deposition date deposition_date1996-04-23
Structure title titleHIGH RESOLUTION STRUCTURE OF A HYPERSTABLE HELICAL BUNDLE PROTEIN MUTANT
Keywords keywordsTRANSCRIPTION REGULATION, TURN, HELIX PACKING, CRYSTAL CONTACTS; TRANSCRIPTION REGULATION
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier17.73 Å
Radius of gyration Rg (electron density) rg_electron16.94 Å
Forward intensity I(0) i08348510.00
Molecular weight molecular_weight19841.0 kDa
Excluded volume excluded_volume24291 ų
Envelope volume envelope_volume28749 ų
Hydration-shell volume shell_volume14691 ų
Envelope diameter envelope_diameter61.9 Å
Shell Rg shell_rg22.48 Å
Envelope Rg envelope_rg17.37 Å
Shape Rg shape_rg16.91 Å
Total Rg total_rg17.93 Å
Total atoms total_atoms1388
Residues n_residues176
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax53.2 Å
Rg (real space) rg_real17.72 Å
Rg uncertainty (real space) rg_real_error0.09 Å
I(0) (real space) i0_real8.1290e+06
I(0) uncertainty (real space) i0_real_error7.6340e+04
Rg (reciprocal space) rg_reciprocal17.67 Å
I(0) (reciprocal space) i0_reciprocal8349000.0000
Solution quality estimate total_estimate0.7007
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary19.9 Å
Skewness Skewness skewness0.202
Kurtosis Kurtosis kurtosis-0.482
Angular range angular_range— – 0.4500 Å−1
Current regularization parameter α current_alpha9.9090
Highest regularization parameter α highest_alpha1888000.0000
Real-space data points n_real_points76
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.974; Stabil: 0.927; Sysdev: 0.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.432
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_idd1gtoa_
Class classa — All alpha proteins
Fold Fold folda.30 — ROP-like
Superfamily Superfamily superfamilya.30.1 — ROP protein
Family Family familya.30.1.1 — ROP protein
Domain ID domain_idd1gtob_
Class classa — All alpha proteins
Fold Fold folda.30 — ROP-like
Superfamily Superfamily superfamilya.30.1 — ROP protein
Family Family familya.30.1.1 — ROP protein
Domain ID domain_idd1gtoc_
Class classa — All alpha proteins
Fold Fold folda.30 — ROP-like
Superfamily Superfamily superfamilya.30.1 — ROP protein
Family Family familya.30.1.1 — ROP protein

CATH v4.4 (3 domains)

Domain ID domain_id1gtoA00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology287 — Helix Hairpins
Homologous superfamily homologous superfamily230 —
Domain ID domain_id1gtoB00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology287 — Helix Hairpins
Homologous superfamily homologous superfamily230 —
Domain ID domain_id1gtoC00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology287 — Helix Hairpins
Homologous superfamily homologous superfamily230 —
▶

8. Citations (2)

▶

9. Files and Curves (10)
