SAXSdb — 2ijj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Regulatory protein rop

Escherichia coli

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–63 Chain B； UniProt 1–63	Mutation：M1G, F14Y	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；273 K；Well solution: 22% MPD, 0.1 M sodium acetate pH 5.5, 0.1 M sodium chloride. Protein solution: protein 2.5 mg/ml, 0.01 M Tris pH 6.5, 0.05 M sodium chloride. Drops: equal volumes of well and protein solutions., VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 1.90 Å R-free 0.263
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 1–63	Mutation：M1G, F14Y	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；273 K；Well solution: 22% MPD, 0.1 M sodium acetate pH 5.5, 0.1 M sodium chloride. Protein solution: protein 2.5 mg/ml, 0.01 M Tris pH 6.5, 0.05 M sodium chloride. Drops: equal volumes of well and protein solutions., VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 1.90 Å R-free 0.263

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2IJJ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1B6Q ALANINE 31 PROLINE MUTANT OF ROP PROTEIN Deposited 1999-01-16	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–63（63 aa）	Mutation：A31P	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.3；pH 4.3	Resolution 1.80 Å R-free 0.240
1F4M P3(2) CRYSTAL STRUCTURE OF ALA2ILE2-6, A VERSION OF ROP WITH A REPACKED HYDROPHOBIC CORE AND A NEW FOLD. Deposited 2000-06-08	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–63（63 aa） Chain B 1–63（63 aa）	Mutation：M1G,A8I,T19A,L22I,L26A,Q34I,C38A,L41I,L48I,C52A Mutation：M1G,A8I,T19A,L22I,L26A,Q34I,C38A,L41I,L48I,C52A	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；MPD, calcium chloride, sodium HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.25 Å R-free 0.282
1F4M P3(2) CRYSTAL STRUCTURE OF ALA2ILE2-6, A VERSION OF ROP WITH A REPACKED HYDROPHOBIC CORE AND A NEW FOLD. Deposited 2000-06-08	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–63（63 aa） Chain D 1–63（63 aa）	Mutation：M1G,A8I,T19A,L22I,L26A,Q34I,C38A,L41I,L48I,C52A Mutation：M1G,A8I,T19A,L22I,L26A,Q34I,C38A,L41I,L48I,C52A	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；MPD, calcium chloride, sodium HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.25 Å R-free 0.282
1F4M P3(2) CRYSTAL STRUCTURE OF ALA2ILE2-6, A VERSION OF ROP WITH A REPACKED HYDROPHOBIC CORE AND A NEW FOLD. Deposited 2000-06-08	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 1–63（63 aa） Chain F 1–63（63 aa）	Mutation：M1G,A8I,T19A,L22I,L26A,Q34I,C38A,L41I,L48I,C52A Mutation：M1G,A8I,T19A,L22I,L26A,Q34I,C38A,L41I,L48I,C52A	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；MPD, calcium chloride, sodium HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.25 Å R-free 0.282
1F4N C2 CRYSTAL STRUCTURE OF ALA2ILE2-6, A VERSION OF ROP WITH A REPACKED HYDROPHOBIC CORE AND A NEW FOLD. Deposited 2000-06-08	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–63（63 aa） Chain B 1–63（63 aa）	Mutation：M1G,A8I,T19A,L22I,L26A,Q34I,C38A,L41I,L48I,C52A Mutation：M1G,A8I,T19A,L22I,L26A,Q34I,C38A,L41I,L48I,C52A	CA CALCIUM ION × 4 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；MPD, calcium chloride, sodium HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.90 Å R-free 0.237
1F4N C2 CRYSTAL STRUCTURE OF ALA2ILE2-6, A VERSION OF ROP WITH A REPACKED HYDROPHOBIC CORE AND A NEW FOLD. Deposited 2000-06-08	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–63（63 aa） Chain B 1–63（63 aa）	Mutation：M1G,A8I,T19A,L22I,L26A,Q34I,C38A,L41I,L48I,C52A Mutation：M1G,A8I,T19A,L22I,L26A,Q34I,C38A,L41I,L48I,C52A	CA CALCIUM ION × 8 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；MPD, calcium chloride, sodium HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.90 Å R-free 0.237
1GMG ALANINE 31 PROLINE MUTANT OF ROP PROTEIN, MONOCLINIC FORM Deposited 2001-09-13	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–63（63 aa）	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.8；37% (V/V) ETHANOL, 450 MM NACL, 50 MM CITRATE BUFFER PH4.8, 1MM EDTA, USING THE DIALYSIS METHOD., pH 4.80	Resolution 1.90 Å R-free 0.232
1GMG ALANINE 31 PROLINE MUTANT OF ROP PROTEIN, MONOCLINIC FORM Deposited 2001-09-13	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 1–63（63 aa）	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.8；37% (V/V) ETHANOL, 450 MM NACL, 50 MM CITRATE BUFFER PH4.8, 1MM EDTA, USING THE DIALYSIS METHOD., pH 4.80	Resolution 1.90 Å R-free 0.232
1GTO HIGH RESOLUTION STRUCTURE OF A HYPERSTABLE HELICAL BUNDLE PROTEIN MUTANT Deposited 1996-04-23	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–62（61 aa）	Mutation：M1G, D30G	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.82 Å R-free 0.280
1GTO HIGH RESOLUTION STRUCTURE OF A HYPERSTABLE HELICAL BUNDLE PROTEIN MUTANT Deposited 1996-04-23	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 2–62（61 aa） Chain C 2–62（61 aa）	Mutation：M1G, D30G Mutation：M1G, D30G	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.82 Å R-free 0.280
1NKD ATOMIC RESOLUTION (1.07 ANGSTROMS) STRUCTURE OF THE ROP MUTANT <2AA> Deposited 1997-09-23	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–63（63 aa）	Mutation：INS(A-D31-A)	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.09 Å R-free 0.134
1QX8 Crystal structure of a five-residue deletion mutant of the Rop protein Deposited 2003-09-04	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–63（63 aa） Chain B 1–63（63 aa）	Mutation：Deletion [30D-34Q] Mutation：Deletion [30D-34Q]	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；293 K；NaCl, methanol, Bis-Tris, DTT, EDTA, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.02 Å R-free 0.212
1ROP STRUCTURE OF THE COL*E1 ROP PROTEIN AT 1.7 ANGSTROMS RESOLUTION Deposited 1991-04-02	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–63（63 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.70 Å
1RPO RESTORED HEPTAD PATTERN CONTINUITY DOES NOT ALTER THE FOLDING OF A 4-ALPHA-HELICAL BUNDLE Deposited 1994-08-25	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–63（63 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.40 Å
1RPR THE STRUCTURE OF COLE1 ROP IN SOLUTION Deposited 1991-10-09	Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–63（63 aa） Chain B 1–63（63 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1YO7 Re-engineering topology of the homodimeric ROP protein into a single-chain 4-helix bundle Deposited 2005-01-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–56（56 aa） Chain A 32–56（25 aa） Chain A 3–29（27 aa）	Mutation：R55S Mutation：R55S Mutation：R55S	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；10% PEG 2000, 50mM Tris-HCl pH6.6, 40mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.310
1YO7 Re-engineering topology of the homodimeric ROP protein into a single-chain 4-helix bundle Deposited 2005-01-26	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–56（56 aa） Chain B 32–56（25 aa） Chain B 3–29（27 aa）	Mutation：R55S Mutation：R55S Mutation：R55S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；10% PEG 2000, 50mM Tris-HCl pH6.6, 40mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.310
2GHY Novel Crystal Form of the ColE1 Rom Protein Deposited 2006-03-28	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–63（63 aa） Chain B 1–63（63 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；295 K；30% PEG MME 2000, 0.1M sodium acetate, pH4.6, and 0.2M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.50 Å R-free 0.263
2IJH Crystal structure analysis of ColE1 ROM mutant F14W Deposited 2006-09-29	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–63（63 aa） Chain B 1–63（63 aa）	Mutation：M1G, F14W Mutation：M1G, F14W	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；273 K；Well solution: 20% glycerol, 0.1 M sodium acetate pH 5.5, 0.1 M sodium chloride. Protein solution: protein 5 mg/ml, 0.01 M Tris pH 6.8, 0.05 M sodium chloride. Drops: equal volumes of well and protein solutions., VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 1.80 Å R-free 0.230
2IJH Crystal structure analysis of ColE1 ROM mutant F14W Deposited 2006-09-29	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–63（63 aa）	Mutation：M1G, F14W	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；273 K；Well solution: 20% glycerol, 0.1 M sodium acetate pH 5.5, 0.1 M sodium chloride. Protein solution: protein 5 mg/ml, 0.01 M Tris pH 6.8, 0.05 M sodium chloride. Drops: equal volumes of well and protein solutions., VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 1.80 Å R-free 0.230
2IJI Structure of F14H mutant of ColE1 Rom protein Deposited 2006-09-29	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–63（63 aa）	Mutation：M1G, F14H	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；1uL protein solution (0.5-1 mM) was mixed with 1 uL well buffer (0.1M sodium acetate pH 5.5, 0.1M sodium chloride, 37 40% ethanol, and 20% glycerol), VAPOR DIFFUSION, HANGING DROP	Resolution 2.30 Å R-free 0.292
2IJK Structure of a Rom protein dimer at 1.55 angstrom resolution Deposited 2006-09-29	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–63（63 aa） Chain B 1–63（63 aa）	Mutation：M1G Mutation：M1G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；Hanging drop contained 1 uL protein/RNA mixture (0.3 0.4 mM complex) and 1 uL well buffer (50 mM sodium cacodylate pH 6.0, 0.1 M potassium chloride, 25 mM magnesium chloride, and 15% isopropanol)., VAPOR DIFFUSION, HANGING DROP	Resolution 1.55 Å R-free 0.216
3K79 C38A, C52V Cysteine-Free Variant of Rop (Rom) Deposited 2009-10-12	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–63（62 aa）	Mutation：C38A, C52V	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；25-30% methanol, 100 mM MES, 300 mM NaCl, 10% glycerol, pH 5.7-5.9, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.96 Å R-free 0.250
4DO2 Crystal Structure of the Rop protein mutant D30P/A31G at resolution 1.4 resolution. Deposited 2012-02-09	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–63（63 aa） Chain B 1–63（63 aa）	Mutation：D30P, A31G Mutation：D30P, A31G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；45%(v/v) methanol, 50 mM HEPES pH 6.4 and 100 mM Li2SO4, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.40 Å R-free 0.188
7KAE Rop protein variant with a buried tryptophan Deposited 2020-09-30	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–57（56 aa） Fragment：engineered variant Chain B 2–57（56 aa） Fragment：engineered variant	Mutation：R16Q, S17N, L20Q, C38A, C52A, F56W Mutation：R16Q, S17N, L20Q, C38A, C52A, F56W	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；295 K；28% (w/v) PEG 400, 300 mM NaCl, 100 mM NaHEPES	Resolution 1.60 Å R-free 0.224

18 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ROP_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–63； UniProt 1–63 Author chain B； PDBConstruct 1–63； UniProt 1–63 Author chain C； PDBConstruct 1–63； UniProt 1–63

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ijj
Deposition date deposition_date	2006-09-29
Structure title title	Crystal structure analysis of ColE1 ROM mutant F14Y
Keywords keywords	rop, rom, colE1, RNA-recognition, TRANSCRIPTION REGULATOR; TRANSCRIPTION REGULATOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.92 Å
Radius of gyration Rg (electron density) rg_electron	17.15 Å
Forward intensity I(0) i0	7836780.00
Molecular weight molecular_weight	19195.0 kDa
Excluded volume excluded_volume	23517 Å³
Envelope volume envelope_volume	28083 Å³
Hydration-shell volume shell_volume	14392 Å³
Envelope diameter envelope_diameter	63.1 Å
Shell Rg shell_rg	22.53 Å
Envelope Rg envelope_rg	17.57 Å
Shape Rg shape_rg	17.13 Å
Total Rg total_rg	18.11 Å
Total atoms total_atoms	1343
Residues n_residues	171
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	63.0 Å
Rg (real space) rg_real	17.89 Å
Rg uncertainty (real space) rg_real_error	0.53 Å
I(0) (real space) i0_real	7.8370e+06
I(0) uncertainty (real space) i0_real_error	9.7270e+04
Rg (reciprocal space) rg_reciprocal	17.89 Å
I(0) (reciprocal space) i0_reciprocal	7837000.0000
Solution quality estimate total_estimate	0.7833
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	23.0 Å
Skewness Skewness skewness	0.306
Kurtosis Kurtosis kurtosis	-0.280
Angular range angular_range	— – 0.4450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2276000.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.740; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.958; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d2ijja_
Class class	a — All alpha proteins
Fold Fold fold	a.30 — ROP-like
Superfamily Superfamily superfamily	a.30.1 — ROP protein
Family Family family	a.30.1.1 — ROP protein

Domain ID domain_id	d2ijjb_
Class class	a — All alpha proteins
Fold Fold fold	a.30 — ROP-like
Superfamily Superfamily superfamily	a.30.1 — ROP protein
Family Family family	a.30.1.1 — ROP protein

Domain ID domain_id	d2ijjc_
Class class	a — All alpha proteins
Fold Fold fold	a.30 — ROP-like
Superfamily Superfamily superfamily	a.30.1 — ROP protein
Family Family family	a.30.1.1 — ROP protein

CATH v4.4 (3 domains)

Domain ID domain_id	2ijjA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	230 —

Domain ID domain_id	2ijjB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	230 —

Domain ID domain_id	2ijjC00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	230 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	102.260 Å
Unit-cell length b length_b	45.647 Å
Unit-cell length c length_c	45.581 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2062
R_work r_work	0.2032
R_free r_free	0.2626

Description description	Regulatory protein rop
Molecular weight formula_weight	7178.9 kDa
Mutation mutation	M1G, F14Y
Source method src_method	man
Copy count entity_count	3

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	1557

Crystal structure analysis of ColE1 ROM mutant F14Y

1. Protein Identity and Related Structures Protein Identity & Related Structures

Regulatory protein rop

State in the Current Structure

Other States of the Same Protein in the Database

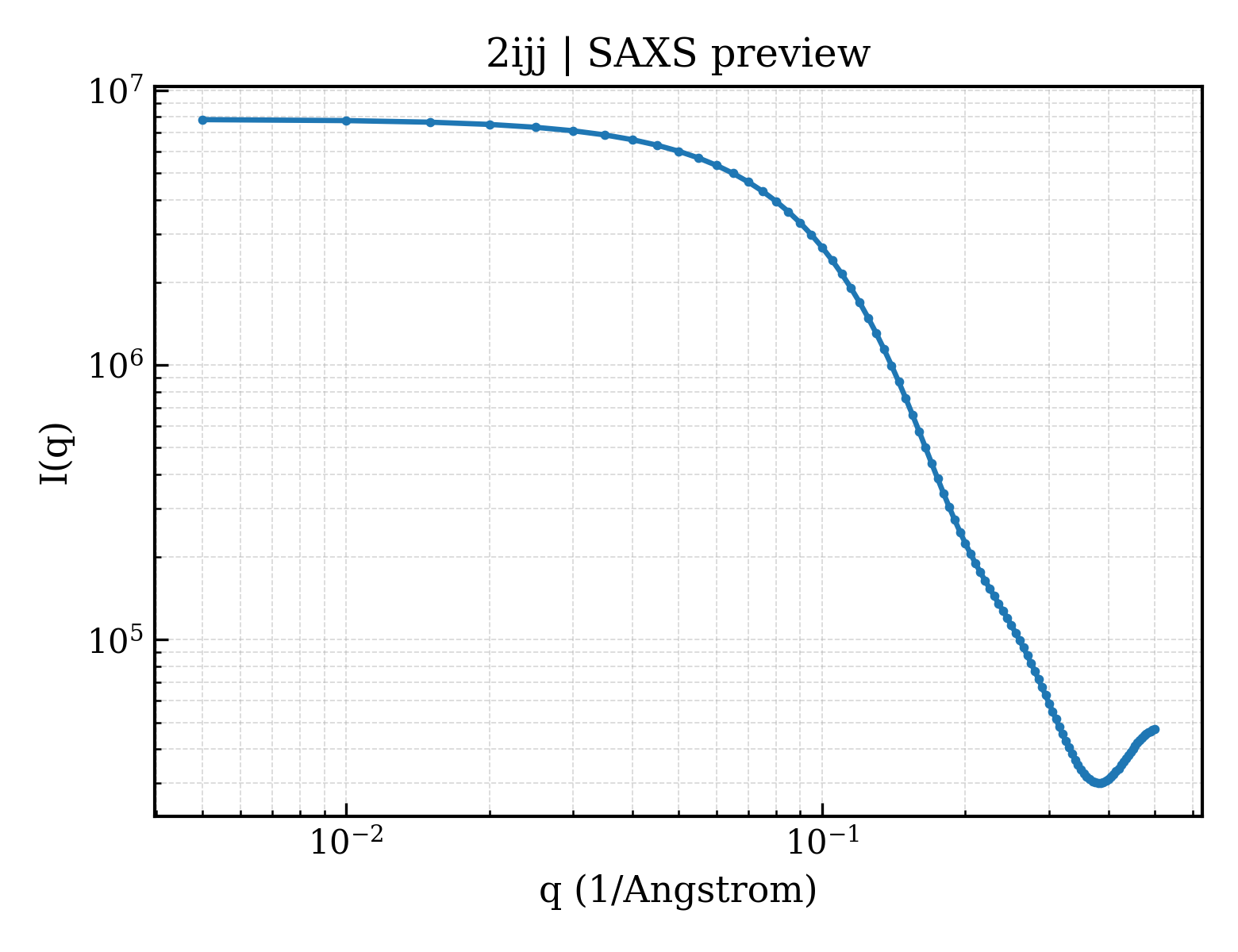

SAXS scattering curve SAXS Profile

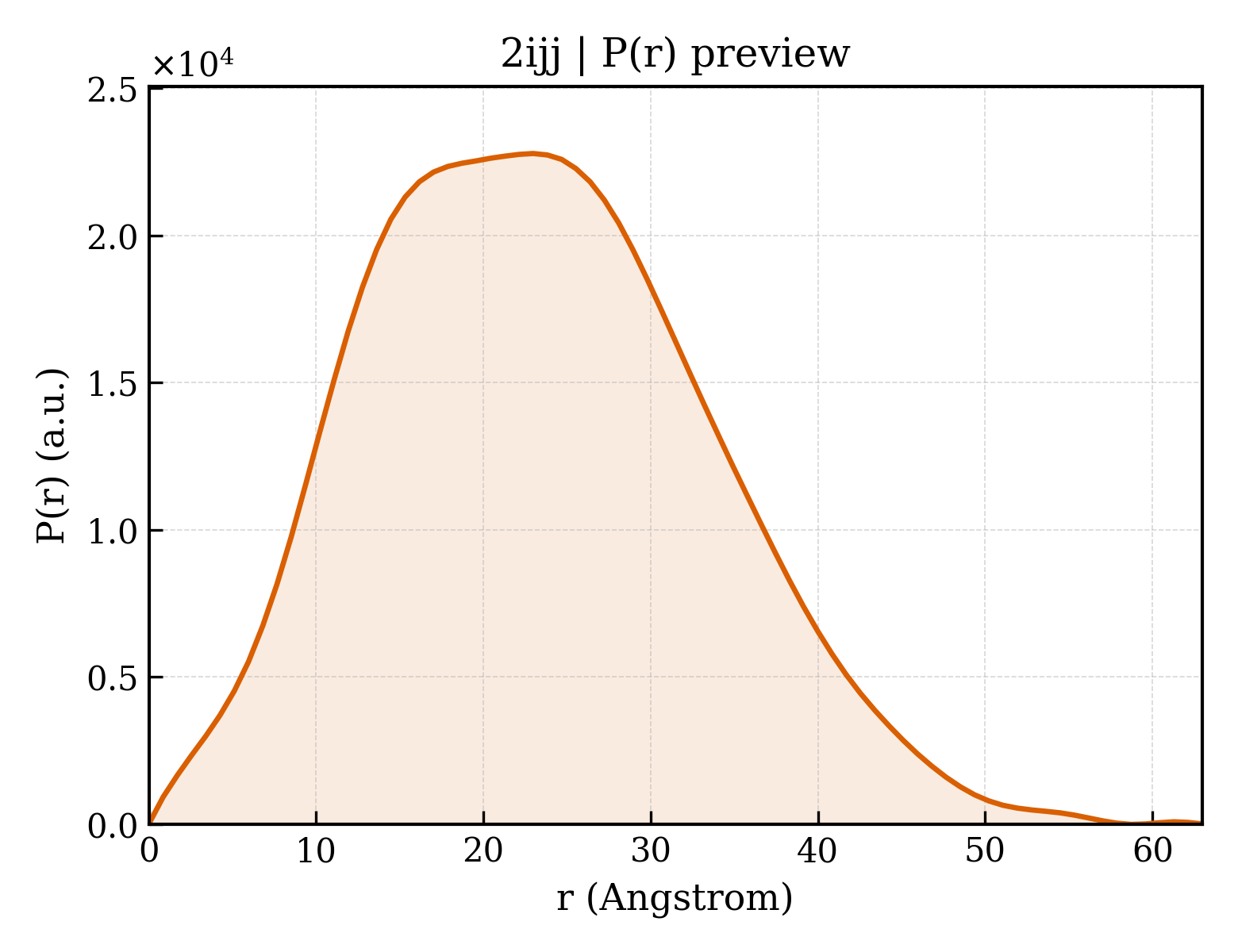

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

CATH v4.4 (3 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli BL21(DE3)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	162
