1gu6

Structure of the Periplasmic Cytochrome c Nitrite Reductase from Escherichia coli

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CYTOCHROME C552

OrganismNot specified

UniProt P32050

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	CALCIUM ION × 4 GLYCEROL × 2 HEME C × 10 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	CALCIUM ION × 4 GLYCEROL × 2 HEME C × 10 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NRFA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–452； UniProt 27–478 Author chain C； PDBConstruct 1–452； UniProt 27–478 Author chain E； PDBConstruct 1–452； UniProt 27–478 Author chain G； PDBConstruct 1–452； UniProt 27–478

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1gu6
Deposition date deposition_date	2002-01-24
Structure title title	Structure of the Periplasmic Cytochrome c Nitrite Reductase from Escherichia coli
Keywords keywords	OXIDOREDUCTASE, PERIPLASMIC NITRITE REDUCTASE, C-TYPE CYTOCHROME, ANAEROBIC NITRITE RESPIRATION; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1gu6__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1gu6__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

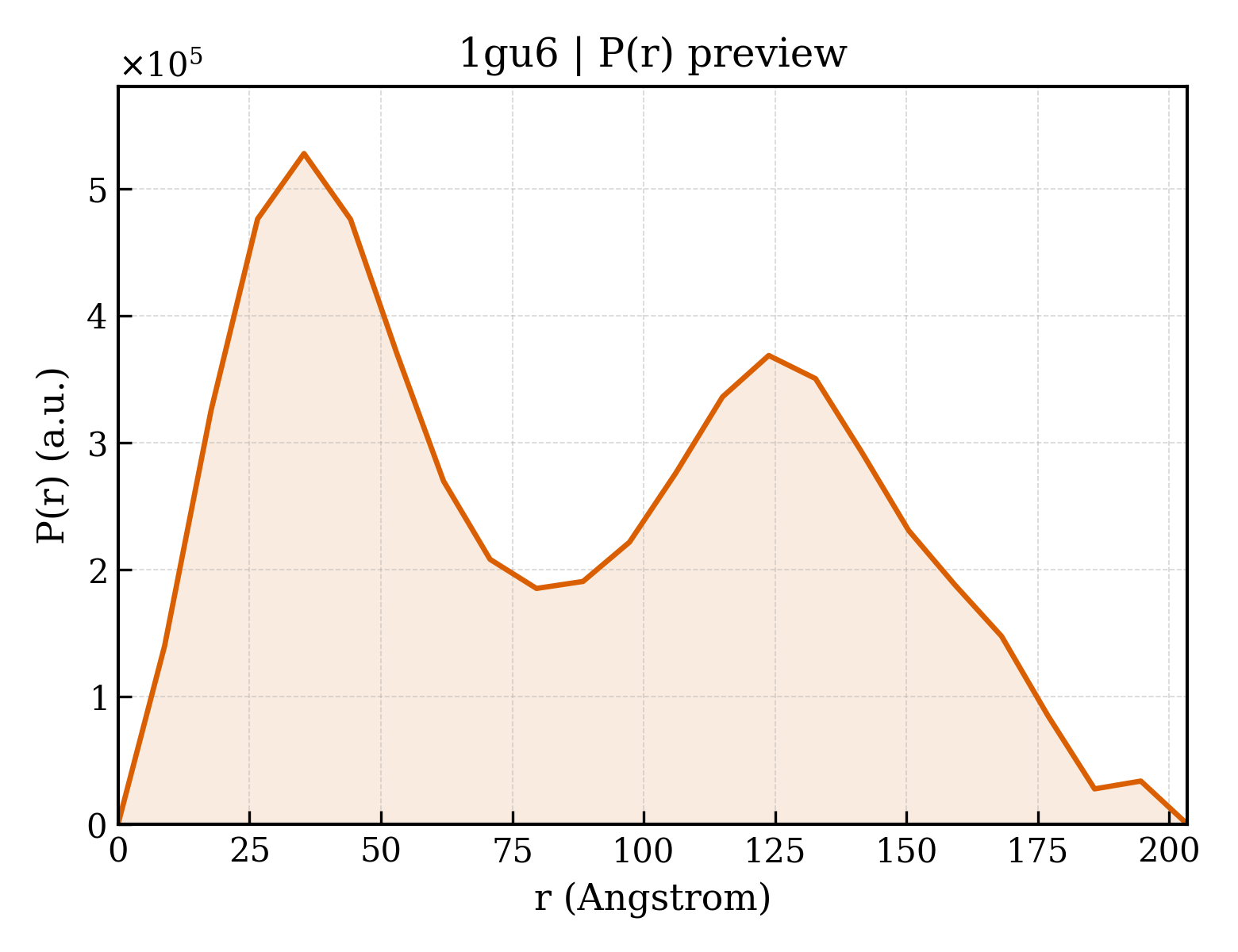

1gu6__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.08 Å
Rg (electron density)	31.52 Å
Total Rg	31.98 Å
Atom count	7404
Residues	882
Excluded volume	131100 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1gu6__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1gu6__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	CYTOCHROME C552
Molecular weight formula_weight	50668.1 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G
Atom count atom_count	15486

EQTAAPAKPVTVEAKNETFAPQHPDQYLSWKATSEQSERVDALAEDPRLVILWAGYPFSRDYNKPRGHAFAVTDVRETLRTGAPKNAEDGPLPMACWSCKSPDVARLIQKDGEDGYFHGKWARGGPEIVNNLGCADCHNTASPEFAKGKPELTLSRPYAARAMEAIGKPFEKAGRFDQQSMVCGQCHVEYYFDGKNKAVKFPWDDGMKVENMEQYYDKIAFSDWTNSLSKTPMLKAQHPEYETWTAGIHGKNNVTCIDCHMPKVQNAEGKLYTDHKIGNPFDNFAQTCANCHTQDKAALQKVVAERKQSINDLKIKVEDQLVHAHFEAKAALDAGATEAEMKPIQDDIRHAQWRWDLAIASHGIHMHAPEEGLRMLGTAMDKAADARTKLARLLATKGITHEIQIPDISTKEKAQQAIGLNMEQIKAEKQDFIKTVIPQWEEQARKNGLLSQ

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	HEME C
Molecular weight formula_weight	618.5 kDa
Source method src_method	syn
Copy count entity_count	20

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	678

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1gu6a_
Class class	a — All alpha proteins
Fold Fold fold	a.138 — Multiheme cytochromes
Superfamily Superfamily superfamily	a.138.1 — Multiheme cytochromes
Family Family family	a.138.1.3 — Di-heme elbow motif

Domain ID domain_id	d1gu6c_
Class class	a — All alpha proteins
Fold Fold fold	a.138 — Multiheme cytochromes
Superfamily Superfamily superfamily	a.138.1 — Multiheme cytochromes
Family Family family	a.138.1.3 — Di-heme elbow motif

Domain ID domain_id	d1gu6e_
Class class	a — All alpha proteins
Fold Fold fold	a.138 — Multiheme cytochromes
Superfamily Superfamily superfamily	a.138.1 — Multiheme cytochromes
Family Family family	a.138.1.3 — Di-heme elbow motif

Domain ID domain_id	d1gu6g_
Class class	a — All alpha proteins
Fold Fold fold	a.138 — Multiheme cytochromes
Superfamily Superfamily superfamily	a.138.1 — Multiheme cytochromes
Family Family family	a.138.1.3 — Di-heme elbow motif

CATH v4.4 (8 domains)

Domain ID domain_id	1gu6A01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1130 — Flavocytochrome C3; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Flavocytochrome C3; Chain A

Domain ID domain_id	1gu6A02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
Homologous superfamily homologous superfamily	10 — Butyryl-CoA Dehydrogenase, subunit A, domain 3

Domain ID domain_id	1gu6C01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1130 — Flavocytochrome C3; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Flavocytochrome C3; Chain A

Domain ID domain_id	1gu6C02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
Homologous superfamily homologous superfamily	10 — Butyryl-CoA Dehydrogenase, subunit A, domain 3

Domain ID domain_id	1gu6E01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1130 — Flavocytochrome C3; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Flavocytochrome C3; Chain A

Domain ID domain_id	1gu6E02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
Homologous superfamily homologous superfamily	10 — Butyryl-CoA Dehydrogenase, subunit A, domain 3

Domain ID domain_id	1gu6G01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1130 — Flavocytochrome C3; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Flavocytochrome C3; Chain A

Domain ID domain_id	1gu6G02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
Homologous superfamily homologous superfamily	10 — Butyryl-CoA Dehydrogenase, subunit A, domain 3

▶

Unit-cell length a length_a	81.472 Å
Unit-cell length b length_b	90.837 Å
Unit-cell length c length_c	293.874 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2030
R_work r_work	0.2030
R_free r_free	0.2430
