SAXSdb — 1gud

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

D-ALLOSE-BINDING PERIPLASMIC PROTEIN

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	ZINC ION × 4 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	ZINC ION × 4 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ALSB_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–288； UniProt 24–311 Author chain B； PDBConstruct 1–288； UniProt 24–311

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1gud
Deposition date deposition_date	2002-01-24
Structure title title	Hinge-bending motion of D-allose binding protein from Escherichia coli: three open conformations
Keywords keywords	PERIPLASMIC BINDING PROTEIN, ALLOSE, HINGE BENDING, CONFORMATIONAL CHANGE; PERIPLASMIC BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1gud__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

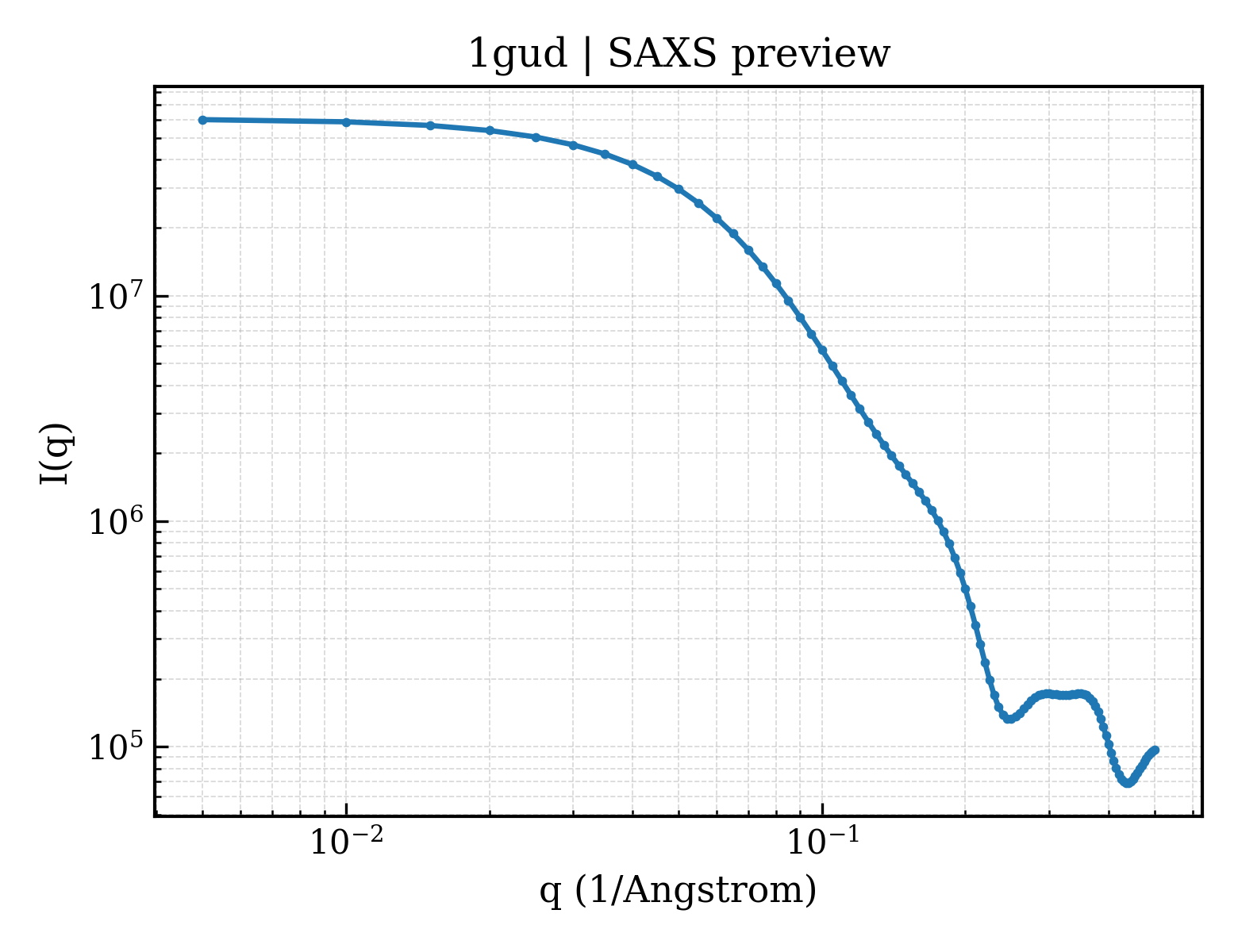

1gud__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

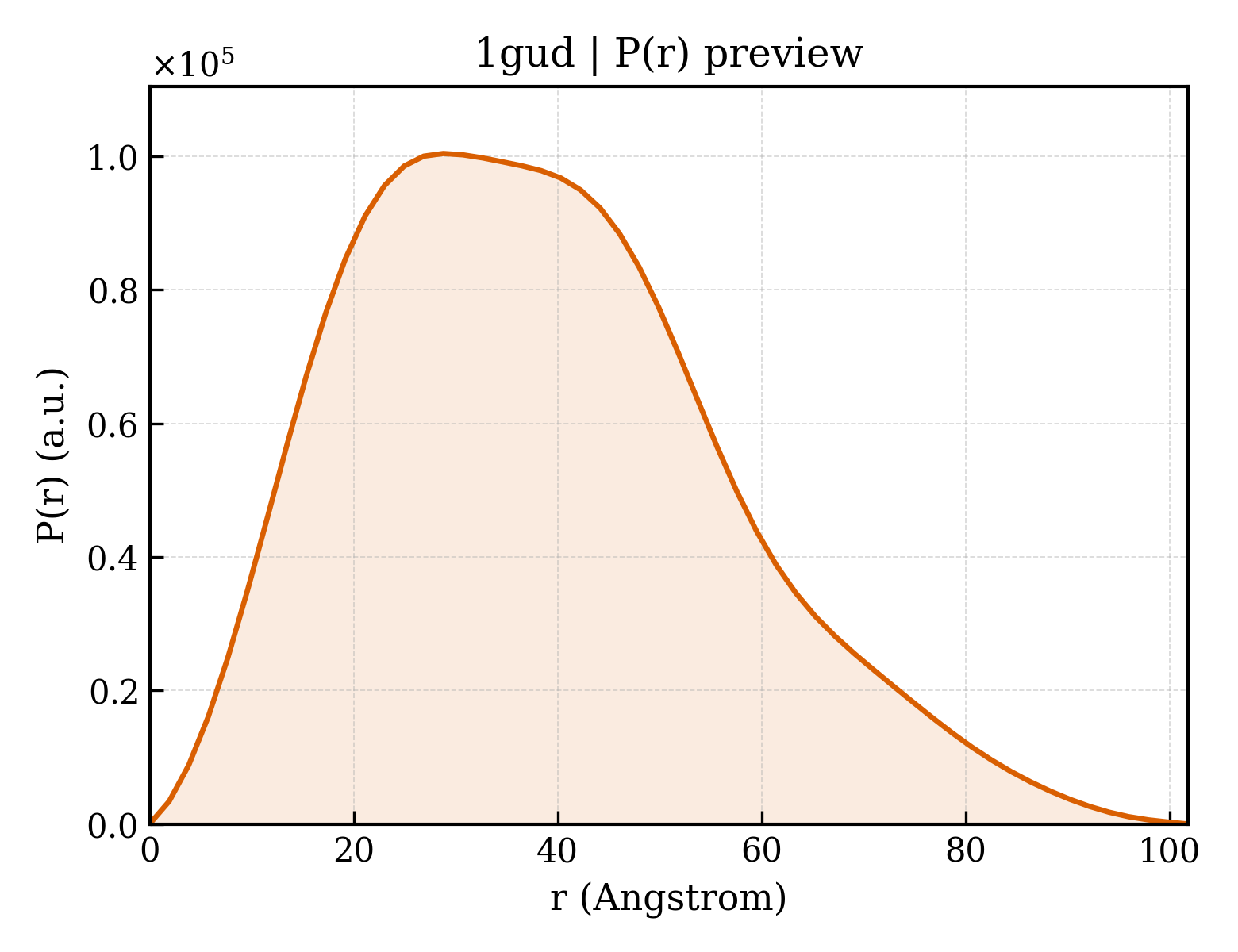

1gud__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.02 Å
Rg (electron density)	21.27 Å
Total Rg	22.18 Å
Atom count	2137
Residues	288
Excluded volume	38421 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1gud__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1gud__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	D-ALLOSE-BINDING PERIPLASMIC PROTEIN
Molecular weight formula_weight	30417.8 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4770

AAEYAVVLKTLSNPFWVDMKKGIEDEAKTLGVSVDIFASPSEGDFQSQLQLFEDLSNKNYKGIAFAPLSSVNLVMPVARAWKKGIYLVNLDEKIDMDNLKKAGGNVEAFVTTDNVAVGAKGASFIIDKLGAEGGEVAIIEGKAGNASGEARRNGATEAFKKASQIKLVASQPADWDRIKALDVATNVLQRNPNIKAIYCANDTMAMGVAQAVANAGKTGKVLVVGTDGIPEARKMVEAGQMTATVAQNPADIGATGLKLMVDAEKSGKVIPLDKAPEFKLVDSILVTQ

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	497

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1guda_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.93 — Periplasmic binding protein-like I
Superfamily Superfamily superfamily	c.93.1 — Periplasmic binding protein-like I
Family Family family	c.93.1.1 — L-arabinose binding protein-like

Domain ID domain_id	d1gudb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.93 — Periplasmic binding protein-like I
Superfamily Superfamily superfamily	c.93.1 — Periplasmic binding protein-like I
Family Family family	c.93.1.1 — L-arabinose binding protein-like

CATH v4.4 (4 domains)

Domain ID domain_id	1gudA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

Domain ID domain_id	1gudA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

Domain ID domain_id	1gudB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

Domain ID domain_id	1gudB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

▶

Unit-cell length a length_a	60.229 Å
Unit-cell length b length_b	64.096 Å
Unit-cell length c length_c	142.113 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.710 Å
Low-resolution limit resolution_low	70.710 Å
R factor r_factor	0.1730
R_work r_work	0.1720
R_free r_free	0.2120
