1guq

STRUCTURE OF NUCLEOTIDYLTRANSFERASE COMPLEXED WITH UDP-GLUCOSE

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GALACTOSE-1-PHOSPHATE URIDYLYLTRANSFERASE

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	ZINC ION × 2 FE (III) ION × 2 POTASSIUM ION × 2 URIDINE-5'-DIPHOSPHATE-GLUCOSE × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	ZINC ION × 2 FE (III) ION × 2 POTASSIUM ION × 2 URIDINE-5'-DIPHOSPHATE-GLUCOSE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GAL7_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–348； UniProt 1–348 Author chain B； PDBConstruct 1–348； UniProt 1–348 Author chain C； PDBConstruct 1–348； UniProt 1–348 Author chain D； PDBConstruct 1–348； UniProt 1–348

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1guq
Deposition date deposition_date	1996-10-23
Structure title title	STRUCTURE OF NUCLEOTIDYLTRANSFERASE COMPLEXED WITH UDP-GLUCOSE
Keywords keywords	TRANSFERASE, NUCLEOTIDYLTRANSFERASE, GALACTOSE METABOLISM; NUCLEOTIDYLTRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1guq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

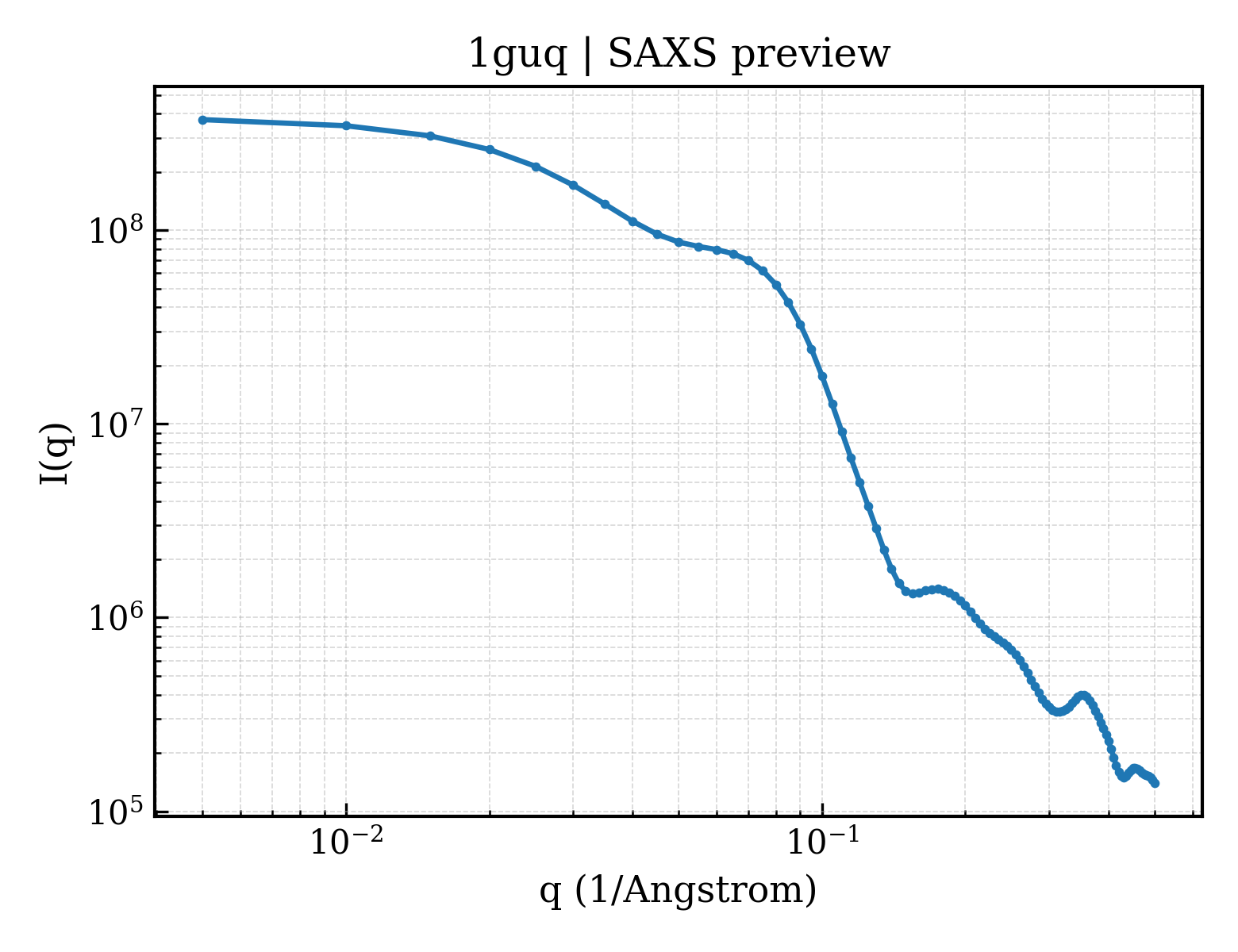

1guq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

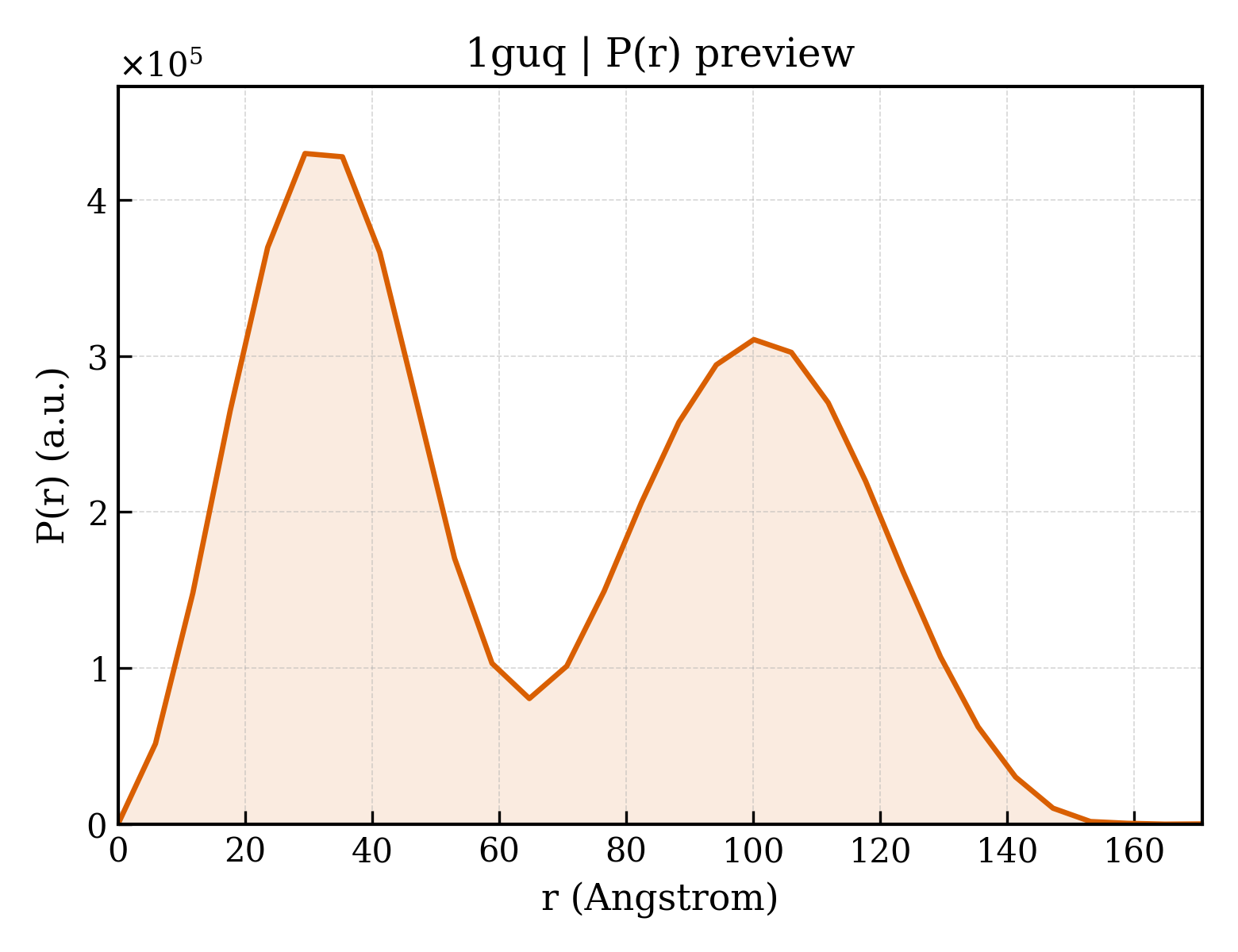

1guq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.81 Å
Rg (electron density)	24.70 Å
Total Rg	25.55 Å
Atom count	5628
Residues	691
Excluded volume	98979 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1guq__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1guq__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	GALACTOSE-1-PHOSPHATE URIDYLYLTRANSFERASE
Molecular weight formula_weight	39613.5 kDa
EC 编号 ec_number	2.7.7.10
Mutation mutation	H166G
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	12597

MTQFNPVDHPHRRYNPLTGQWILVSPHRAKRPWQGAQETPAKQVLPAHDPDCFLCAGNVRVTGDKNPDYTGTYVFTNDFAALMSDTPDAPESHDPLMRCQSARGTSRVICFSPDHSKTLPELSVAALTEIVKTWQEQTAELGKTYPWVQVFENKGAAMGCSNPHPGGQIWANSFLPNEAEREDRLQKEYFAEQKSPMLVDYVQRELADGSRTVVETEHWLAVVPYWAAWPFETLLLPKAHVLRITDLTDAQRSDLALALKKLTSRYDNLFQCSFPYSMGWHGAPFNGEENQHWQLHAHFYPPLLRSATVRKFMVGYEMLAETQRDLTAEQAAERLRAVSDIHFRESGV

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	FE (III) ION
Molecular weight formula_weight	55.8 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	URIDINE-5'-DIPHOSPHATE-GLUCOSE
Molecular weight formula_weight	566.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1359

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1guqa1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.13 — HIT-like
Superfamily Superfamily superfamily	d.13.1 — HIT-like
Family Family family	d.13.1.2 — Hexose-1-phosphate uridylyltransferase

Domain ID domain_id	d1guqa2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.13 — HIT-like
Superfamily Superfamily superfamily	d.13.1 — HIT-like
Family Family family	d.13.1.2 — Hexose-1-phosphate uridylyltransferase

Domain ID domain_id	d1guqb1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.13 — HIT-like
Superfamily Superfamily superfamily	d.13.1 — HIT-like
Family Family family	d.13.1.2 — Hexose-1-phosphate uridylyltransferase

Domain ID domain_id	d1guqb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.13 — HIT-like
Superfamily Superfamily superfamily	d.13.1 — HIT-like
Family Family family	d.13.1.2 — Hexose-1-phosphate uridylyltransferase

Domain ID domain_id	d1guqc1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.13 — HIT-like
Superfamily Superfamily superfamily	d.13.1 — HIT-like
Family Family family	d.13.1.2 — Hexose-1-phosphate uridylyltransferase

Domain ID domain_id	d1guqc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.13 — HIT-like
Superfamily Superfamily superfamily	d.13.1 — HIT-like
Family Family family	d.13.1.2 — Hexose-1-phosphate uridylyltransferase

Domain ID domain_id	d1guqd1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.13 — HIT-like
Superfamily Superfamily superfamily	d.13.1 — HIT-like
Family Family family	d.13.1.2 — Hexose-1-phosphate uridylyltransferase

Domain ID domain_id	d1guqd2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.13 — HIT-like
Superfamily Superfamily superfamily	d.13.1 — HIT-like
Family Family family	d.13.1.2 — Hexose-1-phosphate uridylyltransferase

CATH v4.4 (8 domains)

Domain ID domain_id	1guqA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	428 — HIT family, subunit A
Homologous superfamily homologous superfamily	10 — HIT-like

Domain ID domain_id	1guqA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	428 — HIT family, subunit A
Homologous superfamily homologous superfamily	10 — HIT-like

Domain ID domain_id	1guqB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	428 — HIT family, subunit A
Homologous superfamily homologous superfamily	10 — HIT-like

Domain ID domain_id	1guqB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	428 — HIT family, subunit A
Homologous superfamily homologous superfamily	10 — HIT-like

Domain ID domain_id	1guqC01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	428 — HIT family, subunit A
Homologous superfamily homologous superfamily	10 — HIT-like

Domain ID domain_id	1guqC02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	428 — HIT family, subunit A
Homologous superfamily homologous superfamily	10 — HIT-like

Domain ID domain_id	1guqD01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	428 — HIT family, subunit A
Homologous superfamily homologous superfamily	10 — HIT-like

Domain ID domain_id	1guqD02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	428 — HIT family, subunit A
Homologous superfamily homologous superfamily	10 — HIT-like

▶

Unit-cell length a length_a	68.400 Å
Unit-cell length b length_b	57.500 Å
Unit-cell length c length_c	188.900 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	100.13 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	—
R_work r_work	0.1740
R_free r_free	—
