1gus

MopII from Clostridium pasteurianum (apo1)

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MOLYBDATE BINDING PROTEIN II

CLOSTRIDIUM PASTEURIANUM

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	MAGNESIUM ION × 2 CHLORIDE ION × 3 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MOP2_CLOPA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–68； UniProt 1–68 Author chain B； PDBConstruct 1–68； UniProt 1–68 Author chain C； PDBConstruct 1–68； UniProt 1–68 Author chain D； PDBConstruct 1–68； UniProt 1–68 Author chain E； PDBConstruct 1–68； UniProt 1–68 Author chain F； PDBConstruct 1–68； UniProt 1–68

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1gus
Deposition date deposition_date	2002-01-28
Structure title title	MopII from Clostridium pasteurianum (apo1)
Keywords keywords	TRANSPORT PROTEIN, MOLBINDIN, MOLYBDATE BINDING, MOP; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1gus__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1gus__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

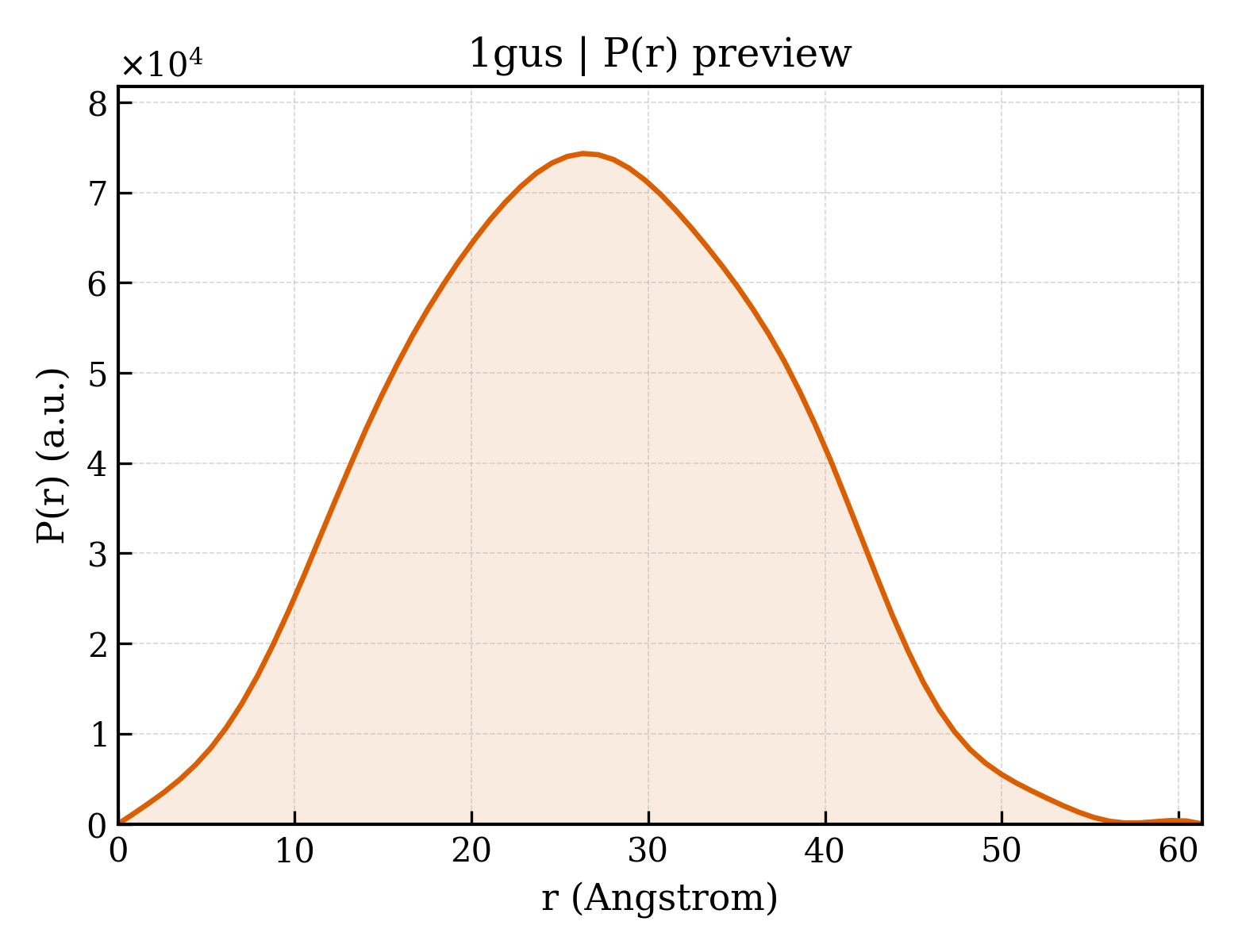

1gus__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.45 Å
Rg (electron density)	19.38 Å
Total Rg	20.28 Å
Atom count	2891
Residues	402
Excluded volume	53050 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1gus__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	MOLYBDATE BINDING PROTEIN II
Molecular weight formula_weight	7017.2 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	3212

MSISARNQLKGKVVGLKKGVVTAEVVLEIAGGNKITSIISLDSVEELGVKEGAELTAVVKSTDVMILA

Source Source

Source organism organism	CLOSTRIDIUM PASTEURIANUM
NCBI taxonomy ID ncbi_taxonomy_id	1501
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	311

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1gusa_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.6 — MOP-like
Family Family family	b.40.6.1 — Molybdate/tungstate binding protein MOP

Domain ID domain_id	d1gusb_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.6 — MOP-like
Family Family family	b.40.6.1 — Molybdate/tungstate binding protein MOP

Domain ID domain_id	d1gusc_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.6 — MOP-like
Family Family family	b.40.6.1 — Molybdate/tungstate binding protein MOP

Domain ID domain_id	d1gusd_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.6 — MOP-like
Family Family family	b.40.6.1 — Molybdate/tungstate binding protein MOP

Domain ID domain_id	d1guse_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.6 — MOP-like
Family Family family	b.40.6.1 — Molybdate/tungstate binding protein MOP

Domain ID domain_id	d1gusf_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.6 — MOP-like
Family Family family	b.40.6.1 — Molybdate/tungstate binding protein MOP

CATH v4.4 (6 domains)

Domain ID domain_id	1gusA00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

Domain ID domain_id	1gusB00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

Domain ID domain_id	1gusC00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

Domain ID domain_id	1gusD00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

Domain ID domain_id	1gusE00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

Domain ID domain_id	1gusF00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

▶

Unit-cell length a length_a	79.080 Å
Unit-cell length b length_b	82.400 Å
Unit-cell length c length_c	56.820 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	93.23 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	23.770 Å
R factor r_factor	0.1810
R_work r_work	0.1790
R_free r_free	0.2170
