SAXSdb — 1gvd

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MYB PROTO-ONCOGENE PROTEIN

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 90–141	Fragment：R2, RESIDUES 90-141 Mutation：YES	NH4 AMMONIUM ION × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.8；297 K；3.15 M AMMONIUM SULFATE IN 0.05 M MES BUFFER AT PH 6.8, PROTEIN CONCENTRATION 10 MG/ML PLUS 10 MM DTT, TEMPERATURE 297 K	Resolution 1.45 Å R-free 0.195

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1GVD	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1GUU CRYSTAL STRUCTURE OF C-MYB R1 Deposited 2002-01-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 38–89（52 aa） Fragment：R1, RESIDUES 38-89	Not recorded	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.8；1.6-1.7 M SODIUM CITRATE PH 6.8, PROTEIN CONCENTRATION 15 MG/ML, CRYSTAL WAS TRANSFORMED TO LOW HUMIDITY FORM AND FLASH COOLED, 1-2% V/V OF GLYCEROL WAS ADDED TO PREVENT THE CRYSTAL CRACKING DURING THE FLASH COOLING	Resolution 1.60 Å R-free 0.223
1GV2 CRYSTAL STRUCTURE OF C-MYB R2R3 Deposited 2002-02-05	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 89–193（105 aa） Fragment：R2R3, RESIDUES 89-193	Not recorded	NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.8；1.6-1.7 M SODIUM CITRATE PH 6.8, PROTEIN CONCENTRATION 15 MG/ML, CRYSTAL WAS GROWN BY REPEATED MACROSEEDING, TRANSFORMED TO LOW HUMIDITY FORM AND FLASH COOLED, 1-2% V/V OF GLYCEROL WAS ADDED TO SODIUM CITRATE TO PREVENT THE CRYSTAL CRACKING DURING THE FLASH COOLING	Resolution 1.68 Å R-free 0.210
1GV5 CRYSTAL STRUCTURE OF C-MYB R2 Deposited 2002-02-06	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 90–141（52 aa） Fragment：R2, RESIDUES 90-141	Not recorded	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.8；297 K；1.65 M SODIUM CITRATE PH 6.8, PROTEIN CONCENTRATION 10 MG/ML PLUS 10 MM DTT, TEMPERATURE 297 K	Resolution 1.58 Å R-free 0.190
1H88 CRYSTAL STRUCTURE OF TERNARY PROTEIN-DNA COMPLEX1 Deposited 2001-01-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain C 35–193（159 aa） Fragment：RESIDUES 35-193	Mutation：YES	NH4 AMMONIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；297 K；0.05 M AMMONIUM ACETATE, 0.01 M MAGNESIUM CHLORIDE, 10% V/V MPD, 6% V/V GLYCEROL, 0.05 M TRIS HCL BUFFER PH 7.5 AT 24 DEGREES C	Resolution 2.80 Å R-free 0.277
1IDY STRUCTURE OF MYB TRANSFORMING PROTEIN, NMR, MINIMIZED AVERAGE STRUCTURE Deposited 1996-08-15	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 141–193（53 aa）	Mutation：P140M, I155L	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5；283 K	Resolution not provided
1IDZ STRUCTURE OF MYB TRANSFORMING PROTEIN, NMR, 20 STRUCTURES Deposited 1996-08-15	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 141–193（53 aa）	Mutation：P140M, I155L	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5；283 K	Resolution not provided
1MBE MOUSE C-MYB DNA-BINDING DOMAIN REPEAT 1 Deposited 1995-05-19	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 38–89（52 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；290 K NMR measurement conditions pH 6.8；300 K	Resolution not provided
1MBF MOUSE C-MYB DNA-BINDING DOMAIN REPEAT 1 Deposited 1995-05-19	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 38–89（52 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；290 K NMR measurement conditions pH 6.8；300 K	Resolution not provided
1MBG MOUSE C-MYB DNA-BINDING DOMAIN REPEAT 2 Deposited 1995-05-19	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 90–141（52 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；290 K	Resolution not provided
1MBH MOUSE C-MYB DNA-BINDING DOMAIN REPEAT 2 Deposited 1995-05-19	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 90–141（52 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；290 K	Resolution not provided
1MBJ MOUSE C-MYB DNA-BINDING DOMAIN REPEAT 3 Deposited 1995-05-19	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 142–193（52 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；290 K NMR measurement conditions pH 6.8；300 K	Resolution not provided
1MBK MOUSE C-MYB DNA-BINDING DOMAIN REPEAT 3 Deposited 1995-05-19	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 142–193（52 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；290 K NMR measurement conditions pH 6.8；300 K	Resolution not provided
1MSE SOLUTION STRUCTURE OF A SPECIFIC DNA COMPLEX OF THE MYB DNA-BINDING DOMAIN WITH COOPERATIVE RECOGNITION HELICES Deposited 1995-01-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain C 90–193（104 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；310 K	Resolution not provided
1MSF SOLUTION STRUCTURE OF A SPECIFIC DNA COMPLEX OF THE MYB DNA-BINDING DOMAIN WITH COOPERATIVE RECOGNITION HELICES Deposited 1995-01-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain C 90–193（104 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1SB0 Solution structure of the KIX domain of CBP bound to the transactivation domain of c-Myb Deposited 2004-02-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 291–315（25 aa） Fragment：transcriptional activation domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.5；27 K；Ionic strength (raw mmCIF value) 50 mM；Pressure ambient NMR sample composition 20 mM Tris d11 acetate d4; 50 mM NaCl; 2 mM NaN3; pH 5.5 \| 90% H20; 10% D2O	Resolution not provided
2AGH Structural basis for cooperative transcription factor binding to the CBP coactivator Deposited 2005-07-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 291–315（25 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.5；298 K；Pressure 1 NMR sample composition 0.5-0.8 mM 15N,13C-labeled protein (e.g. CBP) + 3 fold excess of unlabeled binding partners (MYB + MLL), 20 mM Tris-d3-acetate, 50 mM NaCl, 0.2% sodium azide, 10% D2O \| 20 mM Tris-d3-acetate, 50 mM NaCl, 0.2% sodium azide, 10% D2O NMR sample composition 13C,15N-MYB + UNLABELED CBP & MYB, 20 mM Tris-d3-acetate, 50 mM NaCl, 0.2% sodium azide, 10% D2O \| 20 mM Tris-d3-acetate, 50 mM NaCl, 0.2% sodium azide, 10% D2O NMR sample composition 13C,15N-MLL + UNLABELED CBP & MLL, 20 mM Tris-d3-acetate, 50 mM NaCl, 0.2% sodium azide, 10% D2O \| 20 mM Tris-d3-acetate, 50 mM NaCl, 0.2% sodium azide, 10% D2O	Resolution not provided
6DMX HBZ56 in complex with KIX and c-Myb Deposited 2018-06-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 284–315（32 aa） Fragment：residues 284-315 Chain C 284–315（32 aa） Fragment：residues 284-315	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；PEG 3350, ammonium iodide	Resolution 2.80 Å R-free 0.301
6DMX HBZ56 in complex with KIX and c-Myb Deposited 2018-06-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain F 284–315（32 aa） Fragment：residues 284-315 Chain H 284–315（32 aa） Fragment：residues 284-315	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；PEG 3350, ammonium iodide	Resolution 2.80 Å R-free 0.301
6DNQ HBZ77 in complex with KIX and c-Myb Deposited 2018-06-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 284–315（32 aa） Fragment：residues 284-315 Chain C 284–315（32 aa） Fragment：residues 284-315	Not recorded	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；PEG 3350, calcium chloride	Resolution 2.35 Å R-free 0.229

18 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MYB_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–52； UniProt 90–141

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1gvd
Deposition date deposition_date	2002-02-08
Structure title title	CRYSTAL STRUCTURE OF C-MYB R2 V103L MUTANT
Keywords keywords	TRANSCRIPTION, TRANSCRIPTION REGULATION, MYB, C-MYB, DNA BINDING, ION BINDING, PROTO-ONCOGENE, NUCLEAR PROTEIN; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	11.97 Å
Radius of gyration Rg (electron density) rg_electron	10.51 Å
Forward intensity I(0) i0	1074990.00
Molecular weight molecular_weight	6518.0 kDa
Excluded volume excluded_volume	8110 Å³
Envelope volume envelope_volume	9157 Å³
Hydration-shell volume shell_volume	7632 Å³
Envelope diameter envelope_diameter	37.7 Å
Shell Rg shell_rg	15.85 Å
Envelope Rg envelope_rg	11.03 Å
Shape Rg shape_rg	10.43 Å
Total Rg total_rg	12.24 Å
Total atoms total_atoms	457
Residues n_residues	52
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

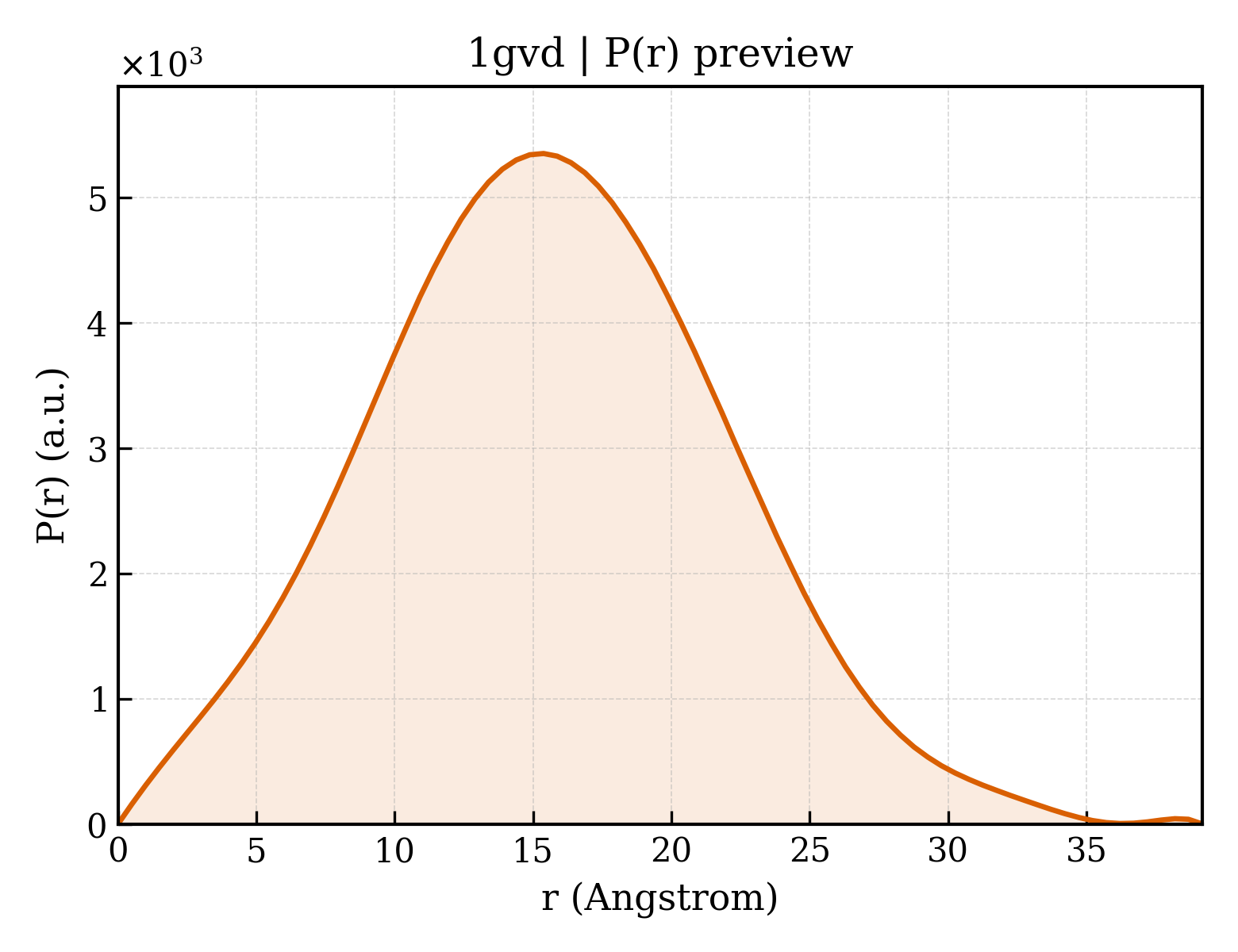

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	39.2 Å
Rg (real space) rg_real	11.90 Å
Rg uncertainty (real space) rg_real_error	0.25 Å
I(0) (real space) i0_real	1.0750e+06
I(0) uncertainty (real space) i0_real_error	1.1820e+04
Rg (reciprocal space) rg_reciprocal	11.90 Å
I(0) (reciprocal space) i0_reciprocal	1075000.0000
Solution quality estimate total_estimate	0.8707
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	15.4 Å
Skewness Skewness skewness	0.160
Kurtosis Kurtosis kurtosis	-0.185
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	229400.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.788; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.954

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	MYB PROTO-ONCOGENE PROTEIN
Molecular weight formula_weight	6316.4 kDa
Mutation mutation	YES
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	553

LIKGPWTKEEDQRLIKLVQKYGPKRWSVIAKHLKGRIGKQCRERWHNHLNPE

Entity 2 Entity 2 non-polymer

Description description	AMMONIUM ION
Molecular weight formula_weight	18.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	51

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1gvda_
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.1 — Homeodomain-like
Family Family family	a.4.1.3 — Myb/SANT domain

CATH v4.4 (1 domains)

Domain ID domain_id	1gvdA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	60 — Homeodomain-like

▶

8. Citations (3)

▶

Unit-cell length a length_a	28.951 Å
Unit-cell length b length_b	40.114 Å
Unit-cell length c length_c	48.807 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.450 Å
Low-resolution limit resolution_low	12.450 Å
R factor r_factor	0.1800
R_work r_work	0.1800
R_free r_free	0.1950

fit	/app/data/saxs_computation/gv/1gvd/1gvd.fit
pddf	/app/data/pr_computation/gv/1gvd/1gvd.pr.out
profile	/app/data/saxs_computation/gv/1gvd/1gvd.dat

CRYSTAL STRUCTURE OF C-MYB R2 V103L MUTANT
