SAXSdb — 1gvm

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1gvm
沉积日期 deposition_date	2002-02-15
结构标题 title	CHOLINE BINDING DOMAIN OF THE MAJOR AUTOLYSIN (C-LYTA) FROM STREPTOCOCCUS PNEUMONIAE
关键词 keywords	CHOLINE-BINDING DOMAIN, CELL WALL ATTACHMENT; CHOLINE-BINDING DOMAIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	41.66 Å
回转半径 Rg (电子) rg_electron	42.03 Å
零角强度 I(0) i0	123611000.00
分子量 molecular_weight	92615.0 kDa
排除体积 excluded_volume	116820 Å³
包络体积 envelope_volume	176990 Å³
水化壳体积 shell_volume	39795 Å³
包络直径 envelope_diameter	160.3 Å
壳层 Rg shell_rg	41.05 Å
包络 Rg envelope_rg	41.59 Å
形状 Rg shape_rg	42.02 Å
总 Rg total_rg	41.99 Å
总原子数 total_atoms	6572
残基数 n_residues	769
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	153.2 Å
Rg (实空间) rg_real	42.20 Å
Rg 误差 (实空间) rg_real_error	2.27 Å
I(0) (实空间) i0_real	1.2360e+08
I(0) 误差 (实空间) i0_real_error	2.3200e+06
Rg (倒空间) rg_reciprocal	41.66 Å
I(0) (倒空间) i0_reciprocal	123500000.0000
解质量估计 total_estimate	0.7819
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	44.4 Å
偏度 Skewness skewness	0.716
峰度 Kurtosis kurtosis	0.138
角度范围 angular_range	— – 0.1900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	6089000.0000
实空间数据点数 n_real_points	39
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.529; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.846; Smooth: 0.726

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	AUTOLYSIN
分子量 formula_weight	15876.6 kDa
EC 编号 ec_number	3.5.1.28
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F
原子数 atom_count	6651

MKGGIVHSDGSYPKDKFEKINGTWYYFDSSGYMLADRWRKHTDGNWYWFDNSGEMATGWKKIADKWYYFNEEGAMKTGWVKYKDTWYYLDAKEGAMVSNAFIQSADGTGWYYLKPDGTLADRPEFTVEPDGLITVK

来源 Source

来源生物 organism	STREPTOCOCCUS PNEUMONIAE
通用名 common_name	PNEUMOCOCCUS
NCBI 分类编号 ncbi_taxonomy_id	1313
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 non-polymer

描述 description	CHOLINE ION
分子量 formula_weight	104.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	20

Entity 3 non-polymer

描述 description	DECYLAMINE-N,N-DIMETHYL-N-OXIDE
分子量 formula_weight	201.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
分子量 formula_weight	122.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	79

▼

6. 折叠分类 (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d1gvma_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.109 — beta-hairpin stack
超家族 Superfamily superfamily	b.109.1 — Cell wall binding repeat
家族 Family family	b.109.1.1 — Cell wall binding repeat

结构域编号 domain_id	d1gvmb_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.109 — beta-hairpin stack
超家族 Superfamily superfamily	b.109.1 — Cell wall binding repeat
家族 Family family	b.109.1.1 — Cell wall binding repeat

结构域编号 domain_id	d1gvmc_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.109 — beta-hairpin stack
超家族 Superfamily superfamily	b.109.1 — Cell wall binding repeat
家族 Family family	b.109.1.1 — Cell wall binding repeat

结构域编号 domain_id	d1gvmd_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.109 — beta-hairpin stack
超家族 Superfamily superfamily	b.109.1 — Cell wall binding repeat
家族 Family family	b.109.1.1 — Cell wall binding repeat

结构域编号 domain_id	d1gvme_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.109 — beta-hairpin stack
超家族 Superfamily superfamily	b.109.1 — Cell wall binding repeat
家族 Family family	b.109.1.1 — Cell wall binding repeat

结构域编号 domain_id	d1gvmf_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.109 — beta-hairpin stack
超家族 Superfamily superfamily	b.109.1 — Cell wall binding repeat
家族 Family family	b.109.1.1 — Cell wall binding repeat

CATH v4.4 (6 domains)

结构域编号 domain_id	1gvmA00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	270 — left handed beta-beta-3-solenoid
同源超家族 H-superfamily homologous superfamily	10 — Cholin Binding

结构域编号 domain_id	1gvmB00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	270 — left handed beta-beta-3-solenoid
同源超家族 H-superfamily homologous superfamily	10 — Cholin Binding

结构域编号 domain_id	1gvmC00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	270 — left handed beta-beta-3-solenoid
同源超家族 H-superfamily homologous superfamily	10 — Cholin Binding

结构域编号 domain_id	1gvmD00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	270 — left handed beta-beta-3-solenoid
同源超家族 H-superfamily homologous superfamily	10 — Cholin Binding

结构域编号 domain_id	1gvmE00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	270 — left handed beta-beta-3-solenoid
同源超家族 H-superfamily homologous superfamily	10 — Cholin Binding

结构域编号 domain_id	1gvmF00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	270 — left handed beta-beta-3-solenoid
同源超家族 H-superfamily homologous superfamily	10 — Cholin Binding

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	56.717 Å
晶胞边长 b length_b	85.390 Å
晶胞边长 c length_c	204.136 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	96.54 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.800 Å
最低分辨率 resolution_low	8.000 Å
R 因子 r_factor	0.2260
R_work r_work	0.2260
R_free r_free	0.2940

fit	/app/data/saxs_computation/gv/1gvm/1gvm.fit
pddf	/app/data/pr_computation/gv/1gvm/1gvm.pr.out
profile	/app/data/saxs_computation/gv/1gvm/1gvm.dat

CHOLINE BINDING DOMAIN OF THE MAJOR AUTOLYSIN (C-LYTA) FROM STREPTOCOCCUS PNEUMONIAE

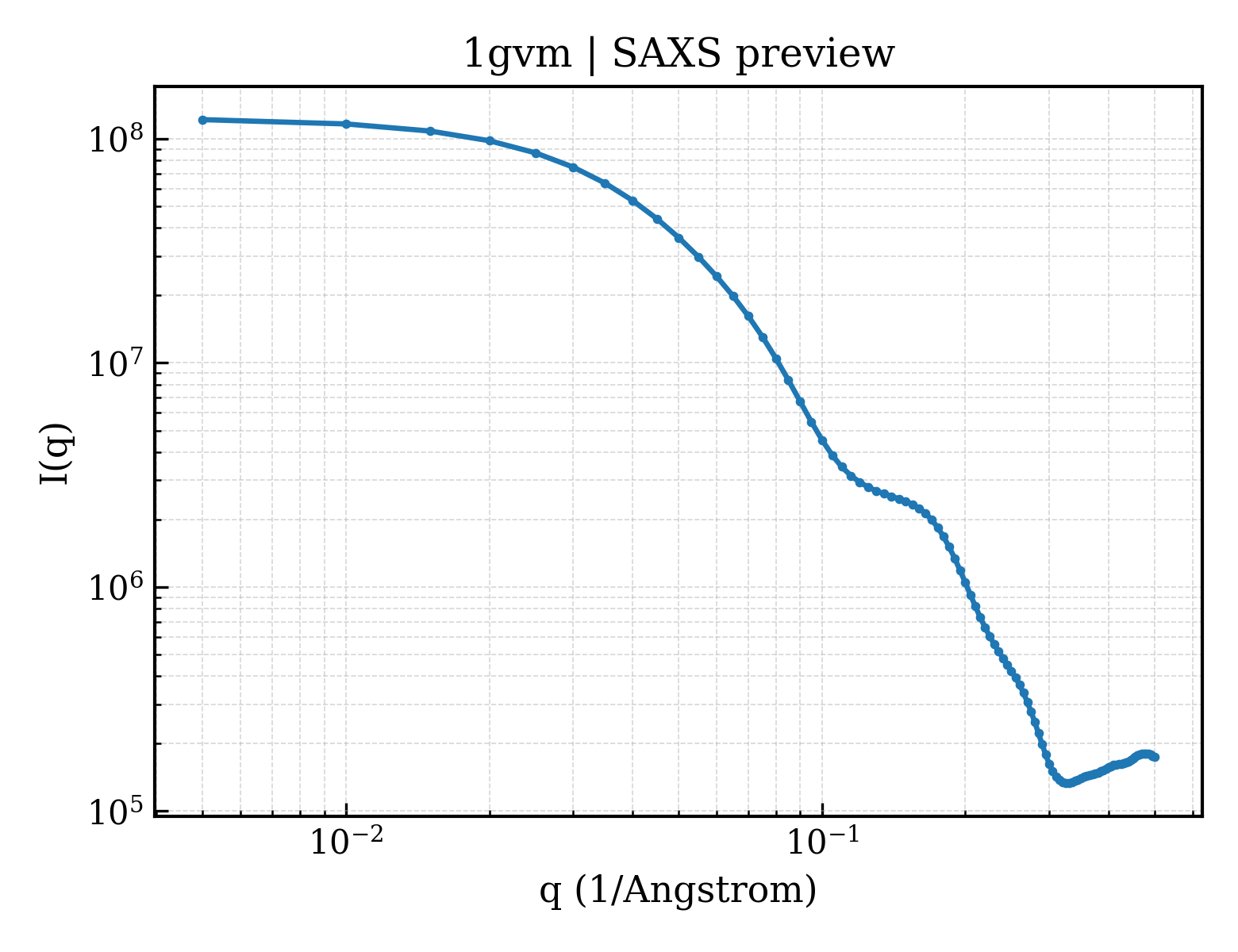

SAXS 散射曲线 SAXS Profile

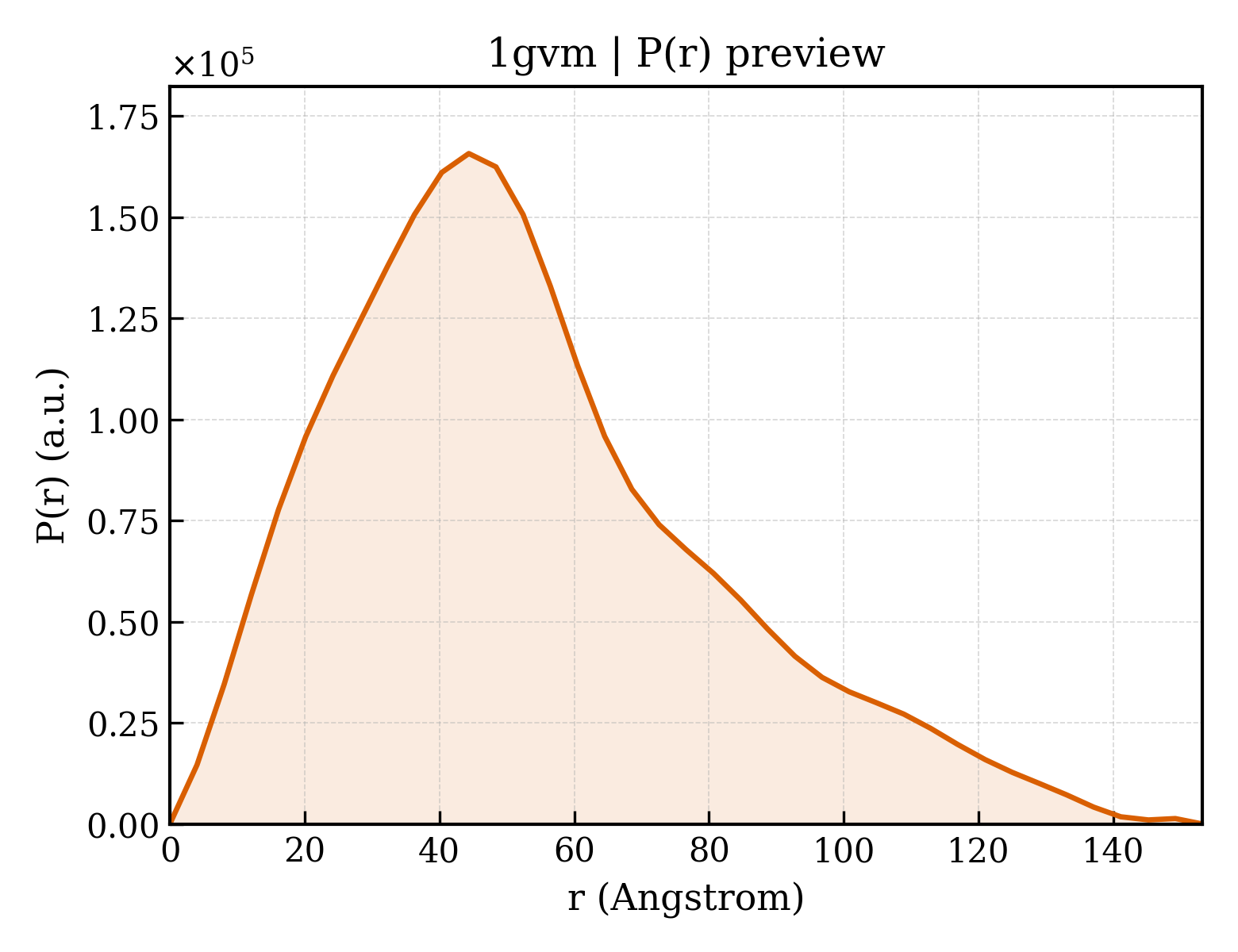

P(r) 距离分布 P(r) Distribution
