OrganismNot specified
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | GLYCEROL × 3 ACETATE ION × 2 water × 1 | Consistent with protein count |
| UniProt name | KLK2_HORSE |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–237； UniProt 25–261 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1gvz |
| Deposition date deposition_date | 2002-02-28 |
| Structure title title | Prostate Specific Antigen (PSA) from stallion seminal plasma |
| Keywords keywords | ANTIGEN, PROSTATE SPECIFIC ANTIGEN, HYDROLASE; HYDROLASE |
| Experimental Method method | X-RAY DIFFRACTION |

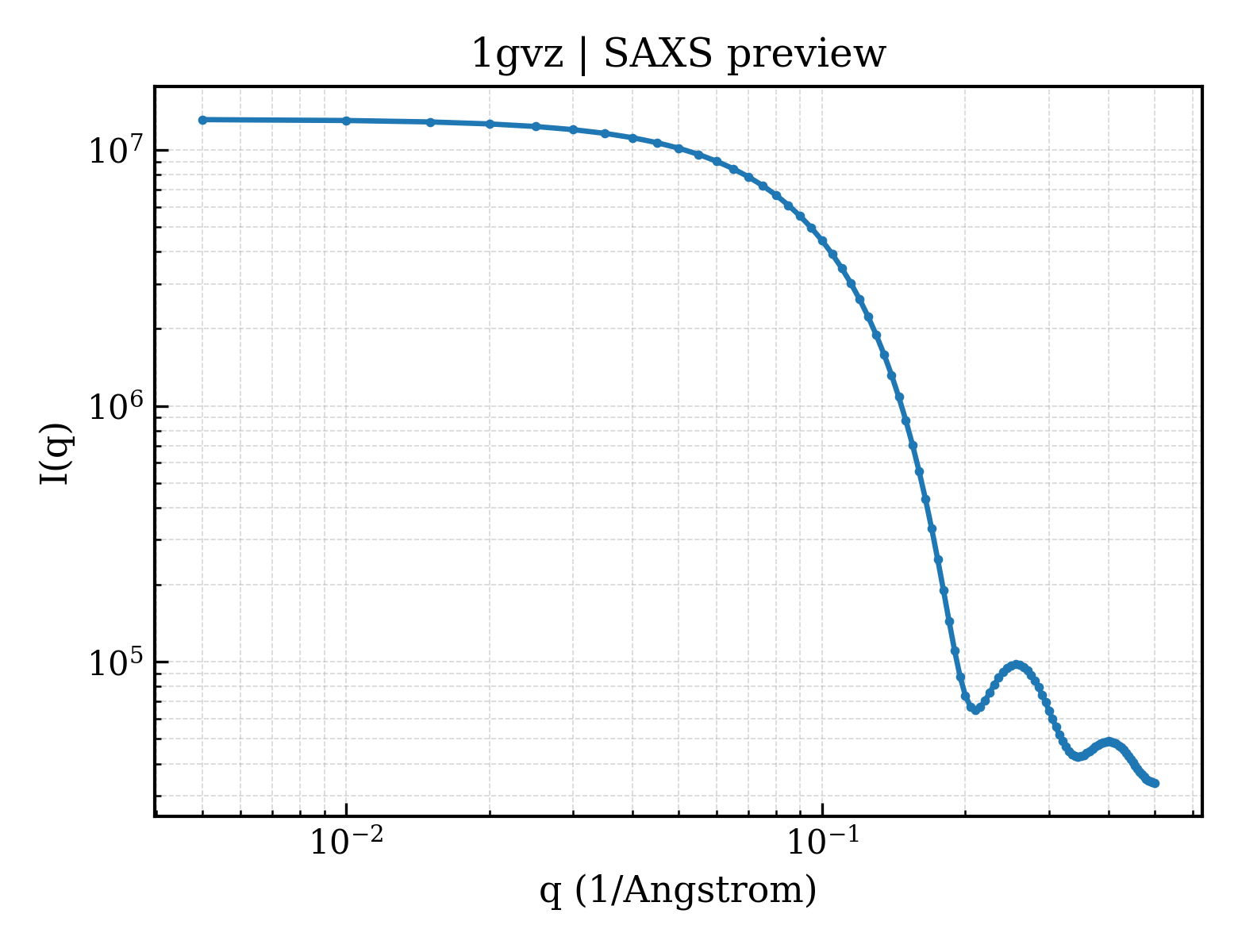

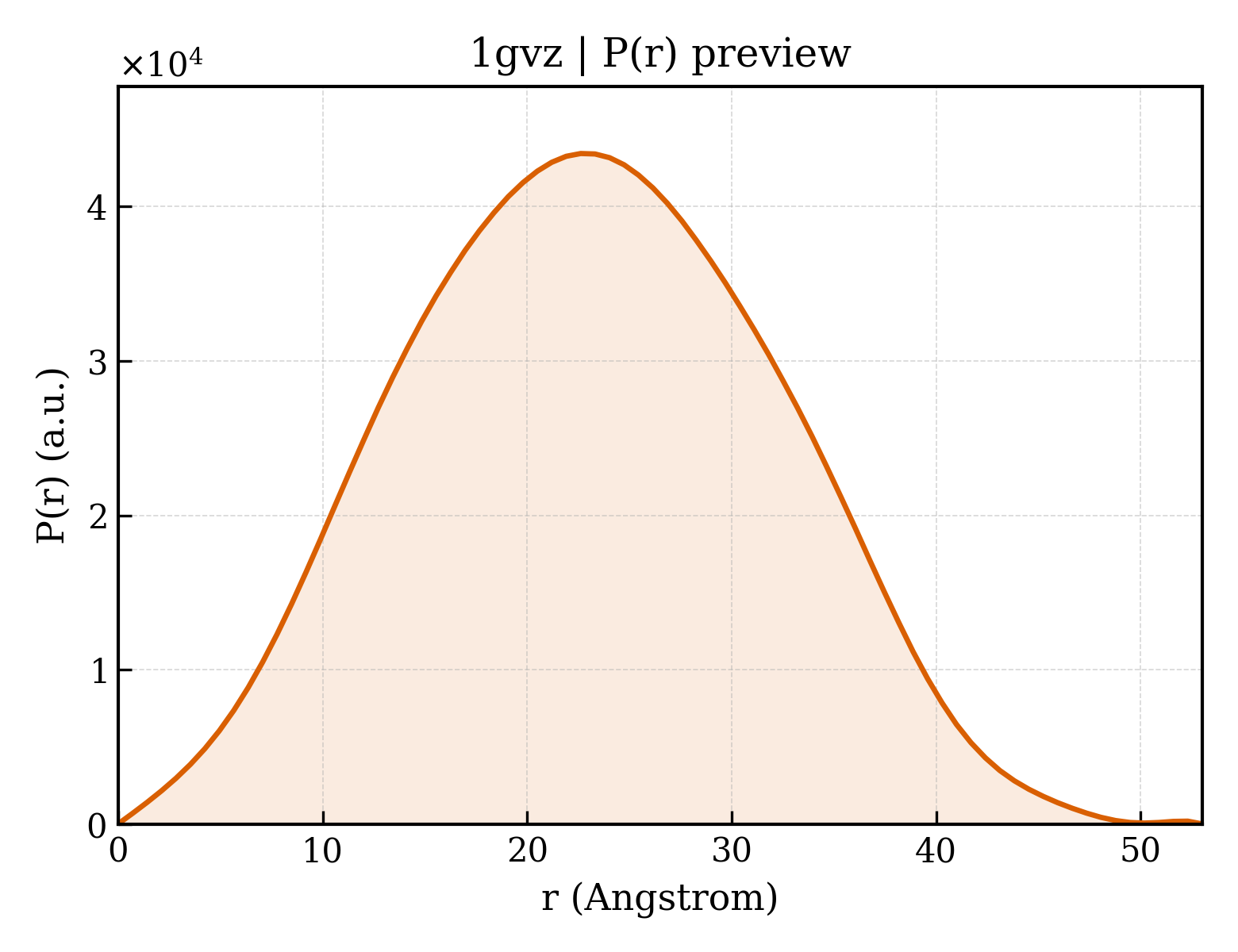

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 17.67 Å |
| Rg (electron density) | 16.41 Å |
| Total Rg | 17.41 Å |
| Atom count | 1877 |
| Residues | 237 |
| Excluded volume | 33142 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1gvza_ |
| Class class | b — All beta proteins |
| Fold Fold fold | b.47 — Trypsin-like serine proteases |
| Superfamily Superfamily superfamily | b.47.1 — Trypsin-like serine proteases |
| Family Family family | b.47.1.2 — Eukaryotic proteases |
| Domain ID domain_id | 1gvzA01 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 40 — Beta Barrel |
| Topology topology | 10 — Thrombin, subunit H |
| Homologous superfamily homologous superfamily | 10 — Trypsin-like serine proteases |
| Domain ID domain_id | 1gvzA02 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 40 — Beta Barrel |
| Topology topology | 10 — Thrombin, subunit H |
| Homologous superfamily homologous superfamily | 10 — Trypsin-like serine proteases |
