SAXSdb — 1gyb

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NUCLEAR TRANSPORT FACTOR 2

SACCHAROMYCES CEREVISIAE

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	NUCLEOPORIN × 2 water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	NUCLEOPORIN × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NTF2_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–125； UniProt 1–125 Author chain B； PDBConstruct 1–125； UniProt 1–125 Author chain C； PDBConstruct 1–125； UniProt 1–125 Author chain D； PDBConstruct 1–125； UniProt 1–125

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1gyb
Deposition date deposition_date	2002-04-22
Structure title title	N77Y point mutant of yNTF2 bound to FxFG nucleoporin repeat
Keywords keywords	NUCLEAR TRANSPORT; NUCLEAR TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1gyb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1gyb__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

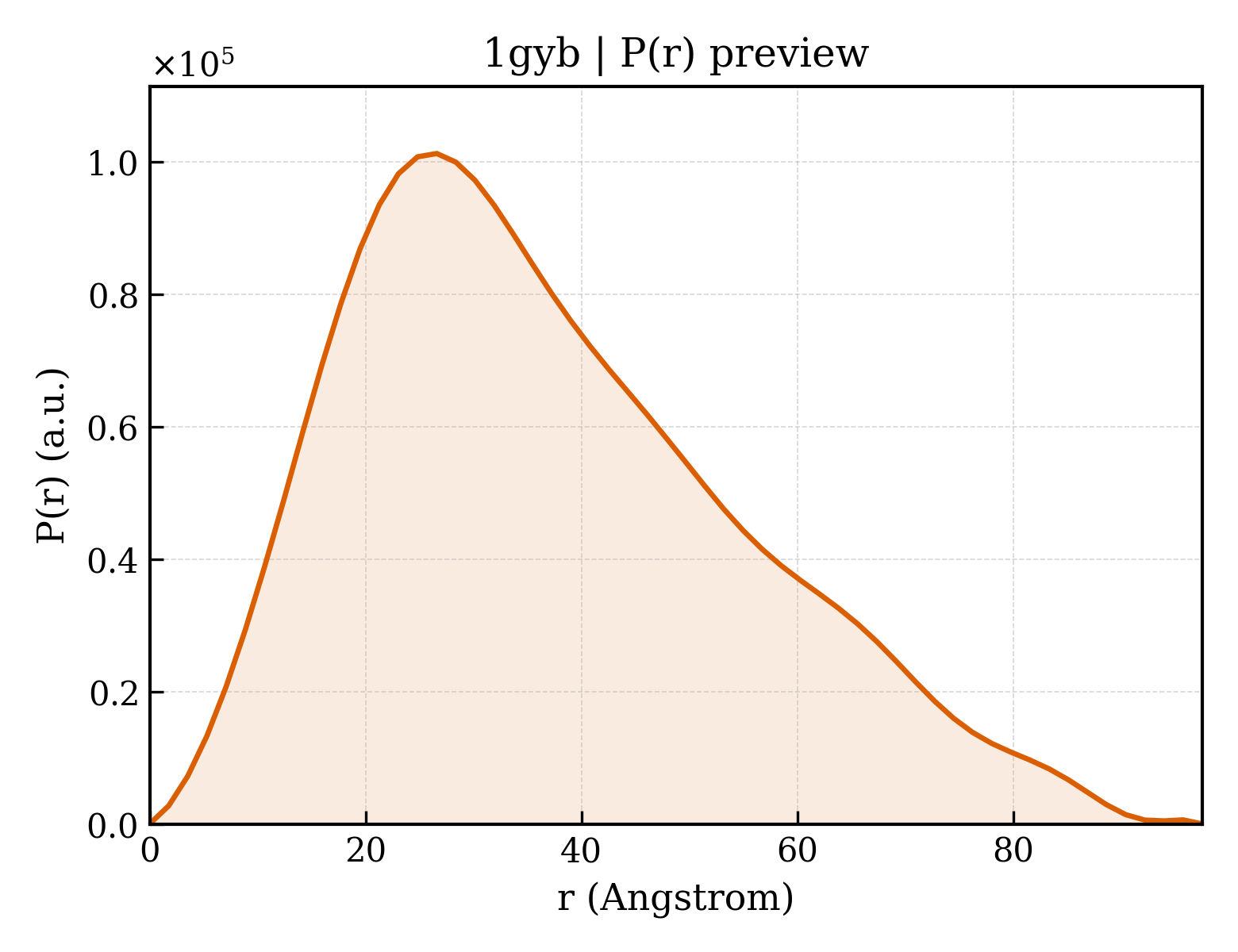

1gyb__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.28 Å
Rg (electron density)	17.92 Å
Total Rg	18.94 Å
Atom count	2070
Residues	252
Excluded volume	36556 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1gyb__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1gyb__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	NUCLEAR TRANSPORT FACTOR 2
Molecular weight formula_weight	14512.1 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	4475

MSLDFNTLAQNFTQFYYNQFDTDRSQLGNLYRNESMLTFETSQLQGAKDIVEKLVSLPFQKVQHRITTLDAQPASPYGDVLVMITGDLLIDEEQNPQRFSQVFHLIPDGNSYYVFNDIFRLNYSA

Source Source

Source organism organism	SACCHAROMYCES CEREVISIAE
Common name common_name	;BAKER'S YEAST ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	NUCLEOPORIN
Molecular weight formula_weight	932.0 kDa
Source method src_method	syn
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,G,H

DSGFSFGSK

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	384

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1gyba_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.4 — NTF2-like
Family Family family	d.17.4.2 — NTF2-like

Domain ID domain_id	d1gybb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.4 — NTF2-like
Family Family family	d.17.4.2 — NTF2-like

Domain ID domain_id	d1gybc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.4 — NTF2-like
Family Family family	d.17.4.2 — NTF2-like

Domain ID domain_id	d1gybd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.4 — NTF2-like
Family Family family	d.17.4.2 — NTF2-like

CATH v4.4 (4 domains)

Domain ID domain_id	1gybA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	1gybB00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	1gybC00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	1gybD00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	50 —

▶

Unit-cell length a length_a	58.840 Å
Unit-cell length b length_b	84.060 Å
Unit-cell length c length_c	61.790 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	116.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	0.1970
R_work r_work	0.1970
R_free r_free	0.2260

N77Y point mutant of yNTF2 bound to FxFG nucleoporin repeat
