1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1gyg
沉积日期 deposition_date	2002-04-23
结构标题 title	R32 CLOSED FORM OF ALPHA-TOXIN FROM CLOSTRIDIUM PERFRINGENS STRAIN CER89L43
关键词 keywords	ZINC PHOSPHOLIPASE C, GANGRENE DETERMINANT, C2 DOMAIN, CA AND MEMBRANE BINDING, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	31.39 Å
回转半径 Rg (电子) rg_electron	30.89 Å
零角强度 I(0) i0	119989000.00
分子量 molecular_weight	85123.0 kDa
排除体积 excluded_volume	105330 Å³
包络体积 envelope_volume	133140 Å³
水化壳体积 shell_volume	35798 Å³
包络直径 envelope_diameter	107.1 Å
壳层 Rg shell_rg	37.94 Å
包络 Rg envelope_rg	30.55 Å
形状 Rg shape_rg	30.85 Å
总 Rg total_rg	31.60 Å
总原子数 total_atoms	6006
残基数 n_residues	740
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	100.3 Å
Rg (实空间) rg_real	31.39 Å
Rg 误差 (实空间) rg_real_error	0.64 Å
I(0) (实空间) i0_real	1.2000e+08
I(0) 误差 (实空间) i0_real_error	1.7180e+06
Rg (倒空间) rg_reciprocal	31.40 Å
I(0) (倒空间) i0_reciprocal	120000000.0000
解质量估计 total_estimate	0.9032
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	34.1 Å
偏度 Skewness skewness	0.290
峰度 Kurtosis kurtosis	-0.534
角度范围 angular_range	— – 0.2500 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	17410000.0000
实空间数据点数 n_real_points	51
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.944; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.913

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	PHOSPHOLIPASE C
分子量 formula_weight	42615.9 kDa
EC 编号 ec_number	3.1.4.3
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	6232

WDGKIDGTGTHAMIVTQGVSILENDLSKNEPESVRKNLEILKENMHELQLGSTYPDYDKNAYDLYQDHFWDPDTDNNFSKDNSWYLAYSIPDTGESQIRKFSALARYEWQRGNYKQATFYLGEAMHYFGDIDTPYHPANVTAVDSAGHVKFETFAEERKEQYKINTVGCKTNEDFYADILKNKDFNAWSKEYARGFAKTGKSIYYSHASMSHSWDDWDYAAKVTLANSQKGTAGYIYRFLHDVSEGNDPSVGKNVKELVAYISTSGEKDAGTDDYMYFGIKTKDGKTQEWEMDNPGNDFMTGSKDTYTFKLKDENLKIDDIQNMWIRKRKYTAFPDAYKPENIKVIANGKVVVDKDINEWISGNSTYNIK

Entity 2 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	226

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1gyga1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.124 — Phospholipase C/P1 nuclease
超家族 Superfamily superfamily	a.124.1 — Phospholipase C/P1 nuclease
家族 Family family	a.124.1.1 — Phospholipase C

结构域编号 domain_id	d1gyga2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.12 — Lipase/lipooxygenase domain (PLAT/LH2 domain)
超家族 Superfamily superfamily	b.12.1 — Lipase/lipooxygenase domain (PLAT/LH2 domain)
家族 Family family	b.12.1.3 — Alpha-toxin, C-terminal domain

结构域编号 domain_id	d1gygb1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.124 — Phospholipase C/P1 nuclease
超家族 Superfamily superfamily	a.124.1 — Phospholipase C/P1 nuclease
家族 Family family	a.124.1.1 — Phospholipase C

结构域编号 domain_id	d1gygb2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.12 — Lipase/lipooxygenase domain (PLAT/LH2 domain)
超家族 Superfamily superfamily	b.12.1 — Lipase/lipooxygenase domain (PLAT/LH2 domain)
家族 Family family	b.12.1.3 — Alpha-toxin, C-terminal domain

CATH v4.4 (4 domains)

结构域编号 domain_id	1gygA01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	575 — P1 Nuclease
同源超家族 H-superfamily homologous superfamily	10 — P1 Nuclease

结构域编号 domain_id	1gygA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	60 — Lipoxygenase-1
同源超家族 H-superfamily homologous superfamily	20 — PLAT/LH2 domain

结构域编号 domain_id	1gygB01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	575 — P1 Nuclease
同源超家族 H-superfamily homologous superfamily	10 — P1 Nuclease

结构域编号 domain_id	1gygB02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	60 — Lipoxygenase-1
同源超家族 H-superfamily homologous superfamily	20 — PLAT/LH2 domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	151.400 Å
晶胞边长 b length_b	151.400 Å
晶胞边长 c length_c	195.500 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	36

空间群 space_group	H 3 2
空间群编号 int_tables_number	155
晶系 crystal_system	—

分辨率 resolution	1.900 Å
最低分辨率 resolution_low	25.000 Å
R 因子 r_factor	0.2080
R_work r_work	0.2080
R_free r_free	0.2540

fit	/app/data/saxs_computation/gy/1gyg/1gyg.fit
pddf	/app/data/pr_computation/gy/1gyg/1gyg.pr.out
profile	/app/data/saxs_computation/gy/1gyg/1gyg.dat

R32 CLOSED FORM OF ALPHA-TOXIN FROM CLOSTRIDIUM PERFRINGENS STRAIN CER89L43

SAXS 散射曲线 SAXS Profile

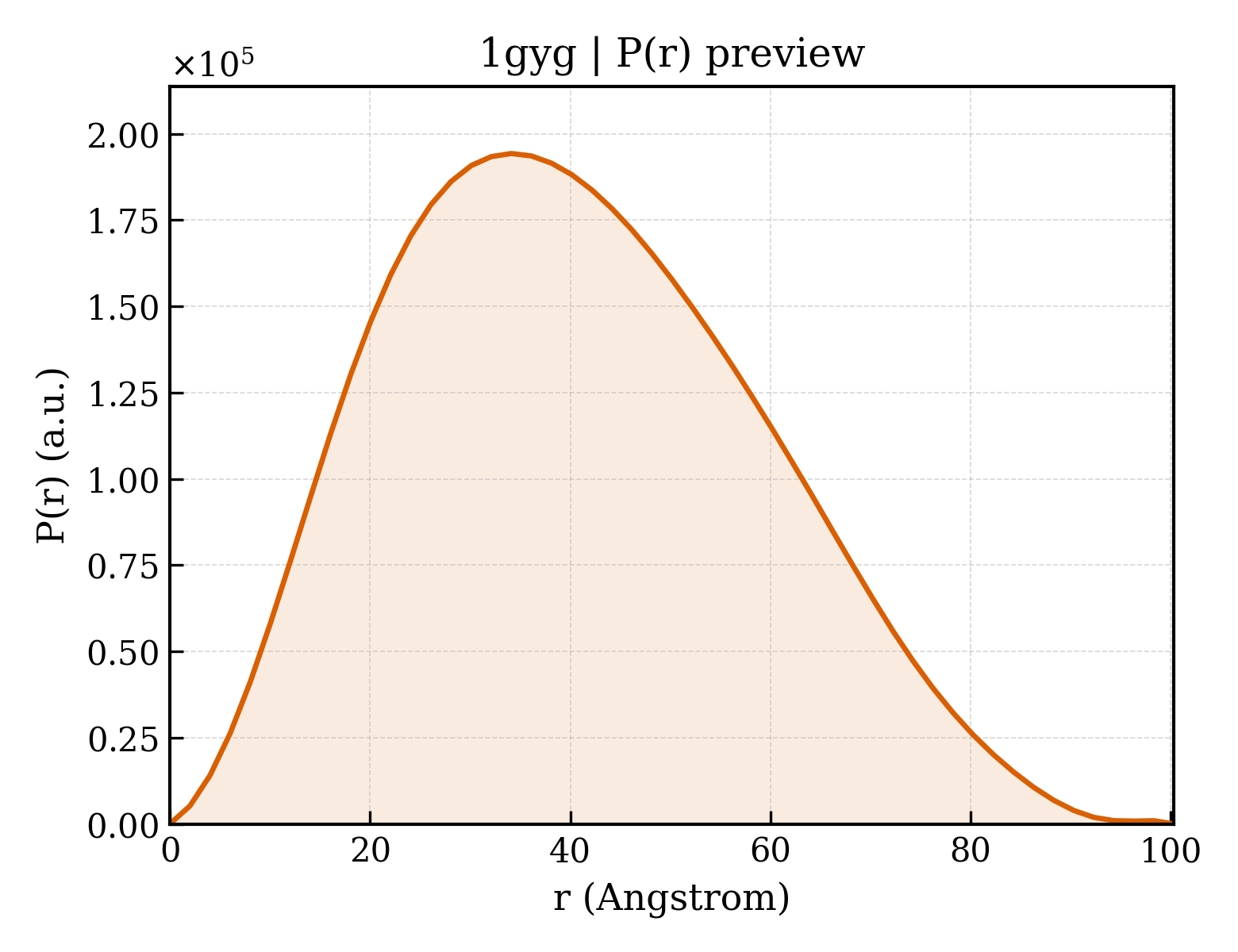

P(r) 距离分布 P(r) Distribution
