SAXSdb — 1gzs

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GTP-BINDING PROTEIN

HOMO SAPIENS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	SOPE × 1 （O52623） SULFATE ION × 4 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	SOPE × 1 （O52623） SULFATE ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	G25P_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–180； UniProt 1–178 Author chain C； PDBConstruct 3–180； UniProt 1–178

SOPE

SALMONELLA TYPHIMURIUM

UniProt O52623

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	GTP-BINDING PROTEIN × 1 （P25763） SULFATE ION × 4 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	GTP-BINDING PROTEIN × 1 （P25763） SULFATE ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O52623
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 3–165； UniProt 78–240 Author chain D； PDBConstruct 3–165； UniProt 78–240

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1gzs
Deposition date deposition_date	2002-06-05
Structure title title	CRYSTAL STRUCTURE OF THE COMPLEX BETWEEN THE GEF DOMAIN OF THE SALMONELLA TYPHIMURIUM SOPE TOXIN AND HUMAN Cdc42
Keywords keywords	;TOXIN/CELL CYCLE, COMPLEX (TOXIN-CELL CYCLE PROTEIN), SOPE, CDC42, SALMONELLA TYPHIMURIUM, GEF, TOXIN, GTP- BINDING, LIPOPROTEIN, PRENYLATION, TOXIN-CELL CYCLE complex ;; TOXIN/CELL CYCLE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1gzs__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1gzs__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

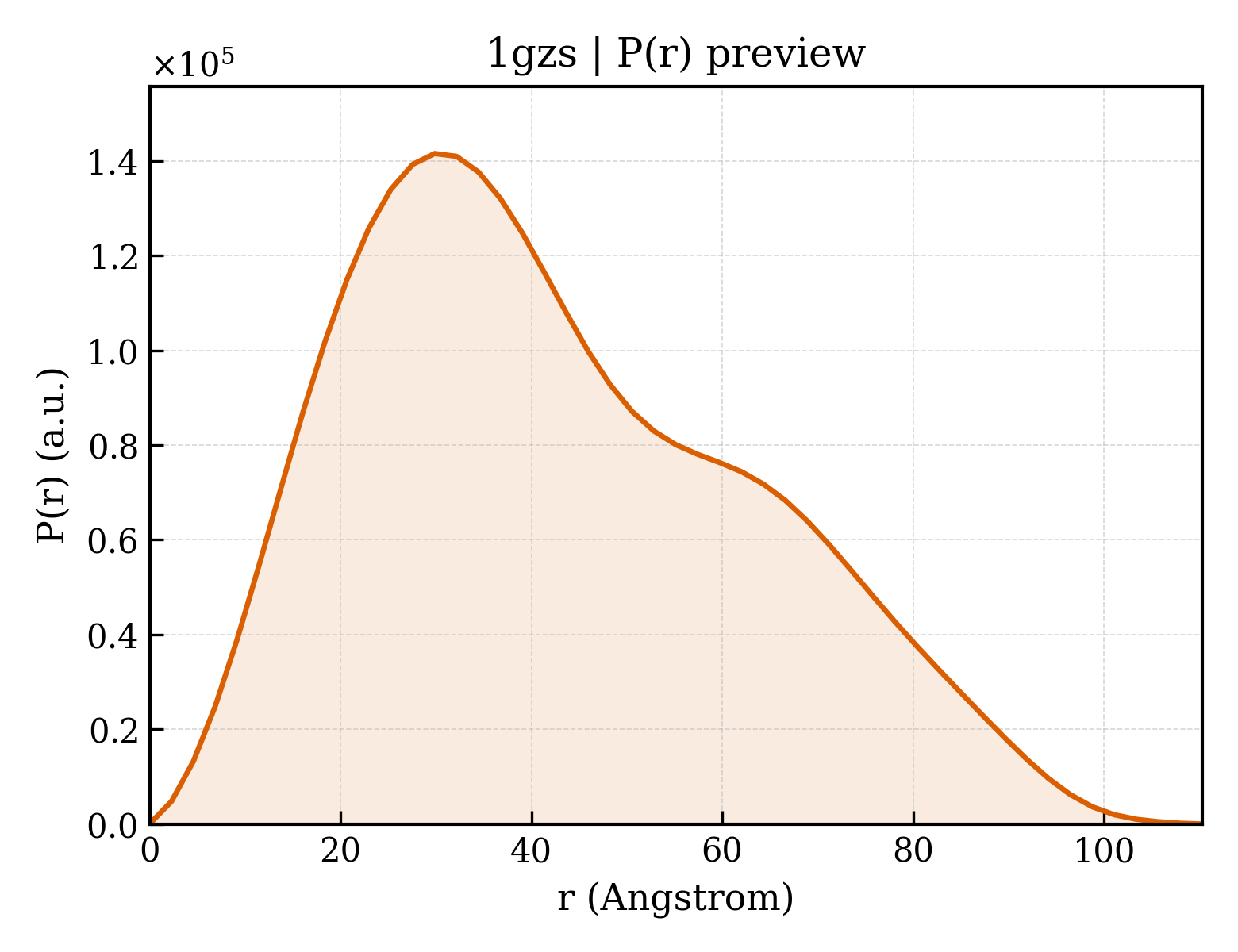

1gzs__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.34 Å
Rg (electron density)	20.28 Å
Total Rg	21.27 Å
Atom count	2676
Residues	343
Excluded volume	47996 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1gzs__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1gzs__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	GTP-BINDING PROTEIN
Molecular weight formula_weight	19918.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	5498

GSMQTIKCVVVGDGAVGKTCLLISYTTNKFPSEYVPTVFDNYAVTVMIGGEPYTLGLFDTAGQEDYDRLRPLSYPQTDVFLVCFSVVSPSSFENVKEKWVPEITHHCPKTPFLLVGTQIDLRDDPSTIEKLAKNKQKPITPETAEKLARDLKAVKYVECSALTQKGLKNVFDEAILAALE

Source Source

Source organism organism	HOMO SAPIENS
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	SOPE
Molecular weight formula_weight	18059.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

GSLTNKVVKDFMLQTLNDIDIRGSASKDPAYASQTREAILSAVYSKNKDQCCNLLISKGINIAPFLQEIGEAAKNAGLPGTTKNDVFTPSGAGANPFITPLISSANSKYPRMFINQHQQASFKIYAEKIIMTEVAPLFNECAMPTPQQFQLILENIANKYIQNTP

Source Source

Source organism organism	SALMONELLA TYPHIMURIUM
NCBI taxonomy ID ncbi_taxonomy_id	602
Host organism host_organism	ESCHERICHIA COLI

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	160

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1gzsa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d1gzsb_
Class class	a — All alpha proteins
Fold Fold fold	a.168 — SopE-like GEF domain
Superfamily Superfamily superfamily	a.168.1 — SopE-like GEF domain
Family Family family	a.168.1.1 — SopE-like GEF domain

Domain ID domain_id	d1gzsc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d1gzsd_
Class class	a — All alpha proteins
Fold Fold fold	a.168 — SopE-like GEF domain
Superfamily Superfamily superfamily	a.168.1 — SopE-like GEF domain
Family Family family	a.168.1.1 — SopE-like GEF domain

CATH v4.4 (4 domains)

Domain ID domain_id	1gzsA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1gzsB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	4120 — SopE-like GEF fold
Homologous superfamily homologous superfamily	10 — SopE-like, GEF domain

Domain ID domain_id	1gzsC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1gzsD00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	4120 — SopE-like GEF fold
Homologous superfamily homologous superfamily	10 — SopE-like, GEF domain

▶

Unit-cell length a length_a	87.545 Å
Unit-cell length b length_b	87.545 Å
Unit-cell length c length_c	200.509 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	19.860 Å
R factor r_factor	0.2260
R_work r_work	0.2260
R_free r_free	0.2550

CRYSTAL STRUCTURE OF THE COMPLEX BETWEEN THE GEF DOMAIN OF THE SALMONELLA TYPHIMURIUM SOPE TOXIN AND HUMAN Cdc42
