1. Protein Identity and Related Structures Protein Identity & Related Structures

INSULIN-LIKE GROWTH FACTOR I

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 49–118	Not recorded	C15 N-DODECYL-N,N-DIMETHYL-3-AMMONIO-1-PROPANESULFONATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；THE PROTEIN WAS CRYSTALLIZED BY THE HANGING DROP METHOD IN WHICH DROPS WERE COMPOSED OF VARIOUS RATIOS OF HIGF-I AT 7MG/ML (IN H2O) WITH RESERVOIR SOLUTION CONSISTING OF 0.1M TRIS.HCL PH 7.5, 12-15% (W/V) PEG 2K AND 5MM SB12 DETERGENT.	Resolution 2.00 Å R-free 0.300

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1H02	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1B9G INSULIN-LIKE-GROWTH-FACTOR-1 Deposited 1999-02-11	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–57（57 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 1.9；293 K	Resolution not provided
1GZR Human Insulin-like growth factor; ESRF data Deposited 2002-05-28	Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 49–118（70 aa）	Not recorded	C15 N-DODECYL-N,N-DIMETHYL-3-AMMONIO-1-PROPANESULFONATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；THE PROTEIN WAS CRYSTALLIZED BY THE HANGING DROP METHOD IN WHICH DROPS WERE COMPOSED OF VARIOUS RATIOS OF HIGF-I AT 7MG/ML (IN H2O) WITH RESERVOIR SOLUTION CONSISTING OF 0.1M TRIS.HCL PH 7.5, 12-15% (W/V) PEG 2K AND 5MM SB12 DETERGENT.	Resolution 2.00 Å R-free 0.295
1GZY Human Insulin-like growth factor; In-house data Deposited 2002-06-10	Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 49–118（70 aa）	Not recorded	C15 N-DODECYL-N,N-DIMETHYL-3-AMMONIO-1-PROPANESULFONATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；THE PROTEIN WAS CRYSTALLIZED BY THE HANGING DROP METHOD IN WHICH DROPS WERE COMPOSED OF VARIOUS RATIOS OF HIGF-I AT 7MG/ML (IN H2O) WITH RESERVOIR SOLUTION CONSISTING OF 0.1M TRIS.HCL PH 7.5, 12-15% (W/V) PEG 2K AND 5MM SB12 DETERGENT.	Resolution 2.54 Å R-free 0.265
1GZZ Human Insulin-like growth factor; Hamburg data Deposited 2002-06-10	Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 49–118（70 aa）	Not recorded	C15 N-DODECYL-N,N-DIMETHYL-3-AMMONIO-1-PROPANESULFONATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；THE PROTEIN WAS CRYSTALLIZED BY THE HANGING DROP METHOD IN WHICH DROPS WERE COMPOSED OF VARIOUS RATIOS OF HIGF-I AT 7MG/ML (IN H2O) WITH RESERVOIR SOLUTION CONSISTING OF 0.1M TRIS.HCL PH 7.5, 12-15% (W/V) PEG 2K AND 5MM SB12 DETERGENT.	Resolution 2.30 Å R-free 0.275
1H59 Complex of IGFBP-5 with IGF-I Deposited 2001-05-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 49–118（70 aa） Fragment：RESIDUES 49-118	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；pH 5.60	Resolution 2.10 Å R-free 0.262
1IMX 1.8 Angstrom crystal structure of IGF-1 Deposited 2001-05-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 49–118（70 aa）	Not recorded	BR BROMIDE ION × 1 CPQ N,N-BIS(3-D-GLUCONAMIDOPROPYL)DEOXYCHOLAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG 3350, deoxy big CHAPS, sodium cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.82 Å R-free 0.258
1TGR Crystal Structure of mini-IGF-1(2) Deposited 2004-05-29	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 49–77（29 aa） Fragment：residues 1-52 Chain A 90–110（21 aa） Fragment：residues 1-52	Mutation：T29K Mutation：T29K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.65；289 K；Citrate, ethanol, pH 6.65, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.42 Å R-free 0.224
1TGR Crystal Structure of mini-IGF-1(2) Deposited 2004-05-29	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 49–77（29 aa） Fragment：residues 1-52 Chain B 90–110（21 aa） Fragment：residues 1-52	Mutation：T29K Mutation：T29K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.65；289 K；Citrate, ethanol, pH 6.65, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.42 Å R-free 0.224
1TGR Crystal Structure of mini-IGF-1(2) Deposited 2004-05-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 49–77（29 aa） Fragment：residues 1-52 Chain A 90–110（21 aa） Fragment：residues 1-52 Chain B 49–77（29 aa） Fragment：residues 1-52 Chain B 90–110（21 aa） Fragment：residues 1-52	Mutation：T29K Mutation：T29K Mutation：T29K Mutation：T29K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.65；289 K；Citrate, ethanol, pH 6.65, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.42 Å R-free 0.224
2GF1 SOLUTION STRUCTURE OF HUMAN INSULIN-LIKE GROWTH FACTOR 1: A NUCLEAR MAGNETIC RESONANCE AND RESTRAINED MOLECULAR DYNAMICS STUDY Deposited 1991-01-23	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 49–118（70 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
3GF1 SOLUTION STRUCTURE OF HUMAN INSULIN-LIKE GROWTH FACTOR 1: A NUCLEAR MAGNETIC RESONANCE AND RESTRAINED MOLECULAR DYNAMICS STUDY Deposited 1991-01-24	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 49–118（70 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided

9 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IGFA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–70； UniProt 49–118

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1h02
Deposition date deposition_date	2002-06-11
Structure title title	Human Insulin-like growth factor; SRS Daresbury data
Keywords keywords	CELL ADHESION, GROWTH FACTOR, INSULIN FAMILY, IGF-1, PLASMA; CELL ADHESION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	13.67 Å
Radius of gyration Rg (electron density) rg_electron	12.56 Å
Forward intensity I(0) i0	1207690.00
Molecular weight molecular_weight	7129.0 kDa
Excluded volume excluded_volume	8886 Å³
Envelope volume envelope_volume	10766 Å³
Hydration-shell volume shell_volume	7922 Å³
Envelope diameter envelope_diameter	47.3 Å
Shell Rg shell_rg	17.36 Å
Envelope Rg envelope_rg	13.45 Å
Shape Rg shape_rg	12.61 Å
Total Rg total_rg	13.73 Å
Total atoms total_atoms	495
Residues n_residues	64
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

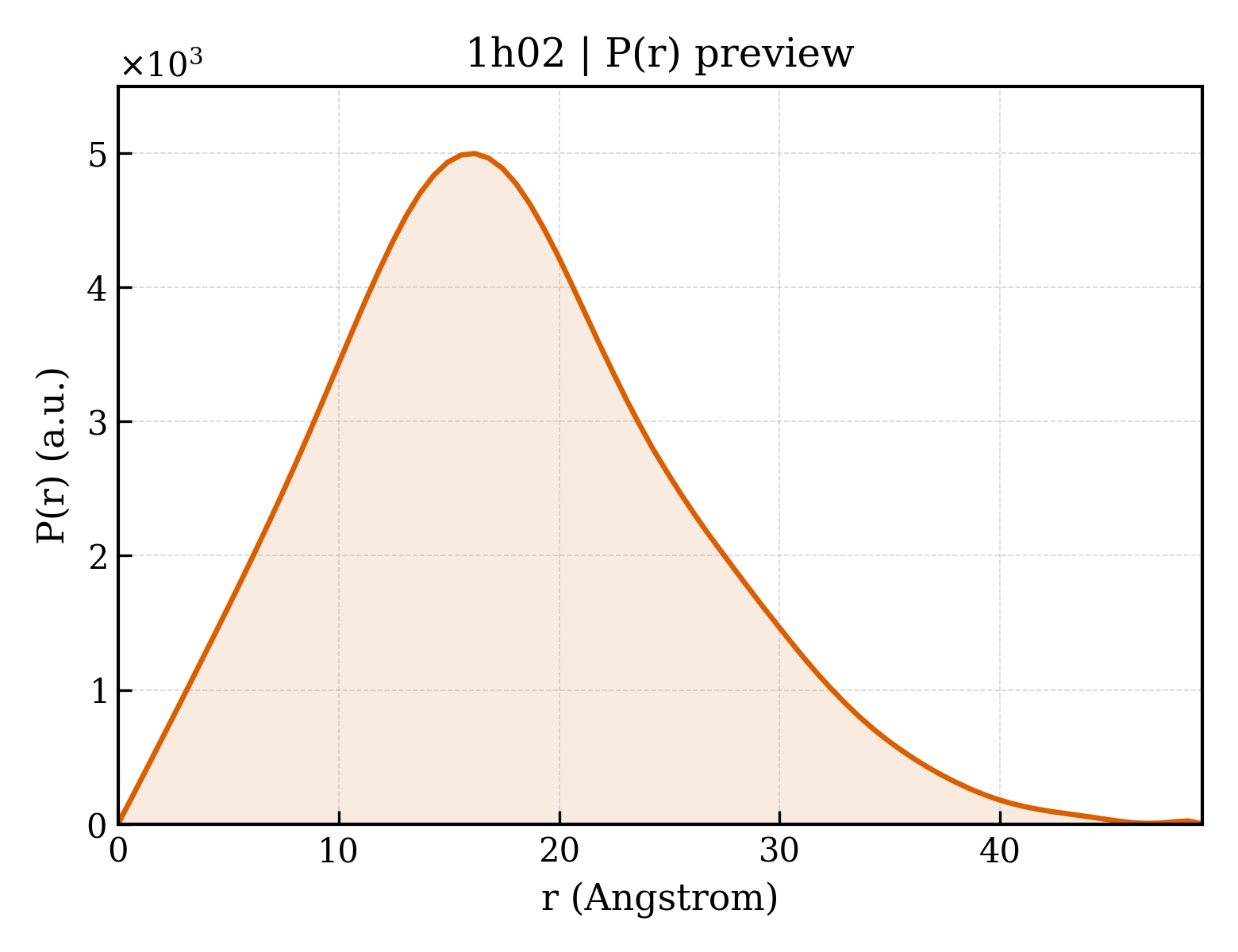

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	49.2 Å
Rg (real space) rg_real	13.71 Å
Rg uncertainty (real space) rg_real_error	0.44 Å
I(0) (real space) i0_real	1.2080e+06
I(0) uncertainty (real space) i0_real_error	1.4580e+04
Rg (reciprocal space) rg_reciprocal	13.71 Å
I(0) (reciprocal space) i0_reciprocal	1208000.0000
Solution quality estimate total_estimate	0.8425
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	16.2 Å
Skewness Skewness skewness	0.418
Kurtosis Kurtosis kurtosis	-0.071
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	118000.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.703; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.882; Smooth: 0.958

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	INSULIN-LIKE GROWTH FACTOR I
Molecular weight formula_weight	7663.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	524

GPETLCGAELVDALQFVCGDRGFYFNKPTGYGSSSRRAPQTGIVDECCFRSCDLRRLEMYCAPLKPAKSA

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	N-DODECYL-N,N-DIMETHYL-3-AMMONIO-1-PROPANESULFONATE
Molecular weight formula_weight	336.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	23

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1h02b_
Class class	g — Small proteins
Fold Fold fold	g.1 — Insulin-like
Superfamily Superfamily superfamily	g.1.1 — Insulin-like
Family Family family	g.1.1.1 — Insulin-like

CATH v4.4 (1 domains)

Domain ID domain_id	1h02B00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	100 — Insulin-like, subunit E
Homologous superfamily homologous superfamily	10 — Insulin-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	30.723 Å
Unit-cell length b length_b	69.282 Å
Unit-cell length c length_c	64.528 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	18.000 Å
R factor r_factor	—
R_work r_work	0.2600
R_free r_free	0.3000
