1b9g
INSULIN-LIKE-GROWTH-FACTOR-1

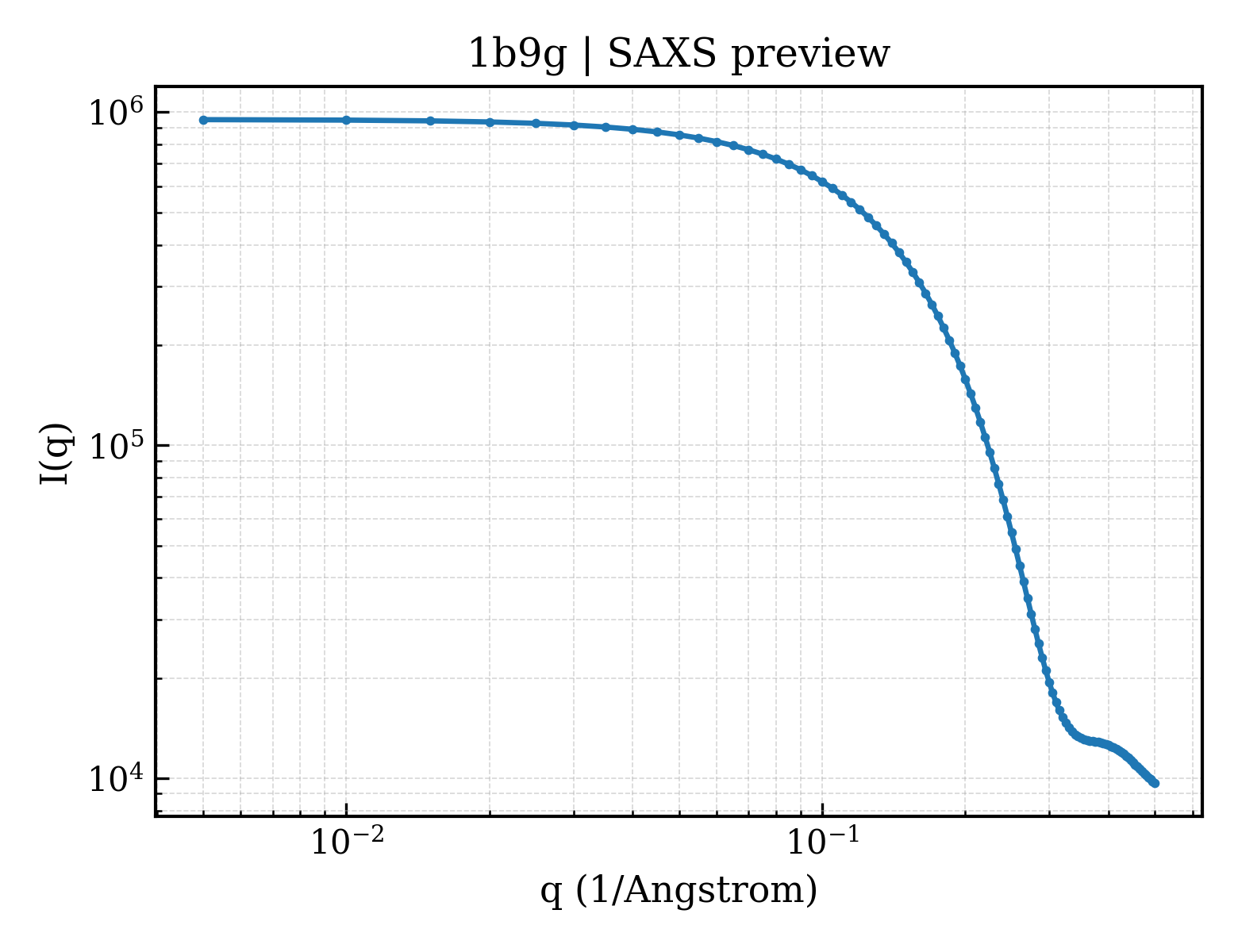

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1b9g |
| deposition_date | 1999-02-11 |
| title | INSULIN-LIKE-GROWTH-FACTOR-1 |
| keywords | GROWTH FACTOR IGF-1, GROWTH FACTOR; GROWTH FACTOR |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.33 Å |
| rg_electron | 10.10 Å |
| i0 | 950729.00 |
| molecular_weight | 6287.0 kDa |
| excluded_volume | 7798 ų |
| envelope_volume | 8150 ų |
| shell_volume | 7165 ų |
| envelope_diameter | 33.1 Å |
| shell_rg | 15.26 Å |
| envelope_rg | 10.43 Å |
| shape_rg | 10.12 Å |
| total_rg | 11.47 Å |
| total_atoms | 437 |
| n_residues | 57 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 35.7 Å |
| rg_real | 11.26 Å |
| rg_real_error | 0.24 Å |
| i0_real | 9.5070e+05 |
| i0_real_error | 9.9330e+03 |
| rg_reciprocal | 11.27 Å |
| i0_reciprocal | 950700.0000 |
| total_estimate | 0.8977 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 14.0 Å |
| skewness | 0.153 |
| kurtosis | -0.361 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 150400.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.904; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.958 |
