1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1h0g
沉积日期 deposition_date	2002-06-19
结构标题 title	Complex of a chitinase with the natural product cyclopentapeptide argadin from Clonostachys
关键词 keywords	HYDROLASE, CHITIN DEGRADATION, ARGADIN, HYDROLASE-HYDROLASE INHIBITOR COMPLEX; HYDROLASE/HYDROLASE INHIBITOR
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	36.30 Å
回转半径 Rg (电子) rg_electron	36.01 Å
零角强度 I(0) i0	364781000.00
分子量 molecular_weight	104320.0 kDa
排除体积 excluded_volume	101240 Å³
包络体积 envelope_volume	167860 Å³
水化壳体积 shell_volume	39738 Å³
包络直径 envelope_diameter	121.7 Å
壳层 Rg shell_rg	41.33 Å
包络 Rg envelope_rg	35.74 Å
形状 Rg shape_rg	35.97 Å
总 Rg total_rg	36.31 Å
总原子数 total_atoms	7919
残基数 n_residues	996
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	117.8 Å
Rg (实空间) rg_real	36.52 Å
Rg 误差 (实空间) rg_real_error	1.17 Å
I(0) (实空间) i0_real	3.6480e+08
I(0) 误差 (实空间) i0_real_error	7.2750e+06
Rg (倒空间) rg_reciprocal	36.39 Å
I(0) (倒空间) i0_reciprocal	364700000.0000
解质量估计 total_estimate	0.8328
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	32.1 Å
偏度 Skewness skewness	0.405
峰度 Kurtosis kurtosis	-0.707
角度范围 angular_range	— – 0.2200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	37430000.0000
实空间数据点数 n_real_points	45
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.753; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.836; Smooth: 0.730

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	CHITINASE B
分子量 formula_weight	55548.0 kDa
EC 编号 ec_number	3.2.1.14
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	8542

MSTRKAVIGYYFIPTNQINNYTETDTSVVPFPVSNITPAKAKQLTHINFSFLDINSNLECAWDPATNDAKARDVVNRLTALKAHNPSLRIMFSIGGWYYSNDLGVSHANYVNAVKTPASRTKFAQSCVRIMKDYGFDGVDIDWEYPQAAEVDGFIAALQEIRTLLNQQTITDGRQALPYQLTIAGAGGAFFLSRYYSKLAQIVAPLDYINLMTYDLAGPWEKVTNHQAALFGDAAGPTFYNALREANLGWSWEELTRAFPSPFSLTVDAAVQQHLMMEGVPSAKIVMGVPFYGRAFKGVSGGNGGQYSSHSTPGEDPYPSTDYWLVGCEECVRDKDPRIASYRQLEQMLQGNYGYQRLWNDKTKTPYLYHAQNGLFVTYDDAESFKYKAKYIKQQQLGGVMFWHLGQDNRNGDLLAALDRYFNAADYDDSQLDMGTGLRYTGVGPGNLPIMTAPAYVPGTTYAQGALVSYQGYVWQTKWGYITSAPGSDSAWLKVGRVA

来源 Source

来源生物 organism	SERRATIA MARCESCENS
NCBI 分类编号 ncbi_taxonomy_id	615
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 polymer

描述 description	Argadin
分子量 formula_weight	695.7 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D

RPSHX

来源 Source

来源生物 organism	SERRATIA MARCESCENS
NCBI 分类编号 ncbi_taxonomy_id	615
宿主生物 host_organism	ESCHERICHIA COLI

Entity 3 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	614

▼

6. 折叠分类 (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d1h0ga1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.72 — WW domain-like
超家族 Superfamily superfamily	b.72.2 — Carbohydrate binding domain
家族 Family family	b.72.2.1 — Carbohydrate binding domain

结构域编号 domain_id	d1h0ga2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.8 — (Trans)glycosidases
家族 Family family	c.1.8.5 — Type II chitinase

结构域编号 domain_id	d1h0ga3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.26 — FKBP-like
超家族 Superfamily superfamily	d.26.3 — Chitinase insertion domain
家族 Family family	d.26.3.1 — Chitinase insertion domain

结构域编号 domain_id	d1h0gb1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.72 — WW domain-like
超家族 Superfamily superfamily	b.72.2 — Carbohydrate binding domain
家族 Family family	b.72.2.1 — Carbohydrate binding domain

结构域编号 domain_id	d1h0gb2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.8 — (Trans)glycosidases
家族 Family family	c.1.8.5 — Type II chitinase

结构域编号 domain_id	d1h0gb3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.26 — FKBP-like
超家族 Superfamily superfamily	d.26.3 — Chitinase insertion domain
家族 Family family	d.26.3.1 — Chitinase insertion domain

CATH v4.4 (6 domains)

结构域编号 domain_id	1h0gA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	80 — Glycosidases

结构域编号 domain_id	1h0gA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	50 — Chitinase A; domain 3
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1h0gA03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	10 — Seminal Fluid Protein PDC-109 (Domain B)
同源超家族 H-superfamily homologous superfamily	20 — Carbohydrate-binding module superfamily 5/12

结构域编号 domain_id	1h0gB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	80 — Glycosidases

结构域编号 domain_id	1h0gB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	50 — Chitinase A; domain 3
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1h0gB03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	10 — Seminal Fluid Protein PDC-109 (Domain B)
同源超家族 H-superfamily homologous superfamily	20 — Carbohydrate-binding module superfamily 5/12

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	55.063 Å
晶胞边长 b length_b	102.934 Å
晶胞边长 c length_c	185.784 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	29.650 Å
R 因子 r_factor	0.2030
R_work r_work	0.2030
R_free r_free	0.2310

fit	/app/data/saxs_computation/h0/1h0g/1h0g.fit
pddf	/app/data/pr_computation/h0/1h0g/1h0g.pr.out
profile	/app/data/saxs_computation/h0/1h0g/1h0g.dat

Complex of a chitinase with the natural product cyclopentapeptide argadin from Clonostachys

SAXS 散射曲线 SAXS Profile

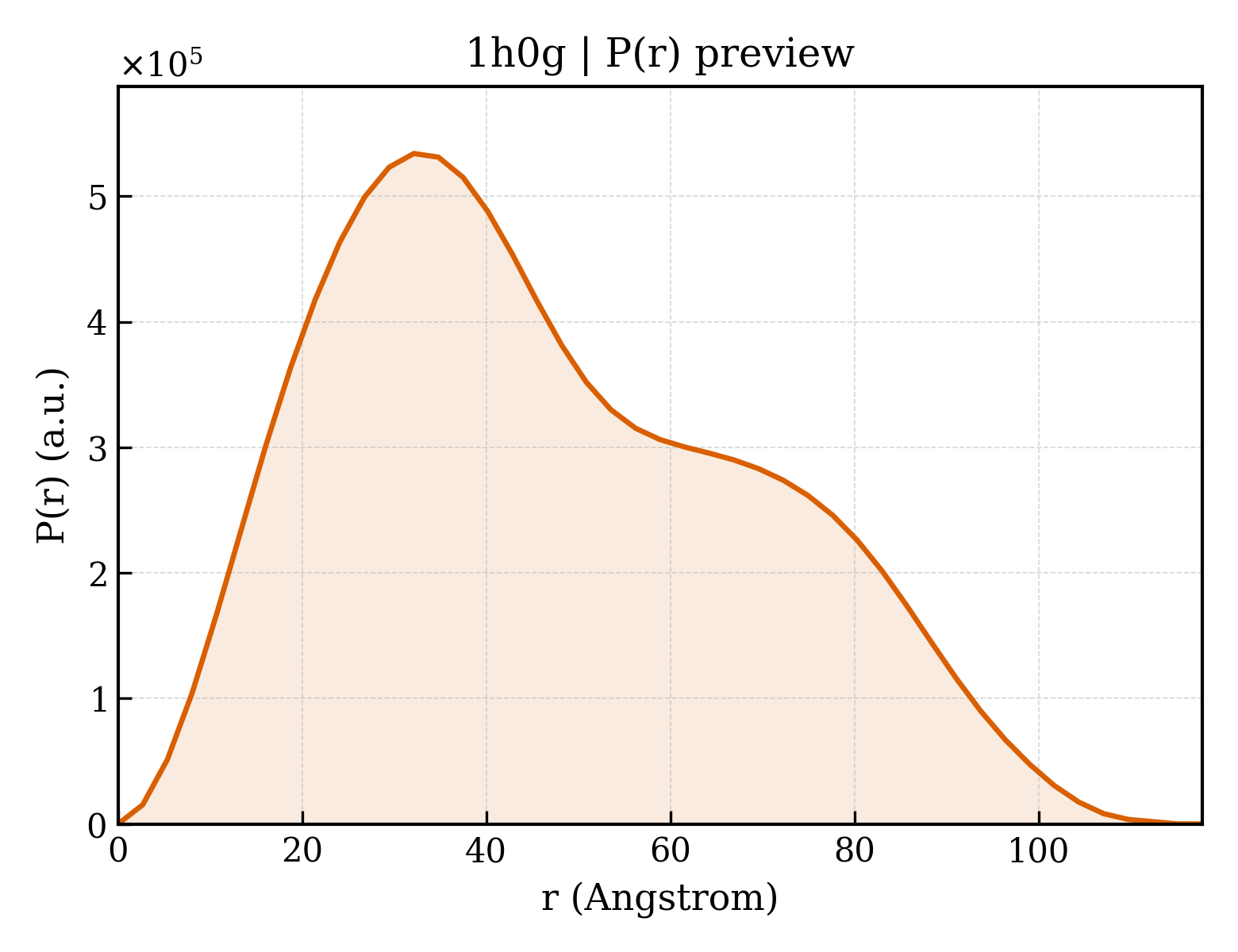

P(r) 距离分布 P(r) Distribution
