SAXSdb — 1h1i

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

QUERCETIN 2,3-DIOXYGENASE

ASPERGILLUS JAPONICUS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 2 其他Polymer 2	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 COPPER (II) ION × 2 3,5,7,3',4'-PENTAHYDROXYFLAVONE × 2 (4S)-2-METHYL-2,4-PENTANEDIOL × 2 water × 2	Consistent with protein count
2	Other combination	Homooligomer	Protein 2 其他Polymer 1	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 COPPER (II) ION × 2 3,5,7,3',4'-PENTAHYDROXYFLAVONE × 2 (4S)-2-METHYL-2,4-PENTANEDIOL × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	QDOI_ASPJA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–350； UniProt 1–350 Author chain B； PDBConstruct 1–350； UniProt 1–350 Author chain C； PDBConstruct 1–350； UniProt 1–350 Author chain D； PDBConstruct 1–350； UniProt 1–350

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1h1i
Deposition date deposition_date	2002-07-15
Structure title title	CRYSTAL STRUCTURE OF QUERCETIN 2,3-DIOXYGENASE ANAEROBICALLY COMPLEXED WITH THE SUBSTRATE QUERCETN
Keywords keywords	OXIDOREDUCTASE, DIOXYGENASE, FLAVONOL; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1h1i__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1h1i__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

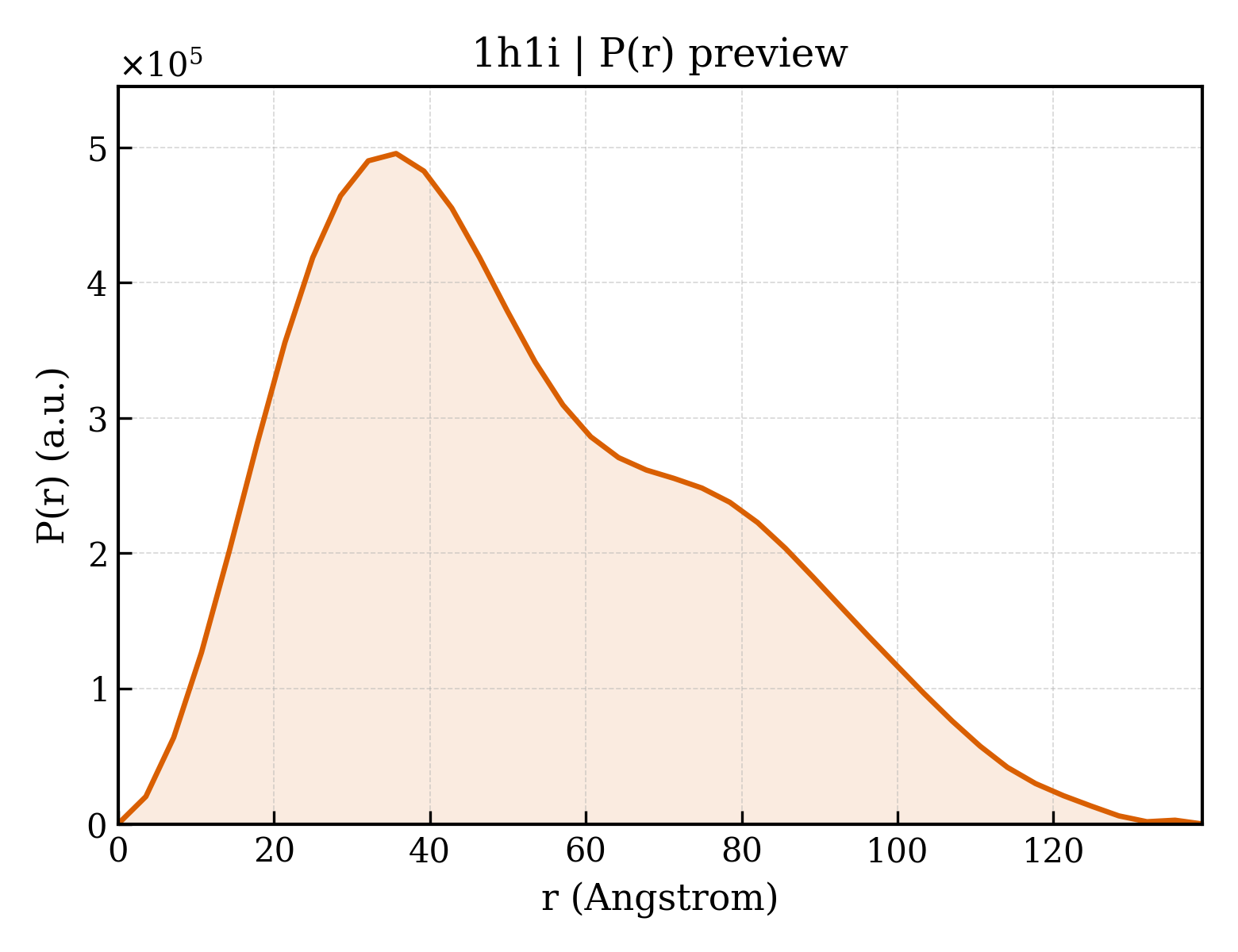

1h1i__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.50 Å
Rg (electron density)	24.35 Å
Total Rg	25.28 Å
Atom count	5500
Residues	687
Excluded volume	96477 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1h1i__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1h1i__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	QUERCETIN 2,3-DIOXYGENASE
Molecular weight formula_weight	37958.2 kDa
EC 编号 ec_number	1.13.11.24
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	12575

DTSSLIVEDAPDHVRPYVIRHYSHARAVTVDTQLYRFYVTGPSSGYAFTLMGTNAPHSDALGVLPHIHQKHYENFYCNKGSFQLWAQSGNETQQTRVLSSGDYGSVPRNVTHTFQIQDPDTEMTGVIVPGGFEDLFYYLGTNATDTTHTPYIPSSSDSSSTTGPDSSTISTLQSFDVYAELSFTPRTDTVNGTAPANTVWHTGANALASTAGDPYFIANGWGPKYLNSQYGYQIVAPFVTATQAQDTNYTLSTISMSTTPSTVTVPTWSFPGACAFQVQEGRVVVQIGDYAATELGSGDVAFIPGGVEFKYYSEAYFSKVLFVSSGSDGLDQNLVNGGEEWSSVSFPADW

Source Source

Source organism organism	ASPERGILLUS JAPONICUS
NCBI taxonomy ID ncbi_taxonomy_id	34381
Host organism host_organism	ASPERGILLUS AWAMORI

Entity 2 Entity 2 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	14

Entity 4 Entity 4 non-polymer

Description description	COPPER (II) ION
Molecular weight formula_weight	63.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	3,5,7,3',4'-PENTAHYDROXYFLAVONE
Molecular weight formula_weight	302.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 non-polymer

Description description	(4S)-2-METHYL-2,4-PENTANEDIOL
Molecular weight formula_weight	118.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1539

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1h1ia_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.1 — RmlC-like cupins
Family Family family	b.82.1.5 — Quercetin 2,3-dioxygenase-like

Domain ID domain_id	d1h1ib_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.1 — RmlC-like cupins
Family Family family	b.82.1.5 — Quercetin 2,3-dioxygenase-like

Domain ID domain_id	d1h1ic_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.1 — RmlC-like cupins
Family Family family	b.82.1.5 — Quercetin 2,3-dioxygenase-like

Domain ID domain_id	d1h1id_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.1 — RmlC-like cupins
Family Family family	b.82.1.5 — Quercetin 2,3-dioxygenase-like

CATH v4.4 (8 domains)

Domain ID domain_id	1h1iA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	1h1iA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	1h1iB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	1h1iB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	1h1iC01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	1h1iC02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	1h1iD01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	1h1iD02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

▶

Unit-cell length a length_a	109.298 Å
Unit-cell length b length_b	55.745 Å
Unit-cell length c length_c	124.163 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	98.39 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.750 Å
Low-resolution limit resolution_low	49.390 Å
R factor r_factor	0.1500
R_work r_work	0.1480
R_free r_free	0.1830

CRYSTAL STRUCTURE OF QUERCETIN 2,3-DIOXYGENASE ANAEROBICALLY COMPLEXED WITH THE SUBSTRATE QUERCETN
