SAXSdb — 1h2v

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1h2v
沉积日期 deposition_date	2002-08-16
结构标题 title	Structure of the human nuclear cap-binding-complex (CBC)
关键词 keywords	CAP-BINDING-COMPLEX, RNP DOMAIN, MIF4G DOMAIN, RNA MATURATION, RNA EXPORT, NUCLEAR PROTEIN, RNA-BINDING; NUCLEAR PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	30.65 Å
回转半径 Rg (电子) rg_electron	29.85 Å
零角强度 I(0) i0	133664000.00
分子量 molecular_weight	94709.0 kDa
排除体积 excluded_volume	119700 Å³
包络体积 envelope_volume	147820 Å³
水化壳体积 shell_volume	40944 Å³
包络直径 envelope_diameter	106.4 Å
壳层 Rg shell_rg	37.45 Å
包络 Rg envelope_rg	29.77 Å
形状 Rg shape_rg	29.83 Å
总 Rg total_rg	30.58 Å
总原子数 total_atoms	6667
残基数 n_residues	815
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	101.2 Å
Rg (实空间) rg_real	30.63 Å
Rg 误差 (实空间) rg_real_error	0.68 Å
I(0) (实空间) i0_real	1.3370e+08
I(0) 误差 (实空间) i0_real_error	2.0890e+06
Rg (倒空间) rg_reciprocal	30.64 Å
I(0) (倒空间) i0_reciprocal	133700000.0000
解质量估计 total_estimate	0.8737
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	37.0 Å
偏度 Skewness skewness	0.379
峰度 Kurtosis kurtosis	-0.173
角度范围 angular_range	— – 0.2600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	36890000.0000
实空间数据点数 n_real_points	53
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.844; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.823

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	80 KDA NUCLEAR CAP BINDING PROTEIN
分子量 formula_weight	89666.7 kDa
突变 mutation	YES
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C
原子数 atom_count	6961

KTSDANETEDHLESLICKVGEKSACSLESNLEGLAGVLEADLPNYKSKILRLLCTVARLLPEKLTIYTTLVGLLNARNYNFGGEFVEAMIRQLKESLKANNYNEAVYLVRFLSDLVNCHVIAAPSMVAMFENFVSVTQEEDVPQVRRDWYVYAFLSSLPWVGKELYEKKDAEMDRIFANTESYLKRRQKTHVPMLQVWTADKPHPQEEYLDCLWAQIQKLKKDRWQERHILRPYLAFDSILCEALQHNLPPFTPPPHTEDSVYPMPRVIFRMFDYTDDPEGPVMPGSHSVERFVIEENLHCIIKSHWKERKTCAAQLVSYPGKNKIPLNYHIVEVIFAELFQLPAPPHIDVMYTTLLIELCKLQPGSLPQVLAQATEMLYMRLDTMNTTCVDRFINWFSHHLSNFQFRWSWEDWSDCLSQDPESPKPKFVREVLEKCMRLSYHQRILDIVPPTFSALCPSNPTCIYKYGDESSNSLPGHSVALCLAVAFKSKATNDEIFSILKDVPNPNQDDDDDEGFSFNPLKIEVFVQTLLHLAAKSFSHSFSALAKFHEVFKTLAESDEGKLHVLRVMFEVWRNHPQMIAVLVDKMIRTQIVDCAAVANWIFSSELSRDFTRLFVWEILHSTIRKMNKHVLKIQKELEEAKEKLARQHKRRSDDDDRSSDRKDGVLEEQIERLQEKVESAQSEQKNLFLVIFQRFIMILTEHLVRCETDGTSVLTPWYKNCIERLQQIFLQHHQIIQQYMVTLENLLFTAELDPHILAVFQQFCALQA

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	TRICHOPLUSIA NI

Entity 2 polymer

描述 description	20 KDA NUCLEAR CAP BINDING PROTEIN
分子量 formula_weight	18028.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

MSGGLLKALRSDSYVELSQYRDQHFRGDNEEQEKLLKKSCTLYVGNLSFYTTEEQIYELFSKSGDIKKIIMGLDKMKKTACGFCFVEYYSRADAENAMRYINGTRLDDRIIRTDWDAGFKEGRQYGRGRSGGQVRDEYRQDYDAGRGGYGKLAQNQ

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI BL21

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	294

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1h2vc1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.118 — alpha-alpha superhelix
超家族 Superfamily superfamily	a.118.1 — ARM repeat
家族 Family family	a.118.1.14 — MIF4G domain-like

结构域编号 domain_id	d1h2vc2
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.118 — alpha-alpha superhelix
超家族 Superfamily superfamily	a.118.1 — ARM repeat
家族 Family family	a.118.1.14 — MIF4G domain-like

结构域编号 domain_id	d1h2vc3
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.118 — alpha-alpha superhelix
超家族 Superfamily superfamily	a.118.1 — ARM repeat
家族 Family family	a.118.1.14 — MIF4G domain-like

结构域编号 domain_id	d1h2vz_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
家族 Family family	d.58.7.1 — Canonical RBD

CATH v4.4 (4 domains)

结构域编号 domain_id	1h2vC01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	25 — Alpha Horseshoe
拓扑 Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
同源超家族 H-superfamily homologous superfamily	180 —

结构域编号 domain_id	1h2vC02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	25 — Alpha Horseshoe
拓扑 Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
同源超家族 H-superfamily homologous superfamily	180 —

结构域编号 domain_id	1h2vC03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	25 — Alpha Horseshoe
拓扑 Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
同源超家族 H-superfamily homologous superfamily	180 —

结构域编号 domain_id	1h2vZ00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	264.136 Å
晶胞边长 b length_b	59.605 Å
晶胞边长 c length_c	75.430 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	99.52 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	19.670 Å
R 因子 r_factor	0.2120
R_work r_work	0.2120
R_free r_free	0.2470

fit	/app/data/saxs_computation/h2/1h2v/1h2v.fit
pddf	/app/data/pr_computation/h2/1h2v/1h2v.pr.out
profile	/app/data/saxs_computation/h2/1h2v/1h2v.dat

Structure of the human nuclear cap-binding-complex (CBC)

SAXS 散射曲线 SAXS Profile

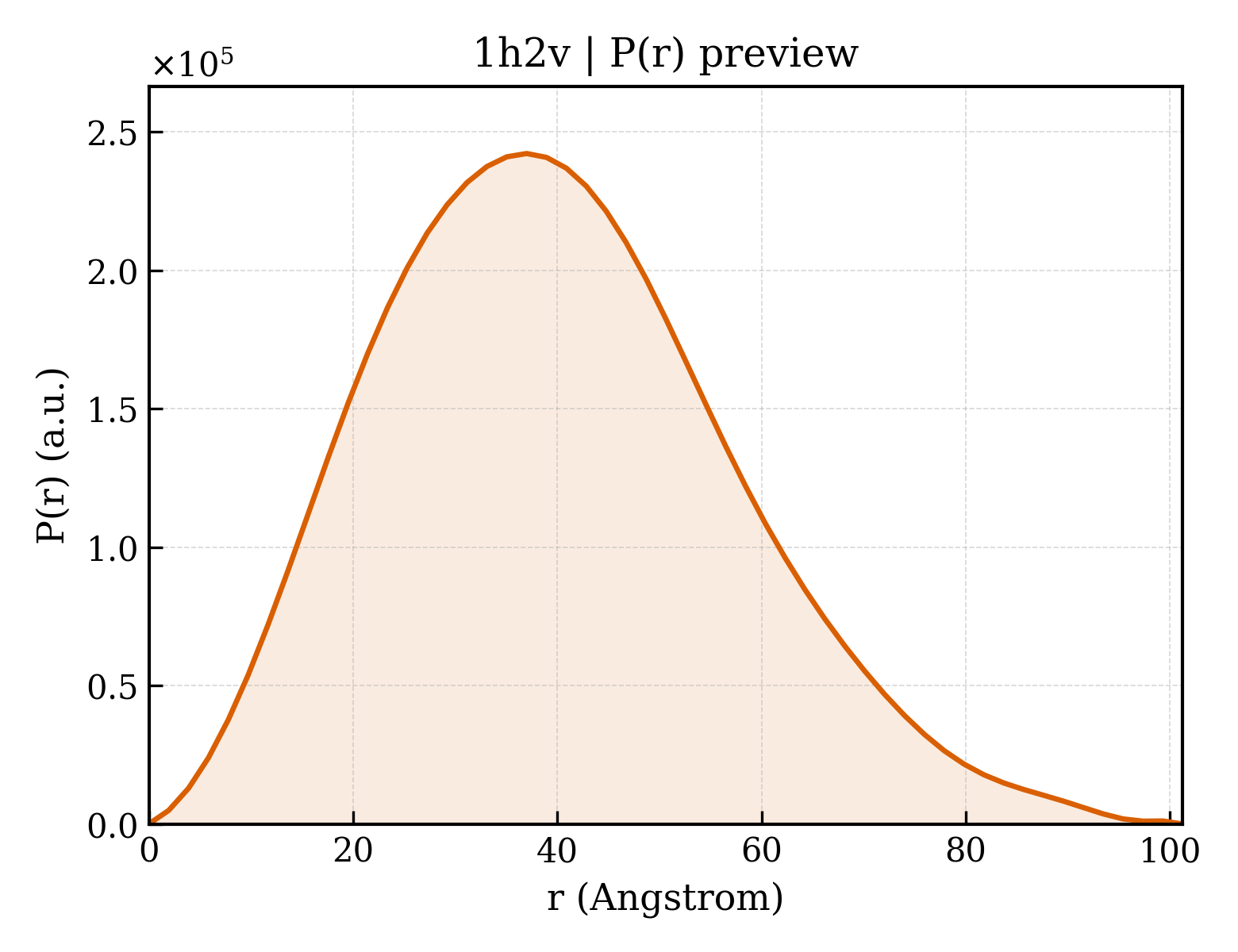

P(r) 距离分布 P(r) Distribution
