SAXSdb — 1h3i

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HISTONE H3 LYSINE 4 SPECIFIC METHYLTRANSFERASE

HOMO SAPIENS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	MAGNESIUM ION × 2 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	MAGNESIUM ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q8WTS6
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–293； UniProt 106–398 Author chain B； PDBConstruct 1–293； UniProt 106–398

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1h3i
Deposition date deposition_date	2002-09-04
Structure title title	Crystal structure of the Histone Methyltransferase SET7/9
Keywords keywords	TRANSFERASE, METHYLTRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1h3i__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1h3i__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

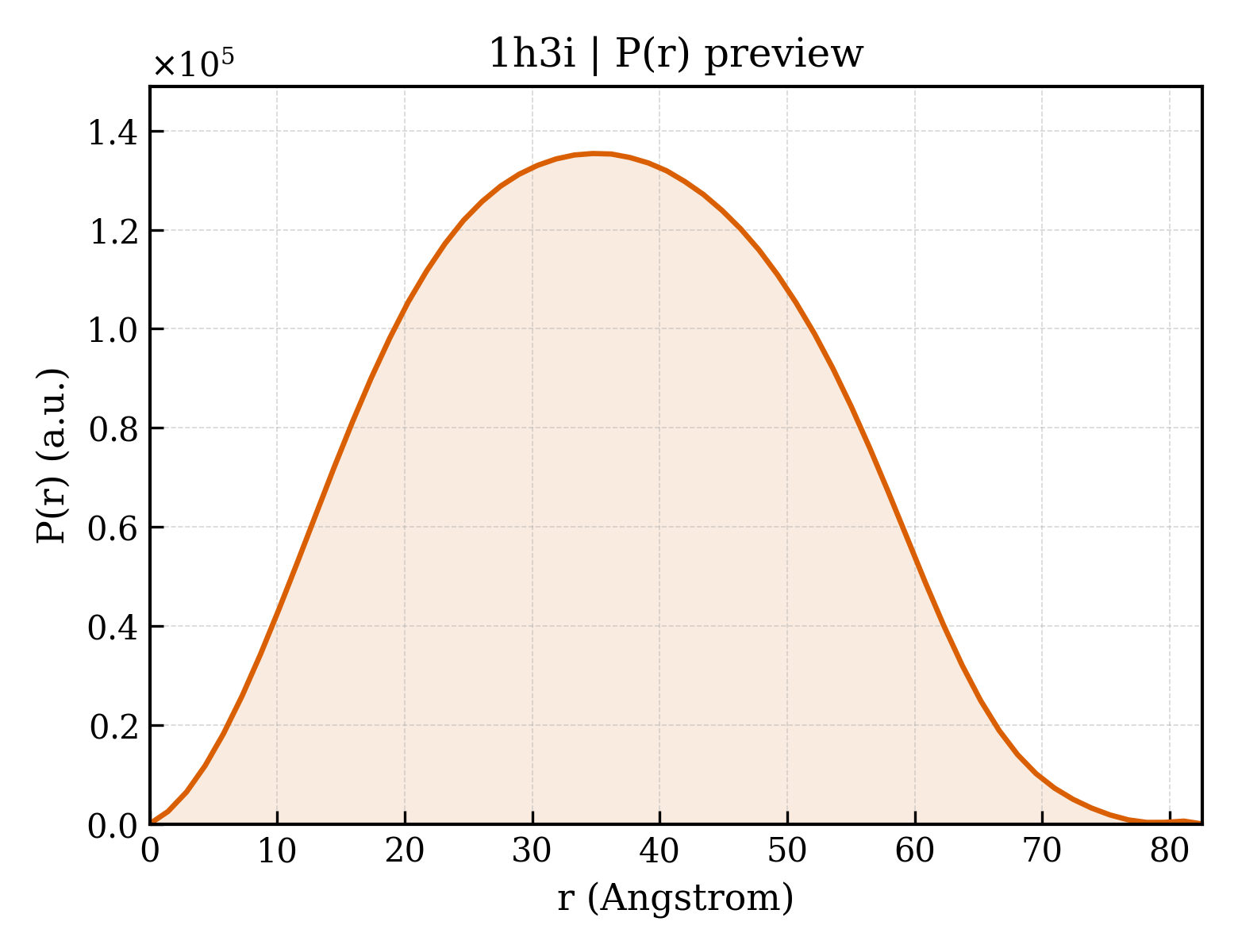

1h3i__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.53 Å
Rg (electron density)	21.69 Å
Total Rg	22.45 Å
Atom count	2296
Residues	293
Excluded volume	40289 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1h3i__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1h3i__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	HISTONE H3 LYSINE 4 SPECIFIC METHYLTRANSFERASE
Molecular weight formula_weight	32571.9 kDa
EC 编号 ec_number	2.1.1.43
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4935

FFFDGSTLEGYYVDDALQGQGVYTYEDGGVLQGTYVDGELNGPAQEYDTDGRLIFKGQYKDNIRHGVCWIYYPDGGSLVGEVNEDGEMTGEKIAYVYPDERTALYGKFIDGEMIEGKLATLMSTEEGRPHFELMPGNSVYHFDKSTSSCISTNALLPDPYESERVYVAESLISSAGEGLFSKVAVGPNTVMSFYNGVRITHQEVDSRDWALNGNTLSLDEETVIDVPEPYNHVSKYCASLGHKANHSFTPNCIYDMFVHPRFGPIKCIRTLRAVEADEELTVAYGYDHSPPGK

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	344

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1h3ia1
Class class	b — All beta proteins
Fold Fold fold	b.76 — open-sided beta-meander
Superfamily Superfamily superfamily	b.76.2 — Histone H3 K4-specific methyltransferase SET7/9 N-terminal domain
Family Family family	b.76.2.1 — Histone H3 K4-specific methyltransferase SET7/9 N-terminal domain

Domain ID domain_id	d1h3ia2
Class class	b — All beta proteins
Fold Fold fold	b.85 — beta-clip
Superfamily Superfamily superfamily	b.85.7 — SET domain
Family Family family	b.85.7.1 — Histone lysine methyltransferases

Domain ID domain_id	d1h3ib1
Class class	b — All beta proteins
Fold Fold fold	b.76 — open-sided beta-meander
Superfamily Superfamily superfamily	b.76.2 — Histone H3 K4-specific methyltransferase SET7/9 N-terminal domain
Family Family family	b.76.2.1 — Histone H3 K4-specific methyltransferase SET7/9 N-terminal domain

Domain ID domain_id	d1h3ib2
Class class	b — All beta proteins
Fold Fold fold	b.85 — beta-clip
Superfamily Superfamily superfamily	b.85.7 — SET domain
Family Family family	b.85.7.1 — Histone lysine methyltransferases

CATH v4.4 (4 domains)

Domain ID domain_id	1h3iA01
Class class	2 — Mainly Beta
Architecture architecture	20 — Single Sheet
Topology topology	110 — Histone H3 K4-specific methyltransferase SET7/9 N-terminal domain
Homologous superfamily homologous superfamily	10 — Histone H3 K4-specific methyltransferase SET7/9 N-terminal domain

Domain ID domain_id	1h3iA02
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	270 — Beta-clip-like
Homologous superfamily homologous superfamily	10 — SET domain

Domain ID domain_id	1h3iB01
Class class	2 — Mainly Beta
Architecture architecture	20 — Single Sheet
Topology topology	110 — Histone H3 K4-specific methyltransferase SET7/9 N-terminal domain
Homologous superfamily homologous superfamily	10 — Histone H3 K4-specific methyltransferase SET7/9 N-terminal domain

Domain ID domain_id	1h3iB02
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	270 — Beta-clip-like
Homologous superfamily homologous superfamily	10 — SET domain

▶

Unit-cell length a length_a	66.090 Å
Unit-cell length b length_b	82.830 Å
Unit-cell length c length_c	116.150 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2120
R_work r_work	0.2100
R_free r_free	0.2550

Crystal structure of the Histone Methyltransferase SET7/9
