SAXSdb — 1h3m

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

2-C-METHYL-D-ERYTHRITOL 4-PHOSPHATE CYTIDYLYLTRANSFERASE

ESCHERICHIA COLI

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	CHLORIDE ION × 5 PENTANE-1,5-DIAMINE × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ISPD_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–235； UniProt 1–235 Author chain B； PDBConstruct 1–235； UniProt 1–235

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1h3m
Deposition date deposition_date	2002-09-10
Structure title title	Structure of 4-diphosphocytidyl-2C-methyl-D-erythritol synthetase
Keywords keywords	TRANSFERASE, ISOPRENOID, SYNTHETASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1h3m__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1h3m__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

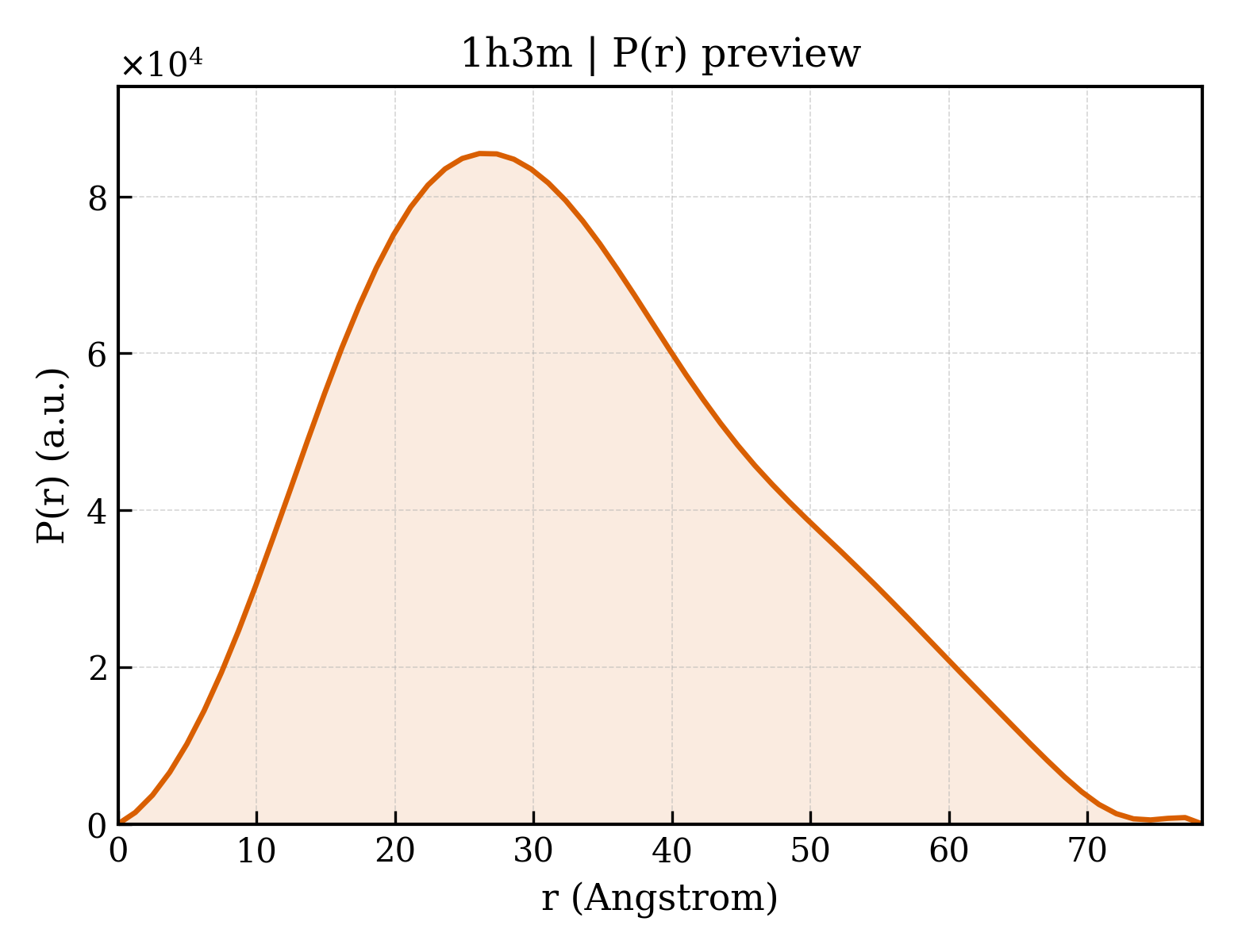

1h3m__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.05 Å
Rg (electron density)	24.24 Å
Total Rg	24.95 Å
Atom count	3319
Residues	433
Excluded volume	58740 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1h3m__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	2-C-METHYL-D-ERYTHRITOL 4-PHOSPHATE CYTIDYLYLTRANSFERASE
Molecular weight formula_weight	25671.1 kDa
EC 编号 ec_number	2.7.7.60
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3414

ATTHLDVCAVVPAAGFGRRMQTECPKQYLSIGNQTILEHSVHALLAHPRVKRVVIAISPGDSRFAQLPLANHPQITVVDGGDERADSVLTGLKAAGDAQWVLVHDAARPCLHQDDLARLLALSETSRTGGILAAPVRDTMKRAEPGKNAIAHTVDRNGLWHALTPQFFPRELLHDCLTRALNEGATITDEASALEYCGFHPQLVEGRADNIKVTRPEDLALAEFYLTRTIHQENT

Source Source

Source organism organism	ESCHERICHIA COLI
NCBI taxonomy ID ncbi_taxonomy_id	469008
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 non-polymer

Description description	PENTANE-1,5-DIAMINE
Molecular weight formula_weight	102.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	86

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1h3ma_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
Superfamily Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
Family Family family	c.68.1.13 — Cytidylytransferase

Domain ID domain_id	d1h3mb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
Superfamily Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
Family Family family	c.68.1.13 — Cytidylytransferase

CATH v4.4 (2 domains)

Domain ID domain_id	1h3mA00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

Domain ID domain_id	1h3mB00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

▶

Unit-cell length a length_a	73.604 Å
Unit-cell length b length_b	73.604 Å
Unit-cell length c length_c	175.562 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2410
R_work r_work	0.2370
R_free r_free	0.3330
