SAXSdb — 1h4c

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MOLYBDOPTERIN-GUANINE DINUCLEOTIDE BIOSYNTHESIS PROTEIN A

ESCHERICHIA COLI

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	LITHIUM ION × 1 CITRIC ACID × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MOBA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–194； UniProt 1–194

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1h4c
Deposition date deposition_date	2003-02-26
Structure title title	Biochemical and Structural Analysis of the Molybdenum Cofactor Biosynthesis protein MobA
Keywords keywords	MOLYBDOPTERIN NUCLEOTIDYL-TRANSFERASE, MOLYBDENUM COFACTOR BIOSYNTHESIS, GTP-BINDING; MOLYBDENUM COFACTOR BIOSYNTHESIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1h4c__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1h4c__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

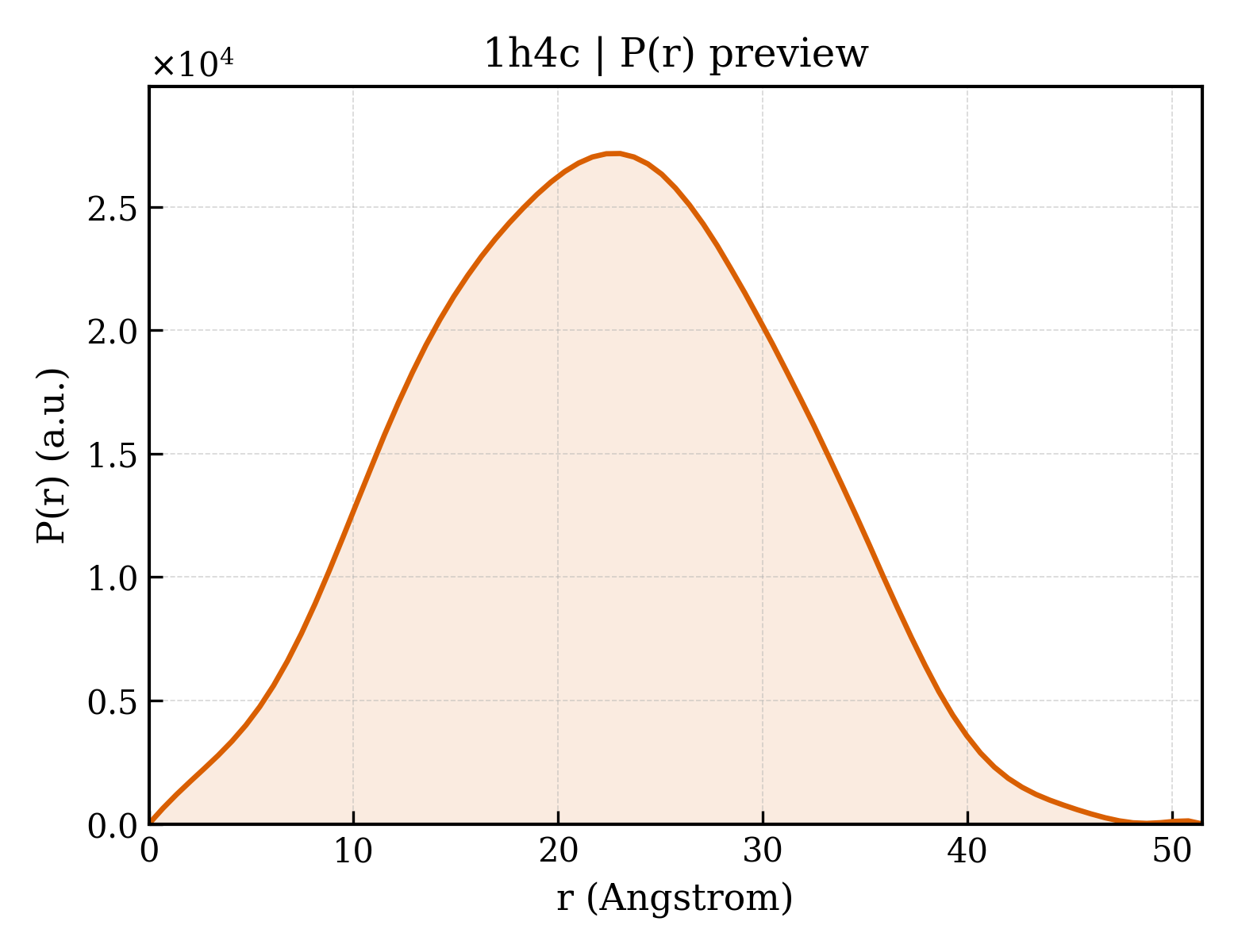

1h4c__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.02 Å
Rg (electron density)	15.70 Å
Total Rg	16.68 Å
Atom count	1450
Residues	188
Excluded volume	25639 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1h4c__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	MOLYBDOPTERIN-GUANINE DINUCLEOTIDE BIOSYNTHESIS PROTEIN A
Molecular weight formula_weight	22499.7 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1632

MNLMTTITGVVLAGGKARAMGGVDKGLLELNGKPLWQHVADALMTQLSHVVVNANRHQEIYQASGLKVIEDSLADYPGPLAGMLSVMQQEAGEWFLFCPCDTPYIPPDLAARLNHQRKDAPVVWVHDGERDHPTIALVNRAIEPLLLEYLQAGERRVMVFMRLAGGHAVDFSDHKDAFVNVNTPEELARWQEKRSHHHHHH

Source Source

Source organism organism	ESCHERICHIA COLI
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	LITHIUM ION
Molecular weight formula_weight	6.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	CITRIC ACID
Molecular weight formula_weight	192.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	182

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1h4ca_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
Superfamily Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
Family Family family	c.68.1.8 — Molybdenum cofactor biosynthesis protein MobA

CATH v4.4 (1 domains)

Domain ID domain_id	1h4cA00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

▶

Unit-cell length a length_a	76.465 Å
Unit-cell length b length_b	41.737 Å
Unit-cell length c length_c	54.540 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.650 Å
Low-resolution limit resolution_low	54.230 Å
R factor r_factor	—
R_work r_work	0.1760
R_free r_free	0.2110
