1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1h5n
沉积日期 deposition_date	2001-05-22
结构标题 title	DMSO REDUCTASE MODIFIED BY THE PRESENCE OF DMS AND AIR
关键词 keywords	OXIDOREDUCTASE, REDUCTASE, DMSO, DMS, MOLYBDOPTERIN; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	40.00 Å
回转半径 Rg (电子) rg_electron	39.89 Å
零角强度 I(0) i0	446684000.00
分子量 molecular_weight	169810.0 kDa
排除体积 excluded_volume	210670 Å³
包络体积 envelope_volume	265980 Å³
水化壳体积 shell_volume	55554 Å³
包络直径 envelope_diameter	129.2 Å
壳层 Rg shell_rg	45.94 Å
包络 Rg envelope_rg	38.73 Å
形状 Rg shape_rg	39.88 Å
总 Rg total_rg	40.20 Å
总原子数 total_atoms	11944
残基数 n_residues	1531
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	130.9 Å
Rg (实空间) rg_real	40.06 Å
Rg 误差 (实空间) rg_real_error	1.19 Å
I(0) (实空间) i0_real	4.4670e+08
I(0) 误差 (实空间) i0_real_error	8.2420e+06
Rg (倒空间) rg_reciprocal	40.03 Å
I(0) (倒空间) i0_reciprocal	446700000.0000
解质量估计 total_estimate	0.8816
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	36.9 Å
偏度 Skewness skewness	0.267
峰度 Kurtosis kurtosis	-0.729
角度范围 angular_range	— – 0.1950 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	99230000.0000
实空间数据点数 n_real_points	40
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.878; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.918; Smooth: 0.904

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Dimethyl sulfoxide/trimethylamine N-oxide reductase
分子量 formula_weight	89524.9 kDa
EC 编号 ec_number	1.7.2.3,1.8.5.3
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C
原子数 atom_count	13178

MTKFSGNELRAELYRRAFLSYSVAPGALGMFGRSLLAKGARAEALANGTVMSGSHWGVFTATVENGRATAFTPWEKDPHPSPMLAGVLDSIYSPTRIKYPMVRREFLEKGVNADRSTRGNGDFVRVSWDQALDLVAAEVKRVEETYGPEGVFGGSYGWKSPGRLHNCTTLLRRMLTLAGGYVNGAGDYSTGAAQVIMPHVVGTLEVYEQQTAWPVLAENTEVMVFWAADPIKTSQIGWVIPEHGAYPGLEALKAKGTKVIVIDPVRTKTVEFFGAEHITPKPQTDVAIMLGMAHTLVAEDLYDKDFIANYTSGFDKFLPYLDGETDSTPKTAEWAEGISGVPAETIKELARLFESKRTMLAAGWSMQRMHHGEQAHWMLVTLASMLGQIGLPGGGFGLSYHYSGGGTPSTSGPALAGITDGGAATKGPEWLAASGASVIPVARVVDMLENPGAEFDFNGTRSKFPDVKMAYWVGGNPFVHHQDRNRMVKAWEKLETFVVHDFQWTPTARHADIVLPATTSYERNDIETIGDYSNTGILAMKKIVEPLYEARSDYDIFAAVAERLGKGAEFTEGKDEMGWIKSFYDDAAKQGKAAGVQMPAFDAFWAEGIVEFPVTDGADFVRYASFREDPLLNPLGTPTGLIEIYSKNIEKMGYDDCPAHPTWMEPLERLDGPGAKYPLHIAASHPFNRLHSQLNGTVLREGYAVQGHEPCLMHPDDAAARGIADGDVVRVHNDRGQILTGVKVTDAVMKGVIQIYEGGWYDPSDVTEPGTLDKYGDVNVLSADIGTSKLAQGNCGQTVLAEVEKYTGPAVTLTGFVAPKAAE

Entity 2 non-polymer

描述 description	2-AMINO-5,6-DIMERCAPTO-7-METHYL-3,7,8A,9-TETRAHYDRO-8-OXA-1,3,9,10-TETRAAZA-ANTHRACEN-4-ONE GUANOSINE DINUCLEOTIDE
分子量 formula_weight	738.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	MOLYBDENUM(VI) ION
分子量 formula_weight	95.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1234

▼

6. 折叠分类 (SCOP + CATH) 12 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1h5na1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.52 — Double psi beta-barrel
超家族 Superfamily superfamily	b.52.2 — ADC-like
家族 Family family	b.52.2.2 — Formate dehydrogenase/DMSO reductase, C-terminal domain

结构域编号 domain_id	d1h5na2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.81 — Formate dehydrogenase/DMSO reductase, domains 1-3
超家族 Superfamily superfamily	c.81.1 — Formate dehydrogenase/DMSO reductase, domains 1-3
家族 Family family	c.81.1.1 — Formate dehydrogenase/DMSO reductase, domains 1-3

结构域编号 domain_id	d1h5nc1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.52 — Double psi beta-barrel
超家族 Superfamily superfamily	b.52.2 — ADC-like
家族 Family family	b.52.2.2 — Formate dehydrogenase/DMSO reductase, C-terminal domain

结构域编号 domain_id	d1h5nc2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.81 — Formate dehydrogenase/DMSO reductase, domains 1-3
超家族 Superfamily superfamily	c.81.1 — Formate dehydrogenase/DMSO reductase, domains 1-3
家族 Family family	c.81.1.1 — Formate dehydrogenase/DMSO reductase, domains 1-3

CATH v4.4 (8 domains)

结构域编号 domain_id	1h5nA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	740 —

结构域编号 domain_id	1h5nA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	228 — Dimethylsulfoxide Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dimethylsulfoxide Reductase, domain 2

结构域编号 domain_id	1h5nA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	55 — Dimethylsulfoxide Reductase; domain 3
同源超家族 H-superfamily homologous superfamily	10 — Dimethylsulfoxide Reductase, domain 3

结构域编号 domain_id	1h5nA04
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	40 — Barwin-like endoglucanases
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	1h5nC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	740 —

结构域编号 domain_id	1h5nC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	228 — Dimethylsulfoxide Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dimethylsulfoxide Reductase, domain 2

结构域编号 domain_id	1h5nC03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	55 — Dimethylsulfoxide Reductase; domain 3
同源超家族 H-superfamily homologous superfamily	10 — Dimethylsulfoxide Reductase, domain 3

结构域编号 domain_id	1h5nC04
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	40 — Barwin-like endoglucanases
同源超家族 H-superfamily homologous superfamily	20 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	68.800 Å
晶胞边长 b length_b	116.100 Å
晶胞边长 c length_c	230.400 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	—
R_work r_work	0.1580
R_free r_free	0.2090

fit	/app/data/saxs_computation/h5/1h5n/1h5n.fit
pddf	/app/data/pr_computation/h5/1h5n/1h5n.pr.out
profile	/app/data/saxs_computation/h5/1h5n/1h5n.dat

DMSO REDUCTASE MODIFIED BY THE PRESENCE OF DMS AND AIR

SAXS 散射曲线 SAXS Profile

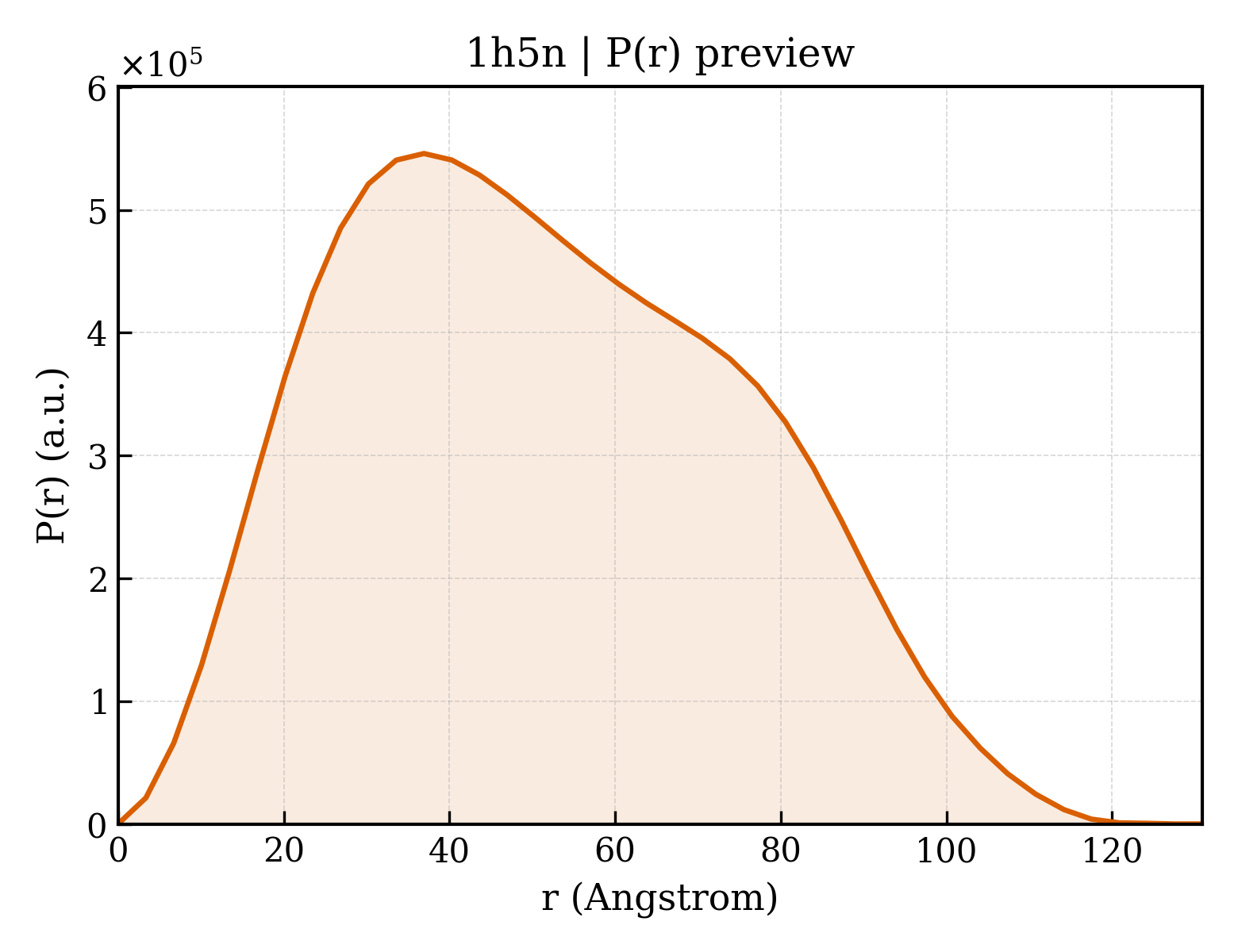

P(r) 距离分布 P(r) Distribution
