1h6d

Oxidized Precursor Form of Glucose-Fructose Oxidoreductase from Zymomonas mobilis complexed with glycerol

Method: X-RAY DIFFRACTION D_max: 172.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

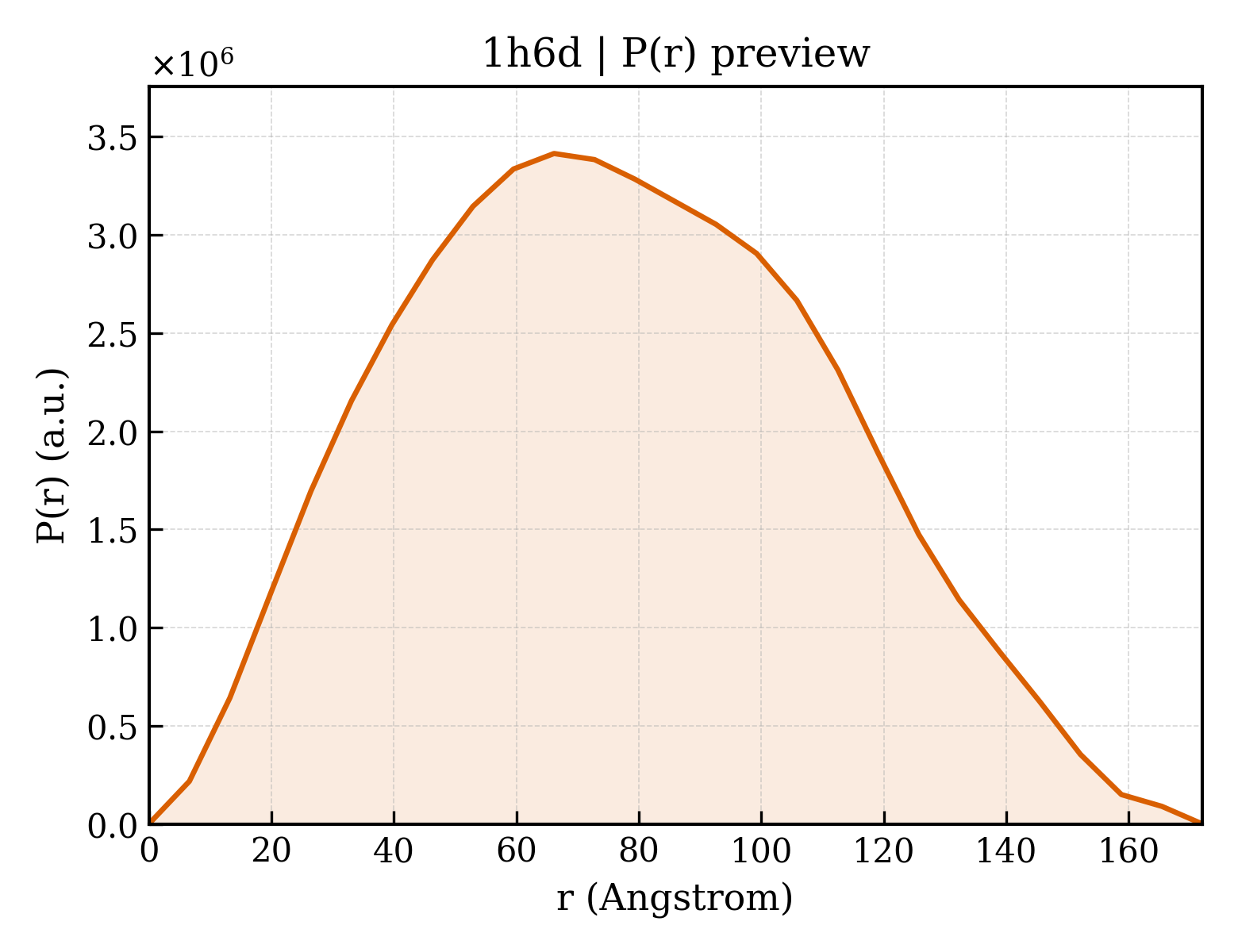

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1h6d
沉积日期 deposition_date	2001-06-12
结构标题 title	Oxidized Precursor Form of Glucose-Fructose Oxidoreductase from Zymomonas mobilis complexed with glycerol
关键词 keywords	PROTEIN TRANSLOCATION, PERIPLASMIC OXIDOREDUCTASE, SIGNAL PEPTIDE, LIGAND BINDING; PROTEIN TRANSLOCATION
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	59.33 Å
回转半径 Rg (电子) rg_electron	59.22 Å
零角强度 I(0) i0	4035760000.00
分子量 molecular_weight	516550.0 kDa
排除体积 excluded_volume	638770 Å³
包络体积 envelope_volume	845230 Å³
水化壳体积 shell_volume	116980 Å³
包络直径 envelope_diameter	182.8 Å
壳层 Rg shell_rg	62.61 Å
包络 Rg envelope_rg	57.97 Å
形状 Rg shape_rg	59.22 Å
总 Rg total_rg	59.28 Å
总原子数 total_atoms	36203
残基数 n_residues	4579
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	172.0 Å
Rg (实空间) rg_real	59.20 Å
Rg 误差 (实空间) rg_real_error	1.25 Å
I(0) (实空间) i0_real	4.0360e+09
I(0) 误差 (实空间) i0_real_error	7.5120e+07
Rg (倒空间) rg_reciprocal	59.41 Å
I(0) (倒空间) i0_reciprocal	4037000000.0000
解质量估计 total_estimate	0.8463
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	66.2 Å
偏度 Skewness skewness	0.167
峰度 Kurtosis kurtosis	-0.655
角度范围 angular_range	— – 0.1300 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	143500000.0000
实空间数据点数 n_real_points	27
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.999; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.001

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	PRECURSOR FORM OF GLUCOSE-FRUCTOSE OXIDOREDUCTASE
分子量 formula_weight	47342.6 kDa
EC 编号 ec_number	1.1.99.28
来源方法 src_method	man
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J,K,L
原子数 atom_count	40164

MTNKISSSDNLSNAVSATDDNASRTPNLNRRALVGGGVGLAARGALASGLQAATLPAGASQVPTTPAGRPMPYAIRPMPEDRRFGYAIVGLGKYALNQILPGFAGCQHSRIEALVSGNAEKAKIVAAEYGVDPRKIYDYSNFDKIAKDPKIDAVYIILPNSLHAEFAIRAFKAGKHVMCEKPMATSVADCQRMIDAAKAANKKLMIGYRCHYDPMNRAAVKLIRENQLGKLGMVTTDNSDVMDQNDPAQQWRLRRELAGGGSLMDIGIYGLNGTRYLLGEEPIEVRAYTYSDPNDERFVEVEDRIIWQMRFRSGALSHGASSYSTTTTSRFSVQGDKAVLLMDPATGYYQNLISVQTPGHANQSMMPQFIMPANNQFSAQLDHLAEAVINNKPVRSPGEEGMQDVRLIQAIYEAARTGRPVNTDWGYVRQGGY

来源 Source

来源生物 organism	ZYMOMONAS MOBILIS
NCBI 分类编号 ncbi_taxonomy_id	542
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 non-polymer

描述 description	NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
分子量 formula_weight	745.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

Entity 3 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	3949

▼

6. 折叠分类 (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

结构域编号 domain_id	d1h6da1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1h6da2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.81 — FwdE/GAPDH domain-like
超家族 Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
家族 Family family	d.81.1.5 — Glucose 6-phosphate dehydrogenase-like

结构域编号 domain_id	d1h6db1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1h6db2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.81 — FwdE/GAPDH domain-like
超家族 Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
家族 Family family	d.81.1.5 — Glucose 6-phosphate dehydrogenase-like

结构域编号 domain_id	d1h6dc1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1h6dc2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.81 — FwdE/GAPDH domain-like
超家族 Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
家族 Family family	d.81.1.5 — Glucose 6-phosphate dehydrogenase-like

结构域编号 domain_id	d1h6dd1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1h6dd2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.81 — FwdE/GAPDH domain-like
超家族 Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
家族 Family family	d.81.1.5 — Glucose 6-phosphate dehydrogenase-like

结构域编号 domain_id	d1h6de1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1h6de2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.81 — FwdE/GAPDH domain-like
超家族 Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
家族 Family family	d.81.1.5 — Glucose 6-phosphate dehydrogenase-like

结构域编号 domain_id	d1h6df1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1h6df2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.81 — FwdE/GAPDH domain-like
超家族 Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
家族 Family family	d.81.1.5 — Glucose 6-phosphate dehydrogenase-like

结构域编号 domain_id	d1h6dg1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1h6dg2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.81 — FwdE/GAPDH domain-like
超家族 Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
家族 Family family	d.81.1.5 — Glucose 6-phosphate dehydrogenase-like

结构域编号 domain_id	d1h6dh1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1h6dh2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.81 — FwdE/GAPDH domain-like
超家族 Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
家族 Family family	d.81.1.5 — Glucose 6-phosphate dehydrogenase-like

结构域编号 domain_id	d1h6di1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1h6di2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.81 — FwdE/GAPDH domain-like
超家族 Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
家族 Family family	d.81.1.5 — Glucose 6-phosphate dehydrogenase-like

结构域编号 domain_id	d1h6dj1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1h6dj2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.81 — FwdE/GAPDH domain-like
超家族 Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
家族 Family family	d.81.1.5 — Glucose 6-phosphate dehydrogenase-like

结构域编号 domain_id	d1h6dk1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1h6dk2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.81 — FwdE/GAPDH domain-like
超家族 Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
家族 Family family	d.81.1.5 — Glucose 6-phosphate dehydrogenase-like

结构域编号 domain_id	d1h6dl1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1h6dl2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.81 — FwdE/GAPDH domain-like
超家族 Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
家族 Family family	d.81.1.5 — Glucose 6-phosphate dehydrogenase-like

CATH v4.4 (24 domains)

结构域编号 domain_id	1h6dA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1h6dA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

结构域编号 domain_id	1h6dB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1h6dB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

结构域编号 domain_id	1h6dC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1h6dC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

结构域编号 domain_id	1h6dD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1h6dD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

结构域编号 domain_id	1h6dE01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1h6dE02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

结构域编号 domain_id	1h6dF01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1h6dF02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

结构域编号 domain_id	1h6dG01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1h6dG02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

结构域编号 domain_id	1h6dH01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1h6dH02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

结构域编号 domain_id	1h6dI01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1h6dI02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

结构域编号 domain_id	1h6dJ01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1h6dJ02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

结构域编号 domain_id	1h6dK01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1h6dK02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

结构域编号 domain_id	1h6dL01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1h6dL02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	115.724 Å
晶胞边长 b length_b	83.752 Å
晶胞边长 c length_c	279.149 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.050 Å
最低分辨率 resolution_low	15.000 Å
R 因子 r_factor	0.1970
R_work r_work	0.1970
R_free r_free	0.2280
