1h6t

Internalin B: crystal structure of fused N-terminal domains.

Method: X-RAY DIFFRACTION D_max: 86.2 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

INTERNALIN B

LISTERIA MONOCYTOGENES

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 36–321	Fragment：LRR DOMAIN, RESIDUES 36-321	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：pH 5；293 K；0.2M AMMONIUM SULFATE, 0.1 M SODIUM ACETATE, PH 5.0, 13% W/V PEG 4000, 6% V/V 2-METHYL-2,4-PENTANDIOL, T=20C, PROTEIN CONC.=10 MG/ML	Resolution 1.60 Å R-free 0.197

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1H6T	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1D0B INTERNALIN B LEUCINE RICH REPEAT DOMAIN Deposited 1999-09-09	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 36–248（213 aa） Fragment：LRR DOMAIN, RESIDUES 36-248	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；298 K；100 mM MES, 200 mM Calcium Acetate, 20% PEG 8000, 1 mM DTT , pH 6.5, vapor diffusion, temperature 298K	Resolution 1.86 Å R-free 0.235
1M9S Crystal structure of Internalin B (InlB), a Listeria monocytogenes virulence protein containing SH3-like domains. Deposited 2002-07-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 36–630（595 aa）	Not recorded	TB TERBIUM(III) ION × 7 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；lithium sulfate, glycerol, dithiothreitol, MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.65 Å R-free 0.302
1OTM Calcium-binding mutant of the internalin B LRR domain Deposited 2003-03-21	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 36–248（213 aa） Fragment：LRR domain	Mutation：D51A, D59A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；Peg 8000, Mes, Calcium acetate, DTT, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.93 Å R-free 0.240
1OTN Calcium-binding mutant of the Internalin B LRR domain Deposited 2003-03-21	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 36–248（213 aa） Fragment：LRR domain	Mutation：D51A	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；Peg 8000, Mes, Calcium acetate, DTT, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.97 Å R-free 0.244
1OTO Calcium-binding mutant of the internalin B LRR domain Deposited 2003-03-21	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 36–248（213 aa） Fragment：LRR domain	Mutation：D59A	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；Peg 8000, Mes, Calcium acetate, DTT, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.96 Å R-free 0.230
2UZX Structure of the human receptor tyrosine kinase Met in complex with the Listeria monocytogenes invasion protein InlB: Crystal form I Deposited 2007-05-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 36–321（286 aa） Fragment：INTERNALIN DOMAIN (CAP, LRR, IR), INLB321, RESIDUES 36-320	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；20 DEG C VAPOR DIFFUSION. 2 UL PROTEIN (5 MG/ML) PLUS 1 UL RESERVOIR CONSISTING OF 16.5% PEG 1500, 4.4% MPD, 0.1 M TRIS, PH8.5. RESERVOIR WAS COVERED WITH ALS OIL.	Resolution 2.80 Å R-free 0.307
2UZX Structure of the human receptor tyrosine kinase Met in complex with the Listeria monocytogenes invasion protein InlB: Crystal form I Deposited 2007-05-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 36–321（286 aa） Fragment：INTERNALIN DOMAIN (CAP, LRR, IR), INLB321, RESIDUES 36-320	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；20 DEG C VAPOR DIFFUSION. 2 UL PROTEIN (5 MG/ML) PLUS 1 UL RESERVOIR CONSISTING OF 16.5% PEG 1500, 4.4% MPD, 0.1 M TRIS, PH8.5. RESERVOIR WAS COVERED WITH ALS OIL.	Resolution 2.80 Å R-free 0.307
2UZY Structure of the human receptor tyrosine kinase Met in complex with the Listeria monocytogenes invasion protein inlb: low resolution, Crystal form II Deposited 2007-05-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 36–321（286 aa） Fragment：INTERNALIN DOMAIN (CAP, LRR, IR)\: INLB321, RESIDUES 36-321	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；VAPOR DIFFUSION AT 25 DEGREE C IN SITTING-DROPS. 2 UL PROTEIN (8 MG/ML)PLUS 2 UL RESERVOIR (1.4 M NA/K PHOSPHATE, PH 6.5, 10% PEG 2000 MONO-METHYL-ETHER)	Resolution 4.00 Å R-free 0.301
2UZY Structure of the human receptor tyrosine kinase Met in complex with the Listeria monocytogenes invasion protein inlb: low resolution, Crystal form II Deposited 2007-05-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 36–321（286 aa） Fragment：INTERNALIN DOMAIN (CAP, LRR, IR)\: INLB321, RESIDUES 36-321	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；VAPOR DIFFUSION AT 25 DEGREE C IN SITTING-DROPS. 2 UL PROTEIN (8 MG/ML)PLUS 2 UL RESERVOIR (1.4 M NA/K PHOSPHATE, PH 6.5, 10% PEG 2000 MONO-METHYL-ETHER)	Resolution 4.00 Å R-free 0.301
2WQU Internalin domain of Listeria monocytogenes InlB: triclinic crystal form Deposited 2009-08-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 36–321（286 aa） Fragment：INTERNALIN DOMAIN, RESIDUES 36-321	Not recorded	SO4 SULFATE ION × 1 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；SITTING DROP AT 293K WITH 200 NL PROTEIN PLUS 100 NL RESERVOIR SOLUTION CONSISTING OF: 0.1 M LI2SO4, 0.1 M NA-CITRATE PH 5.6, 30% PEG400. THE PROTEIN WAS A COMPLEX CONSISTING OF MET741 AND INLB321 AT 5 MG/ML, I.E. INLB321 WAS AT 1.4 MG7ML. CRYSTAL GROWTH TIME WAS SEVERAL MONTHS.	Resolution 2.60 Å R-free 0.249
2WQU Internalin domain of Listeria monocytogenes InlB: triclinic crystal form Deposited 2009-08-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 36–321（286 aa） Fragment：INTERNALIN DOMAIN, RESIDUES 36-321	Not recorded	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；SITTING DROP AT 293K WITH 200 NL PROTEIN PLUS 100 NL RESERVOIR SOLUTION CONSISTING OF: 0.1 M LI2SO4, 0.1 M NA-CITRATE PH 5.6, 30% PEG400. THE PROTEIN WAS A COMPLEX CONSISTING OF MET741 AND INLB321 AT 5 MG/ML, I.E. INLB321 WAS AT 1.4 MG7ML. CRYSTAL GROWTH TIME WAS SEVERAL MONTHS.	Resolution 2.60 Å R-free 0.249
2WQU Internalin domain of Listeria monocytogenes InlB: triclinic crystal form Deposited 2009-08-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 36–321（286 aa） Fragment：INTERNALIN DOMAIN, RESIDUES 36-321	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；SITTING DROP AT 293K WITH 200 NL PROTEIN PLUS 100 NL RESERVOIR SOLUTION CONSISTING OF: 0.1 M LI2SO4, 0.1 M NA-CITRATE PH 5.6, 30% PEG400. THE PROTEIN WAS A COMPLEX CONSISTING OF MET741 AND INLB321 AT 5 MG/ML, I.E. INLB321 WAS AT 1.4 MG7ML. CRYSTAL GROWTH TIME WAS SEVERAL MONTHS.	Resolution 2.60 Å R-free 0.249
2WQU Internalin domain of Listeria monocytogenes InlB: triclinic crystal form Deposited 2009-08-27	Different construct Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 36–321（286 aa） Fragment：INTERNALIN DOMAIN, RESIDUES 36-321	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；SITTING DROP AT 293K WITH 200 NL PROTEIN PLUS 100 NL RESERVOIR SOLUTION CONSISTING OF: 0.1 M LI2SO4, 0.1 M NA-CITRATE PH 5.6, 30% PEG400. THE PROTEIN WAS A COMPLEX CONSISTING OF MET741 AND INLB321 AT 5 MG/ML, I.E. INLB321 WAS AT 1.4 MG7ML. CRYSTAL GROWTH TIME WAS SEVERAL MONTHS.	Resolution 2.60 Å R-free 0.249
2WQU Internalin domain of Listeria monocytogenes InlB: triclinic crystal form Deposited 2009-08-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 36–321（286 aa） Fragment：INTERNALIN DOMAIN, RESIDUES 36-321	Not recorded	SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；SITTING DROP AT 293K WITH 200 NL PROTEIN PLUS 100 NL RESERVOIR SOLUTION CONSISTING OF: 0.1 M LI2SO4, 0.1 M NA-CITRATE PH 5.6, 30% PEG400. THE PROTEIN WAS A COMPLEX CONSISTING OF MET741 AND INLB321 AT 5 MG/ML, I.E. INLB321 WAS AT 1.4 MG7ML. CRYSTAL GROWTH TIME WAS SEVERAL MONTHS.	Resolution 2.60 Å R-free 0.249
2WQU Internalin domain of Listeria monocytogenes InlB: triclinic crystal form Deposited 2009-08-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 36–321（286 aa） Fragment：INTERNALIN DOMAIN, RESIDUES 36-321	Not recorded	SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；SITTING DROP AT 293K WITH 200 NL PROTEIN PLUS 100 NL RESERVOIR SOLUTION CONSISTING OF: 0.1 M LI2SO4, 0.1 M NA-CITRATE PH 5.6, 30% PEG400. THE PROTEIN WAS A COMPLEX CONSISTING OF MET741 AND INLB321 AT 5 MG/ML, I.E. INLB321 WAS AT 1.4 MG7ML. CRYSTAL GROWTH TIME WAS SEVERAL MONTHS.	Resolution 2.60 Å R-free 0.249
2WQV Internalin domain of Listeria monocytogenes InlB: rhombohedral crystal form Deposited 2009-08-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 36–321（286 aa） Fragment：INTERNALIN DOMAIN, RESIDUES 36-321	Not recorded	PG4 TETRAETHYLENE GLYCOL × 1 PGE TRIETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；SITTING VAPOR DIFFUSION AT 293 K. 200 NL PROTEIN PLUS 100 NL OF RESERVOIR SOLUTION CONSISTING OF 0.1 M NACL, 0.1 M CHES PH 9.5, 40% PEG300. THE PROTEIN WAS ACTUALLY A COMPLEX OF MET741 WITH INLB321 AT 5 MG/ML, I.E. INLB321 WAS AT 1.4 MG/ML. CRYSTAL GROWTH TIME: SEVERAL WEEKS TO MONTHS.	Resolution 2.80 Å R-free 0.238
2WQV Internalin domain of Listeria monocytogenes InlB: rhombohedral crystal form Deposited 2009-08-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 36–321（286 aa） Fragment：INTERNALIN DOMAIN, RESIDUES 36-321	Not recorded	PG4 TETRAETHYLENE GLYCOL × 1 PGE TRIETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；SITTING VAPOR DIFFUSION AT 293 K. 200 NL PROTEIN PLUS 100 NL OF RESERVOIR SOLUTION CONSISTING OF 0.1 M NACL, 0.1 M CHES PH 9.5, 40% PEG300. THE PROTEIN WAS ACTUALLY A COMPLEX OF MET741 WITH INLB321 AT 5 MG/ML, I.E. INLB321 WAS AT 1.4 MG/ML. CRYSTAL GROWTH TIME: SEVERAL WEEKS TO MONTHS.	Resolution 2.80 Å R-free 0.238
2WQW DOUBLE-DISULFIDE CROSS-LINKED CRYSTAL DIMER of the Listeria monocytogenes InlB internalin domain Deposited 2009-08-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 36–321（286 aa） Fragment：INTERNALIN DOMAIN, RESIDUES 36-321	Mutation：YES	PEG DI(HYDROXYETHYL)ETHER × 12	X-RAY DIFFRACTION X-ray crystallization conditions pH 9.5；293 K；293 K. PROTEIN (6.7 MG/ML) PLUS RESERVOIR = 2 PLUS 1. RESERVOIR SOLUTION IS 44-52% PEG2000, 0.1 M CHES PH=9,5, 0.2M NACL., PH 9.5	Resolution 2.24 Å R-free 0.239
2WQW DOUBLE-DISULFIDE CROSS-LINKED CRYSTAL DIMER of the Listeria monocytogenes InlB internalin domain Deposited 2009-08-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 36–321（286 aa） Fragment：INTERNALIN DOMAIN, RESIDUES 36-321	Mutation：YES	PEG DI(HYDROXYETHYL)ETHER × 6	X-RAY DIFFRACTION X-ray crystallization conditions pH 9.5；293 K；293 K. PROTEIN (6.7 MG/ML) PLUS RESERVOIR = 2 PLUS 1. RESERVOIR SOLUTION IS 44-52% PEG2000, 0.1 M CHES PH=9,5, 0.2M NACL., PH 9.5	Resolution 2.24 Å R-free 0.239
2WQX InlB321_4R: S199R, D200R, G206R, A227R, C242A mutant of the Listeria monocytogenes InlB internalin domain Deposited 2009-08-27	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 36–321（286 aa） Fragment：INTERNALIN DOMAIN, RESIDUES 36-321	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；SITTING DROP VAPOUR DIFFUSION AT 293K WITH 1 UL PROTEIN (3.8 MG/ML IN 50 MM HEPES, PH 7.0, 100 MM NACL) PLUS 0.5 UL RESERVOIR (17% PEG1000MME, 90 MM NA-CITRATE).	Resolution 2.03 Å R-free 0.257
2WQX InlB321_4R: S199R, D200R, G206R, A227R, C242A mutant of the Listeria monocytogenes InlB internalin domain Deposited 2009-08-27	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 36–321（286 aa） Fragment：INTERNALIN DOMAIN, RESIDUES 36-321	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；SITTING DROP VAPOUR DIFFUSION AT 293K WITH 1 UL PROTEIN (3.8 MG/ML IN 50 MM HEPES, PH 7.0, 100 MM NACL) PLUS 0.5 UL RESERVOIR (17% PEG1000MME, 90 MM NA-CITRATE).	Resolution 2.03 Å R-free 0.257
2Y5P B-repeat of Listeria monocytogenes InlB (internalin B) Deposited 2011-01-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 322–392（71 aa） Fragment：B-REPEAT, RESIDUES 322-392	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；20 DEG C IN HANGING OR SITTING-DROPS WITH 2 UL PROTEIN (17.3 MG/ML) PLUS 1 UL RESERVOIR (0.1 M NA-ACETATE PH 5.0, 0.2 M CACL2, 18 % PEG 6000).	Resolution 1.30 Å R-free 0.196
2Y5P B-repeat of Listeria monocytogenes InlB (internalin B) Deposited 2011-01-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 322–392（71 aa） Fragment：B-REPEAT, RESIDUES 322-392	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；20 DEG C IN HANGING OR SITTING-DROPS WITH 2 UL PROTEIN (17.3 MG/ML) PLUS 1 UL RESERVOIR (0.1 M NA-ACETATE PH 5.0, 0.2 M CACL2, 18 % PEG 6000).	Resolution 1.30 Å R-free 0.196
2Y5P B-repeat of Listeria monocytogenes InlB (internalin B) Deposited 2011-01-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 322–392（71 aa） Fragment：B-REPEAT, RESIDUES 322-392	Not recorded	CA CALCIUM ION × 3 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；20 DEG C IN HANGING OR SITTING-DROPS WITH 2 UL PROTEIN (17.3 MG/ML) PLUS 1 UL RESERVOIR (0.1 M NA-ACETATE PH 5.0, 0.2 M CACL2, 18 % PEG 6000).	Resolution 1.30 Å R-free 0.196
2Y5P B-repeat of Listeria monocytogenes InlB (internalin B) Deposited 2011-01-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 322–392（71 aa） Fragment：B-REPEAT, RESIDUES 322-392	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；20 DEG C IN HANGING OR SITTING-DROPS WITH 2 UL PROTEIN (17.3 MG/ML) PLUS 1 UL RESERVOIR (0.1 M NA-ACETATE PH 5.0, 0.2 M CACL2, 18 % PEG 6000).	Resolution 1.30 Å R-free 0.196
2Y5P B-repeat of Listeria monocytogenes InlB (internalin B) Deposited 2011-01-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 322–392（71 aa） Fragment：B-REPEAT, RESIDUES 322-392 Chain B 322–392（71 aa） Fragment：B-REPEAT, RESIDUES 322-392 Chain C 322–392（71 aa） Fragment：B-REPEAT, RESIDUES 322-392 Chain D 322–392（71 aa） Fragment：B-REPEAT, RESIDUES 322-392	Not recorded	CA CALCIUM ION × 8 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；20 DEG C IN HANGING OR SITTING-DROPS WITH 2 UL PROTEIN (17.3 MG/ML) PLUS 1 UL RESERVOIR (0.1 M NA-ACETATE PH 5.0, 0.2 M CACL2, 18 % PEG 6000).	Resolution 1.30 Å R-free 0.196
2Y5Q Listeria monocytogenes InlB (internalin B) residues 36-392 Deposited 2011-01-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 36–392（357 aa） Fragment：INTERNALIN DOMAIN AND B-REPEAT, RESIDUES 36-392	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；20 DEG C IN HANGING OR SITTING-DROPS WITH 1.5 UL PROTEIN (5 MG/ML) PLUS 1.5 UL RESERVOIR (0.1 M MES, PH 5.5, 14 % MPD) MICROSEEDED FROM A SIMILAR CONDITION (0.1 M MES PH 6.0, 6.5 % PEG6000 AND 5 MM ZNCL2).	Resolution 3.20 Å R-free 0.225
2Y5Q Listeria monocytogenes InlB (internalin B) residues 36-392 Deposited 2011-01-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 36–392（357 aa） Fragment：INTERNALIN DOMAIN AND B-REPEAT, RESIDUES 36-392	Not recorded	ZN ZINC ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；20 DEG C IN HANGING OR SITTING-DROPS WITH 1.5 UL PROTEIN (5 MG/ML) PLUS 1.5 UL RESERVOIR (0.1 M MES, PH 5.5, 14 % MPD) MICROSEEDED FROM A SIMILAR CONDITION (0.1 M MES PH 6.0, 6.5 % PEG6000 AND 5 MM ZNCL2).	Resolution 3.20 Å R-free 0.225
4AW4 Engineered variant of Listeria monocytogenes InlB internalin domain with an additional leucine rich repeat inserted Deposited 2012-05-31	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 36–98（63 aa） Fragment：INTERNALIN DOMAIN, RESIDUES 36-321 Chain A 99–321（223 aa） Fragment：INTERNALIN DOMAIN, RESIDUES 36-321	Not recorded	SO4 SULFATE ION × 9 GOL GLYCEROL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；SITTING DROP VAPOUR DIFFUSION IN 96-WELL PLATES AT 20 DEGREE C. 17 MG/ML PROTEIN IN 25 MM TRIS, PH 8, 20 MM NACL. RESERVOIR SOLUTION WAS 2M AMMONIUM SULFATE. DROPS WERE SET UP WITH EQUAL VOLUMES OF PROTEIN AND RESERVOIR SOLUTION.	Resolution 1.93 Å R-free 0.205
4AW4 Engineered variant of Listeria monocytogenes InlB internalin domain with an additional leucine rich repeat inserted Deposited 2012-05-31	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 36–98（63 aa） Fragment：INTERNALIN DOMAIN, RESIDUES 36-321 Chain B 99–321（223 aa） Fragment：INTERNALIN DOMAIN, RESIDUES 36-321	Not recorded	SO4 SULFATE ION × 7 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；SITTING DROP VAPOUR DIFFUSION IN 96-WELL PLATES AT 20 DEGREE C. 17 MG/ML PROTEIN IN 25 MM TRIS, PH 8, 20 MM NACL. RESERVOIR SOLUTION WAS 2M AMMONIUM SULFATE. DROPS WERE SET UP WITH EQUAL VOLUMES OF PROTEIN AND RESERVOIR SOLUTION.	Resolution 1.93 Å R-free 0.205
4AW4 Engineered variant of Listeria monocytogenes InlB internalin domain with an additional leucine rich repeat inserted Deposited 2012-05-31	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 36–98（63 aa） Fragment：INTERNALIN DOMAIN, RESIDUES 36-321 Chain C 99–321（223 aa） Fragment：INTERNALIN DOMAIN, RESIDUES 36-321	Not recorded	SO4 SULFATE ION × 6 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；SITTING DROP VAPOUR DIFFUSION IN 96-WELL PLATES AT 20 DEGREE C. 17 MG/ML PROTEIN IN 25 MM TRIS, PH 8, 20 MM NACL. RESERVOIR SOLUTION WAS 2M AMMONIUM SULFATE. DROPS WERE SET UP WITH EQUAL VOLUMES OF PROTEIN AND RESERVOIR SOLUTION.	Resolution 1.93 Å R-free 0.205
4CIL YopM-InlB: Hybrid leucine-rich repeat protein Deposited 2013-12-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 93–321（229 aa） Fragment：YOPM N-TERMINAL CAP RESIDUES 34-87, INLB LEUCINE-RICH REPEAT AND INTER-REPEAT REGION RESIDUES 93-321	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；HANGING DROP VAPOUR DIFFUSION AT 293 K WITH A DROP SIZE OF 2 UL CONSISTING OF EQUAL VOLUMES OF PROTEIN AT A CONCENTRATION OF 10 MG/ML AND RESERVOIR SOLUTION (0.1 M TRICINE, PH 9.0, 28% PEG 1000, 10% GLYCEROL, 0.25M KCL). CRYSTALS WERE CRYO-PROTECTED WITH RESERVOIR-SOLUTION ADDITIONALLY CONTAINING 15% GLYCEROL AND FLASH-FROZEN IN LIQUID NITROGEN	Resolution 1.50 Å R-free 0.219
6GCU MET receptor in complex with InlB internalin domain and DARPin A3A Deposited 2018-04-19	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 36–321（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293.15 K；0.1 M HEPES sodium salt pH 7.5, 12% w/v PEG4000, protein complex concentration 5 mg/mL, equimolar ratio of macromolecules, drop size 0.2 uL, protein:reservoir ratio 1:1	Resolution 6.00 Å R-free 0.271
6GCU MET receptor in complex with InlB internalin domain and DARPin A3A Deposited 2018-04-19	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 36–321（286 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293.15 K；0.1 M HEPES sodium salt pH 7.5, 12% w/v PEG4000, protein complex concentration 5 mg/mL, equimolar ratio of macromolecules, drop size 0.2 uL, protein:reservoir ratio 1:1	Resolution 6.00 Å R-free 0.271

16 other PDB entries and 34 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	INLB_LISMO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–291； UniProt 36–321

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

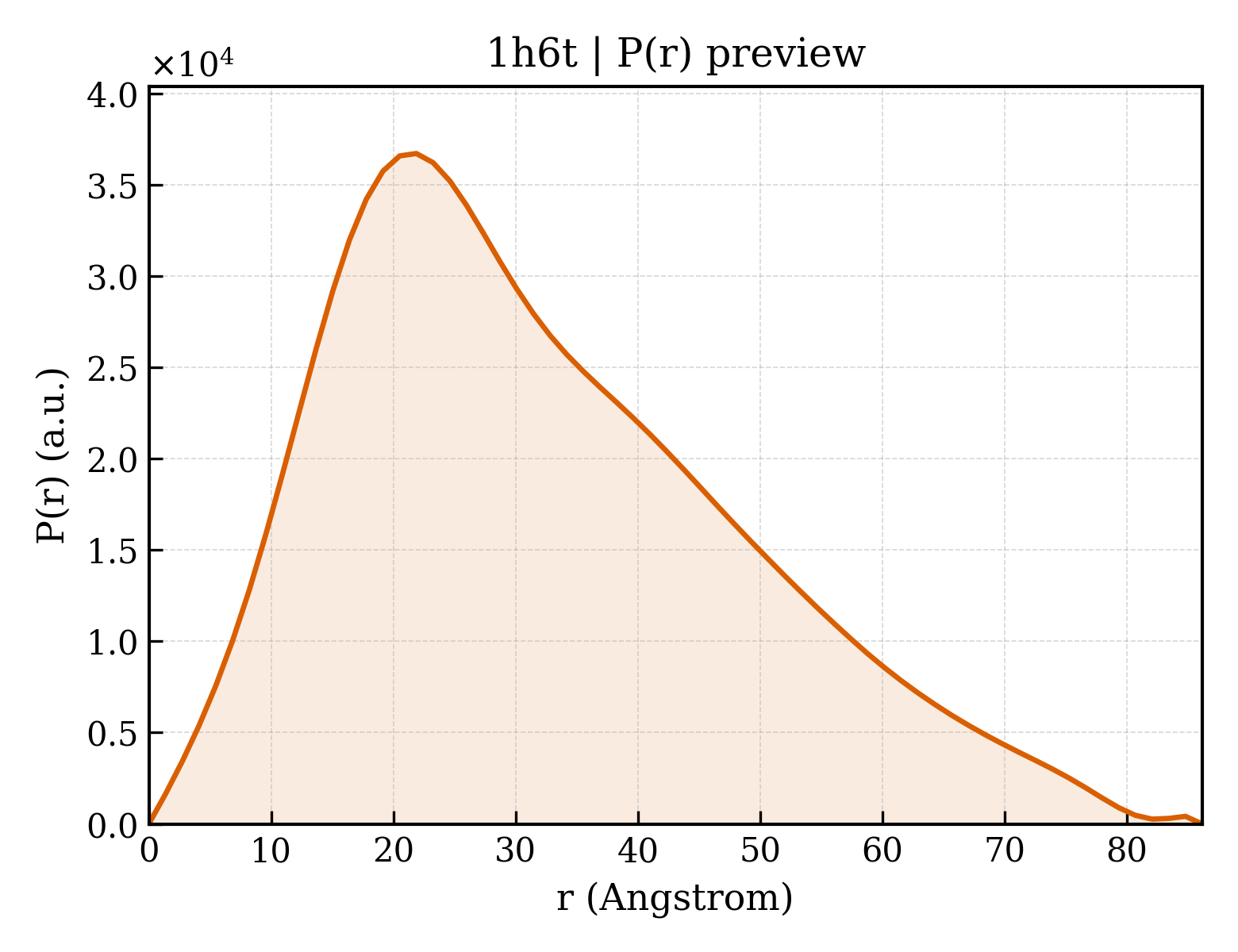

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1h6t
Deposition date deposition_date	2001-06-22
Structure title title	Internalin B: crystal structure of fused N-terminal domains.
Keywords keywords	CELL ADHESION, LEUCINE RICH REPEAT, IG-LIKE DOMAIN, EF-HAND DOMAIN; CELL ADHESION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	25.00 Å
Radius of gyration Rg (electron density) rg_electron	24.60 Å
Forward intensity I(0) i0	16885600.00
Molecular weight molecular_weight	32355.0 kDa
Excluded volume excluded_volume	41073 Å³
Envelope volume envelope_volume	49248 Å³
Hydration-shell volume shell_volume	18656 Å³
Envelope diameter envelope_diameter	89.5 Å
Shell Rg shell_rg	29.19 Å
Envelope Rg envelope_rg	25.08 Å
Shape Rg shape_rg	24.61 Å
Total Rg total_rg	25.17 Å
Total atoms total_atoms	2283
Residues n_residues	291
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	86.2 Å
Rg (real space) rg_real	25.39 Å
Rg uncertainty (real space) rg_real_error	0.83 Å
I(0) (real space) i0_real	1.6890e+07
I(0) uncertainty (real space) i0_real_error	2.4910e+05
Rg (reciprocal space) rg_reciprocal	25.30 Å
I(0) (reciprocal space) i0_reciprocal	16880000.0000
Solution quality estimate total_estimate	0.7963
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.9 Å
Skewness Skewness skewness	0.602
Kurtosis Kurtosis kurtosis	-0.242
Angular range angular_range	— – 0.3150 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	3185000.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.651; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.495; Smooth: 0.902

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1h6ta1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.18 — E set domains
Family Family family	b.1.18.15 — Internalin Ig-like domain

Domain ID domain_id	d1h6ta2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Superfamily Superfamily superfamily	c.10.2 — L domain-like
Family Family family	c.10.2.1 — Internalin LRR domain

Domain ID domain_id	d1h6ta3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	1h6tA01
Class class	3 — Alpha Beta
Architecture architecture	80 — Alpha-Beta Horseshoe
Topology topology	10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Homologous superfamily homologous superfamily	10 — Ribonuclease Inhibitor

Domain ID domain_id	1h6tA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1220 —

▶

8. Citations (2)

▶

Unit-cell length a length_a	32.953 Å
Unit-cell length b length_b	72.818 Å
Unit-cell length c length_c	115.570 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	62.000 Å
R factor r_factor	—
R_work r_work	0.1650
R_free r_free	0.1970

Description description	INTERNALIN B
Molecular weight formula_weight	32395.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2758

Internalin B: crystal structure of fused N-terminal domains.

1. Protein Identity and Related Structures Protein Identity & Related Structures

INTERNALIN B

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

7. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (3 domains)

CATH v4.4 (2 domains)

8. Citations (2)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	LISTERIA MONOCYTOGENES
NCBI Class编号 ncbi_taxonomy_id	1639
宿主生物 host_organism	ESCHERICHIA COLI

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	475

fit	/app/data/saxs_computation/h6/1h6t/1h6t.fit
pddf	/app/data/pr_computation/h6/1h6t/1h6t.pr.out
profile	/app/data/saxs_computation/h6/1h6t/1h6t.dat
