SAXSdb — 1h9s

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MOLYBDENUM TRANSPORT PROTEIN MODE

ESCHERICHIA COLI

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	MOLYBDATE ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MODE_ECOLI
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 1–138； UniProt 123–260 Author chain B； PDBConstruct 1–138； UniProt 123–260

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1h9s
Deposition date deposition_date	2001-03-19
Structure title title	Molybdate bound complex of Dimop domain of ModE from E.coli
Keywords keywords	TRANSCRIPTION REGULATOR; TRANSCRIPTION REGULATOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1h9s__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1h9s__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

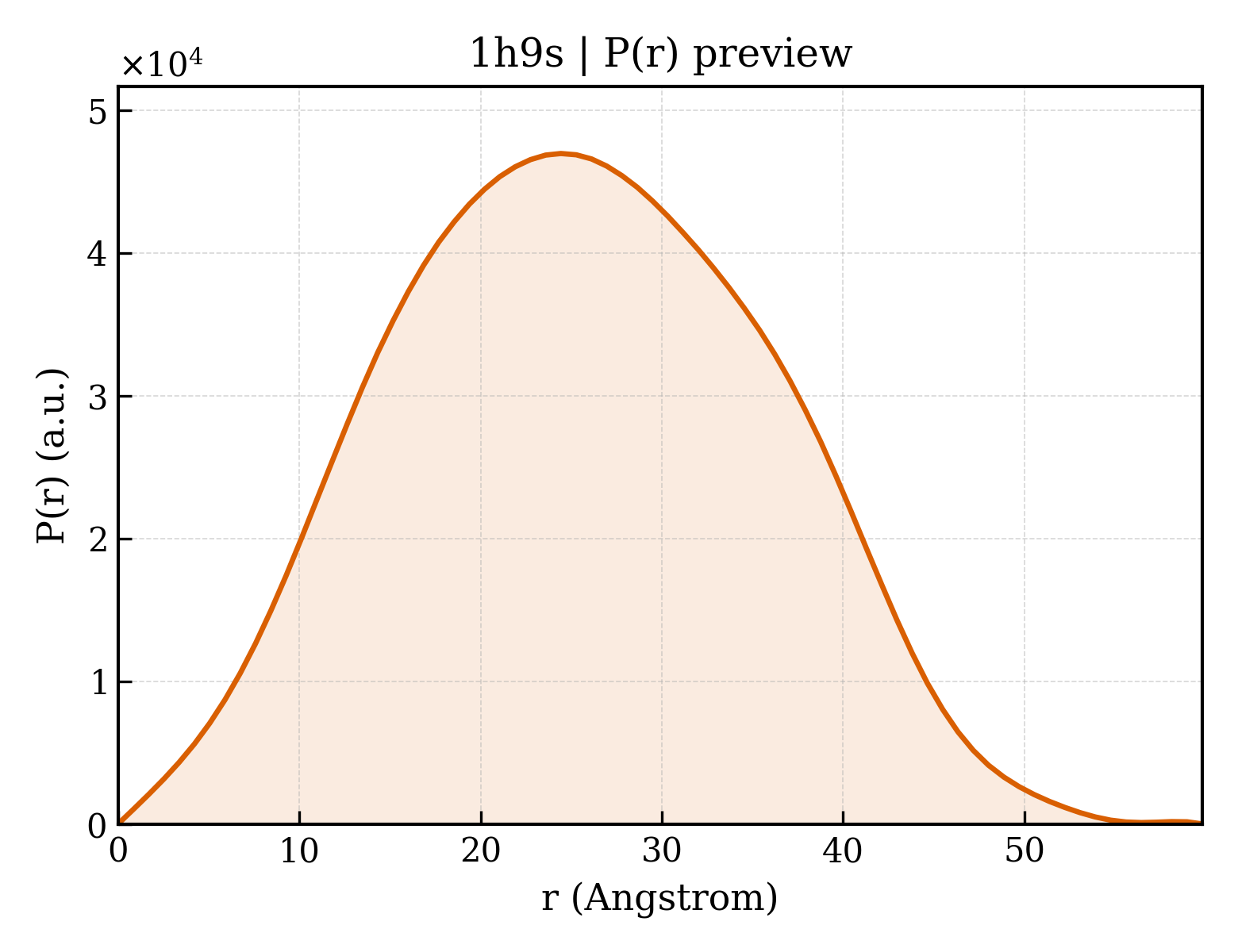

1h9s__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.59 Å
Rg (electron density)	18.41 Å
Total Rg	19.17 Å
Atom count	2073
Residues	275
Excluded volume	36576 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1h9s__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	MOLYBDENUM TRANSPORT PROTEIN MODE
Molecular weight formula_weight	15048.9 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2300

MQTSARNQWFGTITARDHDDVQQHVDVLLADGKTRLKVAITAQSGARLGLDEGKEVLILLKAPWVGITQDEAVAQNADNQLPGIISHIERGAEQCEVLMALPDGQTLCATVPVNEATSLQQGQNVTAYFNADSVIIATLC

Source Source

Source organism organism	ESCHERICHIA COLI
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	MOLYBDENUM TRANSPORT PROTEIN MODE
Molecular weight formula_weight	15049.9 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MQTSARNQWFGTITARDHDDVQQHVDVLLADGKTRLKVAITAQSGARLGLDEGKEVLILLKAPWVGITQDEAVAQNADNQLPGIISHIERGAEQCEVLMALPDGQTLCATVPVNEATSLEQGQNVTAYFNADSVIIATLC

Source Source

Source organism organism	ESCHERICHIA COLI
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	ESCHERICHIA COLI

Entity 3 Entity 3 non-polymer

Description description	MOLYBDATE ION
Molecular weight formula_weight	159.9 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	227

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1h9sa1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.6 — MOP-like
Family Family family	b.40.6.2 — BiMOP, duplicated molybdate-binding domain

Domain ID domain_id	d1h9sa2
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.6 — MOP-like
Family Family family	b.40.6.2 — BiMOP, duplicated molybdate-binding domain

Domain ID domain_id	d1h9sb1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.6 — MOP-like
Family Family family	b.40.6.2 — BiMOP, duplicated molybdate-binding domain

Domain ID domain_id	d1h9sb2
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.6 — MOP-like
Family Family family	b.40.6.2 — BiMOP, duplicated molybdate-binding domain

CATH v4.4 (4 domains)

Domain ID domain_id	1h9sA01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

Domain ID domain_id	1h9sA02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

Domain ID domain_id	1h9sB01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

Domain ID domain_id	1h9sB02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

▶

Unit-cell length a length_a	72.340 Å
Unit-cell length b length_b	73.340 Å
Unit-cell length c length_c	49.560 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 41
Space-group number int_tables_number	76
Crystal system crystal_system	—

Resolution resolution	1.820 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.1880
R_free r_free	0.2340

Molybdate bound complex of Dimop domain of ModE from E.coli
