1ha7

STRUCTURE OF A LIGHT-HARVESTING PHYCOBILIPROTEIN, C-PHYCOCYANIN FROM SPIRULINA PLATENSIS AT 2.2A RESOLUTION

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

C-PHYCOCYANIN ALPHA CHAIN

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	C-PHYCOCYANIN BETA CHAIN × 6 （P72508） PHYCOCYANOBILIN × 18 water × 12	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 12	C-PHYCOCYANIN BETA CHAIN × 6 （P72508） PHYCOCYANOBILIN × 18 water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PHCA_SPIPL
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–162； UniProt 1–162 Author chain C； PDBConstruct 1–162； UniProt 1–162 Author chain E； PDBConstruct 1–162； UniProt 1–162 Author chain G； PDBConstruct 1–162； UniProt 1–162 Author chain I； PDBConstruct 1–162； UniProt 1–162 Author chain K； PDBConstruct 1–162； UniProt 1–162 Author chain M； PDBConstruct 1–162； UniProt 1–162 Author chain O； PDBConstruct 1–162； UniProt 1–162 Author chain Q； PDBConstruct 1–162； UniProt 1–162 Author chain S； PDBConstruct 1–162； UniProt 1–162 Author chain U； PDBConstruct 1–162； UniProt 1–162 Author chain W； PDBConstruct 1–162； UniProt 1–162

C-PHYCOCYANIN BETA CHAIN

OrganismNot specified

UniProt P72508

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	C-PHYCOCYANIN ALPHA CHAIN × 6 （P72509） PHYCOCYANOBILIN × 18 water × 12	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 12	C-PHYCOCYANIN ALPHA CHAIN × 6 （P72509） PHYCOCYANOBILIN × 18 water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PHCB_SPIPL
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–172； UniProt 1–172 Author chain D； PDBConstruct 1–172； UniProt 1–172 Author chain F； PDBConstruct 1–172； UniProt 1–172 Author chain H； PDBConstruct 1–172； UniProt 1–172 Author chain J； PDBConstruct 1–172； UniProt 1–172 Author chain L； PDBConstruct 1–172； UniProt 1–172 Author chain N； PDBConstruct 1–172； UniProt 1–172 Author chain P； PDBConstruct 1–172； UniProt 1–172 Author chain R； PDBConstruct 1–172； UniProt 1–172 Author chain T； PDBConstruct 1–172； UniProt 1–172 Author chain V； PDBConstruct 1–172； UniProt 1–172 Author chain X； PDBConstruct 1–172； UniProt 1–172

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ha7
Deposition date deposition_date	2001-03-29
Structure title title	STRUCTURE OF A LIGHT-HARVESTING PHYCOBILIPROTEIN, C-PHYCOCYANIN FROM SPIRULINA PLATENSIS AT 2.2A RESOLUTION
Keywords keywords	PHOTOSYNTHESIS, CYANOBACTERIA, LIGHT-HARVESTING PROTEIN, PIGMENT PROTEIN, PHYCOCYANOBILIN, CHROMOPHORE; PHOTOSYNTHESIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ha7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ha7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

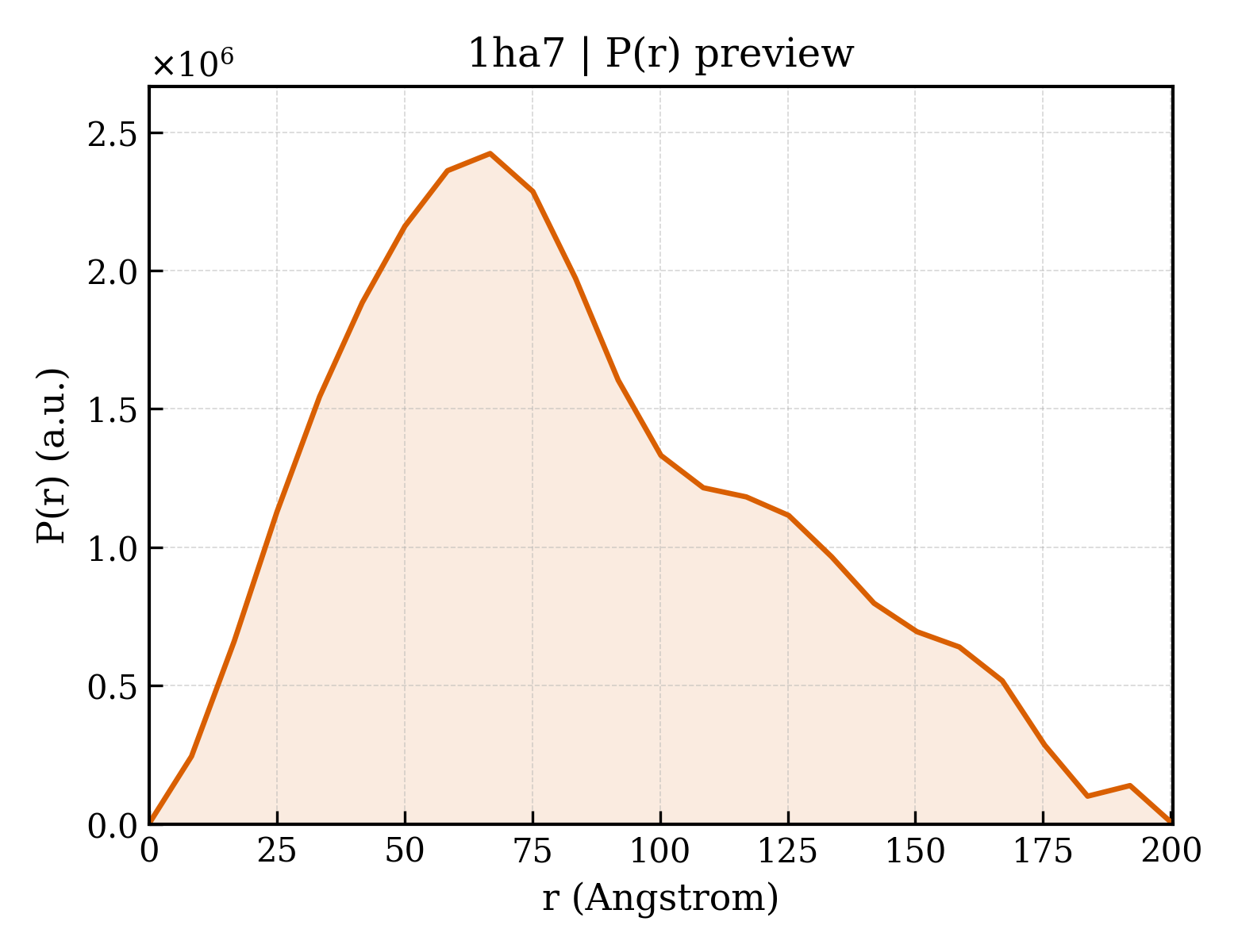

1ha7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	41.37 Å
Rg (electron density)	40.60 Å
Total Rg	41.00 Å
Atom count	15786
Residues	1998
Excluded volume	281170 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ha7__assembly_1__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1ha7__assembly_2__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	C-PHYCOCYANIN ALPHA CHAIN
Molecular weight formula_weight	17618.8 kDa
Source method src_method	nat
Copy count entity_count	12

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G,I,K,M,O,Q,S,U,W
Atom count atom_count	33855

MKTPLTEAVSIADSQGRFLSSTEIQVAFGRFRQAKAGLEAAKALTSKADSLISGAAQAVYNKFPYTTQMQGPNYAADQRGKDKCARDIGYYLRMVTYCLIAGGTGPMDEYLIAGIDEINRTFELSPSWYIEALKYIKANHGLSGDAATEANSYLDYAINALS

Entity 2 Entity 2 polymer

Description description	C-PHYCOCYANIN BETA CHAIN
Molecular weight formula_weight	18122.6 kDa
Source method src_method	nat
Copy count entity_count	12

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H,J,L,N,P,R,T,V,X

MFDAFTKVVSQADTRGEMLSTAQIDALSQMVAESNKRLDAVNRITSNASTIVSNAARSLFAEQPQLIAPGGNAYTSRRMAACLRDMEIILRYVTYAVFAGDASVLEDRCLNGLRETYLALGTPGSSVAVGVGKMKEAALAIVNDPAGITPGDCSALASEIASYFDRACAAVS

Entity 3 Entity 3 non-polymer

Description description	PHYCOCYANOBILIN
Molecular weight formula_weight	588.7 kDa
Source method src_method	syn
Copy count entity_count	36

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	2283

▼

6. Fold Classification (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

Domain ID domain_id	d1ha7a_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1ha7b_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1ha7c_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1ha7d_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1ha7e_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1ha7f_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1ha7g_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1ha7h_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1ha7i_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1ha7j_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1ha7k_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1ha7l_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1ha7m_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1ha7n_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1ha7o_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1ha7p_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1ha7q_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1ha7r_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1ha7s_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1ha7t_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1ha7u_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1ha7v_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1ha7w_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1ha7x_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

CATH v4.4 (24 domains)

Domain ID domain_id	1ha7A00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1ha7B00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1ha7C00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1ha7D00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1ha7E00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1ha7F00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1ha7G00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1ha7H00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1ha7I00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1ha7J00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1ha7K00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1ha7L00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1ha7M00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1ha7N00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1ha7O00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1ha7P00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1ha7Q00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1ha7R00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1ha7S00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1ha7T00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1ha7U00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1ha7V00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1ha7W00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1ha7X00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

▶

Unit-cell length a length_a	107.200 Å
Unit-cell length b length_b	115.400 Å
Unit-cell length c length_c	183.040 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.21 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	22.900 Å
R factor r_factor	0.1920
R_work r_work	0.1920
R_free r_free	0.2380

STRUCTURE OF A LIGHT-HARVESTING PHYCOBILIPROTEIN, C-PHYCOCYANIN FROM SPIRULINA PLATENSIS AT 2.2A RESOLUTION

1. Protein Identity and Related Structures Protein Identity & Related Structures

C-PHYCOCYANIN ALPHA CHAIN

State in the Current Structure

Other States of the Same Protein in the Database

C-PHYCOCYANIN BETA CHAIN

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1ha7__assembly_1__model_1

1ha7__assembly_1__model_1 | I(q)

1ha7__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

6. Fold Classification (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

CATH v4.4 (24 domains)

7. Citations (3)

STRUCTURE OF A LIGHT-HARVESTING PHYCOBILIPROTEIN, C-PHYCOCYANIN FROM SPIRULINA PLATENSIS AT 2.2A RESOLUTION

1. Protein Identity and Related Structures Protein Identity & Related Structures

C-PHYCOCYANIN ALPHA CHAIN

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

C-PHYCOCYANIN BETA CHAIN

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1ha7__assembly_1__model_1

1ha7__assembly_1__model_1 | I(q)

1ha7__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

6. Fold Classification (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

CATH v4.4 (24 domains)

7. Citations (3)
