SAXSdb — 1hak

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ANNEXIN V

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	4-[3-{1-(4-BENZYL)PIPERODINYL}PROPIONYL]-7-METHOXY-2,3,4,5-TERTRAHYDRO-1,4-BENZOTHIAZEPINE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ANXA5_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–320； UniProt 1–319 Author chain B； PDBConstruct 2–320； UniProt 1–319

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1hak
Deposition date deposition_date	1997-12-10
Structure title title	CRYSTAL STRUCTURE OF RECOMBINANT HUMAN PLACENTAL ANNEXIN V COMPLEXED WITH K-201 AS A CALCIUM CHANNEL ACTIVITY INHIBITOR
Keywords keywords	;ANNEXIN V, LIPOCORTIN V, ENDONEXIN II, PLACENTA ANTICOAGULANT PROTEIN-I, 35KDA CALELECTRIN, INHIBITOR OF BLOOD COAGULATION, CALCIUM/PHOSPHOLIPID-BINDING, CALCIUM-PHOSPHOLIPID-BINDING complex ;; CALCIUM/PHOSPHOLIPID-BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1hak__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1hak__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

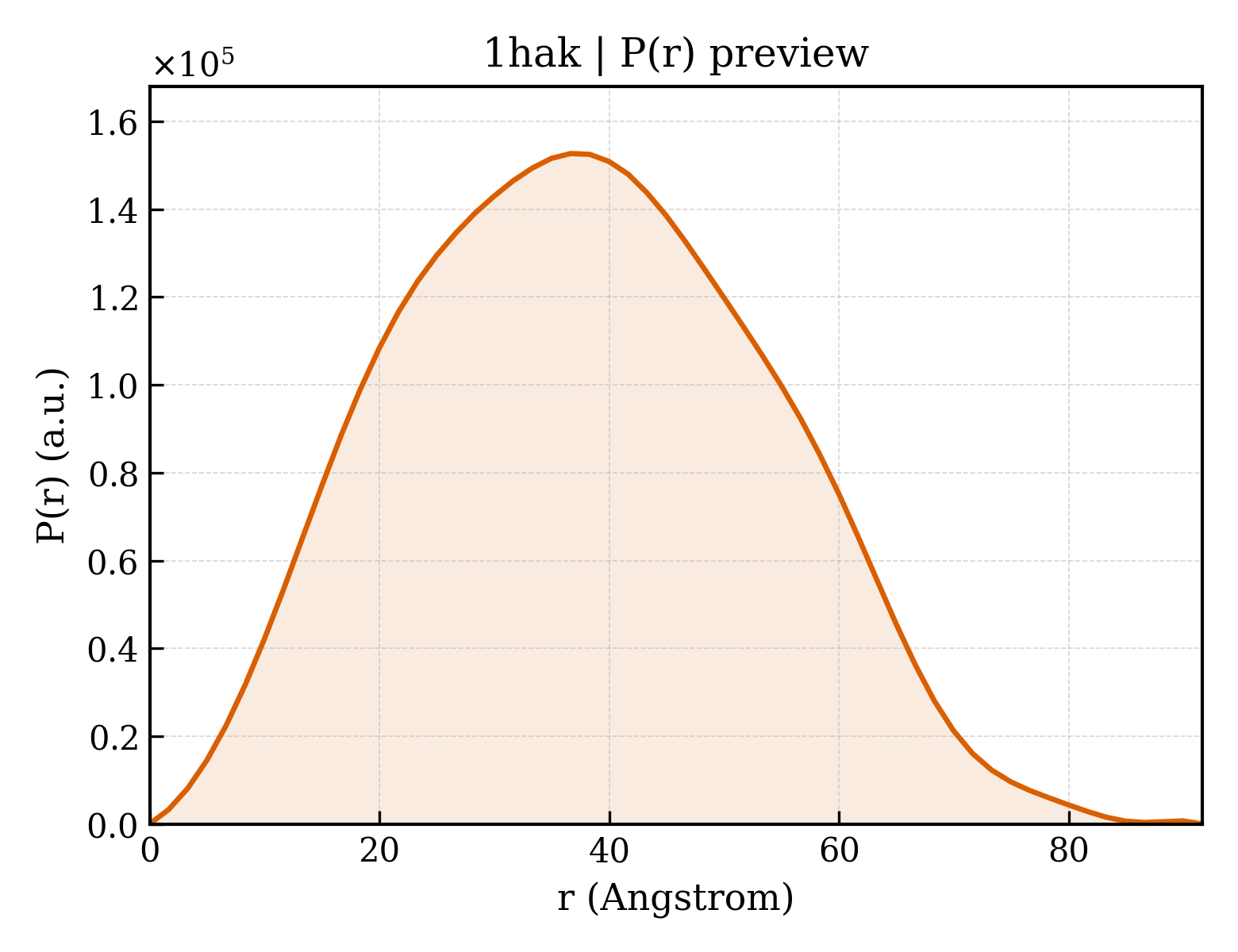

1hak__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.09 Å
Rg (electron density)	28.02 Å
Total Rg	28.80 Å
Atom count	5086
Residues	636
Excluded volume	90810 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1hak__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	ANNEXIN V
Molecular weight formula_weight	35980.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,A
Atom count atom_count	5195

MAQVLRGTVTDFPGFDERADAETLRKAMKGLGTDEESILTLLTSRSNAQRQEISAAFKTLFGRDLLDDLKSELTGKFEKLIVALMKPSRLYDAYELKHALKGAGTNEKVLTEIIASRTPEELRAIKQVYEEEYGSSLEDDVVGDTSGYYQRMLVVLLQANRDPDAGIDEAQVEQDAQALFQAGELKWGTDEEKFITIFGTRSVSHLRKVFDKYMTISGFQIEETIDRETSGNLEQLLLAVVKSIRSIPAYLAETLYYAMKGAGTDDHTLIRVMVSRSEIDLFNIRKEFRKNFATSLYSMIKGDTSGDYKKALLLLCGEDD

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	4-[3-{1-(4-BENZYL)PIPERODINYL}PROPIONYL]-7-METHOXY-2,3,4,5-TERTRAHYDRO-1,4-BENZOTHIAZEPINE
Molecular weight formula_weight	424.6 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	109

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1haka_
Class class	a — All alpha proteins
Fold Fold fold	a.65 — Annexin
Superfamily Superfamily superfamily	a.65.1 — Annexin
Family Family family	a.65.1.1 — Annexin

Domain ID domain_id	d1hakb_
Class class	a — All alpha proteins
Fold Fold fold	a.65 — Annexin
Superfamily Superfamily superfamily	a.65.1 — Annexin
Family Family family	a.65.1.1 — Annexin

CATH v4.4 (8 domains)

Domain ID domain_id	1hakA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	220 — Annexin V; domain 1
Homologous superfamily homologous superfamily	10 — Annexin

Domain ID domain_id	1hakA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	220 — Annexin V; domain 1
Homologous superfamily homologous superfamily	10 — Annexin

Domain ID domain_id	1hakA03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	220 — Annexin V; domain 1
Homologous superfamily homologous superfamily	10 — Annexin

Domain ID domain_id	1hakA04
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	220 — Annexin V; domain 1
Homologous superfamily homologous superfamily	10 — Annexin

Domain ID domain_id	1hakB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	220 — Annexin V; domain 1
Homologous superfamily homologous superfamily	10 — Annexin

Domain ID domain_id	1hakB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	220 — Annexin V; domain 1
Homologous superfamily homologous superfamily	10 — Annexin

Domain ID domain_id	1hakB03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	220 — Annexin V; domain 1
Homologous superfamily homologous superfamily	10 — Annexin

Domain ID domain_id	1hakB04
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	220 — Annexin V; domain 1
Homologous superfamily homologous superfamily	10 — Annexin

▶

Unit-cell length a length_a	99.300 Å
Unit-cell length b length_b	99.300 Å
Unit-cell length c length_c	130.500 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 63
Space-group number int_tables_number	173
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2060
R_work r_work	0.2060
R_free r_free	0.3310

CRYSTAL STRUCTURE OF RECOMBINANT HUMAN PLACENTAL ANNEXIN V COMPLEXED WITH K-201 AS A CALCIUM CHANNEL ACTIVITY INHIBITOR
