SAXSdb — 1hbh

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HEMOGLOBIN (DEOXY) (ALPHA CHAIN)

Trematomus bernacchii

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	HEMOGLOBIN (DEOXY) (BETA CHAIN) × 2 （P80044） PROTOPORPHYRIN IX CONTAINING FE × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HBA_PAGBE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–143； UniProt 1–142 Author chain C； PDBConstruct 2–143； UniProt 1–142

HEMOGLOBIN (DEOXY) (BETA CHAIN)

Trematomus bernacchii

UniProt P80044

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	HEMOGLOBIN (DEOXY) (ALPHA CHAIN) × 2 （P80043） PROTOPORPHYRIN IX CONTAINING FE × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HBB_PAGBE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–146； UniProt 1–146 Author chain D； PDBConstruct 1–146； UniProt 1–146

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1hbh
Deposition date deposition_date	1995-02-22
Structure title title	STRUCTURE OF DEOXYHAEMOGLOBIN OF THE ANTARCTIC FISH PAGOTHENIA BERNACCHII AND STRUCTURAL BASIS OF THE ROOT EFFECT
Keywords keywords	OXYGEN CARRIER; OXYGEN CARRIER
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1hbh__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

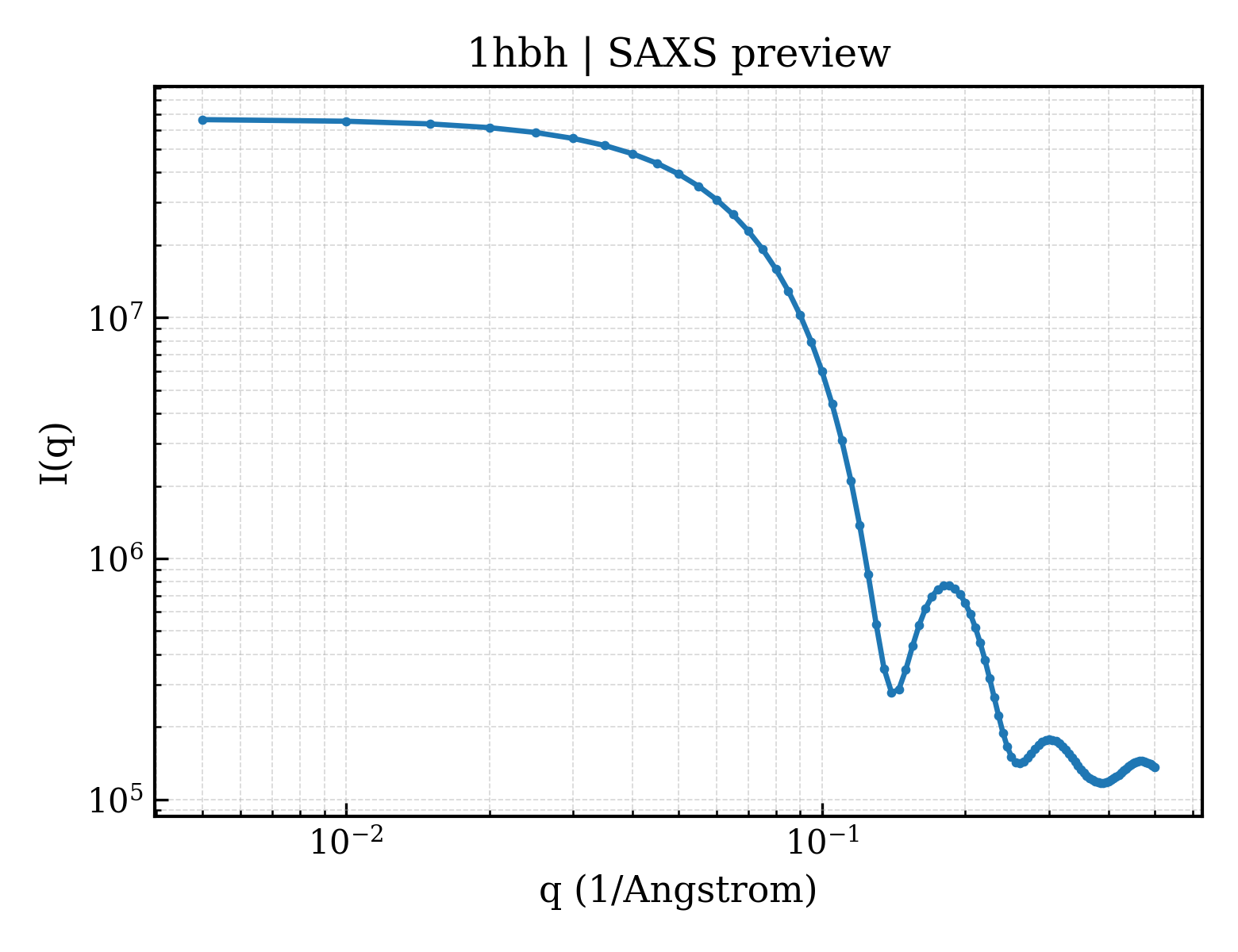

1hbh__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

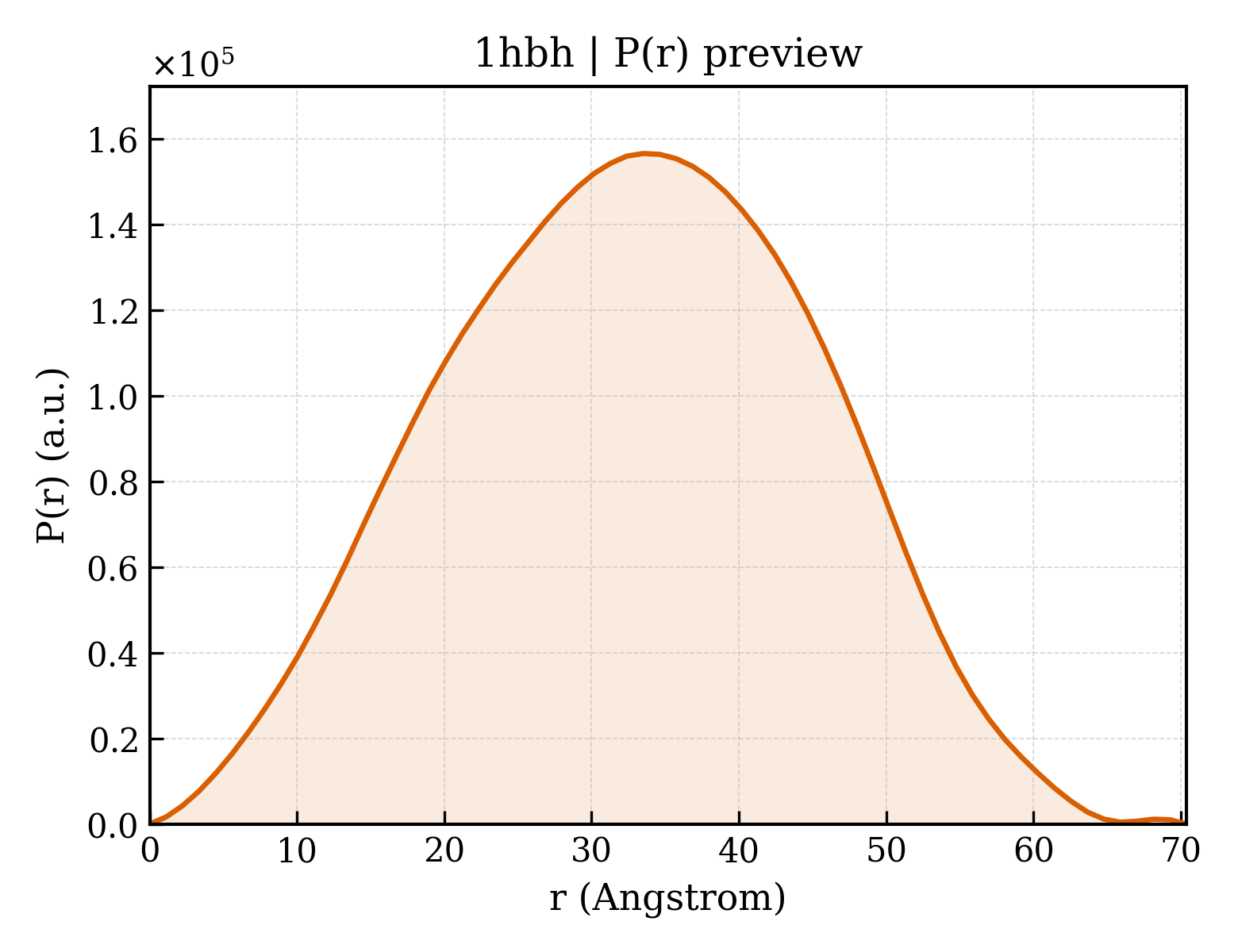

1hbh__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.94 Å
Rg (electron density)	23.62 Å
Total Rg	24.53 Å
Atom count	4656
Residues	576
Excluded volume	83567 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1hbh__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	HEMOGLOBIN (DEOXY) (ALPHA CHAIN)
Molecular weight formula_weight	15683.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	4694

XSLSDKDKAAVRALWSKIGKSADAIGNDALSRMIVVYPQTKTYFSHWPDVTPGSPHIKAHGKKVMGGIALAVSKIDDLKTGLMELSEQHAYKLRVDPANFKILNHCILVVISTMFPKEFTPEAHVSLDKFLSGVALALAERYR

Source Source

Source organism organism	Trematomus bernacchii
Common name common_name	emerald rockcod
NCBI taxonomy ID ncbi_taxonomy_id	40690

Entity 2 Entity 2 polymer

Description description	HEMOGLOBIN (DEOXY) (BETA CHAIN)
Molecular weight formula_weight	16153.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

VEWTDKERSIISDIFSHMDYDDIGPKALSRCLIVYPWTQRHFSGFGNLYNAEAIIGNANVAAHGIKVLHGLDRGVKNMDNIAATYADLSTLHSEKLHVDPDNFKLLSDCITIVLAAKMGHAFTAETQGAFQKFLAVVVSALGKQYH

Source Source

Source organism organism	Trematomus bernacchii
Common name common_name	emerald rockcod
NCBI taxonomy ID ncbi_taxonomy_id	40690

Entity 3 Entity 3 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	38

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1hbha_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.2 — Globins

Domain ID domain_id	d1hbhb_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.2 — Globins

Domain ID domain_id	d1hbhc_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.2 — Globins

Domain ID domain_id	d1hbhd_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.2 — Globins

CATH v4.4 (4 domains)

Domain ID domain_id	1hbhA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	10 — Globins

Domain ID domain_id	1hbhB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	10 — Globins

Domain ID domain_id	1hbhC00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	10 — Globins

Domain ID domain_id	1hbhD00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	10 — Globins

▶

Unit-cell length a length_a	62.650 Å
Unit-cell length b length_b	96.300 Å
Unit-cell length c length_c	62.650 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	—
R_work r_work	0.1600
R_free r_free	0.2200

STRUCTURE OF DEOXYHAEMOGLOBIN OF THE ANTARCTIC FISH PAGOTHENIA BERNACCHII AND STRUCTURAL BASIS OF THE ROOT EFFECT
