1hjx

Ligand-induced signalling and conformational change of the 39 kD glycoprotein from human articular chondrocytes

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CHITINASE-3 LIKE PROTEIN 1

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 4 其他Polymer 4	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 4 SULFATE ION × 8 GLYCEROL × 16 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C3L1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–362； UniProt 22–383 Author chain B； PDBConstruct 1–362； UniProt 22–383 Author chain C； PDBConstruct 1–362； UniProt 22–383 Author chain D； PDBConstruct 1–362； UniProt 22–383

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1hjx
Deposition date deposition_date	2003-02-28
Structure title title	Ligand-induced signalling and conformational change of the 39 kD glycoprotein from human articular chondrocytes
Keywords keywords	LECTIN, CHI-LECTIN, CHITINASE, ARTHRISTIS, CHONDROCYTES, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1hjx__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1hjx__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

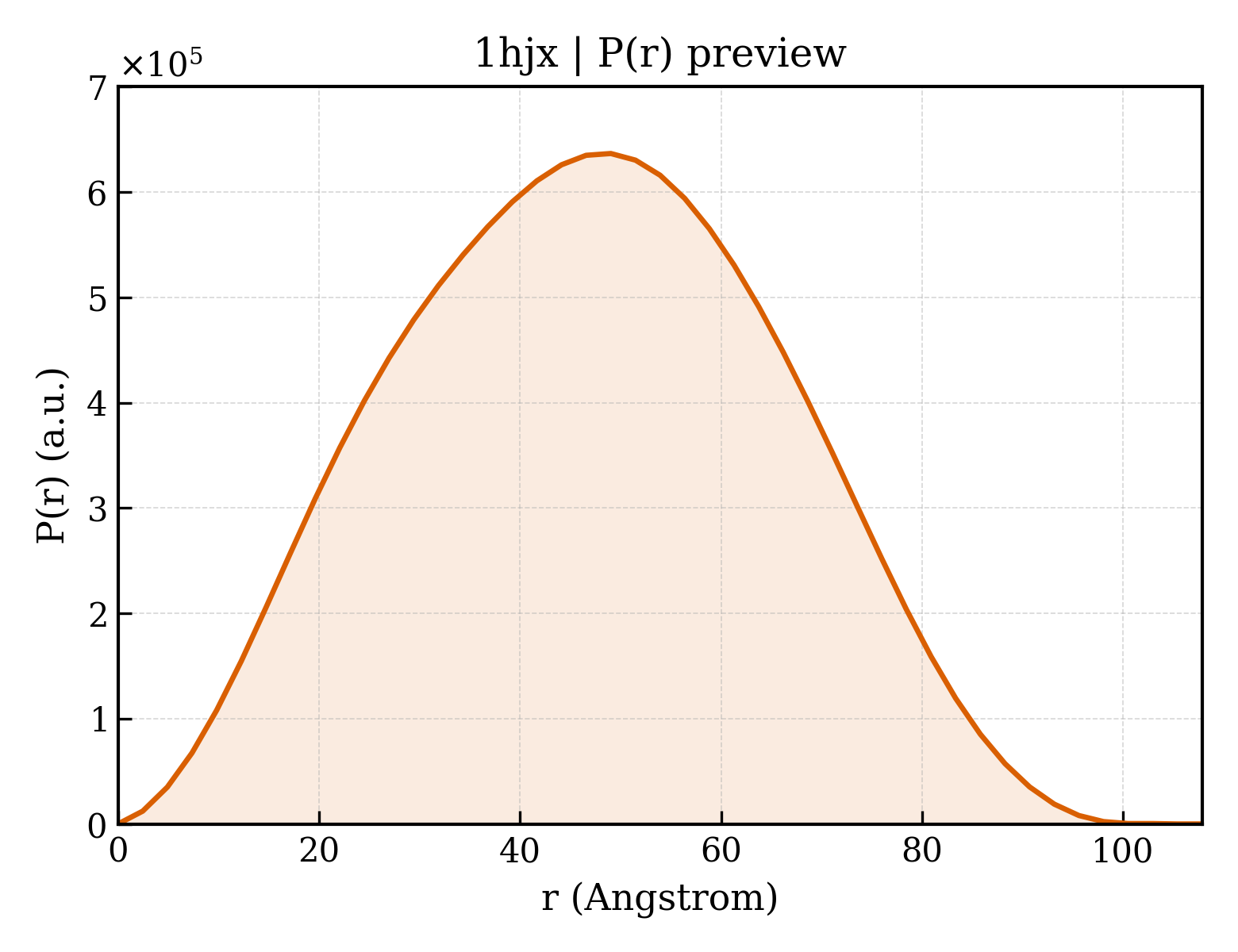

1hjx__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.96 Å
Rg (electron density)	35.14 Å
Total Rg	35.63 Å
Atom count	11628
Residues	1443
Excluded volume	206110 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1hjx__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	CHITINASE-3 LIKE PROTEIN 1
Molecular weight formula_weight	40536.8 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	13127

YKLVCYYTSWSQYREGDGSCFPDALDRFLCTHIIYSFANISNDHIDTWEWNDVTLYGMLNTLKNRNPNLKTLLSVGGWNFGSQRFSKIASNTQSRRTFIKSVPPFLRTHGFDGLDLAWLYPGRRDKQHFTTLIKEMKAEFIKEAQPGKKQLLLSAALSAGKVTIDSSYDIAKISQHLDFISIMTYDFHGAWRGTTGHHSPLFRGQEDASPDRFSNTDYAVGYMLRLGAPASKLVMGIPTFGRSFTLASSETGVGAPISGPGIPGRFTKEAGTLAYYEICDFLRGATVHRILGQQVPYATKGNQWVGYDDQESVKSKVQYLKDRQLAGAMVWALDLDDFQGSFCGQDLRFPLTNAIKDALAAT

Entity 2 Entity 2 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	16

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1393

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1hjxa1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.5 — Type II chitinase

Domain ID domain_id	d1hjxa2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.26 — FKBP-like
Superfamily Superfamily superfamily	d.26.3 — Chitinase insertion domain
Family Family family	d.26.3.1 — Chitinase insertion domain

Domain ID domain_id	d1hjxb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.5 — Type II chitinase

Domain ID domain_id	d1hjxb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.26 — FKBP-like
Superfamily Superfamily superfamily	d.26.3 — Chitinase insertion domain
Family Family family	d.26.3.1 — Chitinase insertion domain

Domain ID domain_id	d1hjxc1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.5 — Type II chitinase

Domain ID domain_id	d1hjxc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.26 — FKBP-like
Superfamily Superfamily superfamily	d.26.3 — Chitinase insertion domain
Family Family family	d.26.3.1 — Chitinase insertion domain

Domain ID domain_id	d1hjxd1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.5 — Type II chitinase

Domain ID domain_id	d1hjxd2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.26 — FKBP-like
Superfamily Superfamily superfamily	d.26.3 — Chitinase insertion domain
Family Family family	d.26.3.1 — Chitinase insertion domain

CATH v4.4 (8 domains)

Domain ID domain_id	1hjxA01
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

Domain ID domain_id	1hjxA02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	50 — Chitinase A; domain 3
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1hjxB01
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

Domain ID domain_id	1hjxB02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	50 — Chitinase A; domain 3
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1hjxC01
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

Domain ID domain_id	1hjxC02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	50 — Chitinase A; domain 3
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1hjxD01
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

Domain ID domain_id	1hjxD02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	50 — Chitinase A; domain 3
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	109.562 Å
Unit-cell length b length_b	122.048 Å
Unit-cell length c length_c	136.097 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.850 Å
Low-resolution limit resolution_low	14.980 Å
R factor r_factor	0.1970
R_work r_work	0.1970
R_free r_free	0.2250
