1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1hl9
沉积日期 deposition_date	2003-03-14
结构标题 title	CRYSTAL STRUCTURE OF THERMOTOGA MARITIMA ALPHA-FUCOSIDASE IN COMPLEX WITH A MECHANISM BASED INHIBITOR
关键词 keywords	HYDROLASE, GLYCOSIDE HYDROLASE, ALPHA-L-FUCOSIDASE, GLYCOSYL-ENZYME INTERMEDIATE, THERMOSTABLE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	34.84 Å
回转半径 Rg (电子) rg_electron	34.15 Å
零角强度 I(0) i0	140697000.00
分子量 molecular_weight	99267.0 kDa
排除体积 excluded_volume	125590 Å³
包络体积 envelope_volume	163490 Å³
水化壳体积 shell_volume	39524 Å³
包络直径 envelope_diameter	108.0 Å
壳层 Rg shell_rg	41.68 Å
包络 Rg envelope_rg	32.95 Å
形状 Rg shape_rg	34.07 Å
总 Rg total_rg	34.98 Å
总原子数 total_atoms	7051
残基数 n_residues	846
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	101.6 Å
Rg (实空间) rg_real	34.71 Å
Rg 误差 (实空间) rg_real_error	0.58 Å
I(0) (实空间) i0_real	1.4070e+08
I(0) 误差 (实空间) i0_real_error	2.0310e+06
Rg (倒空间) rg_reciprocal	34.80 Å
I(0) (倒空间) i0_reciprocal	140700000.0000
解质量估计 total_estimate	0.8869
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	54.2 Å
偏度 Skewness skewness	0.037
峰度 Kurtosis kurtosis	-0.831
角度范围 angular_range	— – 0.2250 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	28820000.0000
实空间数据点数 n_real_points	46
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.979; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.597

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	PUTATIVE ALPHA-L-FUCOSIDASE
分子量 formula_weight	52315.1 kDa
EC 编号 ec_number	3.2.1.51
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	7280

MISMKPRYKPDWESLREHTVPKWFDKAKFGIFIHWGIYSVPGWATPTGELGKVPMDAWFFQNPYAEWYENSLRIKESPTWEYHVKTYGENFEYEKFADLFTAEKWDPQEWADLFKKAGAKYVIPTTKHHDGFCLWGTKYTDFNSVKRGPKRDLVGDLAKAVREAGLRFGVYYSGGLDWRFTTEPIRYPEDLSYIRPNTYEYADYAYKQVMELVDLYLPDVLWNDMGWPEKGKEDLKYLFAYYYNKHPEGSVNDRWGVPHWDFKTAEYHVNYPGDLPGYKWEFTRGIGLSFGYNRNEGPEHMLSVEQLVYTLVDVVSKGGNLLLNVGPKGDGTIPDLQKERLLGLGEWLRKYGDAIYGTSVWERCCAKTEDGTEIRFTRKCNRIFVIFLGIPTGEKIVIEDLNLSAGTVRHFLTGERLSFKNVGKNLEITVPKKLLETDSITLVLEAVEE

来源 Source

来源生物 organism	THERMOTOGA MARITIMA
NCBI 分类编号 ncbi_taxonomy_id	243274
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 non-polymer

描述 description	2-deoxy-2-fluoro-beta-L-fucopyranose
分子量 formula_weight	166.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	209

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1hl9a1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.71 — Glycosyl hydrolase domain
超家族 Superfamily superfamily	b.71.1 — Glycosyl hydrolase domain
家族 Family family	b.71.1.3 — Putative alpha-L-fucosidase C-terminal domain

结构域编号 domain_id	d1hl9a2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.8 — (Trans)glycosidases
家族 Family family	c.1.8.11 — Putative alpha-L-fucosidase, catalytic domain

结构域编号 domain_id	d1hl9b1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.71 — Glycosyl hydrolase domain
超家族 Superfamily superfamily	b.71.1 — Glycosyl hydrolase domain
家族 Family family	b.71.1.3 — Putative alpha-L-fucosidase C-terminal domain

结构域编号 domain_id	d1hl9b2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.8 — (Trans)glycosidases
家族 Family family	c.1.8.11 — Putative alpha-L-fucosidase, catalytic domain

CATH v4.4 (4 domains)

结构域编号 domain_id	1hl9A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	80 — Glycosidases

结构域编号 domain_id	1hl9A02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	1180 — Golgi alpha-mannosidase II

结构域编号 domain_id	1hl9B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	80 — Glycosidases

结构域编号 domain_id	1hl9B02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	1180 — Golgi alpha-mannosidase II

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	172.157 Å
晶胞边长 b length_b	172.157 Å
晶胞边长 c length_c	167.331 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	36

空间群 space_group	H 3 2
空间群编号 int_tables_number	155
晶系 crystal_system	—

分辨率 resolution	2.250 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.1840
R_work r_work	0.1810
R_free r_free	0.2290

fit	/app/data/saxs_computation/hl/1hl9/1hl9.fit
pddf	/app/data/pr_computation/hl/1hl9/1hl9.pr.out
profile	/app/data/saxs_computation/hl/1hl9/1hl9.dat

CRYSTAL STRUCTURE OF THERMOTOGA MARITIMA ALPHA-FUCOSIDASE IN COMPLEX WITH A MECHANISM BASED INHIBITOR

SAXS 散射曲线 SAXS Profile

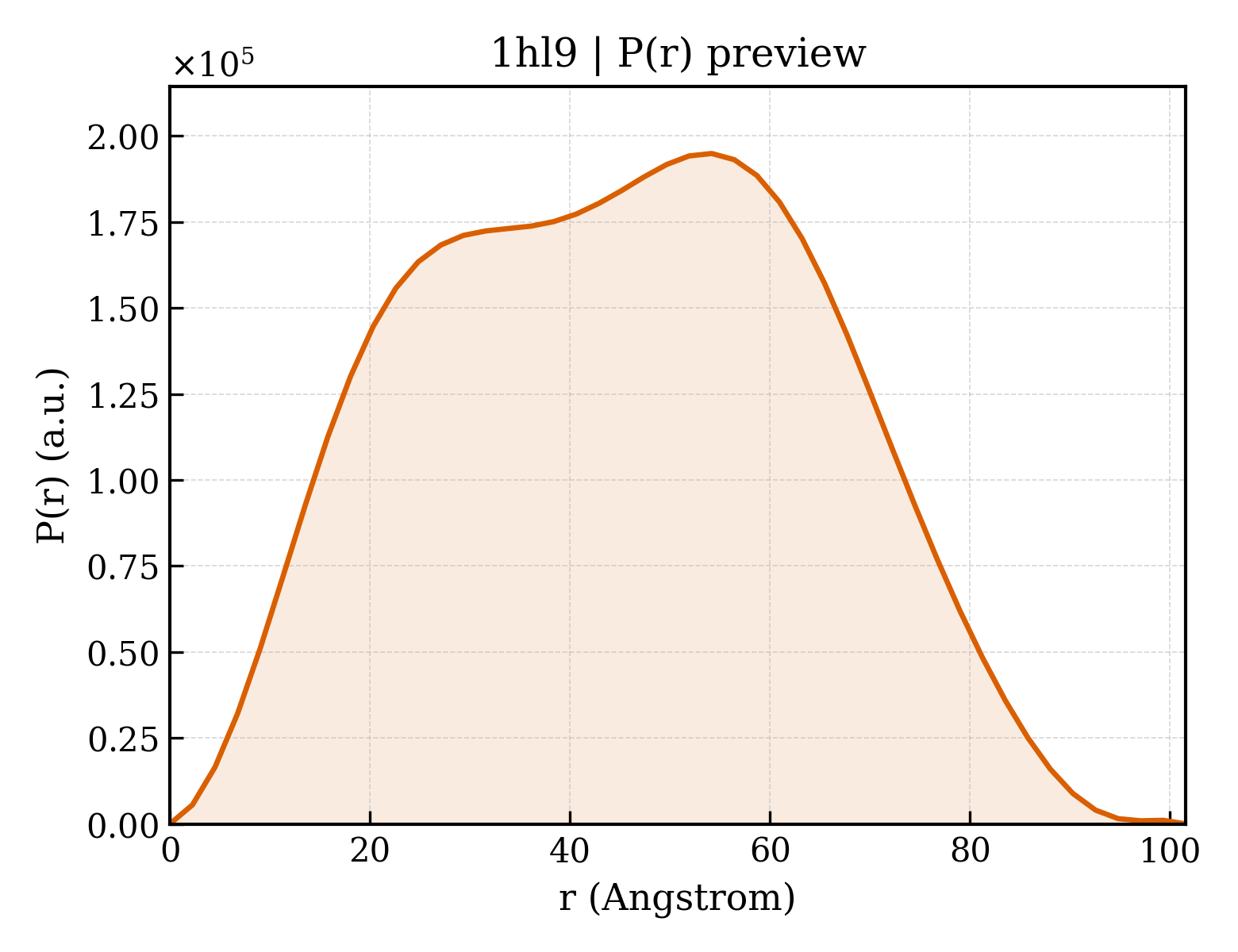

P(r) 距离分布 P(r) Distribution
