SAXSdb — 1ho4

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1ho4
沉积日期 deposition_date	2000-12-08
结构标题 title	;CRYSTAL STRUCTURE OF PYRIDOXINE 5'-PHOSPHATE SYNTHASE IN COMPLEX WITH PYRIDOXINE 5'-PHOSPHATE AND INORGANIC PHOSPHATE ;
关键词 keywords	TIM Barrel, Open-Closed Transition, Enzyme-Product Complex, Water Channel, BIOSYNTHETIC PROTEIN; BIOSYNTHETIC PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	36.90 Å
回转半径 Rg (电子) rg_electron	36.15 Å
零角强度 I(0) i0	186600000.00
分子量 molecular_weight	106060.0 kDa
排除体积 excluded_volume	131190 Å³
包络体积 envelope_volume	173620 Å³
水化壳体积 shell_volume	39770 Å³
包络直径 envelope_diameter	111.2 Å
壳层 Rg shell_rg	42.95 Å
包络 Rg envelope_rg	35.12 Å
形状 Rg shape_rg	36.14 Å
总 Rg total_rg	36.61 Å
总原子数 total_atoms	7413
残基数 n_residues	968
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	111.6 Å
Rg (实空间) rg_real	36.69 Å
Rg 误差 (实空间) rg_real_error	0.71 Å
I(0) (实空间) i0_real	1.8660e+08
I(0) 误差 (实空间) i0_real_error	2.7050e+06
Rg (倒空间) rg_reciprocal	36.83 Å
I(0) (倒空间) i0_reciprocal	186600000.0000
解质量估计 total_estimate	0.8793
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	57.1 Å
偏度 Skewness skewness	-0.070
峰度 Kurtosis kurtosis	-0.813
角度范围 angular_range	— – 0.2150 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	49010000.0000
实空间数据点数 n_real_points	44
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.839; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.917

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	;PYRIDOXINE 5'-PHOSPHATE SYNTHASE ;
分子量 formula_weight	26290.1 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	8148

AELLLGVNIDHIATLRNARGTAYPDPVQAAFIAEQAGADGITVHLREDRRHITDRDVRILRQTLDTRMNLEMAVTEEMLAIAVETKPHFCCLVPEKRQEVTTEGGLDVAGQRDKMRDACKRLADAGIQVSLFIDADEEQIKAAAEVGAPFIEIHTGCYADAKTDAEQAQELARIAKAATFAASLGLKVNAGHGLTYHNVKAIAAIPEMHELNIGHAIIGRAVMTGLKDAVAEMKRLMLEARG

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	PHOSPHATE ION
分子量 formula_weight	95.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 3 non-polymer

描述 description	PYRIDOXINE-5'-PHOSPHATE
分子量 formula_weight	249.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	735

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1ho4a_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.24 — Pyridoxine 5'-phosphate synthase
家族 Family family	c.1.24.1 — Pyridoxine 5'-phosphate synthase

结构域编号 domain_id	d1ho4b_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.24 — Pyridoxine 5'-phosphate synthase
家族 Family family	c.1.24.1 — Pyridoxine 5'-phosphate synthase

结构域编号 domain_id	d1ho4c_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.24 — Pyridoxine 5'-phosphate synthase
家族 Family family	c.1.24.1 — Pyridoxine 5'-phosphate synthase

结构域编号 domain_id	d1ho4d_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.24 — Pyridoxine 5'-phosphate synthase
家族 Family family	c.1.24.1 — Pyridoxine 5'-phosphate synthase

CATH v4.4 (4 domains)

结构域编号 domain_id	1ho4A00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	70 — Aldolase class I

结构域编号 domain_id	1ho4B00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	70 — Aldolase class I

结构域编号 domain_id	1ho4C00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	70 — Aldolase class I

结构域编号 domain_id	1ho4D00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	70 — Aldolase class I

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	128.800 Å
晶胞边长 b length_b	156.300 Å
晶胞边长 c length_c	127.500 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	32

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	2.300 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.1950
R_work r_work	0.1870
R_free r_free	0.2450

fit	/app/data/saxs_computation/ho/1ho4/1ho4.fit
pddf	/app/data/pr_computation/ho/1ho4/1ho4.pr.out
profile	/app/data/saxs_computation/ho/1ho4/1ho4.dat

;CRYSTAL STRUCTURE OF PYRIDOXINE 5'-PHOSPHATE SYNTHASE IN COMPLEX WITH PYRIDOXINE 5'-PHOSPHATE AND INORGANIC PHOSPHATE ;

SAXS 散射曲线 SAXS Profile

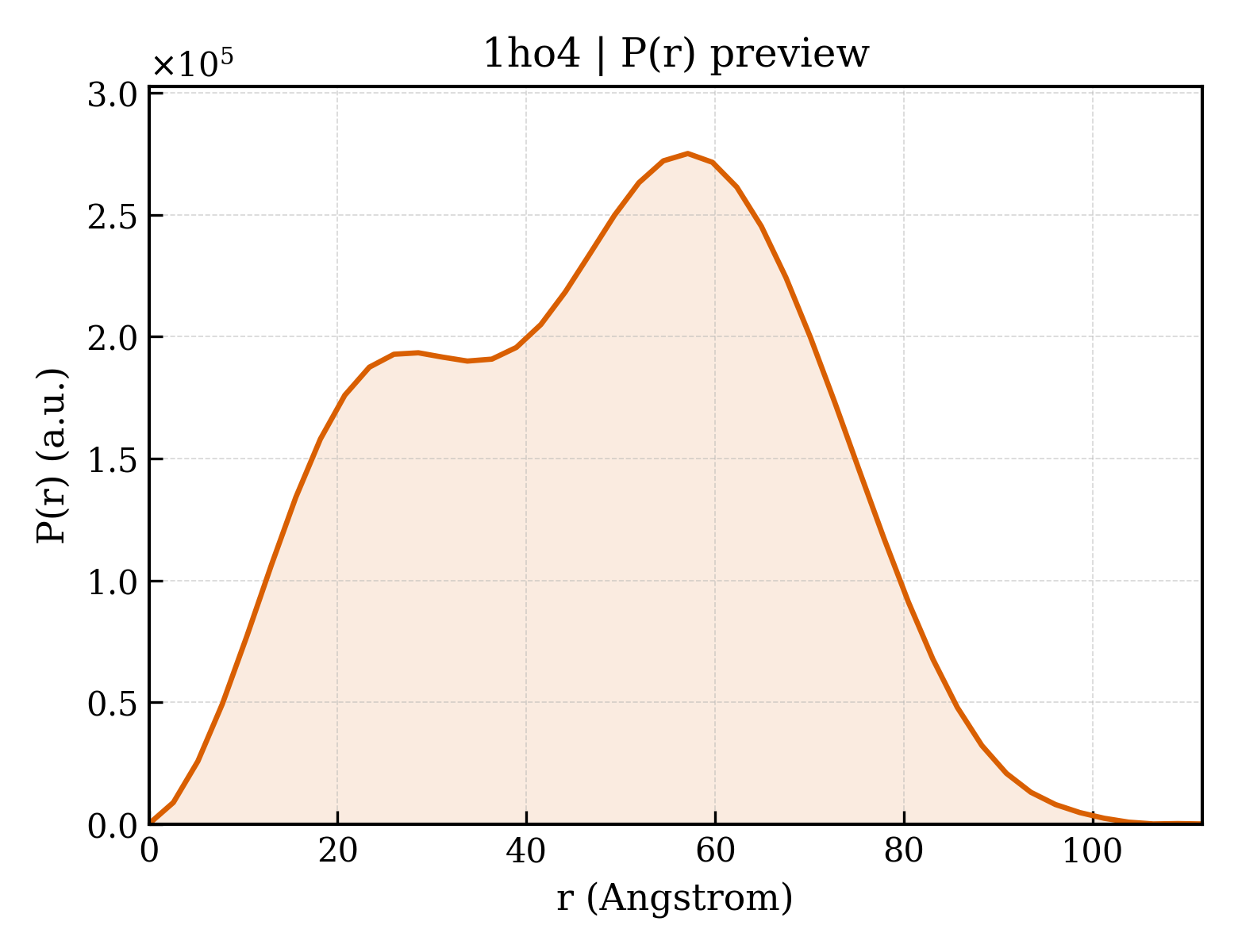

P(r) 距离分布 P(r) Distribution
