SAXSdb — 1hp0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

INOSINE-ADENOSINE-GUANOSINE-PREFERRING NUCLEOSIDE HYDROLASE

Trypanosoma vivax

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	CALCIUM ION × 2 3-DEAZA-ADENOSINE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9GPQ4_TRYVI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 14–339； UniProt 2–327 Author chain B； PDBConstruct 14–339； UniProt 2–327

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1hp0
Deposition date deposition_date	2000-12-12
Structure title title	CRYSTAL STRUCTURE OF AN INOSINE-ADENOSINE-GUANOSINE-PREFERRING NUCLEOSIDE HYDROLASE FROM TRYPANOSOMA VIVAX IN COMPLEX WITH THE SUBSTRATE ANALOGUE 3-DEAZA-ADENOSINE
Keywords keywords	Rossmann-fold-like motif, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1hp0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

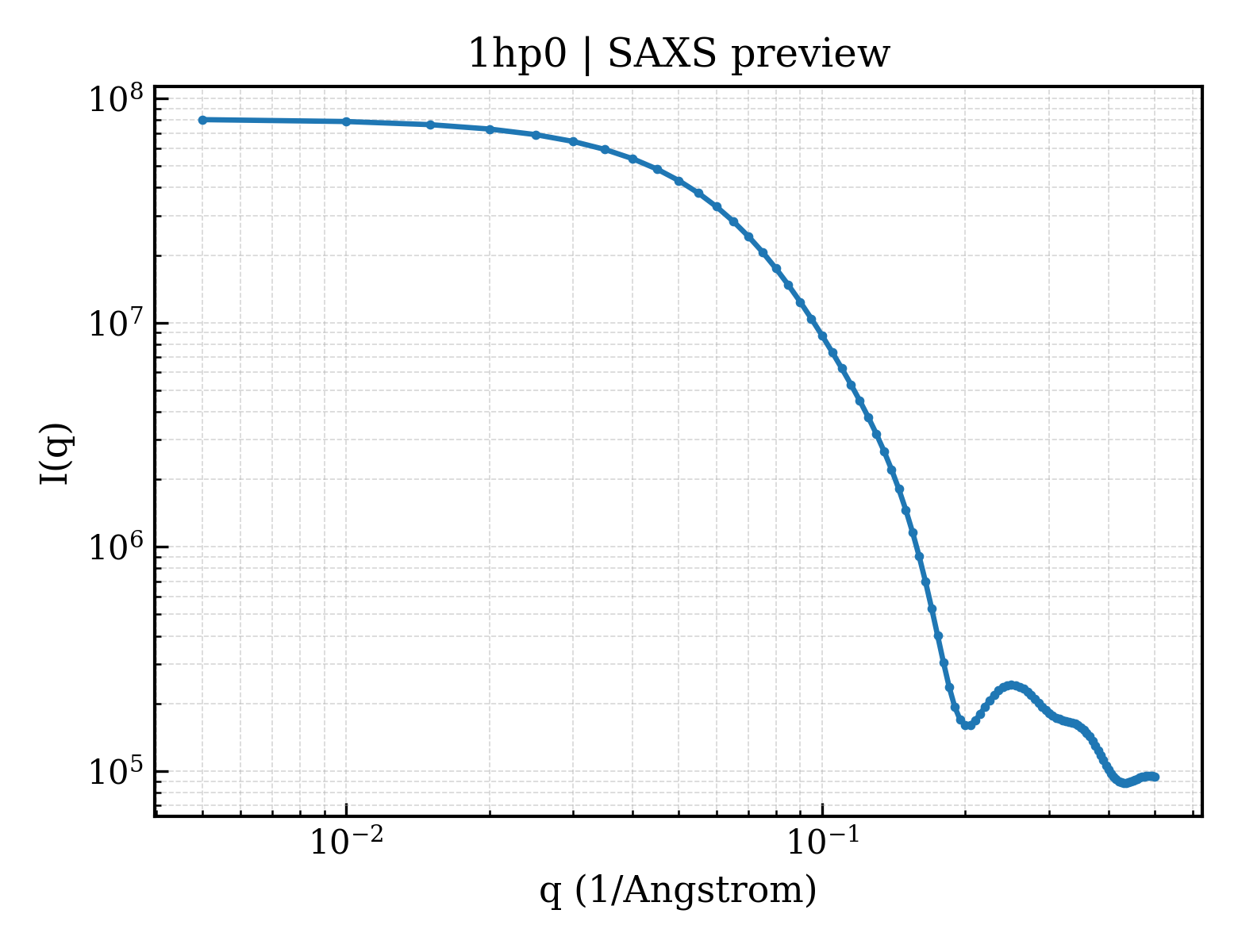

1hp0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

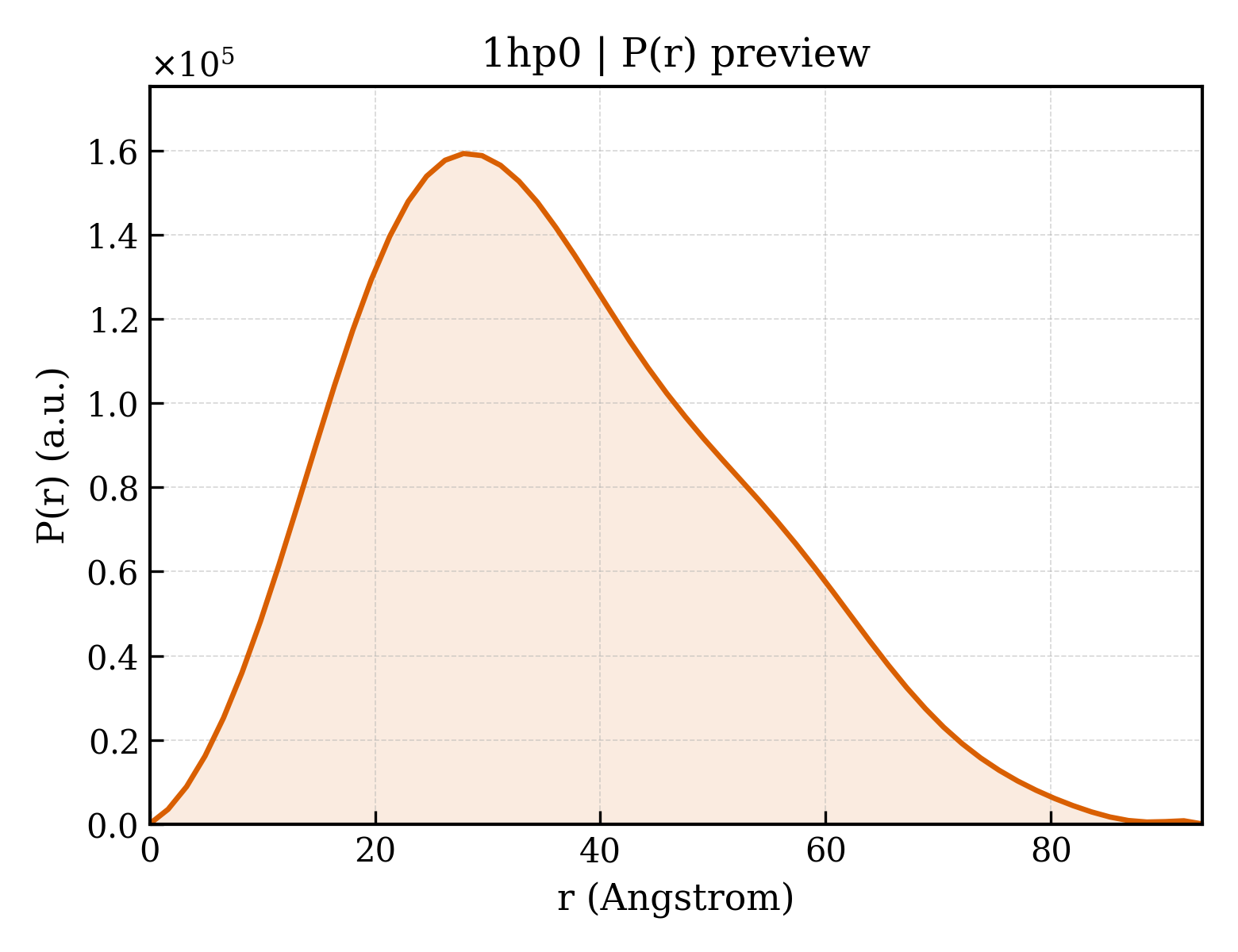

1hp0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.68 Å
Rg (electron density)	27.01 Å
Total Rg	27.64 Å
Atom count	4965
Residues	641
Excluded volume	88520 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1hp0__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	INOSINE-ADENOSINE-GUANOSINE-PREFERRING NUCLEOSIDE HYDROLASE
Molecular weight formula_weight	37719.0 kDa
EC 编号 ec_number	3.2.2.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5383

MRGSPHHHHHHGSAKNVVLDHDGNLDDFVAMVLLASNTEKVRLIGALCTDADCFVENGFNVTGKIMCLMHNNMNLPLFPIGKSAATAVNPFPKEWRCLAKNMDDMPILNIPENVELWDKIKAENEKYEGQQLLADLVMNSEEKVTICVTGPLSNVAWCIDKYGEKFTSKVEECVIMGGAVDVRGNVFLPSTDGTAEWNIYWDPASAKTVFGCPGLRRIMFSLDSTNTVPVRSPYVQRFGEQTNFLLSILVGTMWAMCTHCELLRDGDGYYAWDALTAAYVVDQKVANVDPVPIDVVVDKQPNEGATVRTDAENYPLTFVARNPEAEFFLDMLLRSARAC

Source Source

Source organism organism	Trypanosoma vivax
NCBI taxonomy ID ncbi_taxonomy_id	5699
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	3-DEAZA-ADENOSINE
Molecular weight formula_weight	266.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	395

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1hp0a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.70 — Nucleoside hydrolase
Superfamily Superfamily superfamily	c.70.1 — Nucleoside hydrolase
Family Family family	c.70.1.1 — Nucleoside hydrolase

Domain ID domain_id	d1hp0a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1hp0b1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.70 — Nucleoside hydrolase
Superfamily Superfamily superfamily	c.70.1 — Nucleoside hydrolase
Family Family family	c.70.1.1 — Nucleoside hydrolase

Domain ID domain_id	d1hp0b2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	1hp0A00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	245 — Inosine-uridine Nucleoside N-ribohydrolase; Chain A
Homologous superfamily homologous superfamily	10 — Ribonucleoside hydrolase-like

Domain ID domain_id	1hp0B00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	245 — Inosine-uridine Nucleoside N-ribohydrolase; Chain A
Homologous superfamily homologous superfamily	10 — Ribonucleoside hydrolase-like

▶

Unit-cell length a length_a	51.670 Å
Unit-cell length b length_b	74.290 Å
Unit-cell length c length_c	81.510 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	103.54 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.1910
R_work r_work	0.1910
R_free r_free	0.2540

CRYSTAL STRUCTURE OF AN INOSINE-ADENOSINE-GUANOSINE-PREFERRING NUCLEOSIDE HYDROLASE FROM TRYPANOSOMA VIVAX IN COMPLEX WITH THE SUBSTRATE ANALOGUE 3-DEAZA-ADENOSINE
