1hr7

Yeast Mitochondrial Processing Peptidase beta-E73Q Mutant

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MITOCHONDRIAL PROCESSING PEPTIDASE ALPHA SUBUNIT

Saccharomyces cerevisiae

UniProt P11914

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	MITOCHONDRIAL PROCESSING PEPTIDASE BETA SUBUNIT × 1 （P10507） ZINC ION × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	MITOCHONDRIAL PROCESSING PEPTIDASE BETA SUBUNIT × 1 （P10507） ZINC ION × 1 water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	MITOCHONDRIAL PROCESSING PEPTIDASE BETA SUBUNIT × 1 （P10507） ZINC ION × 1 water × 2	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 2	MITOCHONDRIAL PROCESSING PEPTIDASE BETA SUBUNIT × 1 （P10507） ZINC ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MPPA_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–469； UniProt 14–482 Author chain C； PDBConstruct 1–469； UniProt 14–482 Author chain E； PDBConstruct 1–469； UniProt 14–482 Author chain G； PDBConstruct 1–469； UniProt 14–482

MITOCHONDRIAL PROCESSING PEPTIDASE BETA SUBUNIT

Saccharomyces cerevisiae

UniProt P10507

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	MITOCHONDRIAL PROCESSING PEPTIDASE ALPHA SUBUNIT × 1 （P11914） ZINC ION × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	MITOCHONDRIAL PROCESSING PEPTIDASE ALPHA SUBUNIT × 1 （P11914） ZINC ION × 1 water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	MITOCHONDRIAL PROCESSING PEPTIDASE ALPHA SUBUNIT × 1 （P11914） ZINC ION × 1 water × 2	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 2	MITOCHONDRIAL PROCESSING PEPTIDASE ALPHA SUBUNIT × 1 （P11914） ZINC ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MPPB_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–443； UniProt 21–462 Author chain D； PDBConstruct 2–443； UniProt 21–462 Author chain F； PDBConstruct 2–443； UniProt 21–462 Author chain H； PDBConstruct 2–443； UniProt 21–462

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1hr7
Deposition date deposition_date	2000-12-21
Structure title title	Yeast Mitochondrial Processing Peptidase beta-E73Q Mutant
Keywords keywords	HxxEH zinc-binding motif, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1hr7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1hr7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

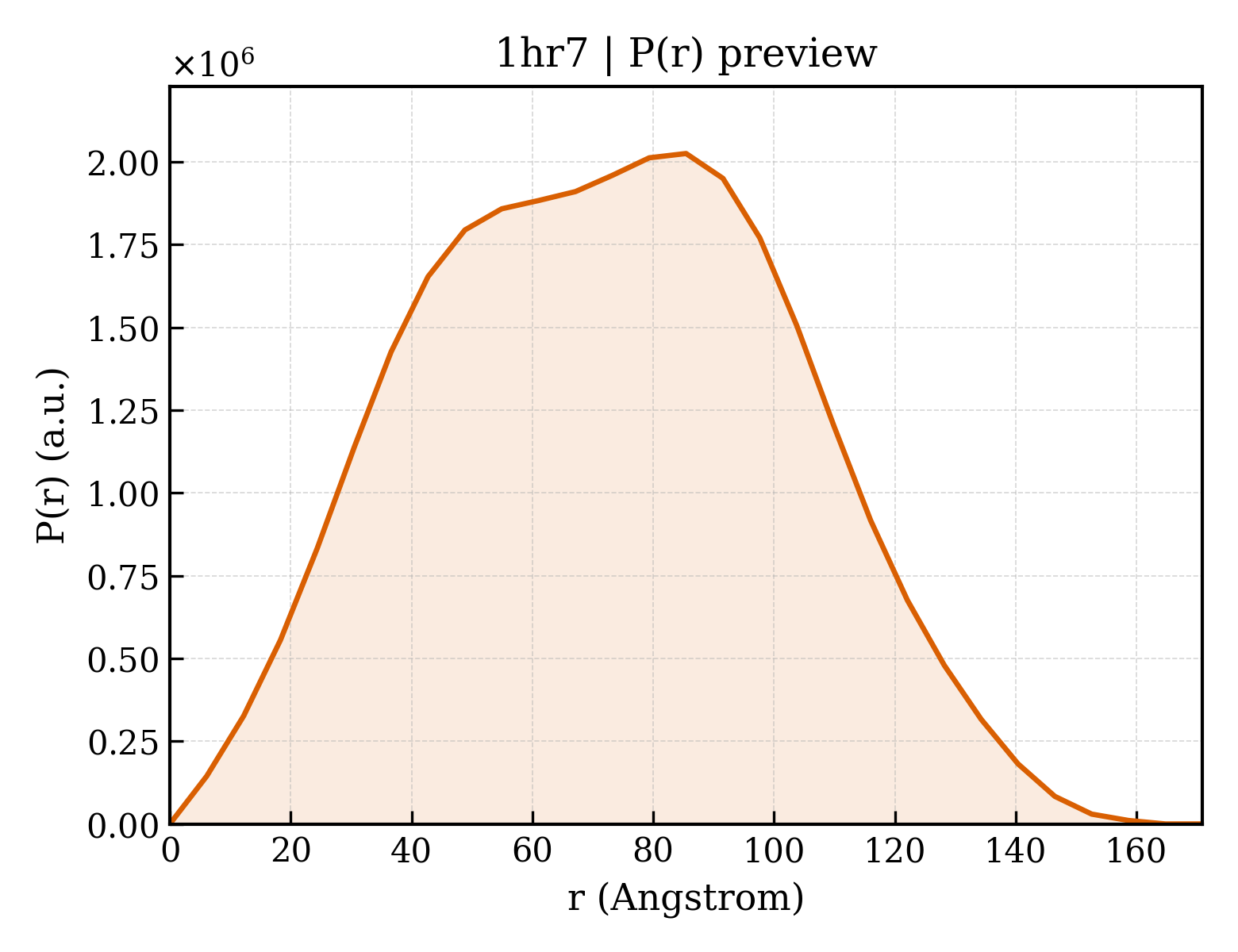

1hr7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.32 Å
Rg (electron density)	29.16 Å
Total Rg	30.00 Å
Atom count	6946
Residues	896
Excluded volume	123500 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1hr7__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1hr7__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1hr7__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1hr7__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	MITOCHONDRIAL PROCESSING PEPTIDASE ALPHA SUBUNIT
Molecular weight formula_weight	52532.4 kDa
EC 编号 ec_number	3.4.24.64
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G
Atom count atom_count	27725

ARTDNFKLSSLANGLKVATSNTPGHFSALGLYIDAGSRFEGRNLKGCTHILDRLAFKSTEHVEGRAMAETLELLGGNYQCTSSRENLMYQASVFNQDVGKMLQLMSETVRFPKITEQELQEQKLSAEYEIDEVWMKPELVLPELLHTAAYSGETLGSPLICPRGLIPSISKYYLLDYRNKFYTPENTVAAFVGVPHEKALELTGKYLGDWQSTHPPITKKVAQYTGGESCIPPAPVFGNLPELFHIQIGFEGLPIDHPDIYALATLQTLLGGGGSFSAGGPGKGMYSRLYTHVLNQYYFVENCVAFNHSYSDSGIFGISLSCIPQAAPQAVEVIAQQMYNTFANKDLRLTEDEVSRAKNQLKSSLLMNLESKLVELEDMGRQVLMHGRKIPVNEMISKIEDLKPDDISRVAEMIFTGNVNNAGNGKGRATVVMQGDRGSFGDVENVLKAYGLGNSSSSKNDSPKKKGWFHHHHHH

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	MITOCHONDRIAL PROCESSING PEPTIDASE BETA SUBUNIT
Molecular weight formula_weight	48894.0 kDa
EC 编号 ec_number	3.4.24.64
Mutation mutation	E73Q
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H

ASQIPGTRTSKLPNGLTIATEYIPNTSSATVGIFVDAGSRAENVKNNGTAHFLQHLAFKGTQNRPQQGIELEIENIGSHLNAYTSRENTVYYAKSLQEDIPKAVDILSDILTKSVLDNSAIERERDVIIRESEEVDKMYDEVVFDHLHEITYKDQPLGRTILGPIKNIKSITRTDLKDYITKNYKGDRMVLAGAGAVDHEKLVQYAQKYFGHVPKSESPVPLGSPRGPLPVFCRGERFIKENTLPTTHIAIALEGVSWSAPDYFVALATQAIVGNWDRAIGTGTNSPSPLAVAASQNGSLANSYMSFSTSYADSGLWGMYIVTDSNEHNVRLIVNEILKEWKRIKSGKISDAEVNRAKAQLKAALLLSLDGSTAIVEDIGRQVVTTGKRLSPEEVFEQVDKITKDDIIMWANYRLQNKPVSMVALGNTSTVPNVSYIEEKLNQ

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	91

▼

6. Fold Classification (SCOP + CATH) 32 domains

SCOP 2.08 (16 domains)

Domain ID domain_id	d1hr7a1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.185 — LuxS/MPP-like metallohydrolase
Superfamily Superfamily superfamily	d.185.1 — LuxS/MPP-like metallohydrolase
Family Family family	d.185.1.1 — MPP-like

Domain ID domain_id	d1hr7a2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.185 — LuxS/MPP-like metallohydrolase
Superfamily Superfamily superfamily	d.185.1 — LuxS/MPP-like metallohydrolase
Family Family family	d.185.1.1 — MPP-like

Domain ID domain_id	d1hr7b1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.185 — LuxS/MPP-like metallohydrolase
Superfamily Superfamily superfamily	d.185.1 — LuxS/MPP-like metallohydrolase
Family Family family	d.185.1.1 — MPP-like

Domain ID domain_id	d1hr7b2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.185 — LuxS/MPP-like metallohydrolase
Superfamily Superfamily superfamily	d.185.1 — LuxS/MPP-like metallohydrolase
Family Family family	d.185.1.1 — MPP-like

Domain ID domain_id	d1hr7c1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.185 — LuxS/MPP-like metallohydrolase
Superfamily Superfamily superfamily	d.185.1 — LuxS/MPP-like metallohydrolase
Family Family family	d.185.1.1 — MPP-like

Domain ID domain_id	d1hr7c2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.185 — LuxS/MPP-like metallohydrolase
Superfamily Superfamily superfamily	d.185.1 — LuxS/MPP-like metallohydrolase
Family Family family	d.185.1.1 — MPP-like

Domain ID domain_id	d1hr7d1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.185 — LuxS/MPP-like metallohydrolase
Superfamily Superfamily superfamily	d.185.1 — LuxS/MPP-like metallohydrolase
Family Family family	d.185.1.1 — MPP-like

Domain ID domain_id	d1hr7d2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.185 — LuxS/MPP-like metallohydrolase
Superfamily Superfamily superfamily	d.185.1 — LuxS/MPP-like metallohydrolase
Family Family family	d.185.1.1 — MPP-like

Domain ID domain_id	d1hr7e1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.185 — LuxS/MPP-like metallohydrolase
Superfamily Superfamily superfamily	d.185.1 — LuxS/MPP-like metallohydrolase
Family Family family	d.185.1.1 — MPP-like

Domain ID domain_id	d1hr7e2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.185 — LuxS/MPP-like metallohydrolase
Superfamily Superfamily superfamily	d.185.1 — LuxS/MPP-like metallohydrolase
Family Family family	d.185.1.1 — MPP-like

Domain ID domain_id	d1hr7f1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.185 — LuxS/MPP-like metallohydrolase
Superfamily Superfamily superfamily	d.185.1 — LuxS/MPP-like metallohydrolase
Family Family family	d.185.1.1 — MPP-like

Domain ID domain_id	d1hr7f2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.185 — LuxS/MPP-like metallohydrolase
Superfamily Superfamily superfamily	d.185.1 — LuxS/MPP-like metallohydrolase
Family Family family	d.185.1.1 — MPP-like

Domain ID domain_id	d1hr7g1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.185 — LuxS/MPP-like metallohydrolase
Superfamily Superfamily superfamily	d.185.1 — LuxS/MPP-like metallohydrolase
Family Family family	d.185.1.1 — MPP-like

Domain ID domain_id	d1hr7g2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.185 — LuxS/MPP-like metallohydrolase
Superfamily Superfamily superfamily	d.185.1 — LuxS/MPP-like metallohydrolase
Family Family family	d.185.1.1 — MPP-like

Domain ID domain_id	d1hr7h1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.185 — LuxS/MPP-like metallohydrolase
Superfamily Superfamily superfamily	d.185.1 — LuxS/MPP-like metallohydrolase
Family Family family	d.185.1.1 — MPP-like

Domain ID domain_id	d1hr7h2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.185 — LuxS/MPP-like metallohydrolase
Superfamily Superfamily superfamily	d.185.1 — LuxS/MPP-like metallohydrolase
Family Family family	d.185.1.1 — MPP-like

CATH v4.4 (16 domains)

Domain ID domain_id	1hr7A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	830 — Cytochrome Bc1 Complex; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Metalloenzyme, LuxS/M16 peptidase-like

Domain ID domain_id	1hr7A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	830 — Cytochrome Bc1 Complex; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Metalloenzyme, LuxS/M16 peptidase-like

Domain ID domain_id	1hr7B01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	830 — Cytochrome Bc1 Complex; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Metalloenzyme, LuxS/M16 peptidase-like

Domain ID domain_id	1hr7B02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	830 — Cytochrome Bc1 Complex; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Metalloenzyme, LuxS/M16 peptidase-like

Domain ID domain_id	1hr7C01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	830 — Cytochrome Bc1 Complex; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Metalloenzyme, LuxS/M16 peptidase-like

Domain ID domain_id	1hr7C02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	830 — Cytochrome Bc1 Complex; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Metalloenzyme, LuxS/M16 peptidase-like

Domain ID domain_id	1hr7D01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	830 — Cytochrome Bc1 Complex; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Metalloenzyme, LuxS/M16 peptidase-like

Domain ID domain_id	1hr7D02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	830 — Cytochrome Bc1 Complex; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Metalloenzyme, LuxS/M16 peptidase-like

Domain ID domain_id	1hr7E01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	830 — Cytochrome Bc1 Complex; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Metalloenzyme, LuxS/M16 peptidase-like

Domain ID domain_id	1hr7E02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	830 — Cytochrome Bc1 Complex; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Metalloenzyme, LuxS/M16 peptidase-like

Domain ID domain_id	1hr7F01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	830 — Cytochrome Bc1 Complex; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Metalloenzyme, LuxS/M16 peptidase-like

Domain ID domain_id	1hr7F02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	830 — Cytochrome Bc1 Complex; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Metalloenzyme, LuxS/M16 peptidase-like

Domain ID domain_id	1hr7G01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	830 — Cytochrome Bc1 Complex; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Metalloenzyme, LuxS/M16 peptidase-like

Domain ID domain_id	1hr7G02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	830 — Cytochrome Bc1 Complex; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Metalloenzyme, LuxS/M16 peptidase-like

Domain ID domain_id	1hr7H01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	830 — Cytochrome Bc1 Complex; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Metalloenzyme, LuxS/M16 peptidase-like

Domain ID domain_id	1hr7H02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	830 — Cytochrome Bc1 Complex; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Metalloenzyme, LuxS/M16 peptidase-like

▶

Unit-cell length a length_a	134.200 Å
Unit-cell length b length_b	178.620 Å
Unit-cell length c length_c	201.970 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.550 Å
Low-resolution limit resolution_low	47.530 Å
R factor r_factor	0.2430
R_work r_work	0.2430
R_free r_free	0.2560

Yeast Mitochondrial Processing Peptidase beta-E73Q Mutant

1. Protein Identity and Related Structures Protein Identity & Related Structures

MITOCHONDRIAL PROCESSING PEPTIDASE ALPHA SUBUNIT

State in the Current Structure

Other States of the Same Protein in the Database

MITOCHONDRIAL PROCESSING PEPTIDASE BETA SUBUNIT

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1hr7__assembly_1__model_1

1hr7__assembly_1__model_1 | I(q)

1hr7__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

6. Fold Classification (SCOP + CATH) 32 domains

SCOP 2.08 (16 domains)

CATH v4.4 (16 domains)

7. Citations (1)

Yeast Mitochondrial Processing Peptidase beta-E73Q Mutant

1. Protein Identity and Related Structures Protein Identity & Related Structures

MITOCHONDRIAL PROCESSING PEPTIDASE ALPHA SUBUNIT

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

MITOCHONDRIAL PROCESSING PEPTIDASE BETA SUBUNIT

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1hr7__assembly_1__model_1

1hr7__assembly_1__model_1 | I(q)

1hr7__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

6. Fold Classification (SCOP + CATH) 32 domains

SCOP 2.08 (16 domains)

CATH v4.4 (16 domains)

7. Citations (1)
