1htt

HISTIDYL-TRNA SYNTHETASE

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HISTIDYL-TRNA SYNTHETASE

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	HISTIDINE × 2 ADENOSINE MONOPHOSPHATE × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	HISTIDINE × 2 ADENOSINE MONOPHOSPHATE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SYH_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–423； UniProt 1–423 Author chain B； PDBConstruct 1–423； UniProt 1–423 Author chain C； PDBConstruct 1–423； UniProt 1–423 Author chain D； PDBConstruct 1–423； UniProt 1–423

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1htt
Deposition date deposition_date	1996-03-09
Structure title title	HISTIDYL-TRNA SYNTHETASE
Keywords keywords	;COMPLEX (TRNA SYNTHETASE-HIS-ADENYLATE), AMINOACYL-TRNA SYNTHASE, LIGASE, SYNTHETASE, COMPLEX (TRNA SYNTHETASE-HIS-ADENYLATE) complex ;; COMPLEX (TRNA SYNTHETASE/HIS-ADENYLATE)
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1htt__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1htt__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

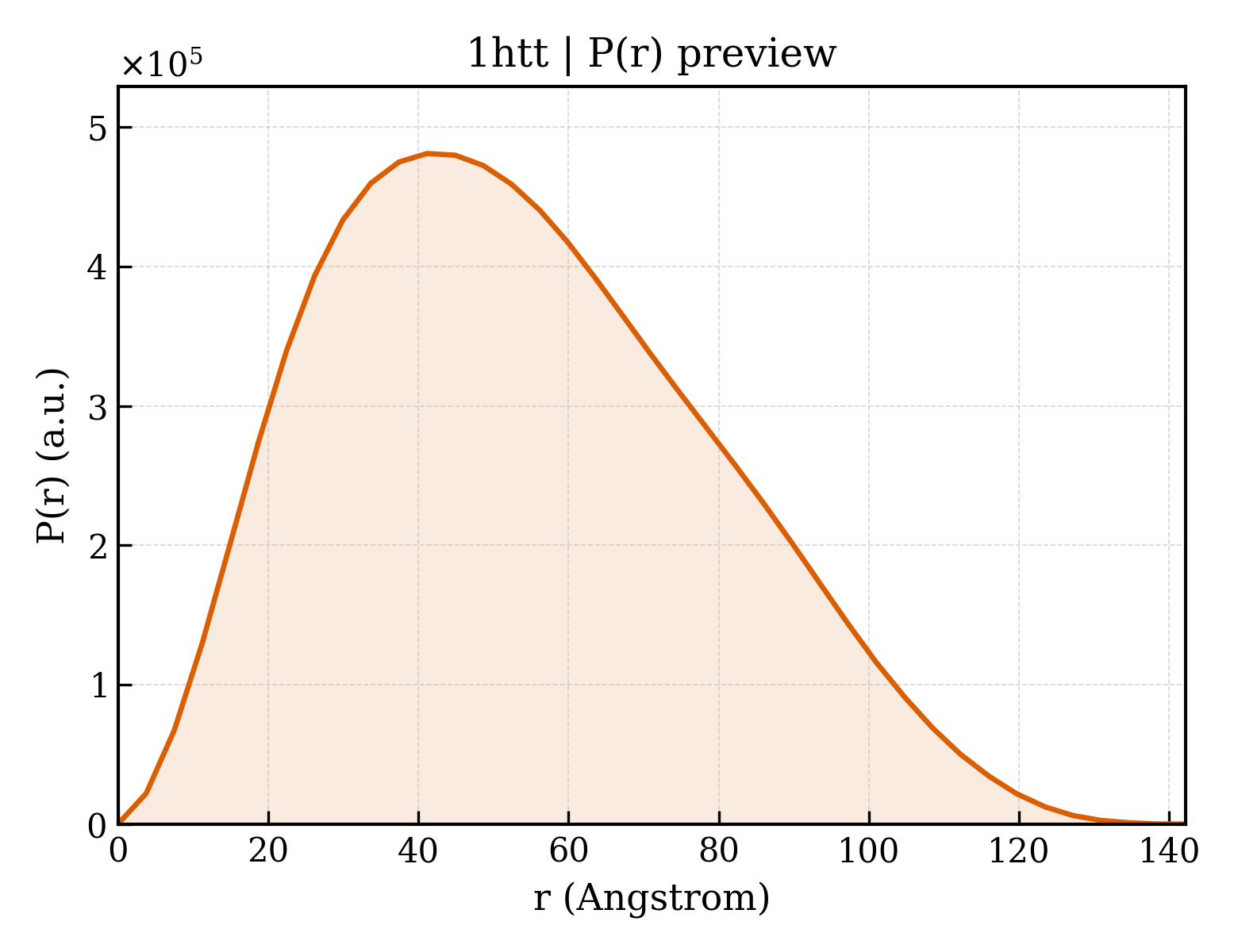

1htt__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.63 Å
Rg (electron density)	27.48 Å
Total Rg	28.25 Å
Atom count	5693
Residues	723
Excluded volume	100480 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1htt__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1htt__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	HISTIDYL-TRNA SYNTHETASE
Molecular weight formula_weight	46954.1 kDa
EC 编号 ec_number	6.1.1.21
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	11543

AKNIQAIRGMNDYLPGETAIWQRIEGTLKNVLGSYGYSEIRLPIVEQTPLFKRAIGEVTDVVEKEMYTFEDRNGDSLTLRPEGTAGCVRAGIEHGLLYNQEQRLWYIGPMFRHERPQKGRYRQFHQLGCEVFGLQGPDIDAELIMLTARWWRALGISEHVTLELNSIGSLEARANYRDALVAFLEQHKEKLDEDCKRRMYTNPLRVLDSKNPEVQALLNDAPALGDYLDEESREHFAGLCKLLESAGIAYTVNQRLVRGLDYYNRTVFEWVTNSLGSQGTVCAGGRYDGLVEQLGGRATPAVGFAMGLERLVLLVQAVNPEFKADPVVDIYLVASGADTQSAAMALAERLRDELPGVKLMTNHGGGNFKKQFARADKWGARVAVVLGESEVANGTAVVKDLRSGEQTAVAQDSVAAHLRTLLG

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	HISTIDINE
Molecular weight formula_weight	156.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE MONOPHOSPHATE
Molecular weight formula_weight	347.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	157

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1htta1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.51 — Anticodon-binding domain-like
Superfamily Superfamily superfamily	c.51.1 — Class II aaRS ABD-related
Family Family family	c.51.1.1 — Anticodon-binding domain of Class II aaRS

Domain ID domain_id	d1htta2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.104 — Class II aaRS and biotin synthetases
Superfamily Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
Family Family family	d.104.1.1 — Class II aminoacyl-tRNA synthetase (aaRS)-like, catalytic domain

Domain ID domain_id	d1httb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.51 — Anticodon-binding domain-like
Superfamily Superfamily superfamily	c.51.1 — Class II aaRS ABD-related
Family Family family	c.51.1.1 — Anticodon-binding domain of Class II aaRS

Domain ID domain_id	d1httb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.104 — Class II aaRS and biotin synthetases
Superfamily Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
Family Family family	d.104.1.1 — Class II aminoacyl-tRNA synthetase (aaRS)-like, catalytic domain

Domain ID domain_id	d1httc1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.51 — Anticodon-binding domain-like
Superfamily Superfamily superfamily	c.51.1 — Class II aaRS ABD-related
Family Family family	c.51.1.1 — Anticodon-binding domain of Class II aaRS

Domain ID domain_id	d1httc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.104 — Class II aaRS and biotin synthetases
Superfamily Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
Family Family family	d.104.1.1 — Class II aminoacyl-tRNA synthetase (aaRS)-like, catalytic domain

Domain ID domain_id	d1httd1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.51 — Anticodon-binding domain-like
Superfamily Superfamily superfamily	c.51.1 — Class II aaRS ABD-related
Family Family family	c.51.1.1 — Anticodon-binding domain of Class II aaRS

Domain ID domain_id	d1httd2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.104 — Class II aaRS and biotin synthetases
Superfamily Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
Family Family family	d.104.1.1 — Class II aminoacyl-tRNA synthetase (aaRS)-like, catalytic domain

CATH v4.4 (8 domains)

Domain ID domain_id	1httA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	930 — BirA Bifunctional Protein; domain 2
Homologous superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

Domain ID domain_id	1httA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	800 — Anticodon-binding domain

Domain ID domain_id	1httB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	930 — BirA Bifunctional Protein; domain 2
Homologous superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

Domain ID domain_id	1httB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	800 — Anticodon-binding domain

Domain ID domain_id	1httC01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	930 — BirA Bifunctional Protein; domain 2
Homologous superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

Domain ID domain_id	1httC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	800 — Anticodon-binding domain

Domain ID domain_id	1httD01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	930 — BirA Bifunctional Protein; domain 2
Homologous superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

Domain ID domain_id	1httD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	800 — Anticodon-binding domain

▶

Unit-cell length a length_a	61.400 Å
Unit-cell length b length_b	110.700 Å
Unit-cell length c length_c	108.700 Å
Unit-cell angle α angle_alpha	115.00 °
Unit-cell angle β angle_beta	97.40 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2460
R_work r_work	0.2460
R_free r_free	0.3270
