1hvu

HUMAN IMMUNODEFICIENCY VIRUS TYPE 1 REVERSE TRANSCRIPTASE COMPLEXED WITH A 33-BASE NUCLEOTIDE RNA PSEUDOKNOT

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (HIV-1 REVERSE TRANSCRIPTASE)

Human immunodeficiency virus 1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Homooligomer	Protein 2 RNA 1	RNA (33 NUCLEOTIDE RNA PSEUDOKNOT) × 1	Consistent with all polymers
2	Protein–RNA	Homooligomer	Protein 2 RNA 1	RNA (33 NUCLEOTIDE RNA PSEUDOKNOT) × 1	Consistent with all polymers
3	Protein–RNA	Homooligomer	Protein 2 RNA 1	RNA (33 NUCLEOTIDE RNA PSEUDOKNOT) × 1	Consistent with all polymers
4	Protein–RNA	Homooligomer	Protein 2 RNA 1	RNA (33 NUCLEOTIDE RNA PSEUDOKNOT) × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	POL_HV1B1
Isoform	—
PDB entities	2, 3
Chains and sequence ranges	Author chain A； PDBConstruct 1–554； UniProt 599–1152 Author chain D； PDBConstruct 1–554； UniProt 599–1152 Author chain G； PDBConstruct 1–554； UniProt 599–1152 Author chain J； PDBConstruct 1–554； UniProt 599–1152 Author chain B； PDBConstruct 1–423； UniProt 603–1025 Author chain E； PDBConstruct 1–423； UniProt 603–1025 Author chain H； PDBConstruct 1–423； UniProt 603–1025 Author chain K； PDBConstruct 1–423； UniProt 603–1025

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1hvu
Deposition date deposition_date	1998-06-30
Structure title title	HUMAN IMMUNODEFICIENCY VIRUS TYPE 1 REVERSE TRANSCRIPTASE COMPLEXED WITH A 33-BASE NUCLEOTIDE RNA PSEUDOKNOT
Keywords keywords	COMPLEX (NUCLEOTIDYLTRANSFERASE-RNA), HYDROLASE, ASPARTYL PROTEASE, ENDONUCLEASE, TRANSFERASE-RNA complex; TRANSFERASE/RNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1hvu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1hvu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

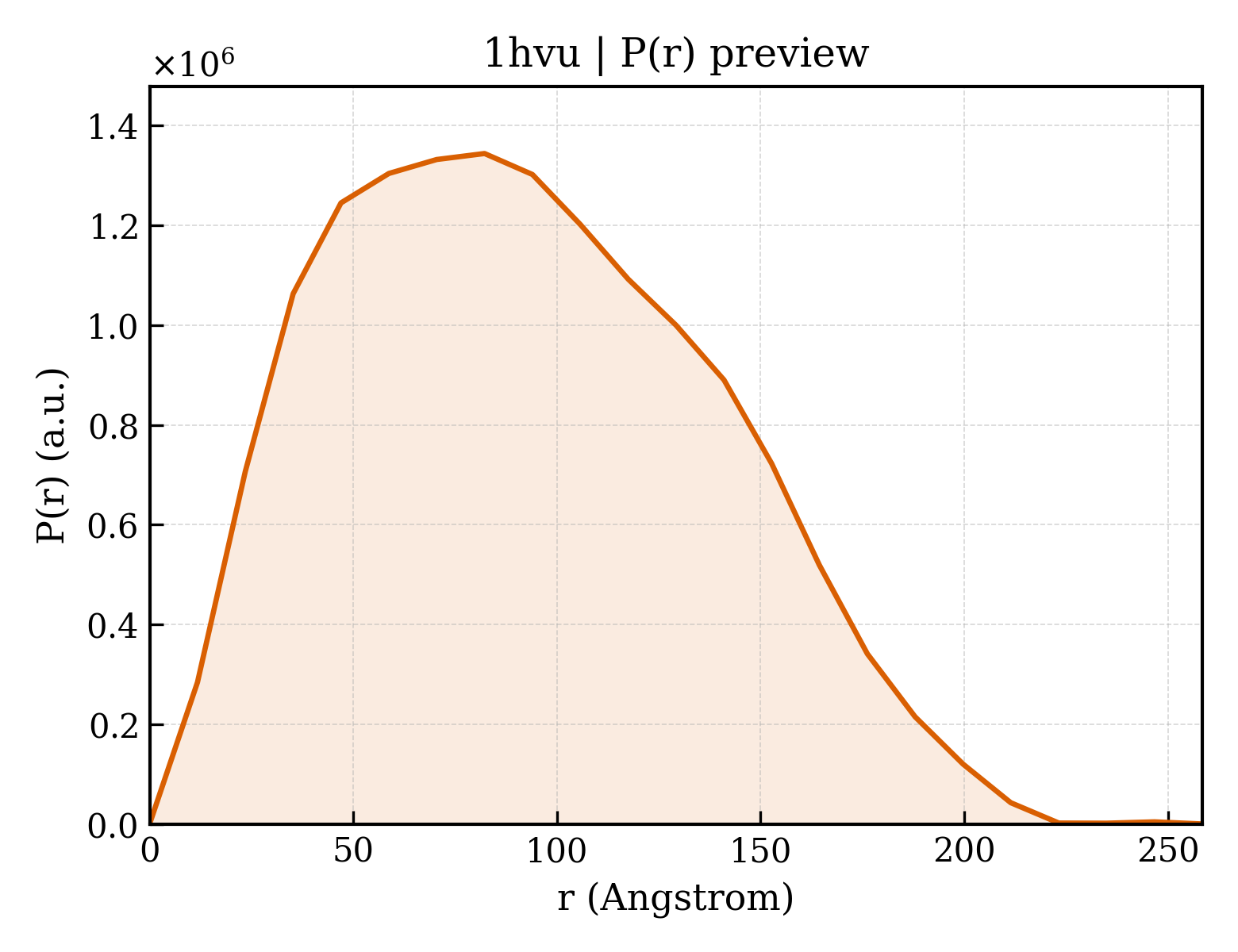

1hvu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.00 Å
Rg (electron density)	33.14 Å
Total Rg	33.44 Å
Atom count	5354
Residues	984
Excluded volume	84553 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1hvu__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1hvu__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1hvu__assembly_3__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1hvu__assembly_4__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	RNA (33 NUCLEOTIDE RNA PSEUDOKNOT)
Molecular weight formula_weight	9638.8 kDa
Source method src_method	syn
Copy count entity_count	4

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	C,F,I,L
Atom count atom_count	21416

AGAUUCCGUUUUCAGUCGGGAAAAACUGAA

Entity 2 Entity 2 polymer

Description description	PROTEIN (HIV-1 REVERSE TRANSCRIPTASE)
Molecular weight formula_weight	63834.1 kDa
EC 编号 ec_number	2.7.7.49
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D,G,J

PISPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTPDKKHQKEPPFLWMGYELHPDKWTVQPIVLPEKDSWTVNDIQKLVGKLNWASQIYPGIKVRQLCKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQLEKEPIVGAETFYVDGAANRETKLGKAGYVTNKGRQKVVPLTNTTNQKTELQAIYLALQDSGLEVNIVTDSQYALGIIQAQPDKSESELVNQIIEQLIKKEKVYLAWVPAHKGIGGNEQVDKLVSA

Source Source

Source organism organism	Human immunodeficiency virus 1
NCBI taxonomy ID ncbi_taxonomy_id	11676
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	PROTEIN (HIV-1 REVERSE TRANSCRIPTASE)
Molecular weight formula_weight	49533.0 kDa
EC 编号 ec_number	2.7.7.49
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E,H,K

IETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTPDKKHQKEPPFLWMGYELHPDKWTVQPIVLPEKDSWTVNDIQKLVGKLNWASQIYPGIKVRQLCKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWY

Source Source

Source organism organism	Human immunodeficiency virus 1
NCBI taxonomy ID ncbi_taxonomy_id	11676
Host organism host_organism	Escherichia coli

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d1hvua1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.3 — Ribonuclease H-like
Family Family family	c.55.3.1 — Ribonuclease H

Domain ID domain_id	d1hvua2
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.8 — DNA/RNA polymerases
Superfamily Superfamily superfamily	e.8.1 — DNA/RNA polymerases
Family Family family	e.8.1.2 — Reverse transcriptase

Domain ID domain_id	d1hvub_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.8 — DNA/RNA polymerases
Superfamily Superfamily superfamily	e.8.1 — DNA/RNA polymerases
Family Family family	e.8.1.2 — Reverse transcriptase

Domain ID domain_id	d1hvud1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.3 — Ribonuclease H-like
Family Family family	c.55.3.1 — Ribonuclease H

Domain ID domain_id	d1hvud2
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.8 — DNA/RNA polymerases
Superfamily Superfamily superfamily	e.8.1 — DNA/RNA polymerases
Family Family family	e.8.1.2 — Reverse transcriptase

Domain ID domain_id	d1hvue_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.8 — DNA/RNA polymerases
Superfamily Superfamily superfamily	e.8.1 — DNA/RNA polymerases
Family Family family	e.8.1.2 — Reverse transcriptase

Domain ID domain_id	d1hvug1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.3 — Ribonuclease H-like
Family Family family	c.55.3.1 — Ribonuclease H

Domain ID domain_id	d1hvug2
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.8 — DNA/RNA polymerases
Superfamily Superfamily superfamily	e.8.1 — DNA/RNA polymerases
Family Family family	e.8.1.2 — Reverse transcriptase

Domain ID domain_id	d1hvuh_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.8 — DNA/RNA polymerases
Superfamily Superfamily superfamily	e.8.1 — DNA/RNA polymerases
Family Family family	e.8.1.2 — Reverse transcriptase

Domain ID domain_id	d1hvuj1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.3 — Ribonuclease H-like
Family Family family	c.55.3.1 — Ribonuclease H

Domain ID domain_id	d1hvuj2
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.8 — DNA/RNA polymerases
Superfamily Superfamily superfamily	e.8.1 — DNA/RNA polymerases
Family Family family	e.8.1.2 — Reverse transcriptase

Domain ID domain_id	d1hvuk_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.8 — DNA/RNA polymerases
Superfamily Superfamily superfamily	e.8.1 — DNA/RNA polymerases
Family Family family	e.8.1.2 — Reverse transcriptase

▶

Unit-cell length a length_a	166.700 Å
Unit-cell length b length_b	169.200 Å
Unit-cell length c length_c	331.400 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	104.50 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	4.750 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.3400
R_work r_work	0.3400
R_free r_free	0.4130
