SAXSdb — 1hwu

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PII PROTEIN

Herbaspirillum seropedicae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	water × 3	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 3	water × 3	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 6	water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	P94852_HERSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–112； UniProt 1–112 Author chain B； PDBConstruct 1–112； UniProt 1–112 Author chain C； PDBConstruct 1–112； UniProt 1–112 Author chain D； PDBConstruct 1–112； UniProt 1–112 Author chain E； PDBConstruct 1–112； UniProt 1–112 Author chain F； PDBConstruct 1–112； UniProt 1–112

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1hwu
Deposition date deposition_date	2001-01-10
Structure title title	STRUCTURE OF PII PROTEIN FROM HERBASPIRILLUM SEROPEDICAE
Keywords keywords	Herbaspirillum seropedicae PII, Beta-alpha-beta motif, signal transduction protein, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1hwu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1hwu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

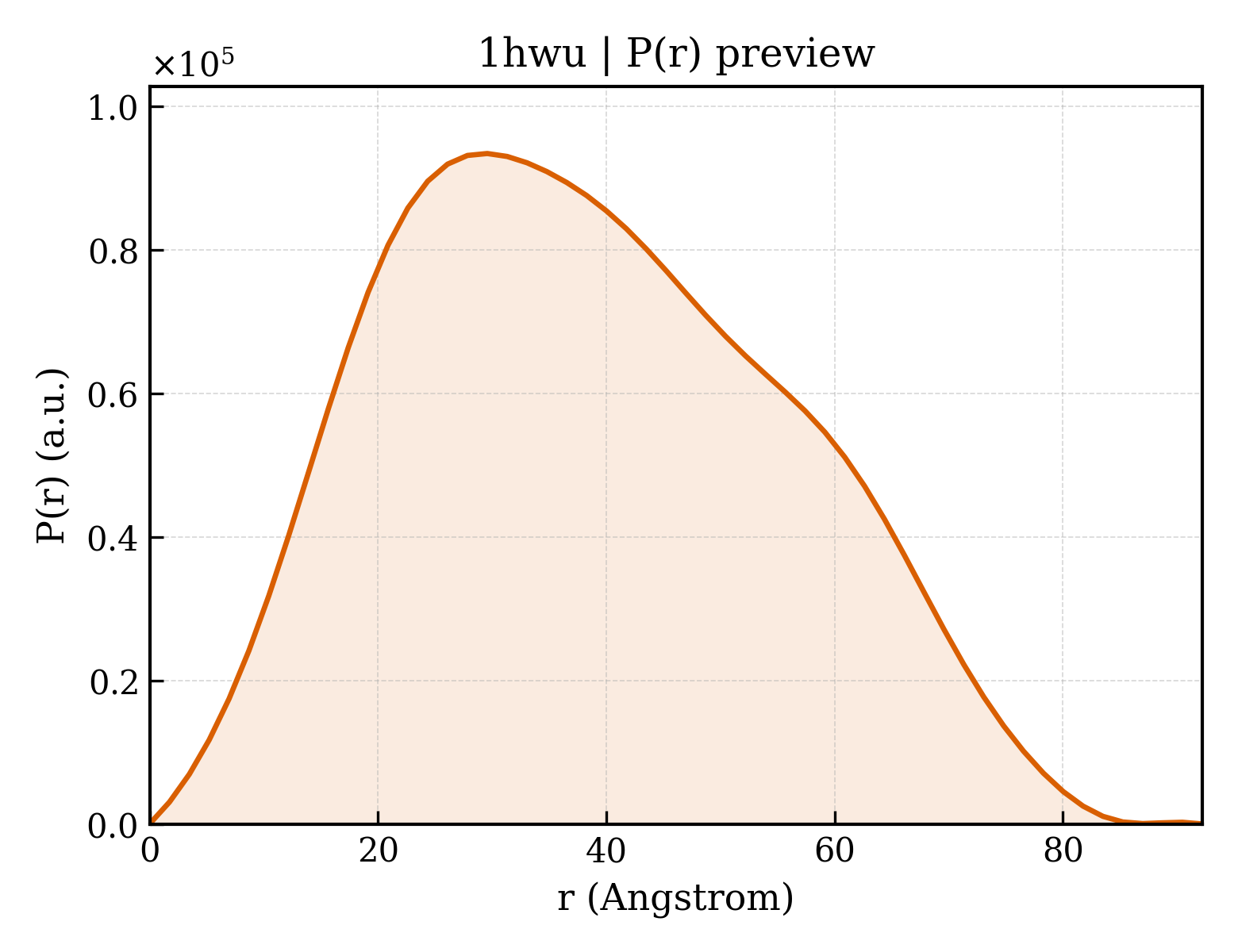

1hwu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.17 Å
Rg (electron density)	18.80 Å
Total Rg	19.81 Å
Atom count	2234
Residues	292
Excluded volume	40672 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1hwu__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1hwu__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1hwu__assembly_3__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1hwua_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.5 — GlnB-like
Family Family family	d.58.5.1 — Prokaryotic signal transducing protein

Domain ID domain_id	d1hwub_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.5 — GlnB-like
Family Family family	d.58.5.1 — Prokaryotic signal transducing protein

Domain ID domain_id	d1hwuc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.5 — GlnB-like
Family Family family	d.58.5.1 — Prokaryotic signal transducing protein

Domain ID domain_id	d1hwud_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.5 — GlnB-like
Family Family family	d.58.5.1 — Prokaryotic signal transducing protein

Domain ID domain_id	d1hwue_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.5 — GlnB-like
Family Family family	d.58.5.1 — Prokaryotic signal transducing protein

Domain ID domain_id	d1hwuf_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.5 — GlnB-like
Family Family family	d.58.5.1 — Prokaryotic signal transducing protein

CATH v4.4 (6 domains)

Domain ID domain_id	1hwuA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	120 —

Domain ID domain_id	1hwuB00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	120 —

Domain ID domain_id	1hwuC00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	120 —

Domain ID domain_id	1hwuD00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	120 —

Domain ID domain_id	1hwuE00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	120 —

Domain ID domain_id	1hwuF00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	120 —

▶

Unit-cell length a length_a	78.410 Å
Unit-cell length b length_b	82.320 Å
Unit-cell length c length_c	100.950 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	13.000 Å
R factor r_factor	—
R_work r_work	0.2030
R_free r_free	0.2720

Description description	PII PROTEIN
Molecular weight formula_weight	12284.2 kDa
Source method src_method	man
Copy count entity_count	6

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	4431

STRUCTURE OF PII PROTEIN FROM HERBASPIRILLUM SEROPEDICAE

1. Protein Identity and Related Structures Protein Identity & Related Structures

PII PROTEIN

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1hwu__assembly_1__model_1

1hwu__assembly_1__model_1 | I(q)

1hwu__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

CATH v4.4 (6 domains)

7. Citations (1)

Source organism organism	Herbaspirillum seropedicae
NCBI taxonomy ID ncbi_taxonomy_id	964
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	118
