1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1hy0
沉积日期 deposition_date	2001-01-17
结构标题 title	CRYSTAL STRUCTURE OF WILD TYPE DUCK DELTA 1 CRYSTALLIN (EYE LENS PROTEIN)
关键词 keywords	EYE LENS PROTEIN, DELTA 1 CRYSTALLIN, ARGININOSUCCINATE LYASE, LYASE; LYASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	35.04 Å
回转半径 Rg (电子) rg_electron	34.39 Å
零角强度 I(0) i0	144387000.00
分子量 molecular_weight	98684.0 kDa
排除体积 excluded_volume	124870 Å³
包络体积 envelope_volume	161360 Å³
水化壳体积 shell_volume	39342 Å³
包络直径 envelope_diameter	110.7 Å
壳层 Rg shell_rg	40.68 Å
包络 Rg envelope_rg	33.75 Å
形状 Rg shape_rg	34.38 Å
总 Rg total_rg	34.92 Å
总原子数 total_atoms	6922
残基数 n_residues	895
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	108.7 Å
Rg (实空间) rg_real	34.90 Å
Rg 误差 (实空间) rg_real_error	0.81 Å
I(0) (实空间) i0_real	1.4440e+08
I(0) 误差 (实空间) i0_real_error	2.1710e+06
Rg (倒空间) rg_reciprocal	34.99 Å
I(0) (倒空间) i0_reciprocal	144400000.0000
解质量估计 total_estimate	0.9096
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	50.7 Å
偏度 Skewness skewness	0.053
峰度 Kurtosis kurtosis	-0.718
角度范围 angular_range	— – 0.2250 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	18890000.0000
实空间数据点数 n_real_points	46
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.955; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.955

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	DELTA CRYSTALLIN I
分子量 formula_weight	51210.9 kDa
EC 编号 ec_number	4.3.2.1
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	7438

MASEGDKLMGGRFVGSTDPIMQMLSTSISTEQRLSEVDIQASIAYAKALEKAGILTKTELEKILSGLEKISEELSKGVIVVTQSDEDIQTANERRLKELIGDIAGKLHTGRSRNEQVVTDLKLFMKNSLSIISTHLLQLIKTLVERAAIEIDVILPGYTHLQKAQPIRWSQFLLSHAVALTRDSERLGEVKKRINVLPLGSGALAGNPLDIDREMLRSELEFASISLNSMDAISERDFVVEFLSVATLLLIHLSKMAEDLIIYSTSEFGFLTLSDAFSTGSSLMPQKKNPDSLELIRSKSGRVFGRLASILMVLKGLPSTYNKDLQEDKEAVIDVVDTLTAVLQVATGVISTLQISKENMEKALTPEMLATDLALYLVRKGMPFRQAHTASGKAVHLAETKGIAINNLTLEDLKSISPLFSSDVSQVFNFVNSVEQYTALGGTAKSSVTTQIEQLRELMKKQKEQA

来源 Source

来源生物 organism	Anas platyrhynchos
NCBI 分类编号 ncbi_taxonomy_id	8839
宿主生物 host_organism	Escherichia coli BL21

Entity 2 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	516

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1hy0a_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.127 — L-aspartase-like
超家族 Superfamily superfamily	a.127.1 — L-aspartase-like
家族 Family family	a.127.1.1 — L-aspartase/fumarase

结构域编号 domain_id	d1hy0b_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.127 — L-aspartase-like
超家族 Superfamily superfamily	a.127.1 — L-aspartase-like
家族 Family family	a.127.1.1 — L-aspartase/fumarase

CATH v4.4 (6 domains)

结构域编号 domain_id	1hy0A01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	275 — Fumarase C; Chain B, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (N-terminal domain)

结构域编号 domain_id	1hy0A02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	200 — Fumarase C; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

结构域编号 domain_id	1hy0A03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	40 — Ribonucleotide Reductase Protein R1; domain 1
同源超家族 H-superfamily homologous superfamily	30 — Fumarase/aspartase (C-terminal domain)

结构域编号 domain_id	1hy0B01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	275 — Fumarase C; Chain B, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (N-terminal domain)

结构域编号 domain_id	1hy0B02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	200 — Fumarase C; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

结构域编号 domain_id	1hy0B03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	40 — Ribonucleotide Reductase Protein R1; domain 1
同源超家族 H-superfamily homologous superfamily	30 — Fumarase/aspartase (C-terminal domain)

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	100.600 Å
晶胞边长 b length_b	100.600 Å
晶胞边长 c length_c	168.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	P 31 2 1
空间群编号 int_tables_number	152
晶系 crystal_system	—

分辨率 resolution	2.200 Å
最低分辨率 resolution_low	19.990 Å
R 因子 r_factor	0.2070
R_work r_work	0.1900
R_free r_free	0.2330

fit	/app/data/saxs_computation/hy/1hy0/1hy0.fit
pddf	/app/data/pr_computation/hy/1hy0/1hy0.pr.out
profile	/app/data/saxs_computation/hy/1hy0/1hy0.dat

CRYSTAL STRUCTURE OF WILD TYPE DUCK DELTA 1 CRYSTALLIN (EYE LENS PROTEIN)

SAXS 散射曲线 SAXS Profile

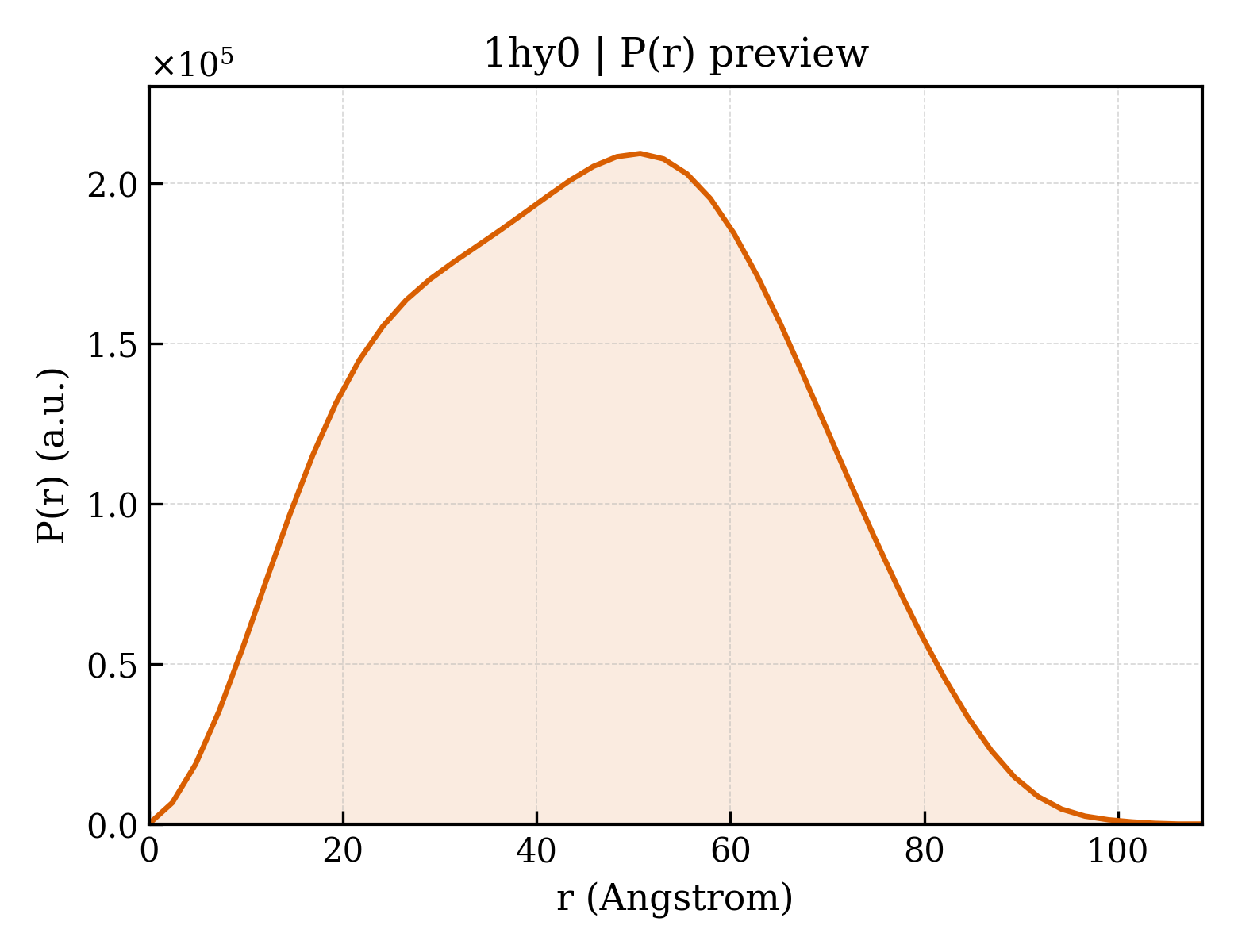

P(r) 距离分布 P(r) Distribution
