1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1i1k
沉积日期 deposition_date	2001-02-02
结构标题 title	CRYSTAL STRUCTURE OF ESCHELICHIA COLI BRANCHED-CHAIN AMINO ACID AMINOTRANSFERASE.
关键词 keywords	AMINOTRANSFERASE, HEXAMER, PLP, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	32.24 Å
回转半径 Rg (电子) rg_electron	31.36 Å
零角强度 I(0) i0	158330000.00
分子量 molecular_weight	99581.0 kDa
排除体积 excluded_volume	124170 Å³
包络体积 envelope_volume	157310 Å³
水化壳体积 shell_volume	41739 Å³
包络直径 envelope_diameter	100.5 Å
壳层 Rg shell_rg	38.49 Å
包络 Rg envelope_rg	31.28 Å
形状 Rg shape_rg	31.35 Å
总 Rg total_rg	31.94 Å
总原子数 total_atoms	7020
残基数 n_residues	894
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	99.0 Å
Rg (实空间) rg_real	32.14 Å
Rg 误差 (实空间) rg_real_error	0.63 Å
I(0) (实空间) i0_real	1.5830e+08
I(0) 误差 (实空间) i0_real_error	2.2830e+06
Rg (倒空间) rg_reciprocal	32.19 Å
I(0) (倒空间) i0_reciprocal	158300000.0000
解质量估计 total_estimate	0.9070
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	36.4 Å
偏度 Skewness skewness	0.204
峰度 Kurtosis kurtosis	-0.609
角度范围 angular_range	— – 0.2450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	17480000.0000
实空间数据点数 n_real_points	50
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.964; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.896

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	BRANCHED-CHAIN AMINO ACID AMINOTRANSFERASE
分子量 formula_weight	34131.6 kDa
EC 编号 ec_number	2.6.1.42
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	7324

MTTKKADYIWFNGEMVRWEDAKVHVMSHALHYGTSVFEGIRCYDSHKGPVVFRHREHMQRLHDSAKIYRFPVSQSIDELMEACRDVIRKNNLTSAYIRPLIFVGDVGMGVNPPAGYSTDVIIAAFPWGAYLGAEALEQGIDAMVSSWNRAAPNTIPTAAKAGGNYLSSLLVGSEARRHGYQEGIALDVNGYISEGAGENLFEVKDGVLFTPPFTSSALPGITRDAIIKLAKELGIEVREQVLSRESLYLADEVFMSGTAAEITPVRSVDGIQVGEGRCGPVTKRIQQAFFGLFTGETEDKWGWLDQVNQ

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	PYRIDOXAL-5'-PHOSPHATE
分子量 formula_weight	247.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	304

▼

6. 折叠分类 (SCOP + CATH) 9 domains

SCOP 2.08 (3 domains)

结构域编号 domain_id	d1i1ka_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.17 — D-aminoacid aminotransferase-like PLP-dependent enzymes
超家族 Superfamily superfamily	e.17.1 — D-aminoacid aminotransferase-like PLP-dependent enzymes
家族 Family family	e.17.1.1 — D-aminoacid aminotransferase-like PLP-dependent enzymes

结构域编号 domain_id	d1i1kb_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.17 — D-aminoacid aminotransferase-like PLP-dependent enzymes
超家族 Superfamily superfamily	e.17.1 — D-aminoacid aminotransferase-like PLP-dependent enzymes
家族 Family family	e.17.1.1 — D-aminoacid aminotransferase-like PLP-dependent enzymes

结构域编号 domain_id	d1i1kc_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.17 — D-aminoacid aminotransferase-like PLP-dependent enzymes
超家族 Superfamily superfamily	e.17.1 — D-aminoacid aminotransferase-like PLP-dependent enzymes
家族 Family family	e.17.1.1 — D-aminoacid aminotransferase-like PLP-dependent enzymes

CATH v4.4 (6 domains)

结构域编号 domain_id	1i1kA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminotransferase class 4, branched-chain amino acid transferase, N-terminal domain

结构域编号 domain_id	1i1kA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	10 — D-amino Acid Aminotransferase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — D-amino Acid Aminotransferase, subunit A, domain 2

结构域编号 domain_id	1i1kB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminotransferase class 4, branched-chain amino acid transferase, N-terminal domain

结构域编号 domain_id	1i1kB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	10 — D-amino Acid Aminotransferase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — D-amino Acid Aminotransferase, subunit A, domain 2

结构域编号 domain_id	1i1kC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminotransferase class 4, branched-chain amino acid transferase, N-terminal domain

结构域编号 domain_id	1i1kC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	10 — D-amino Acid Aminotransferase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — D-amino Acid Aminotransferase, subunit A, domain 2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	100.930 Å
晶胞边长 b length_b	156.060 Å
晶胞边长 c length_c	141.530 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	2.100 Å
最低分辨率 resolution_low	30.000 Å
R 因子 r_factor	—
R_work r_work	0.1890
R_free r_free	0.2310

fit	/app/data/saxs_computation/i1/1i1k/1i1k.fit
pddf	/app/data/pr_computation/i1/1i1k/1i1k.pr.out
profile	/app/data/saxs_computation/i1/1i1k/1i1k.dat

CRYSTAL STRUCTURE OF ESCHELICHIA COLI BRANCHED-CHAIN AMINO ACID AMINOTRANSFERASE.

SAXS 散射曲线 SAXS Profile

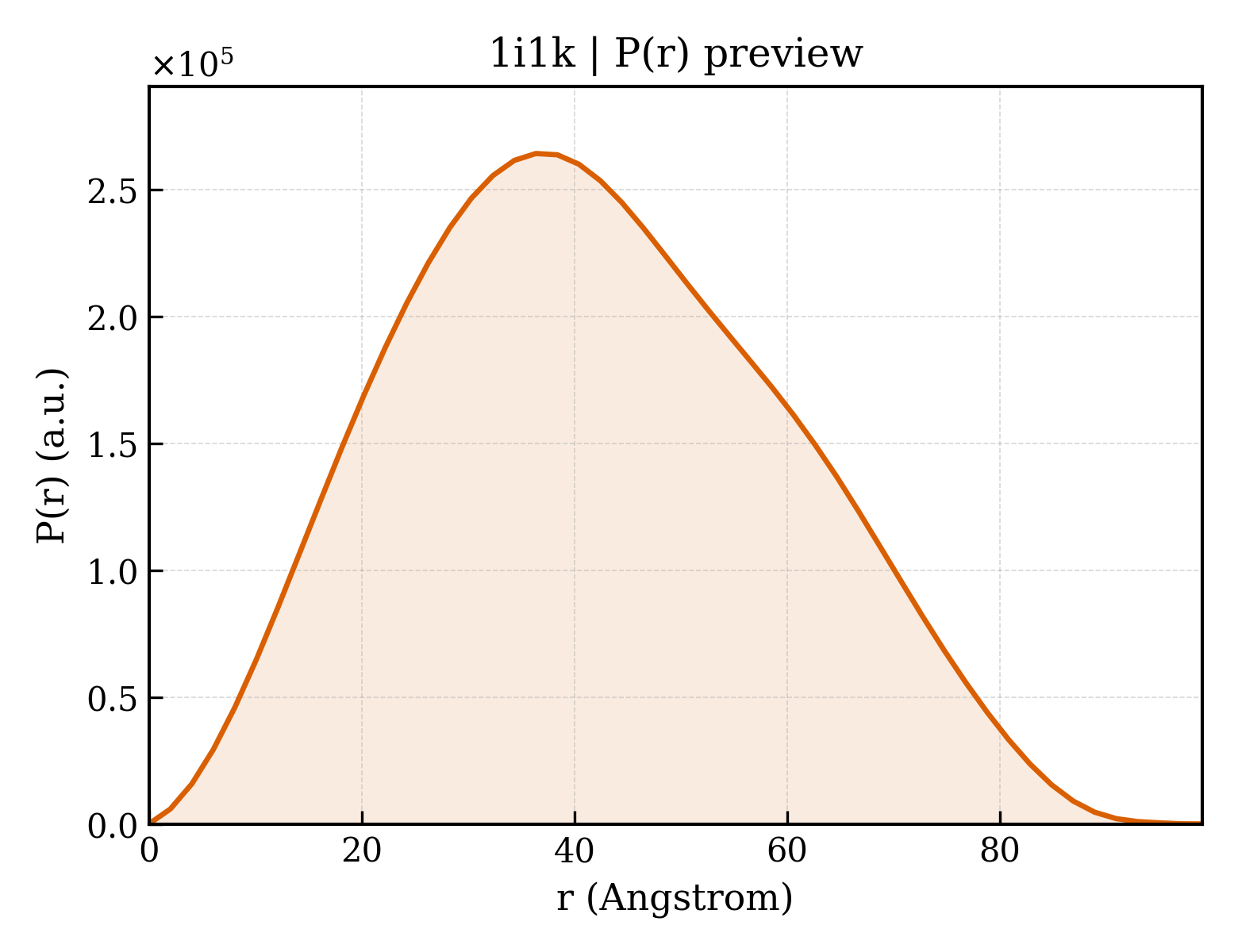

P(r) 距离分布 P(r) Distribution
