SAXSdb — 1i1s

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MOTA

Enterobacteria phage T4

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–96	Fragment：N-TERMINAL DOMAIN, RESIDUES 1-96	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 6.5；301 K；Ionic strength (raw mmCIF value) 200 mM potassium phosphate；Pressure ambient NMR measurement conditions：pH 6.5；301 K；Ionic strength (raw mmCIF value) 200 mM potassium phosphate；Pressure ambient NMR sample composition：2mM MotNF U-15N \| 200 mM potassium phosphate buffer, pH 6.5; 90% H2O, 10% D2O NMR sample composition：2mM MotNF U-13C,15N \| 200 mM potassium phosphate buffer, pH 6.5; 90% H2O, 10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1I1S	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BJA ACTIVATION DOMAIN OF THE PHAGE T4 TRANSCRIPTION FACTOR MOTA Deposited 1998-06-23	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–96（95 aa） Fragment：N-TERMINAL ACTIVATION DOMAIN	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；PROTEIN WAS CRYSTALLIZED FROM 60% SATURATED AMMONIUM SULPHATE, 100 MM BIS-TRIS PROPANE, PH 8.0 - 9.0, pH 8.5	Resolution 2.19 Å R-free 0.291
1BJA ACTIVATION DOMAIN OF THE PHAGE T4 TRANSCRIPTION FACTOR MOTA Deposited 1998-06-23	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–96（95 aa） Fragment：N-TERMINAL ACTIVATION DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；PROTEIN WAS CRYSTALLIZED FROM 60% SATURATED AMMONIUM SULPHATE, 100 MM BIS-TRIS PROPANE, PH 8.0 - 9.0, pH 8.5	Resolution 2.19 Å R-free 0.291
1KAF DNA Binding Domain Of The Phage T4 Transcription Factor MotA (AA105-211) Deposited 2001-11-01	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 105–211（107 aa） Fragment：DNA binding domain residues 105-211	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；from 19% PEG 8000, 35 mM potassium phosphate pH 5.0, 3% glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.60 Å R-free 0.258
1KAF DNA Binding Domain Of The Phage T4 Transcription Factor MotA (AA105-211) Deposited 2001-11-01	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 105–211（107 aa） Fragment：DNA binding domain residues 105-211	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；from 19% PEG 8000, 35 mM potassium phosphate pH 5.0, 3% glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.60 Å R-free 0.258
1KAF DNA Binding Domain Of The Phage T4 Transcription Factor MotA (AA105-211) Deposited 2001-11-01	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 105–211（107 aa） Fragment：DNA binding domain residues 105-211	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；from 19% PEG 8000, 35 mM potassium phosphate pH 5.0, 3% glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.60 Å R-free 0.258
1KAF DNA Binding Domain Of The Phage T4 Transcription Factor MotA (AA105-211) Deposited 2001-11-01	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 105–211（107 aa） Fragment：DNA binding domain residues 105-211	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；from 19% PEG 8000, 35 mM potassium phosphate pH 5.0, 3% glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.60 Å R-free 0.258
1KAF DNA Binding Domain Of The Phage T4 Transcription Factor MotA (AA105-211) Deposited 2001-11-01	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 105–211（107 aa） Fragment：DNA binding domain residues 105-211	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；from 19% PEG 8000, 35 mM potassium phosphate pH 5.0, 3% glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.60 Å R-free 0.258
1KAF DNA Binding Domain Of The Phage T4 Transcription Factor MotA (AA105-211) Deposited 2001-11-01	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 105–211（107 aa） Fragment：DNA binding domain residues 105-211	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；from 19% PEG 8000, 35 mM potassium phosphate pH 5.0, 3% glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.60 Å R-free 0.258
5JLT The crystal structure of the bacteriophage T4 MotA C-terminal domain in complex with dsDNA reveals a novel protein-DNA recognition motif Deposited 2016-04-27	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 93–211（119 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；23% PEG 8K, 0.1 M Na Acetate, 0.1 M NaCacodylate, pH 6.5, and 3% glycerol	Resolution 2.96 Å R-free 0.245
5JLT The crystal structure of the bacteriophage T4 MotA C-terminal domain in complex with dsDNA reveals a novel protein-DNA recognition motif Deposited 2016-04-27	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain C 93–211（119 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；23% PEG 8K, 0.1 M Na Acetate, 0.1 M NaCacodylate, pH 6.5, and 3% glycerol	Resolution 2.96 Å R-free 0.245
5JLT The crystal structure of the bacteriophage T4 MotA C-terminal domain in complex with dsDNA reveals a novel protein-DNA recognition motif Deposited 2016-04-27	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 93–211（119 aa） Chain D 93–211（119 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；23% PEG 8K, 0.1 M Na Acetate, 0.1 M NaCacodylate, pH 6.5, and 3% glycerol	Resolution 2.96 Å R-free 0.245
5JLT The crystal structure of the bacteriophage T4 MotA C-terminal domain in complex with dsDNA reveals a novel protein-DNA recognition motif Deposited 2016-04-27	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain B 93–211（119 aa） Chain C 93–211（119 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；23% PEG 8K, 0.1 M Na Acetate, 0.1 M NaCacodylate, pH 6.5, and 3% glycerol	Resolution 2.96 Å R-free 0.245
6K4Y CryoEM structure of sigma appropriation complex Deposited 2019-05-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain M 1–211（211 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.79 Å

4 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MOTA_BPT4
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–96； UniProt 1–96

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1i1s
Deposition date deposition_date	2001-02-02
Structure title title	SOLUTION STRUCTURE OF THE TRANSCRIPTIONAL ACTIVATION DOMAIN OF THE BACTERIOPHAGE T4 PROTEIN MOTA
Keywords keywords	MotNF, coiled-coil, crystal packing, transcription; TRANSCRIPTION
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	13.48 Å
Radius of gyration Rg (electron density) rg_electron	13.08 Å
Forward intensity I(0) i0	532365000.00
Molecular weight molecular_weight	204660.0 kDa
Excluded volume excluded_volume	260650 Å³
Envelope volume envelope_volume	20543 Å³
Hydration-shell volume shell_volume	12256 Å³
Envelope diameter envelope_diameter	51.0 Å
Shell Rg shell_rg	20.06 Å
Envelope Rg envelope_rg	15.11 Å
Shape Rg shape_rg	13.09 Å
Total Rg total_rg	13.22 Å
Total atoms total_atoms	29560
Residues n_residues	1920
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	44.5 Å
Rg (real space) rg_real	13.45 Å
Rg uncertainty (real space) rg_real_error	0.32 Å
I(0) (real space) i0_real	5.3240e+08
I(0) uncertainty (real space) i0_real_error	6.1710e+06
Rg (reciprocal space) rg_reciprocal	13.45 Å
I(0) (reciprocal space) i0_reciprocal	532400000.0000
Solution quality estimate total_estimate	0.7948
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	14.7 Å
Skewness Skewness skewness	0.202
Kurtosis Kurtosis kurtosis	-0.290
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	109700.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.779; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1i1sa_
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.9 — Transcription factor MotA, activation domain

CATH v4.4 (1 domains)

Domain ID domain_id	1i1sA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Description description	MOTA
Molecular weight formula_weight	10245.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	29560

来源生物 organism	Enterobacteria phage T4
NCBI Class编号 ncbi_taxonomy_id	10665
宿主生物 host_organism	Escherichia coli BL21(DE3)

SOLUTION STRUCTURE OF THE TRANSCRIPTIONAL ACTIVATION DOMAIN OF THE BACTERIOPHAGE T4 PROTEIN MOTA

1. Protein Identity and Related Structures Protein Identity & Related Structures

MOTA

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

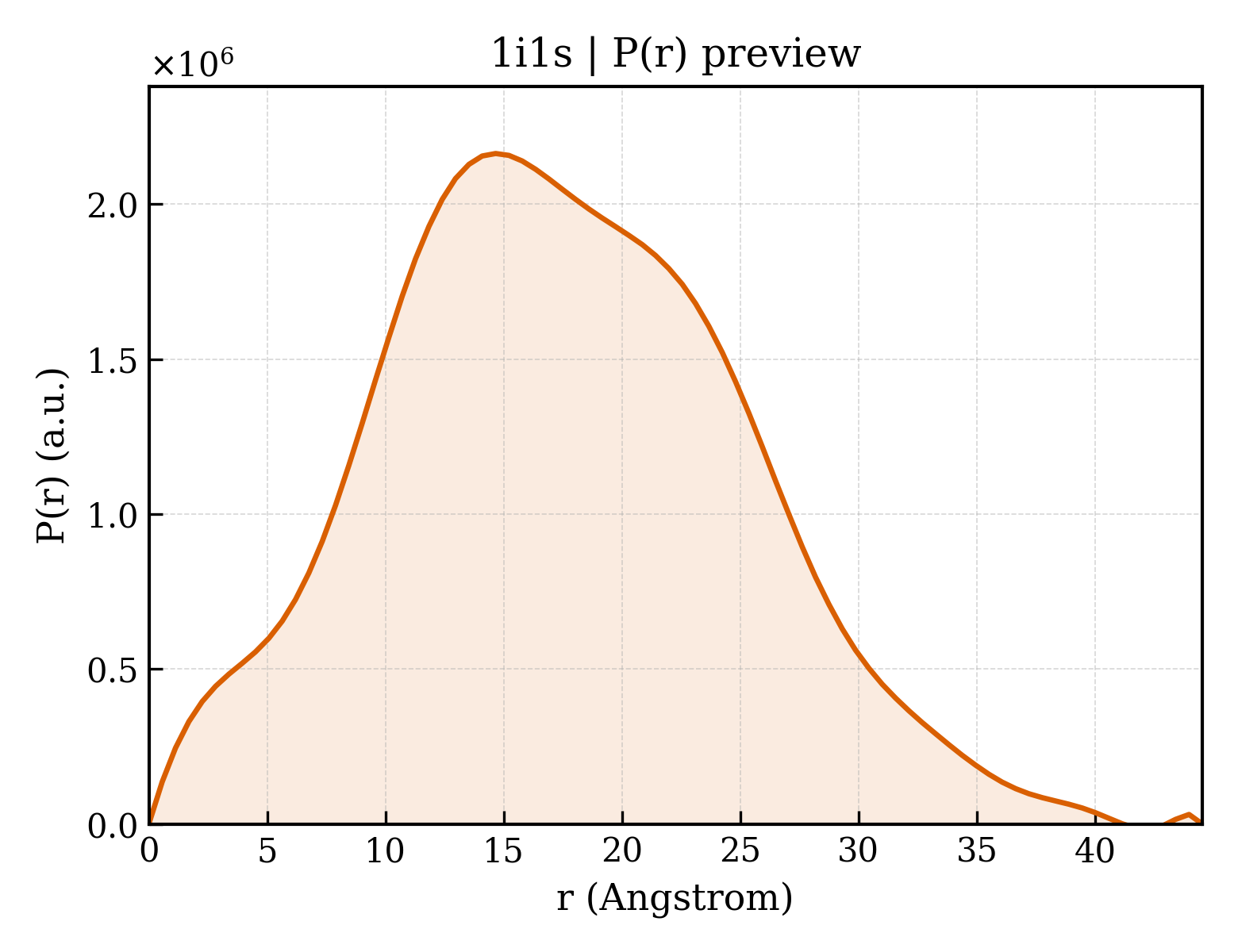

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

CATH v4.4 (1 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

fit	/app/data/saxs_computation/i1/1i1s/1i1s.fit
pddf	/app/data/pr_computation/i1/1i1s/1i1s.pr.out
profile	/app/data/saxs_computation/i1/1i1s/1i1s.dat
