1i4z

THE CRYSTAL STRUCTURE OF PHASCOLOPSIS GOULDII L98Y METHEMERYTHRIN

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

METHEMERYTHRIN

Phascolopsis gouldii

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 8	MU-OXO-DIIRON × 8 water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HEMT_PHAGO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–114； UniProt 1–114 Author chain B； PDBConstruct 1–114； UniProt 1–114 Author chain C； PDBConstruct 1–114； UniProt 1–114 Author chain D； PDBConstruct 1–114； UniProt 1–114 Author chain E； PDBConstruct 1–114； UniProt 1–114 Author chain F； PDBConstruct 1–114； UniProt 1–114 Author chain G； PDBConstruct 1–114； UniProt 1–114 Author chain H； PDBConstruct 1–114； UniProt 1–114

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1i4z
Deposition date deposition_date	2001-02-23
Structure title title	THE CRYSTAL STRUCTURE OF PHASCOLOPSIS GOULDII L98Y METHEMERYTHRIN
Keywords keywords	hemerythrin, oxygen binding, diiron, mutation, four-helix bundle, OXYGEN STORAGE-TRANSPORT COMPLEX; OXYGEN STORAGE/TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1i4z__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1i4z__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

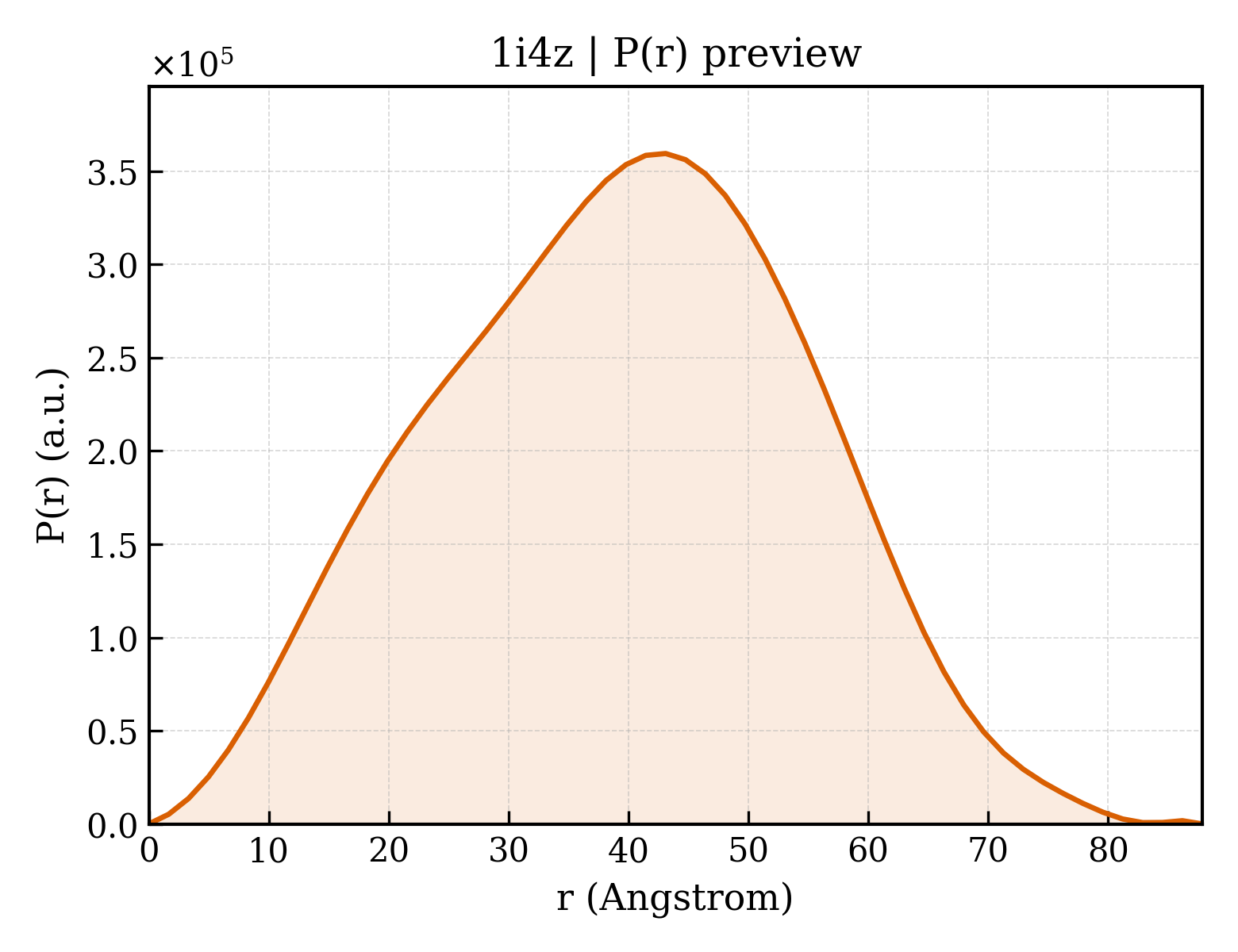

1i4z__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.13 Å
Rg (electron density)	29.35 Å
Total Rg	29.95 Å
Atom count	7588
Residues	904
Excluded volume	133310 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1i4z__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	METHEMERYTHRIN
Molecular weight formula_weight	13676.4 kDa
Mutation mutation	L98Y
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	8015

MGFPIPDPYVWDPSFRTFYSIIDDEHKTLFNGIFHLAIDDNADNLGELRRCTGKHFLNEQVLMQASQYQFYDEHKKEHETFIHALDNWKGDVKWAKSWYVNHIKTIDFKYKGKI

Source Source

Source organism organism	Phascolopsis gouldii
NCBI taxonomy ID ncbi_taxonomy_id	6442
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MU-OXO-DIIRON
Molecular weight formula_weight	127.7 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	427

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1i4za_
Class class	a — All alpha proteins
Fold Fold fold	a.24 — Four-helical up-and-down bundle
Superfamily Superfamily superfamily	a.24.4 — Hemerythrin-like
Family Family family	a.24.4.1 — Hemerythrin-like

Domain ID domain_id	d1i4zb_
Class class	a — All alpha proteins
Fold Fold fold	a.24 — Four-helical up-and-down bundle
Superfamily Superfamily superfamily	a.24.4 — Hemerythrin-like
Family Family family	a.24.4.1 — Hemerythrin-like

Domain ID domain_id	d1i4zc_
Class class	a — All alpha proteins
Fold Fold fold	a.24 — Four-helical up-and-down bundle
Superfamily Superfamily superfamily	a.24.4 — Hemerythrin-like
Family Family family	a.24.4.1 — Hemerythrin-like

Domain ID domain_id	d1i4zd_
Class class	a — All alpha proteins
Fold Fold fold	a.24 — Four-helical up-and-down bundle
Superfamily Superfamily superfamily	a.24.4 — Hemerythrin-like
Family Family family	a.24.4.1 — Hemerythrin-like

Domain ID domain_id	d1i4ze_
Class class	a — All alpha proteins
Fold Fold fold	a.24 — Four-helical up-and-down bundle
Superfamily Superfamily superfamily	a.24.4 — Hemerythrin-like
Family Family family	a.24.4.1 — Hemerythrin-like

Domain ID domain_id	d1i4zf_
Class class	a — All alpha proteins
Fold Fold fold	a.24 — Four-helical up-and-down bundle
Superfamily Superfamily superfamily	a.24.4 — Hemerythrin-like
Family Family family	a.24.4.1 — Hemerythrin-like

Domain ID domain_id	d1i4zg_
Class class	a — All alpha proteins
Fold Fold fold	a.24 — Four-helical up-and-down bundle
Superfamily Superfamily superfamily	a.24.4 — Hemerythrin-like
Family Family family	a.24.4.1 — Hemerythrin-like

Domain ID domain_id	d1i4zh_
Class class	a — All alpha proteins
Fold Fold fold	a.24 — Four-helical up-and-down bundle
Superfamily Superfamily superfamily	a.24.4 — Hemerythrin-like
Family Family family	a.24.4.1 — Hemerythrin-like

CATH v4.4 (8 domains)

Domain ID domain_id	1i4zA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	50 — Hemerythrin-like

Domain ID domain_id	1i4zB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	50 — Hemerythrin-like

Domain ID domain_id	1i4zC00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	50 — Hemerythrin-like

Domain ID domain_id	1i4zD00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	50 — Hemerythrin-like

Domain ID domain_id	1i4zE00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	50 — Hemerythrin-like

Domain ID domain_id	1i4zF00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	50 — Hemerythrin-like

Domain ID domain_id	1i4zG00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	50 — Hemerythrin-like

Domain ID domain_id	1i4zH00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	50 — Hemerythrin-like

▶

Unit-cell length a length_a	54.083 Å
Unit-cell length b length_b	129.991 Å
Unit-cell length c length_c	71.413 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	111.22 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	66.570 Å
R factor r_factor	—
R_work r_work	0.2480
R_free r_free	0.3110
