SAXSdb — 1i78

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEASE VII

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	octyl beta-D-glucopyranoside × 2 (4S)-2-METHYL-2,4-PENTANEDIOL × 2 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	octyl beta-D-glucopyranoside × 2 water × 1	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 2	octyl beta-D-glucopyranoside × 4 (4S)-2-METHYL-2,4-PENTANEDIOL × 2 water × 2	Consistent with protein count
4	Protein homooligomer	Homooligomer	Protein 2	octyl beta-D-glucopyranoside × 4 (4S)-2-METHYL-2,4-PENTANEDIOL × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	OMPT_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–297； UniProt 21–317 Author chain B； PDBConstruct 1–297； UniProt 21–317

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1i78
Deposition date deposition_date	2001-03-08
Structure title title	CRYSTAL STRUCTURE OF OUTER MEMBRANE PROTEASE OMPT FROM ESCHERICHIA COLI
Keywords keywords	integral outer membrane protein, protease, beta barrel, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1i78__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1i78__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

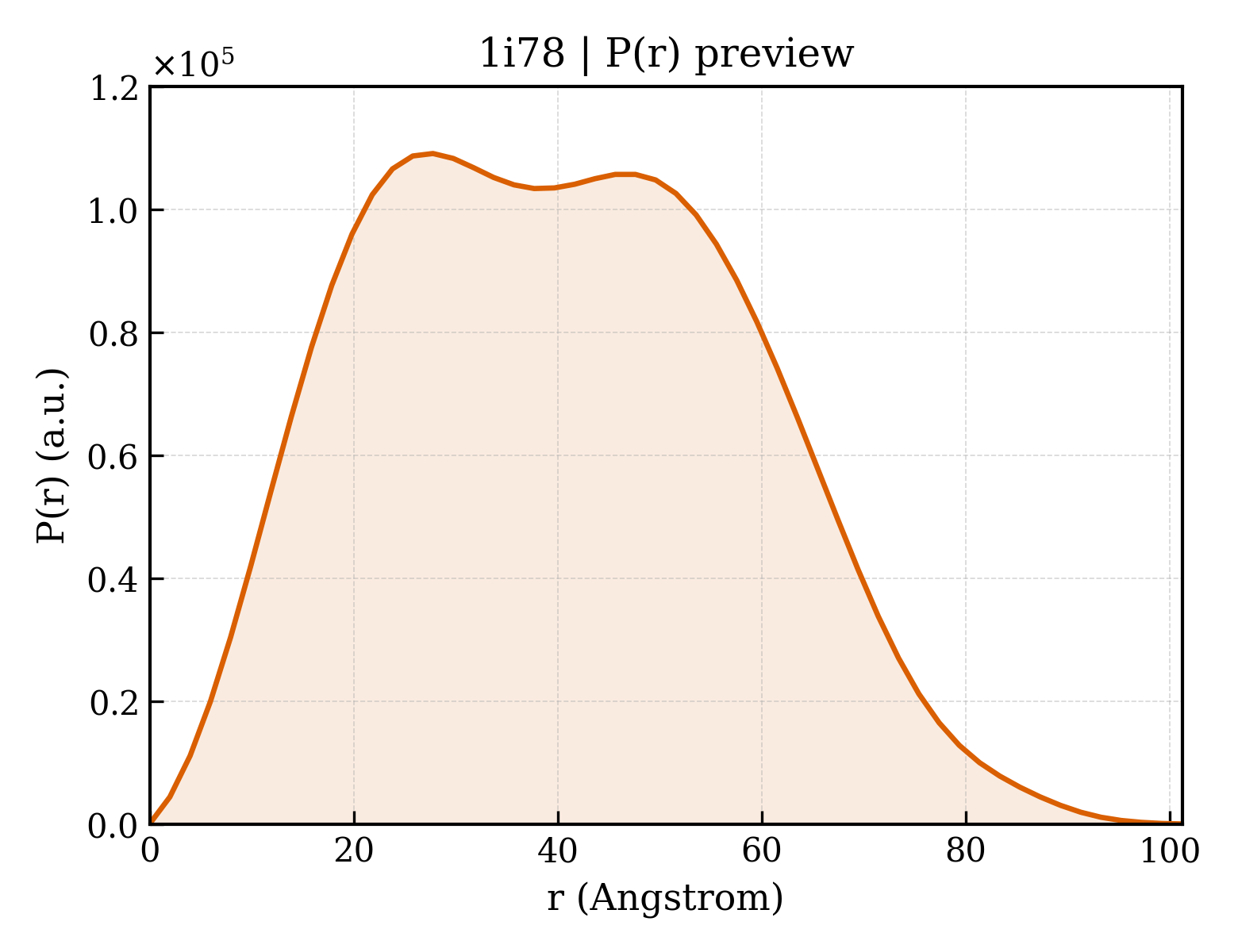

1i78__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.45 Å
Rg (electron density)	23.01 Å
Total Rg	23.79 Å
Atom count	2393
Residues	297
Excluded volume	41984 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1i78__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1i78__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1i78__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1i78__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	PROTEASE VII
Molecular weight formula_weight	33495.6 kDa
EC 编号 ec_number	3.4.21.87
Mutation mutation	S99A,G216K,K217G
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4734

STETLSFTPDNINADISLGTLSGKTKERVYLAEEGGRKVSQLDWKFNNAAIIKGAINWDLMPQISIGAAGWTTLGSRGGNMVDQDWMDSSNPGTWTDEARHPDTQLNYANEFDLNIKGWLLNEPNYRLGLMAGYQESRYSFTARGGSYIYSSEEGFRDDIGSFPNGERAIGYKQRFKMPYIGLTGSYRYEDFELGGTFKYSGWVESSDNDEHYDPKGRITYRSKVKDQNYYSVAVNAGYYVTPNAKVYVEGAWNRVTNKKGNTSLYDHNNNTSDYSKNGAGIENYNFITTAGLKYTF

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	octyl beta-D-glucopyranoside
Molecular weight formula_weight	292.4 kDa
Source method src_method	man
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	(4S)-2-METHYL-2,4-PENTANEDIOL
Molecular weight formula_weight	118.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	29

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1i78a_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.4 — Transmembrane beta-barrels
Superfamily Superfamily superfamily	f.4.4 — OMPT-like
Family Family family	f.4.4.1 — Outer membrane protease OMPT

Domain ID domain_id	d1i78b_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.4 — Transmembrane beta-barrels
Superfamily Superfamily superfamily	f.4.4 — OMPT-like
Family Family family	f.4.4.1 — Outer membrane protease OMPT

CATH v4.4 (2 domains)

Domain ID domain_id	1i78A00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	128 — Lipocalin
Homologous superfamily homologous superfamily	90 — OMPT-like

Domain ID domain_id	1i78B00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	128 — Lipocalin
Homologous superfamily homologous superfamily	90 — OMPT-like

▶

Unit-cell length a length_a	98.389 Å
Unit-cell length b length_b	98.389 Å
Unit-cell length c length_c	165.695 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.2380
R_free r_free	0.2800

CRYSTAL STRUCTURE OF OUTER MEMBRANE PROTEASE OMPT FROM ESCHERICHIA COLI
