SAXSdb — 1ia2

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DIHYDROFOLATE REDUCTASE

Candida albicans

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 5-[(4-METHYLPHENYL)SULFANYL]-2,4-QUINAZOLINEDIAMINE × 1 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 5-[(4-METHYLPHENYL)SULFANYL]-2,4-QUINAZOLINEDIAMINE × 1 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DYR_CANAL
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–192； UniProt 1–192 Author chain B； PDBConstruct 1–192； UniProt 1–192

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ia2
Deposition date deposition_date	2001-03-22
Structure title title	Candida albicans dihydrofolate reductase complexed with dihydro-nicotinamide-adenine-dinucleotide phosphate (NADPH) and 5-[(4-METHYLPHENYL)SULFANYL]-2,4-QUINAZOLINEDIAMINE (GW578)
Keywords keywords	OXIDOREDUCTASE, ANTIFUNGAL TARGET, REDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ia2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ia2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

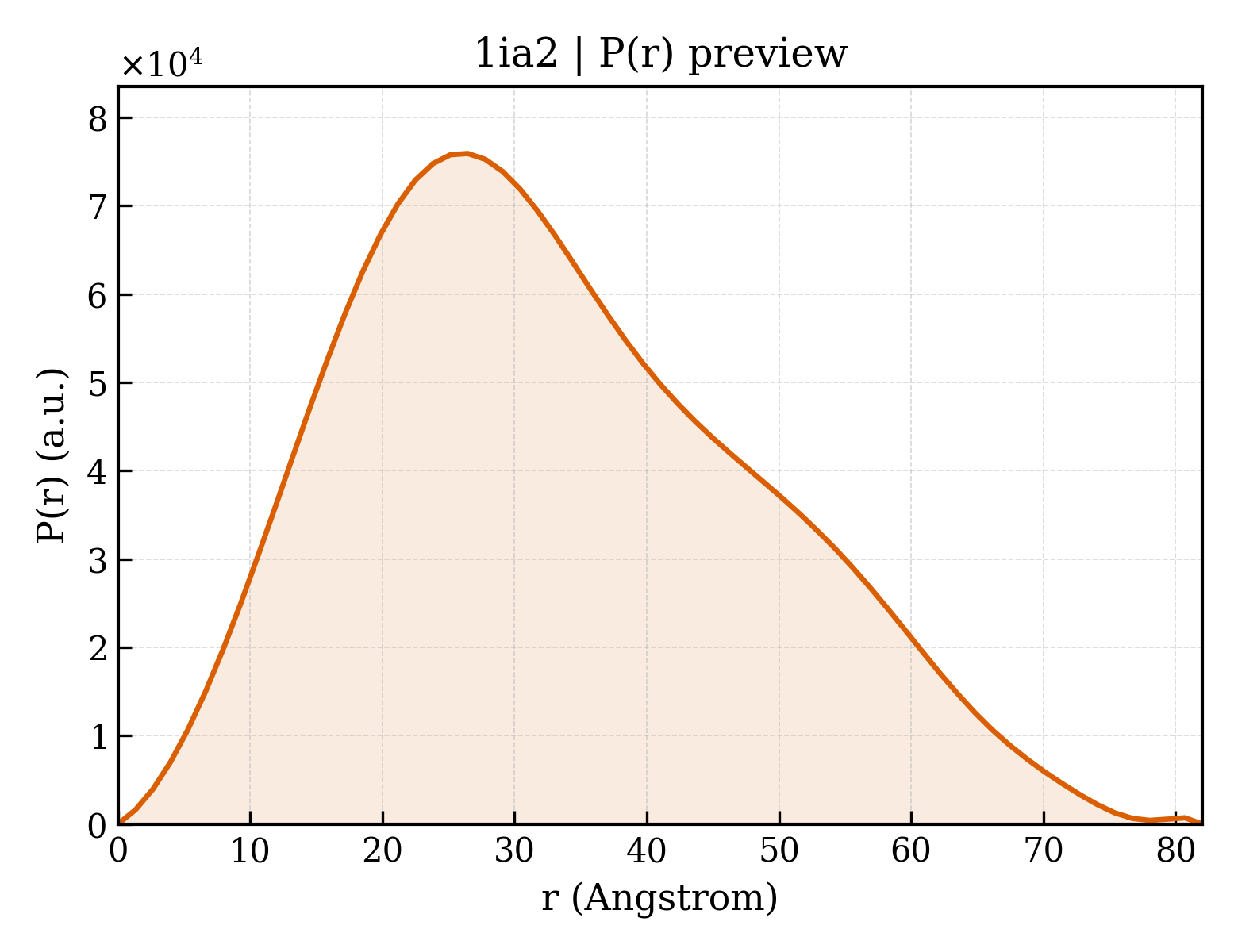

1ia2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.66 Å
Rg (electron density)	16.30 Å
Total Rg	17.35 Å
Atom count	1633
Residues	192
Excluded volume	29178 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ia2__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1ia2__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	DIHYDROFOLATE REDUCTASE
Molecular weight formula_weight	22194.5 kDa
EC 编号 ec_number	1.5.1.3
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3693

MLKPNVAIIVAALKPALGIGYKGKMPWRLRKEIRYFKDVTTRTTKPNTRNAVIMGRKTWESIPQKFRPLPDRLNIILSRSYENEIIDDNIIHASSIESSLNLVSDVERVFIIGGAEIYNELINNSLVSHLLITEIEHPSPESIEMDTFLKFPLESWTKQPKSELQKFVGDTVLEDDIKEGDFTYNYTLWTRK

Source Source

Source organism organism	Candida albicans
NCBI taxonomy ID ncbi_taxonomy_id	5476
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
Molecular weight formula_weight	745.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	5-[(4-METHYLPHENYL)SULFANYL]-2,4-QUINAZOLINEDIAMINE
Molecular weight formula_weight	282.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	2-(N-MORPHOLINO)-ETHANESULFONIC ACID
Molecular weight formula_weight	195.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	333

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1ia2a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.71 — Dihydrofolate reductase-like
Superfamily Superfamily superfamily	c.71.1 — Dihydrofolate reductase-like
Family Family family	c.71.1.1 — Dihydrofolate reductases

Domain ID domain_id	d1ia2b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.71 — Dihydrofolate reductase-like
Superfamily Superfamily superfamily	c.71.1 — Dihydrofolate reductase-like
Family Family family	c.71.1.1 — Dihydrofolate reductases

CATH v4.4 (2 domains)

Domain ID domain_id	1ia2A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	430 — Dihydrofolate Reductase, subunit A
Homologous superfamily homologous superfamily	10 — Dihydrofolate Reductase, subunit A

Domain ID domain_id	1ia2B00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	430 — Dihydrofolate Reductase, subunit A
Homologous superfamily homologous superfamily	10 — Dihydrofolate Reductase, subunit A

▶

Unit-cell length a length_a	76.910 Å
Unit-cell length b length_b	67.280 Å
Unit-cell length c length_c	38.490 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	93.07 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.820 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1600
R_work r_work	0.1600
R_free r_free	—

Candida albicans dihydrofolate reductase complexed with dihydro-nicotinamide-adenine-dinucleotide phosphate (NADPH) and 5-[(4-METHYLPHENYL)SULFANYL]-2,4-QUINAZOLINEDIAMINE (GW578)
