SAXSdb — 1ibf

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CU,ZN SUPEROXIDE DISMUTASE

Photobacterium leiognathi

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 23–173	Mutation：V29G	ZN ZINC ION × 2 CU COPPER (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.5；301 K；PEG 8k, NaCl, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 301K	Resolution 2.20 Å R-free 0.278

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1IBF	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BZO THREE-DIMENSIONAL STRUCTURE OF PROKARYOTIC CU,ZN SUPEROXIDE DISMUTASE FROM P.LEIOGNATHI, SOLVED BY X-RAY CRYSTALLOGRAPHY. Deposited 1998-11-02	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 23–173（151 aa）	Not recorded	ZN ZINC ION × 2 CU COPPER (II) ION × 2 IUM URANYL (VI) ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 4；PEG 8,000 25%, NACL 100 MM, SODIUM ACETATE 50 MM, PH 4, T=28C	Resolution 2.10 Å
1IB5 X-RAY 3D STRUCTURE OF P.LEIOGNATHI CU,ZN SOD MUTANT W83Y Deposited 2001-03-27	Different mutation/modification Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 23–173（151 aa）	Mutation：W83Y	ZN ZINC ION × 2 CU COPPER (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；301 K；PEG 8k, NaCl, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 301K	Resolution 2.45 Å R-free 0.265
1IBB X-RAY 3D STRUCTURE OF P.LEIOGNATHI CU,ZN SOD MUTANT W83F Deposited 2001-03-28	Different mutation/modification Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 23–173（151 aa）	Mutation：W83F	ZN ZINC ION × 2 CU COPPER (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；301 K；PEG 8k, NaCl, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 301K	Resolution 2.10 Å R-free 0.210
1IBD X-RAY 3D STRUCTURE OF P.LEIOGNATHI CU,ZN SOD MUTANT V29A Deposited 2001-03-28	Different mutation/modification Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 23–173（151 aa）	Mutation：V29A	ZN ZINC ION × 2 CU COPPER (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；301 K；PEG 8k, NaCl, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 301K	Resolution 2.00 Å R-free 0.269
1IBH X-RAY 3D STRUCTURE OF P.LEIOGNATHI CU,ZN SOD MUTANT M41I Deposited 2001-03-28	Different mutation/modification Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 23–173（151 aa）	Mutation：M41I	ZN ZINC ION × 2 CU COPPER (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；301 K；PEG 8k, NaCl, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 301K	Resolution 2.00 Å R-free 0.287
1OAJ Active site copper and zinc ions modulate the quaternary structure of prokaryotic Cu,Zn superoxide dismutase Deposited 2003-01-14	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 23–173（151 aa）	Mutation：YES	ZN ZINC ION × 2 CU COPPER (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4；301 K；PEG 8,000 25%, NACL 100 MM, SODIUM ACETATE 50 MM, PH 4, TEMPERATURE 28C	Resolution 1.73 Å R-free 0.231
1OAL Active site copper and zinc ions modulate the quaternary structure of prokaryotic Cu,Zn superoxide dismutase Deposited 2003-01-15	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 23–173（151 aa）	Mutation：YES	ZN ZINC ION × 2 CU COPPER (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4；301 K；PEG 8,000 25%, NACL 100 MM, SODIUM ACETATE 50 MM, PH 4, T=28C	Resolution 1.50 Å R-free 0.194
1YAI X-RAY STRUCTURE OF A BACTERIAL COPPER,ZINC SUPEROXIDE DISMUTASE Deposited 1996-02-03	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 23–173（151 aa）	Not recorded	CU COPPER (II) ION × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；42% MPD, 60 MM POTASSIUM PHOSPHATE, PH 6.5	Resolution 1.90 Å R-free 0.210
1YAI X-RAY STRUCTURE OF A BACTERIAL COPPER,ZINC SUPEROXIDE DISMUTASE Deposited 1996-02-03	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 23–173（151 aa） Chain C 23–173（151 aa）	Not recorded	CU COPPER (II) ION × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；42% MPD, 60 MM POTASSIUM PHOSPHATE, PH 6.5	Resolution 1.90 Å R-free 0.210

8 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SODC_PHOLE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–151； UniProt 23–173

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ibf
Deposition date deposition_date	2001-03-28
Structure title title	X-RAY 3D STRUCTURE OF P.LEIOGNATHI CU,ZN SOD MUTANT V29G
Keywords keywords	prokaryotic superoxide dismutase, subunit interaction, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.27 Å
Radius of gyration Rg (electron density) rg_electron	14.33 Å
Forward intensity I(0) i0	5347470.00
Molecular weight molecular_weight	15876.0 kDa
Excluded volume excluded_volume	19533 Å³
Envelope volume envelope_volume	22034 Å³
Hydration-shell volume shell_volume	12966 Å³
Envelope diameter envelope_diameter	52.8 Å
Shell Rg shell_rg	20.23 Å
Envelope Rg envelope_rg	14.79 Å
Shape Rg shape_rg	14.33 Å
Total Rg total_rg	15.44 Å
Total atoms total_atoms	1109
Residues n_residues	151
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	53.1 Å
Rg (real space) rg_real	15.17 Å
Rg uncertainty (real space) rg_real_error	0.27 Å
I(0) (real space) i0_real	5.3470e+06
I(0) uncertainty (real space) i0_real_error	5.8500e+04
Rg (reciprocal space) rg_reciprocal	15.18 Å
I(0) (reciprocal space) i0_reciprocal	5347000.0000
Solution quality estimate total_estimate	0.8555
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	20.2 Å
Skewness Skewness skewness	0.143
Kurtosis Kurtosis kurtosis	-0.294
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	687800.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.710; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.995

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CU,ZN SUPEROXIDE DISMUTASE
Molecular weight formula_weight	15771.8 kDa
EC 编号 ec_number	1.15.1.1
Mutation mutation	V29G
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1171

QDLTVKMTDLQTGKPVGTIELSQNKYGVGFIPELADLTPGMHGFHIHQNGSCASSEKDGKVVLGGAAGGHYDPEHTNKHGFPWTDDNHKGDLPALFVSANGLATNPVLAPRLTLKELKGHAIMIHAGGDNHSDMPKALGGGGARVACGVIQ

来源 Source

来源生物 organism	Photobacterium leiognathi
NCBI Class编号 ncbi_taxonomy_id	658
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	COPPER (II) ION
Molecular weight formula_weight	63.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	62

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1ibfa_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.8 — Cu,Zn superoxide dismutase-like
Family Family family	b.1.8.1 — Cu,Zn superoxide dismutase-like

CATH v4.4 (1 domains)

Domain ID domain_id	1ibfA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	200 — Superoxide dismutase, copper/zinc binding domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	86.037 Å
Unit-cell length b length_b	86.037 Å
Unit-cell length c length_c	98.584 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	24.500 Å
R factor r_factor	—
R_work r_work	0.2230
R_free r_free	0.2780

fit	/app/data/saxs_computation/ib/1ibf/1ibf.fit
pddf	/app/data/pr_computation/ib/1ibf/1ibf.pr.out
profile	/app/data/saxs_computation/ib/1ibf/1ibf.dat

X-RAY 3D STRUCTURE OF P.LEIOGNATHI CU,ZN SOD MUTANT V29G

1. Protein Identity and Related Structures Protein Identity & Related Structures

CU,ZN SUPEROXIDE DISMUTASE

State in the Current Structure

Other States of the Same Protein in the Database

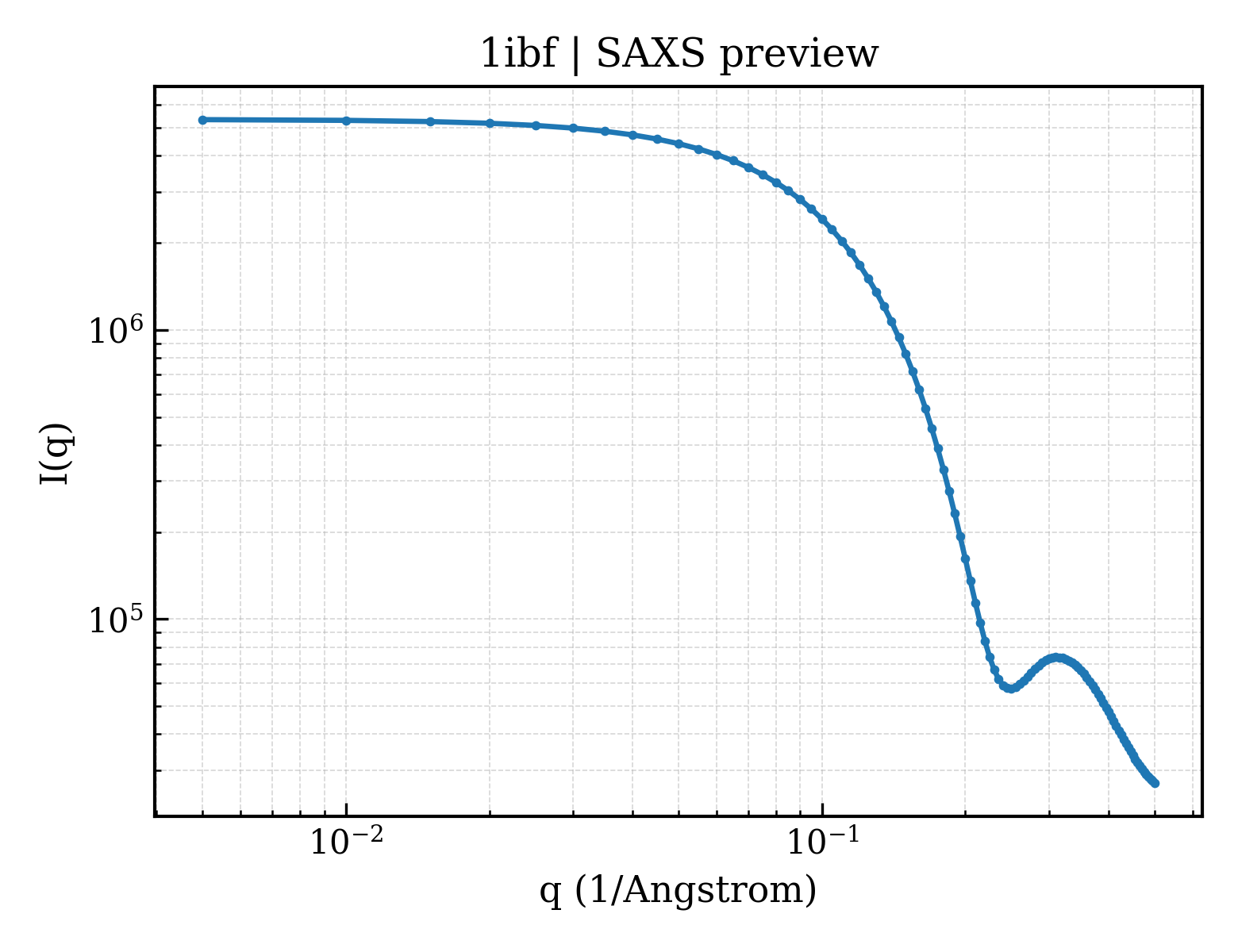

SAXS scattering curve SAXS Profile

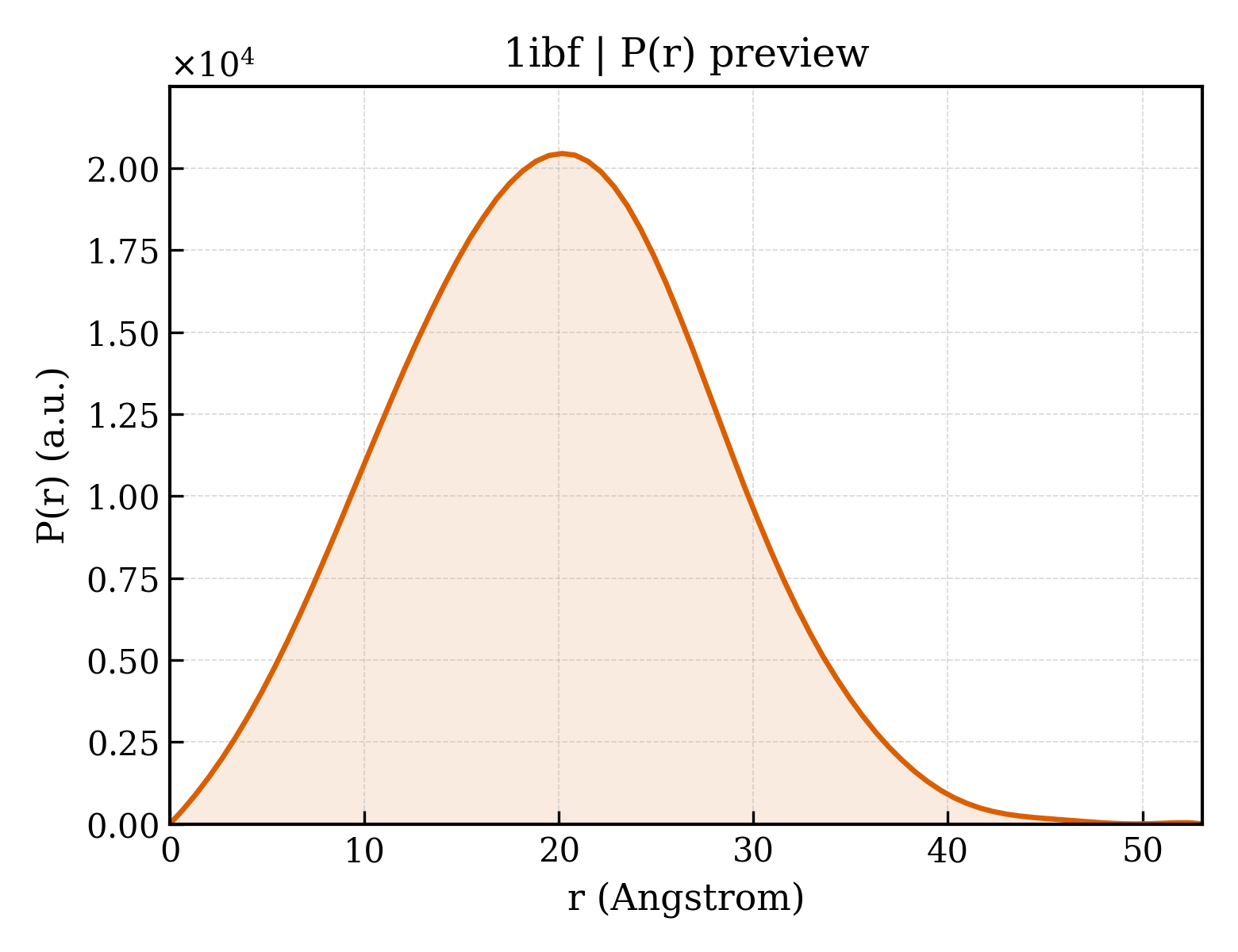

P(r) Distance Distribution P(r) Distribution
