SAXSdb — 1ibv

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1ibv
沉积日期 deposition_date	2001-03-29
结构标题 title	STRUCTURE OF THE D53,54N MUTANT OF HISTIDINE DECARBOXYLASE BOUND WITH HISTIDINE METHYL ESTER AT-170 C
关键词 keywords	SUBSTRATE-INDUCED ACTIVATION, ACTIVE FORM, SITE-DIRECTED MUTANT, PYRUVOYL, CARBOXY-LYASE, LYASE; LYASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	27.93 Å
回转半径 Rg (电子) rg_electron	26.70 Å
零角强度 I(0) i0	172980000.00
分子量 molecular_weight	102720.0 kDa
排除体积 excluded_volume	127890 Å³
包络体积 envelope_volume	148590 Å³
水化壳体积 shell_volume	43252 Å³
包络直径 envelope_diameter	80.8 Å
壳层 Rg shell_rg	36.40 Å
包络 Rg envelope_rg	26.84 Å
形状 Rg shape_rg	26.70 Å
总 Rg total_rg	27.64 Å
总原子数 total_atoms	7224
残基数 n_residues	927
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	80.0 Å
Rg (实空间) rg_real	27.66 Å
Rg 误差 (实空间) rg_real_error	0.39 Å
I(0) (实空间) i0_real	1.7300e+08
I(0) 误差 (实空间) i0_real_error	2.2850e+06
Rg (倒空间) rg_reciprocal	27.74 Å
I(0) (倒空间) i0_reciprocal	173000000.0000
解质量估计 total_estimate	0.9081
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	36.5 Å
偏度 Skewness skewness	0.019
峰度 Kurtosis kurtosis	-0.563
角度范围 angular_range	— – 0.2850 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	25710000.0000
实空间数据点数 n_real_points	58
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.962; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.968; Smooth: 0.947

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	HISTIDINE DECARBOXYLASE BETA CHAIN
分子量 formula_weight	8848.9 kDa
突变 mutation	D53N, D54N
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E
原子数 atom_count	7332

SELDAKLNKLGVDRIAISPYKQWTRGYMEPGNIGNGYVTGLKVDAGVRDKSDNNVLDGIVSYDRAETKNAYIGQINMTTAS

来源 Source

来源生物 organism	Lactobacillus sp. 30A
NCBI 分类编号 ncbi_taxonomy_id	1593
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Histidine decarboxylase alpha chain
分子量 formula_weight	25285.4 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D,F

XFTGVQGRVIGYDILRSPEVDKAKPLFTETQWDGSELPIYDAKPLQDALVEYFGTEQDRRHYPAPGSFIVCANKGVTAERPKNDADMKPGQGYGVWSAIAISFAKDPTKDSSMFVEDAGVWETPNEDELLEYLEGRRKAMAKSIAECGQDAHASFESSWIGFAYTMMEPGQIGNAITVAPYVSLPIDSIPGGSILTPDKDMEIMENLTMPEWLEKMGYKSLSANNALKY

来源 Source

来源生物 organism	Lactobacillus sp. 30A
NCBI 分类编号 ncbi_taxonomy_id	1593
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	HISTIDINE-METHYL-ESTER
分子量 formula_weight	170.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	108

▼

6. 折叠分类 (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

结构域编号 domain_id	d1ibv.1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.155 — Pyruvoyl-dependent histidine and arginine decarboxylases
超家族 Superfamily superfamily	d.155.1 — Pyruvoyl-dependent histidine and arginine decarboxylases
家族 Family family	d.155.1.1 — Histidine decarboxylase

结构域编号 domain_id	d1ibv.2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.155 — Pyruvoyl-dependent histidine and arginine decarboxylases
超家族 Superfamily superfamily	d.155.1 — Pyruvoyl-dependent histidine and arginine decarboxylases
家族 Family family	d.155.1.1 — Histidine decarboxylase

结构域编号 domain_id	d1ibv.3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.155 — Pyruvoyl-dependent histidine and arginine decarboxylases
超家族 Superfamily superfamily	d.155.1 — Pyruvoyl-dependent histidine and arginine decarboxylases
家族 Family family	d.155.1.1 — Histidine decarboxylase

CATH v4.4 (3 domains)

结构域编号 domain_id	1ibvA00
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	510 — Pyruvoyl-Dependent Histidine Decarboxylas; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Pyruvoyl-Dependent Histidine Decarboxylas, subunit A

结构域编号 domain_id	1ibvC00
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	510 — Pyruvoyl-Dependent Histidine Decarboxylas; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Pyruvoyl-Dependent Histidine Decarboxylas, subunit A

结构域编号 domain_id	1ibvE00
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	510 — Pyruvoyl-Dependent Histidine Decarboxylas; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Pyruvoyl-Dependent Histidine Decarboxylas, subunit A

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	96.272 Å
晶胞边长 b length_b	115.480 Å
晶胞边长 c length_c	206.393 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	2.500 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2465
R_work r_work	0.2429
R_free r_free	0.2793

fit	/app/data/saxs_computation/ib/1ibv/1ibv.fit
pddf	/app/data/pr_computation/ib/1ibv/1ibv.pr.out
profile	/app/data/saxs_computation/ib/1ibv/1ibv.dat

STRUCTURE OF THE D53,54N MUTANT OF HISTIDINE DECARBOXYLASE BOUND WITH HISTIDINE METHYL ESTER AT-170 C

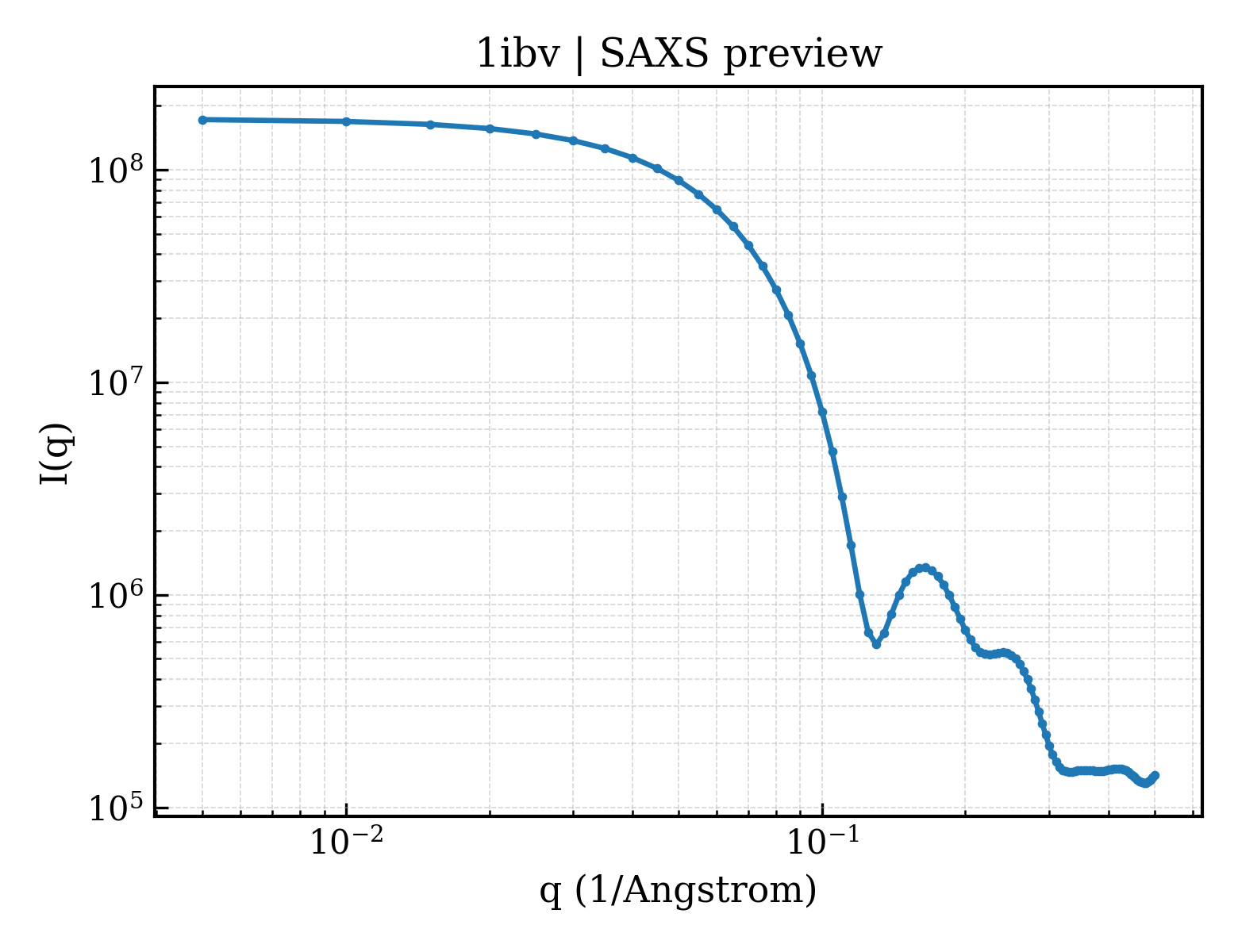

SAXS 散射曲线 SAXS Profile

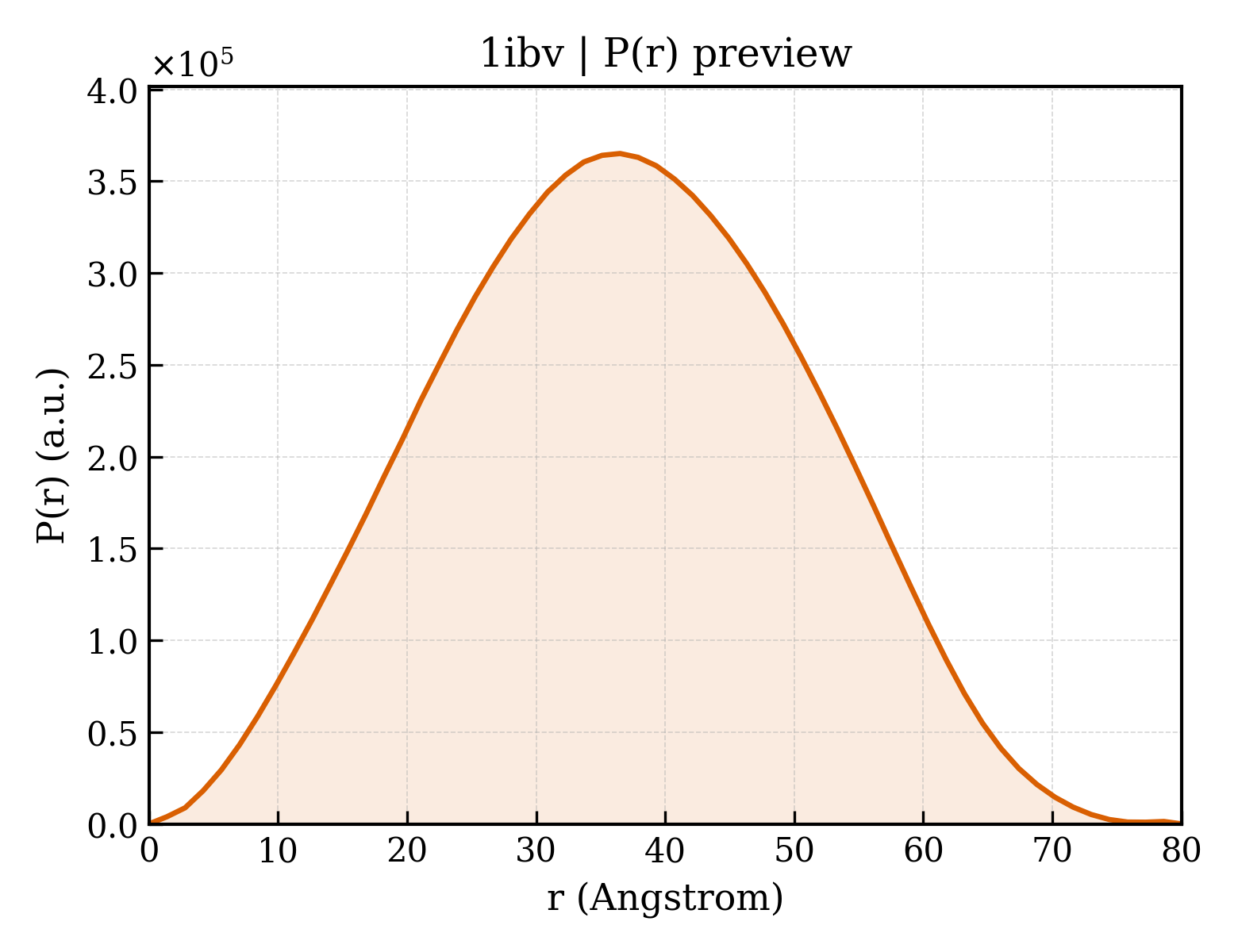

P(r) 距离分布 P(r) Distribution
