1icn
;ESCHERICHIA COLI-DERIVED RAT INTESTINAL FATTY ACID BINDING PROTEIN WITH BOUND MYRISTATE AT 1.5 A RESOLUTION AND I-FABPARG106-->GLN WITH BOUND OLEATE AT 1.74 A RESOLUTION ;
SAXS 散射曲线 SAXS Profile

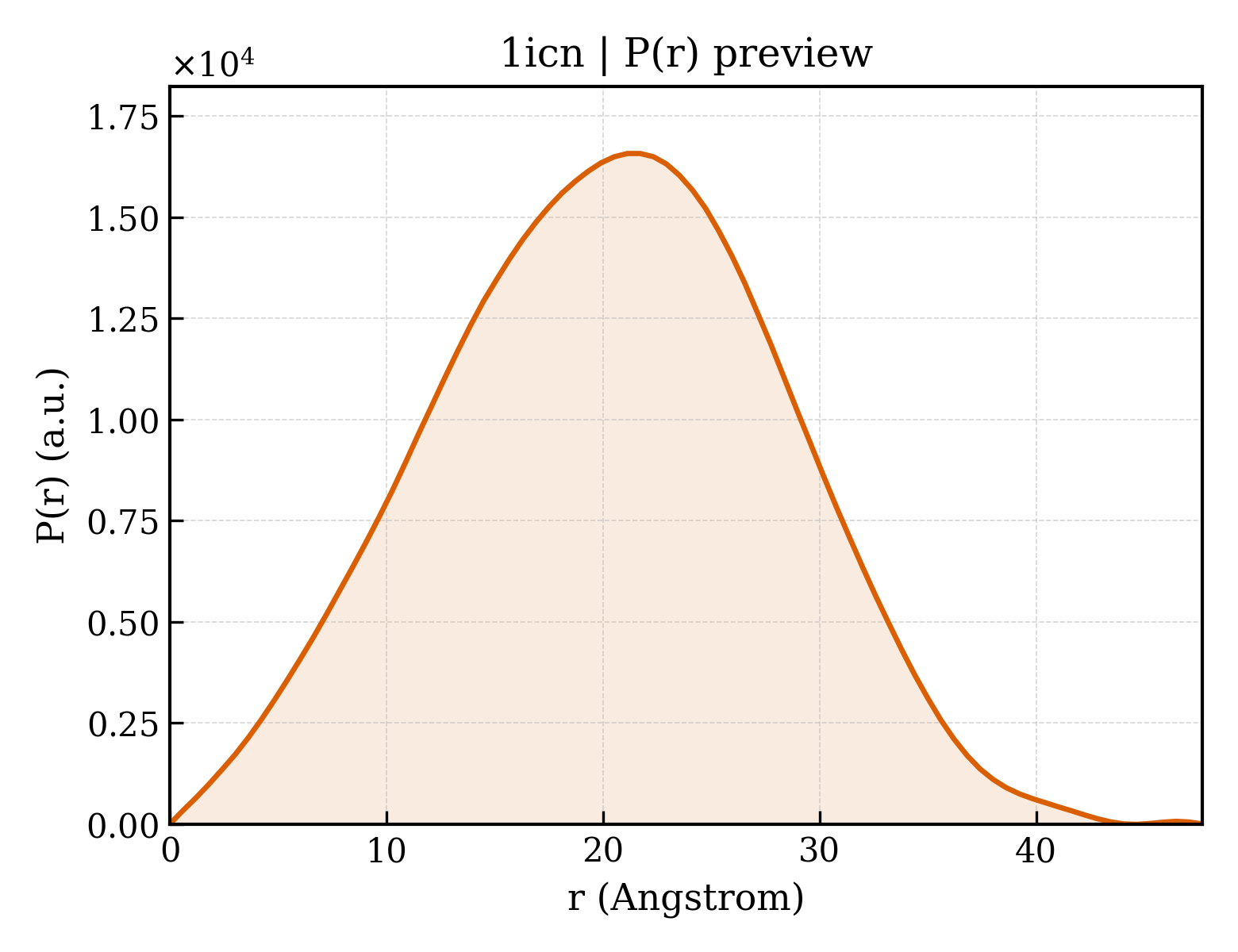

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1icn |
| 沉积日期 deposition_date | 1993-09-20 |
| 结构标题 title | ;ESCHERICHIA COLI-DERIVED RAT INTESTINAL FATTY ACID BINDING PROTEIN WITH BOUND MYRISTATE AT 1.5 A RESOLUTION AND I-FABPARG106-->GLN WITH BOUND OLEATE AT 1.74 A RESOLUTION ; |
| 关键词 keywords | BINDING PROTEIN(FATTY ACID); BINDING PROTEIN(FATTY ACID) |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 15.52 Å |
| 回转半径 Rg (电子) rg_electron | 14.05 Å |
| 零角强度 I(0) i0 | 4313490.00 |
| 分子量 molecular_weight | 15159.0 kDa |
| 排除体积 excluded_volume | 19165 ų |
| 包络体积 envelope_volume | 21591 ų |
| 水化壳体积 shell_volume | 12998 ų |
| 包络直径 envelope_diameter | 46.6 Å |
| 壳层 Rg shell_rg | 19.86 Å |
| 包络 Rg envelope_rg | 14.15 Å |
| 形状 Rg shape_rg | 14.01 Å |
| 总 Rg total_rg | 15.38 Å |
| 总原子数 total_atoms | 1069 |
| 残基数 n_residues | 131 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 47.7 Å |
| Rg (实空间) rg_real | 15.39 Å |
| Rg 误差 (实空间) rg_real_error | 0.26 Å |
| I(0) (实空间) i0_real | 4.3130e+06 |
| I(0) 误差 (实空间) i0_real_error | 4.8870e+04 |
| Rg (倒空间) rg_reciprocal | 15.40 Å |
| I(0) (倒空间) i0_reciprocal | 4314000.0000 |
| 解质量估计 total_estimate | 0.8919 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 46.5 Å |
| 偏度 Skewness skewness | -0.003 |
| 峰度 Kurtosis kurtosis | -0.430 |
| 角度范围 angular_range | — – 0.5000 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 778200.0000 |
| 实空间数据点数 n_real_points | 80 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.877; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.982 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (3)
6. 折叠分类 (SCOP + CATH) 2 domains
SCOP 2.08 (1 domains)
| 结构域编号 domain_id | d1icna_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.60 — Lipocalins |
| 超家族 Superfamily superfamily | b.60.1 — Lipocalins |
| 家族 Family family | b.60.1.2 — Fatty acid binding protein-like |
CATH v4.4 (1 domains)
| 结构域编号 domain_id | 1icnA00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 128 — Lipocalin |
| 同源超家族 H-superfamily homologous superfamily | 20 — Calycin beta-barrel core domain |
