1ieb

HISTOCOMPATIBILITY ANTIGEN

Method: X-RAY DIFFRACTION D_max: 98.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

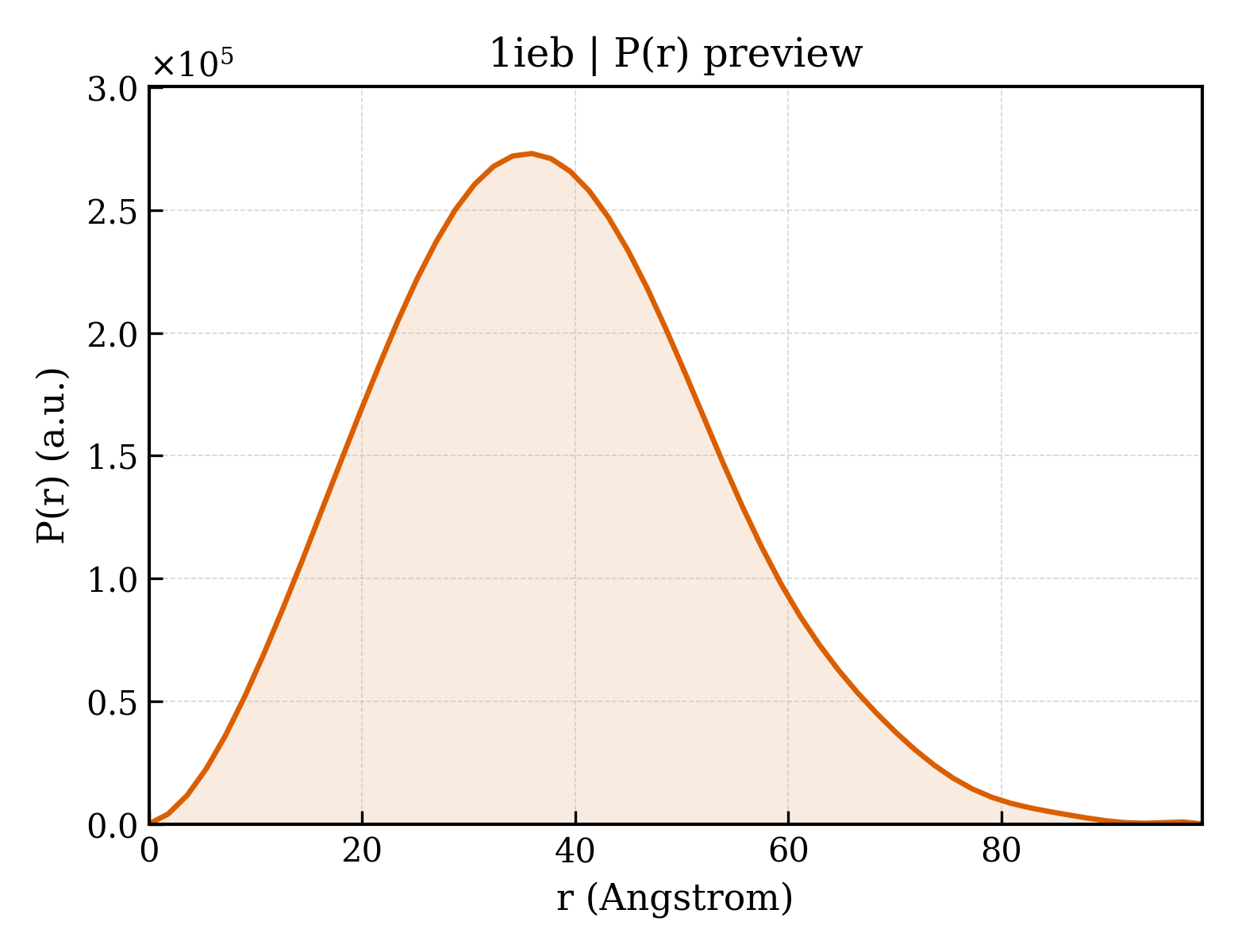

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1ieb
沉积日期 deposition_date	1996-04-05
结构标题 title	HISTOCOMPATIBILITY ANTIGEN
关键词 keywords	HISTOCOMPATIBILITY ANTIGEN; HISTOCOMPATIBILITY ANTIGEN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	28.83 Å
回转半径 Rg (电子) rg_electron	28.06 Å
零角强度 I(0) i0	135954000.00
分子量 molecular_weight	92101.0 kDa
排除体积 excluded_volume	114870 Å³
包络体积 envelope_volume	141220 Å³
水化壳体积 shell_volume	40927 Å³
包络直径 envelope_diameter	105.8 Å
壳层 Rg shell_rg	36.28 Å
包络 Rg envelope_rg	28.13 Å
形状 Rg shape_rg	28.05 Å
总 Rg total_rg	28.84 Å
总原子数 total_atoms	6513
残基数 n_residues	792
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	98.8 Å
Rg (实空间) rg_real	28.74 Å
Rg 误差 (实空间) rg_real_error	0.67 Å
I(0) (实空间) i0_real	1.3600e+08
I(0) 误差 (实空间) i0_real_error	2.0010e+06
Rg (倒空间) rg_reciprocal	28.78 Å
I(0) (倒空间) i0_reciprocal	136000000.0000
解质量估计 total_estimate	0.8621
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	35.9 Å
偏度 Skewness skewness	0.310
峰度 Kurtosis kurtosis	-0.175
角度范围 angular_range	— – 0.2750 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	29280000.0000
实空间数据点数 n_real_points	56
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.738; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.992

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	MHC CLASS II I-EK
分子量 formula_weight	22324.0 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C
原子数 atom_count	6672

IKEEHTIIQAEFYLLPDKRGEFMFDFDGDEIFHVDIEKSETIWRLEEFAKFASFEAQGALANIAVDKANLDVMKERSNNTPDANVAPEVTVLSRSPVNLGEPNILICFIDKFSPPVVNVTWLRNGRPVTEGVSETVFLPRDDHLFRKFHYLTFLPSTDDFYDCEVDHWGLEEPLRKTWEFEEKTLLPETKEN

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 polymer

描述 description	MHC CLASS II I-EK
分子量 formula_weight	26307.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D

RDSRDRMVNHFIAEFKRKGGSLVPRGSGGGGSRPWFLEYCKSECHFYNGTQRVRLLVRYFYNLEENLRFDSDVGEFRAVTELGRPDAENWNSQPEFLEQKRAEVDTVCRHNYEIFDNFLVPRRVEPTVTVYPTKTQPLEHHNLLVCSVSDFYPGNIEVRWFRNGKEEKTGIVSTGLVRNGDWTFQTLVMLETVPQSGEVYTCQVEHPSLTDPVTVEWKAQSTSAQNK

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	6

Entity 4 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	159

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1ieba1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1ieba2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.19 — MHC antigen-recognition domain
超家族 Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
家族 Family family	d.19.1.1 — MHC antigen-recognition domain

结构域编号 domain_id	d1iebb1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1iebb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.19 — MHC antigen-recognition domain
超家族 Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
家族 Family family	d.19.1.1 — MHC antigen-recognition domain

结构域编号 domain_id	d1iebc1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1iebc2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.19 — MHC antigen-recognition domain
超家族 Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
家族 Family family	d.19.1.1 — MHC antigen-recognition domain

结构域编号 domain_id	d1iebd1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1iebd2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.19 — MHC antigen-recognition domain
超家族 Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
家族 Family family	d.19.1.1 — MHC antigen-recognition domain

CATH v4.4 (8 domains)

结构域编号 domain_id	1iebA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	320 — Class II Histocompatibility Antigen, M Beta Chain; Chain B, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Class II Histocompatibility Antigen, M Beta Chain; Chain B, domain 1

结构域编号 domain_id	1iebA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1iebB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	320 — Class II Histocompatibility Antigen, M Beta Chain; Chain B, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Class II Histocompatibility Antigen, M Beta Chain; Chain B, domain 1

结构域编号 domain_id	1iebB02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1iebC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	320 — Class II Histocompatibility Antigen, M Beta Chain; Chain B, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Class II Histocompatibility Antigen, M Beta Chain; Chain B, domain 1

结构域编号 domain_id	1iebC02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1iebD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	320 — Class II Histocompatibility Antigen, M Beta Chain; Chain B, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Class II Histocompatibility Antigen, M Beta Chain; Chain B, domain 1

结构域编号 domain_id	1iebD02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	77.530 Å
晶胞边长 b length_b	77.530 Å
晶胞边长 c length_c	319.480 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	P 31 2 1
空间群编号 int_tables_number	152
晶系 crystal_system	—

分辨率 resolution	2.700 Å
最低分辨率 resolution_low	6.000 Å
R 因子 r_factor	0.2220
R_work r_work	0.2220
R_free r_free	0.3210

fit	/app/data/saxs_computation/ie/1ieb/1ieb.fit
pddf	/app/data/pr_computation/ie/1ieb/1ieb.pr.out
profile	/app/data/saxs_computation/ie/1ieb/1ieb.dat
