SAXSdb — 1iep

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTO-ONCOGENE TYROSINE-PROTEIN KINASE ABL

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	CHLORIDE ION × 4 4-(4-METHYL-PIPERAZIN-1-YLMETHYL)-N-[4-METHYL-3-(4-PYRIDIN-3-YL-PYRIMIDIN-2-YLAMINO)-PHENYL]-BENZAMIDE × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	CHLORIDE ION × 2 4-(4-METHYL-PIPERAZIN-1-YLMETHYL)-N-[4-METHYL-3-(4-PYRIDIN-3-YL-PYRIMIDIN-2-YLAMINO)-PHENYL]-BENZAMIDE × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ABL1_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 7–293； UniProt 229–515 Author chain B； PDBConstruct 7–293； UniProt 229–515

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1iep
Deposition date deposition_date	2001-04-10
Structure title title	CRYSTAL STRUCTURE OF THE C-ABL KINASE DOMAIN IN COMPLEX WITH STI-571.
Keywords keywords	KINASE, KINASE INHIBITOR, STI-571, ACTIVATION LOOP, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1iep__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1iep__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

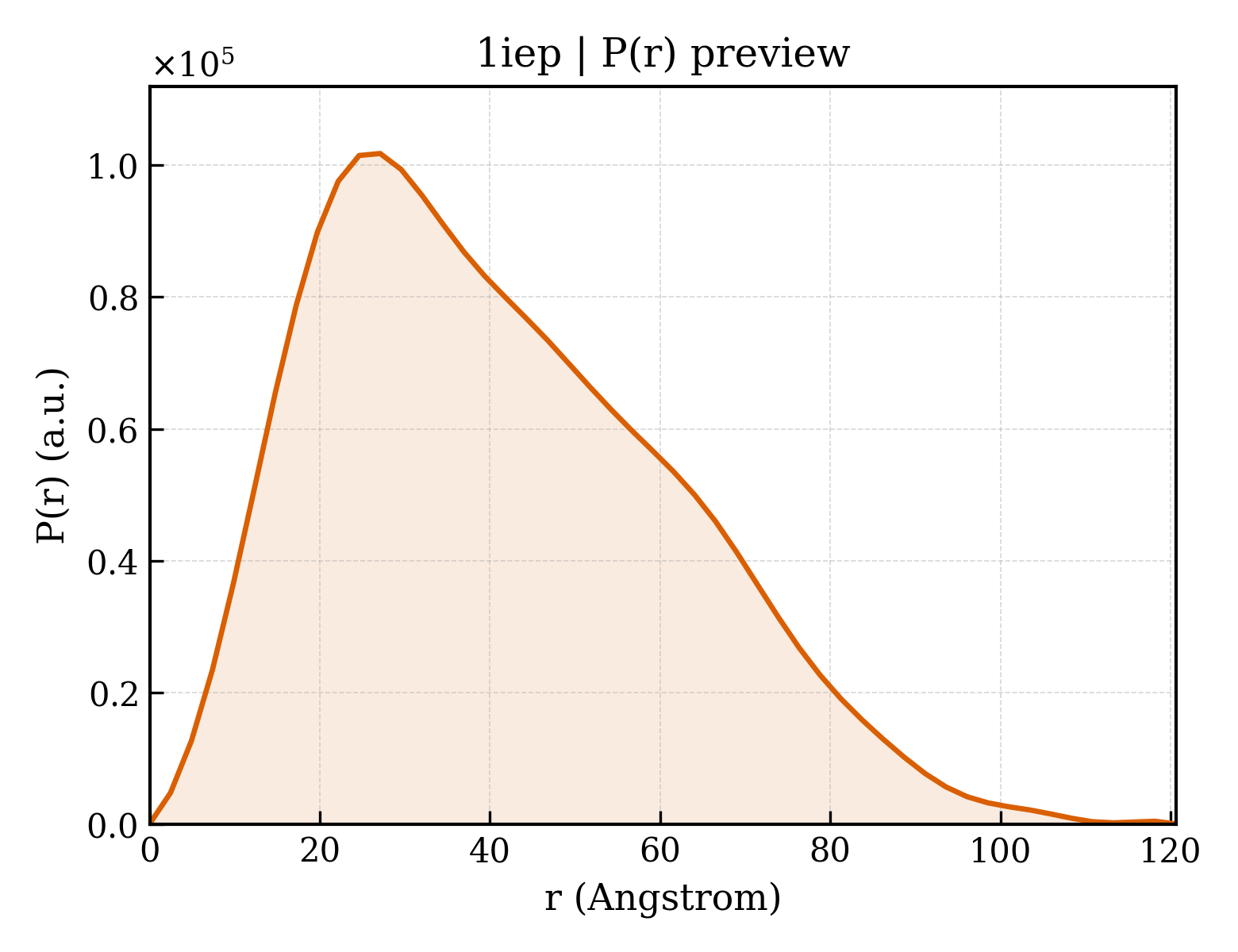

1iep__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.63 Å
Rg (electron density)	19.49 Å
Total Rg	20.43 Å
Atom count	2270
Residues	274
Excluded volume	40639 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1iep__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1iep__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	PROTO-ONCOGENE TYROSINE-PROTEIN KINASE ABL
Molecular weight formula_weight	33743.5 kDa
EC 编号 ec_number	2.7.1.112
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4710

GAMDPSSPNYDKWEMERTDITMKHKLGGGQYGEVYEGVWKKYSLTVAVKTLKEDTMEVEEFLKEAAVMKEIKHPNLVQLLGVCTREPPFYIITEFMTYGNLLDYLRECNRQEVSAVVLLYMATQISSAMEYLEKKNFIHRDLAARNCLVGENHLVKVADFGLSRLMTGDTYTAHAGAKFPIKWTAPESLAYNKFSIKSDVWAFGVLLWEIATYGMSPYPGIDLSQVYELLEKDYRMERPEGCPEKVYELMRACWQWNPSDRPSFAEIHQAFETMFQESSISDEVEKELGKRGT

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 non-polymer

Description description	4-(4-METHYL-PIPERAZIN-1-YLMETHYL)-N-[4-METHYL-3-(4-PYRIDIN-3-YL-PYRIMIDIN-2-YLAMINO)-PHENYL]-BENZAMIDE
Molecular weight formula_weight	493.6 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	172

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1iepa1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

Domain ID domain_id	d1iepa2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1iepb1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

Domain ID domain_id	d1iepb2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (4 domains)

Domain ID domain_id	1iepA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	1iepA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	1iepB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	1iepB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

▶

Unit-cell length a length_a	112.885 Å
Unit-cell length b length_b	147.371 Å
Unit-cell length c length_c	153.442 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	F 2 2 2
Space-group number int_tables_number	22
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	29.140 Å
R factor r_factor	—
R_work r_work	0.2310
R_free r_free	0.2620
