SAXSdb — 1igw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Isocitrate lyase

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	MERCURY (II) ION × 21 MAGNESIUM ION × 4 PYRUVIC ACID × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACEA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–434； UniProt 1–434 Author chain B； PDBConstruct 1–434； UniProt 1–434 Author chain C； PDBConstruct 1–434； UniProt 1–434 Author chain D； PDBConstruct 1–434； UniProt 1–434

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1igw
Deposition date deposition_date	2001-04-18
Structure title title	Crystal Structure of the Isocitrate Lyase from the A219C mutant of Escherichia coli
Keywords keywords	BETA BARREL, LYASE; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1igw__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

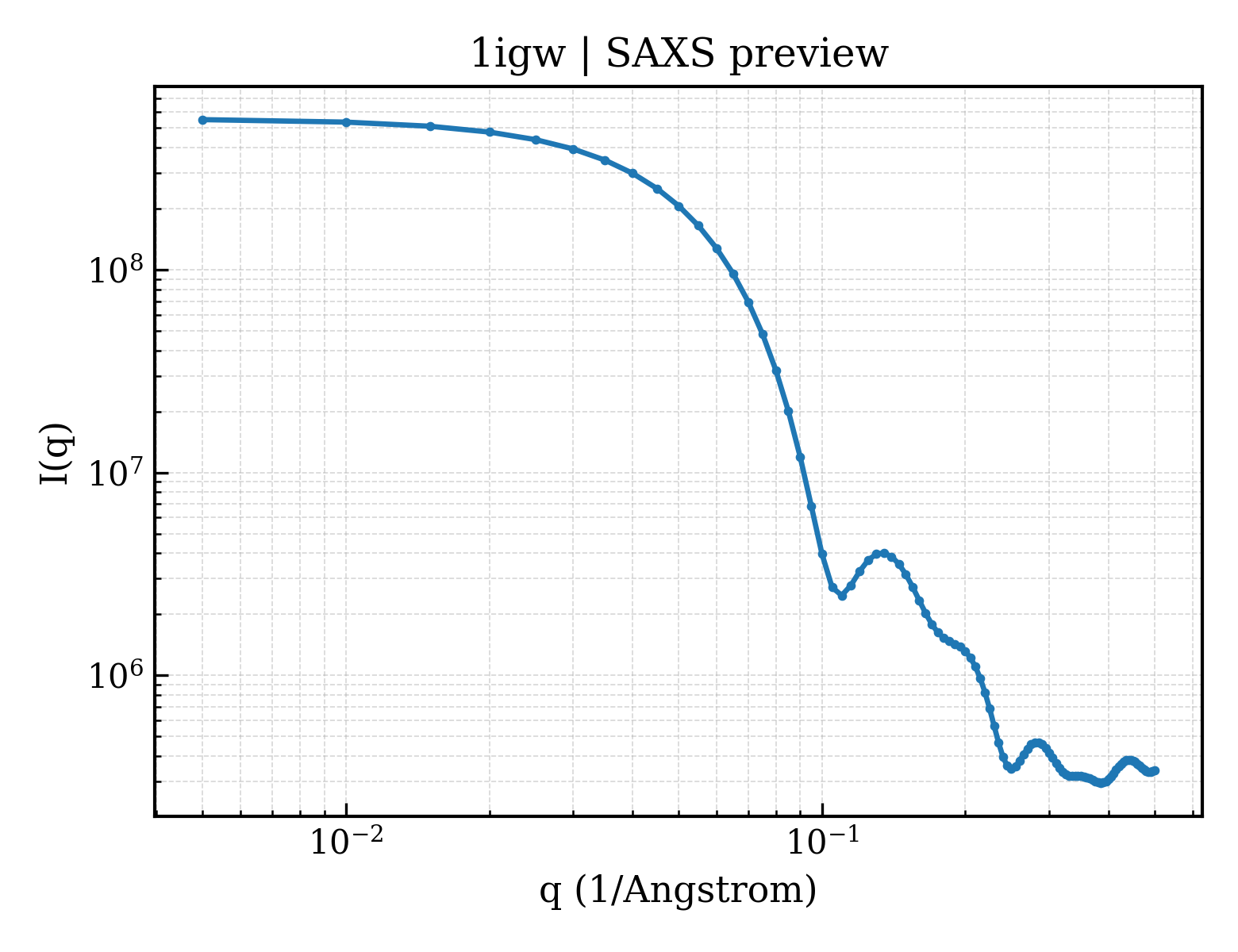

1igw__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

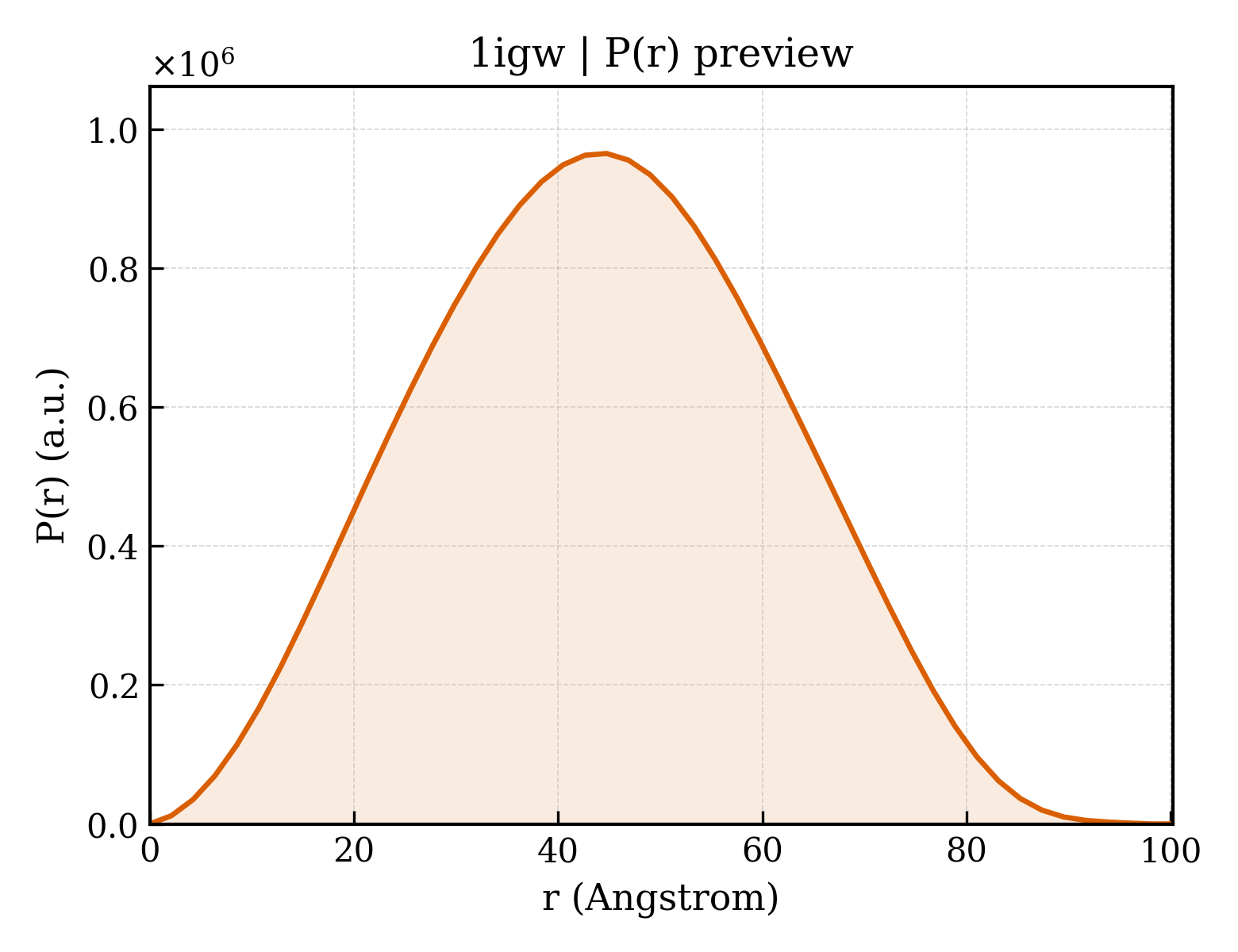

1igw__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.66 Å
Rg (electron density)	32.68 Å
Total Rg	33.23 Å
Atom count	12668
Residues	1628
Excluded volume	225020 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1igw__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Isocitrate lyase
Molecular weight formula_weight	47598.4 kDa
EC 编号 ec_number	4.1.3.1
Mutation mutation	A219C
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	13435

MKTRTQQIEELQKEWTQPRWEGITRPYSAEDVVKLRGSVNPECTLAQLGAAKMWRLLHGESKKGYINSLGALTGGQALQQAKAGIEAVYLSGWQVAADANLAASMYPDQSLYPANSVPAVVERINNTFRRADQIQWSAGIEPGDPRYVDYFLPIVADAEAGFGGVLNAFELMKAMIEAGAAAVHFEDQLASVKKCGHMGGKVLVPTQEAIQKLVAARLCADVTGVPTLLVARTDADAADLITSDCDPYDSEFITGERTSEGFFRTHAGIEQAISRGLAYAPYADLVWCETSTPDLELARRFAQAIHAKYPGKLLAYNCSPSFNWQKNLDDKTIASFQQQLSDMGYKFQFITLAGIHSMWFNMFDLANAYAQGEGMKHYVEKVQQPEFAAAKDGYTFVSHQQEVGTGYFDKVTTIIQGGTSSVTALTGSTEESQF

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MERCURY (II) ION
Molecular weight formula_weight	200.6 kDa
Source method src_method	syn
Copy count entity_count	21

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	PYRUVIC ACID
Molecular weight formula_weight	88.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	767

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1igwa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.12 — Phosphoenolpyruvate/pyruvate domain
Family Family family	c.1.12.7 — Phosphoenolpyruvate mutase/Isocitrate lyase-like

Domain ID domain_id	d1igwb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.12 — Phosphoenolpyruvate/pyruvate domain
Family Family family	c.1.12.7 — Phosphoenolpyruvate mutase/Isocitrate lyase-like

Domain ID domain_id	d1igwc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.12 — Phosphoenolpyruvate/pyruvate domain
Family Family family	c.1.12.7 — Phosphoenolpyruvate mutase/Isocitrate lyase-like

Domain ID domain_id	d1igwd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.12 — Phosphoenolpyruvate/pyruvate domain
Family Family family	c.1.12.7 — Phosphoenolpyruvate mutase/Isocitrate lyase-like

CATH v4.4 (4 domains)

Domain ID domain_id	1igwA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	60 — Phosphoenolpyruvate-binding domains

Domain ID domain_id	1igwB00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	60 — Phosphoenolpyruvate-binding domains

Domain ID domain_id	1igwC00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	60 — Phosphoenolpyruvate-binding domains

Domain ID domain_id	1igwD00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	60 — Phosphoenolpyruvate-binding domains

▶

Unit-cell length a length_a	88.650 Å
Unit-cell length b length_b	88.650 Å
Unit-cell length c length_c	199.400 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 32
Space-group number int_tables_number	145
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	0.1870
R_work r_work	0.1840
R_free r_free	0.2350
