1ihu

CRYSTAL STRUCTURE OF THE ESCHERICHIA COLI ARSENITE-TRANSLOCATING ATPASE IN COMPLEX WITH MG-ADP-ALF3

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ARSENICAL PUMP-DRIVING ATPASE

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	MAGNESIUM ION × 2 CADMIUM ION × 8 CHLORIDE ION × 3 ADENOSINE-5'-DIPHOSPHATE × 2 ALUMINUM FLUORIDE × 1 TRIHYDROXYARSENITE(III) × 1 water × 1	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 4	MAGNESIUM ION × 8 CADMIUM ION × 32 CHLORIDE ION × 12 ADENOSINE-5'-DIPHOSPHATE × 8 ALUMINUM FLUORIDE × 4 TRIHYDROXYARSENITE(III) × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ARSA1_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–583； UniProt 1–583

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ihu
Deposition date deposition_date	2001-04-20
Structure title title	CRYSTAL STRUCTURE OF THE ESCHERICHIA COLI ARSENITE-TRANSLOCATING ATPASE IN COMPLEX WITH MG-ADP-ALF3
Keywords keywords	Aluminum Fluoride, ADP, ArsA ATPase, ATP binding site, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ihu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

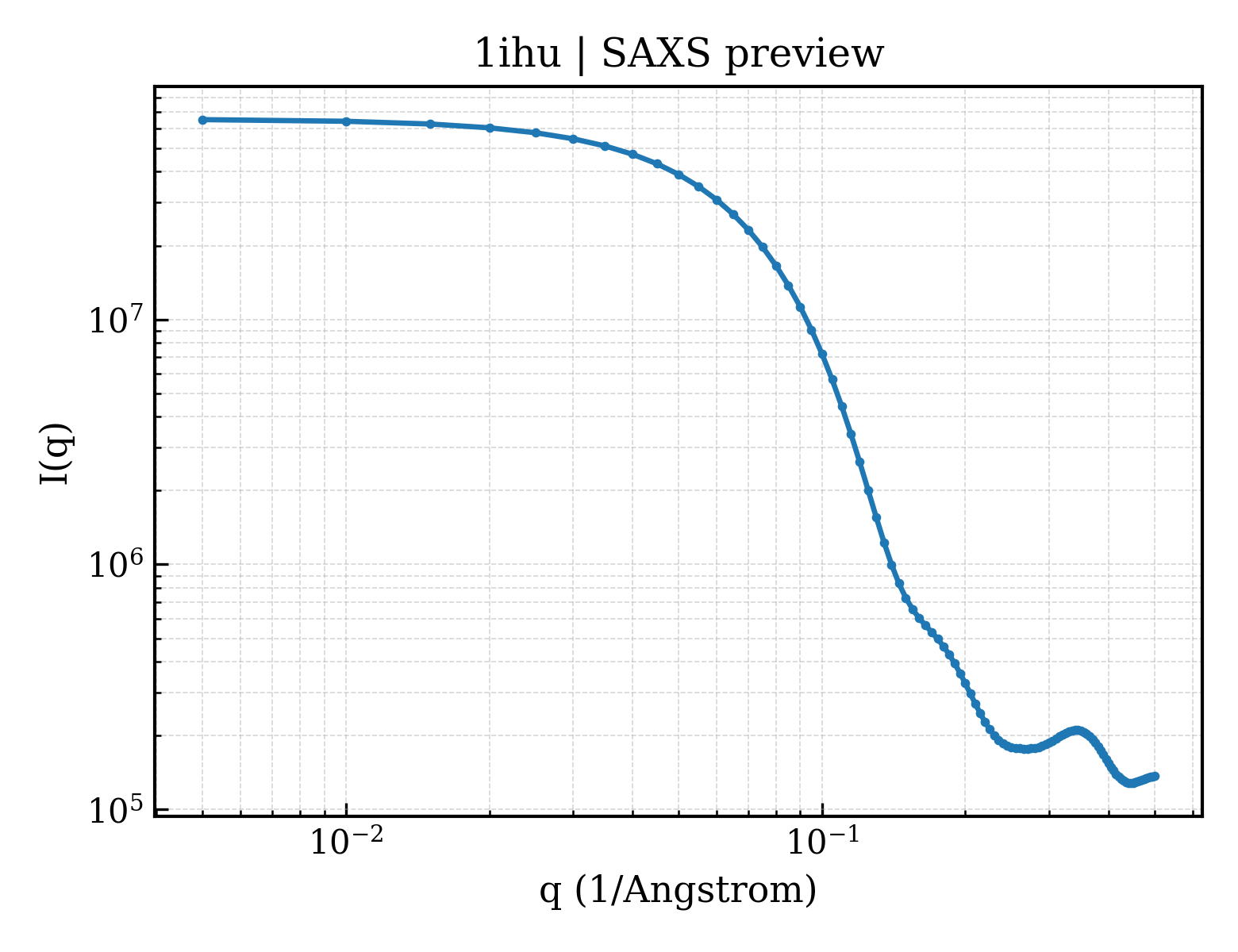

1ihu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1ihu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.89 Å
Rg (electron density)	23.79 Å
Total Rg	24.61 Å
Atom count	4197
Residues	540
Excluded volume	74982 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ihu__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1ihu__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	ARSENICAL PUMP-DRIVING ATPASE
Molecular weight formula_weight	64085.0 kDa
EC 编号 ec_number	3.6.3.16
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4389

MQFLQNIPPYLFFTGKGGVGKTSISCATAIRLAEQGKRVLLVSTDPASNVGQVFSQTIGNTIQAIASVPGLSALEIDPQAAAQQYRARIVDPIKGVLPDDVVSSINEQLSGACTTEIAAFDEFTGLLTDASLLTRFDHIIFDTAPTGHTIRLLQLPGAWSSFIDSNPEGASCLGPMAGLEKQREQYAYAVEALSDPKRTRLVLVARLQKSTLQEVARTHLELAAIGLKNQYLVINGVLPKTEAANDTLAAAIWEREQEALANLPADLAGLPTDTLFLQPVNMVGVSALSRLLSTQPVASPSSDEYLQQRPDIPSLSALVDDIARNEHGLIMLMGKGGVGKTTMAAAIAVRLADMGFDVHLTTSDPAAHLSMTLNGSLNNLQVSRIDPHEETERYRQHVLETKGKELDEAGKRLLEEDLRSPCTEEIAVFQAFSRVIREAGKRFVVMDTAPTGHTLLLLDATGAYHREIAKKMGEKGHFTTPMMLLQDPERTKVLLVTLPETTPVLEAANLQADLERAGIHPWGWIINNSLSIADTRSPLLRMRAQQELPQIESVKRQHASRVALVPVLASEPTGIDKLKQLAGHHHHHH

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	CADMIUM ION
Molecular weight formula_weight	112.4 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	ALUMINUM FLUORIDE
Molecular weight formula_weight	84.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	TRIHYDROXYARSENITE(III)
Molecular weight formula_weight	125.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	192

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1ihua1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.10 — Nitrogenase iron protein-like

Domain ID domain_id	d1ihua2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.10 — Nitrogenase iron protein-like

Domain ID domain_id	d1ihua3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	1ihuA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1ihuA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

Unit-cell length a length_a	73.897 Å
Unit-cell length b length_b	75.945 Å
Unit-cell length c length_c	222.607 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	I 2 2 2
Space-group number int_tables_number	23
Crystal system crystal_system	—

Resolution resolution	2.150 Å
Low-resolution limit resolution_low	25.150 Å
R factor r_factor	0.2150
R_work r_work	0.2150
R_free r_free	0.2620
